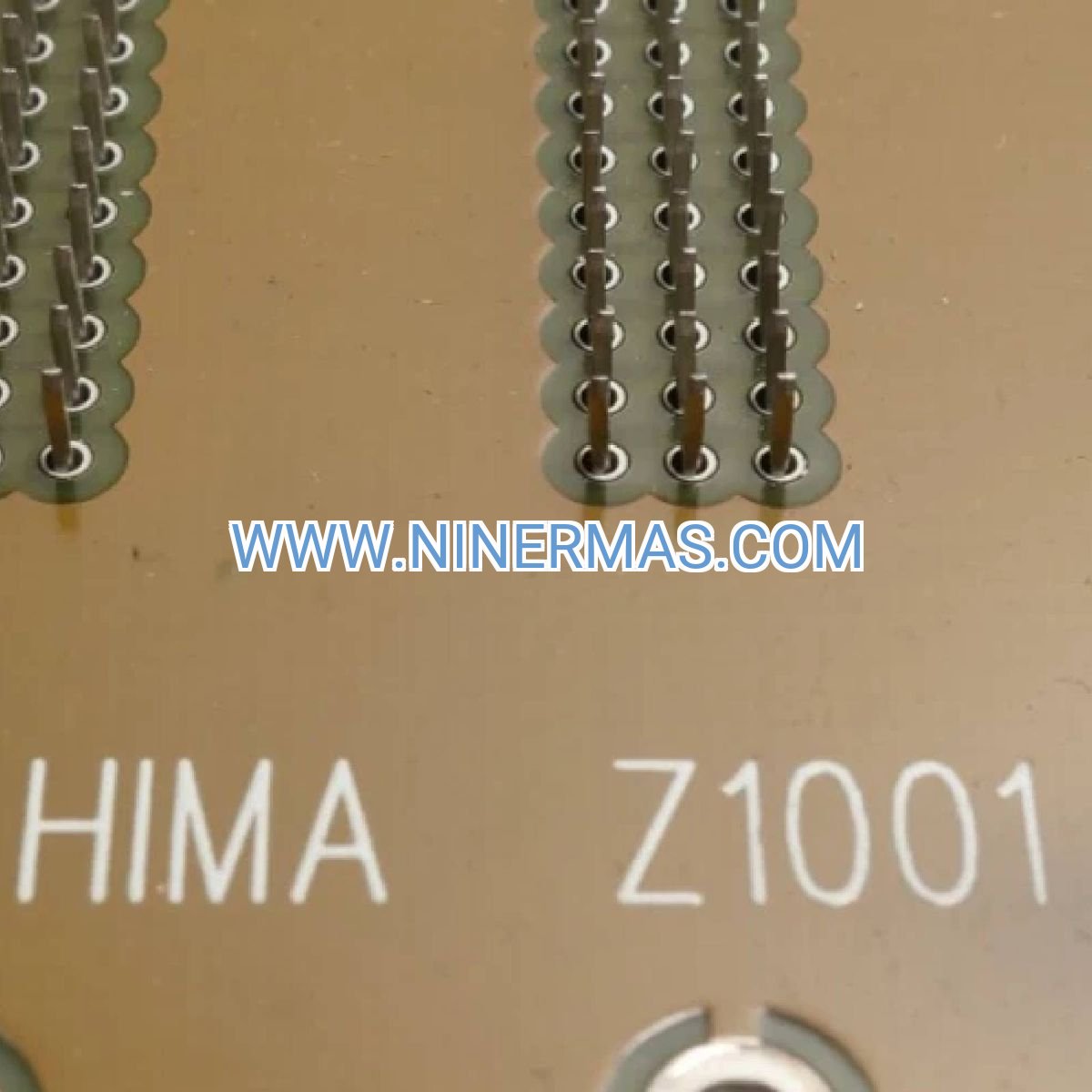

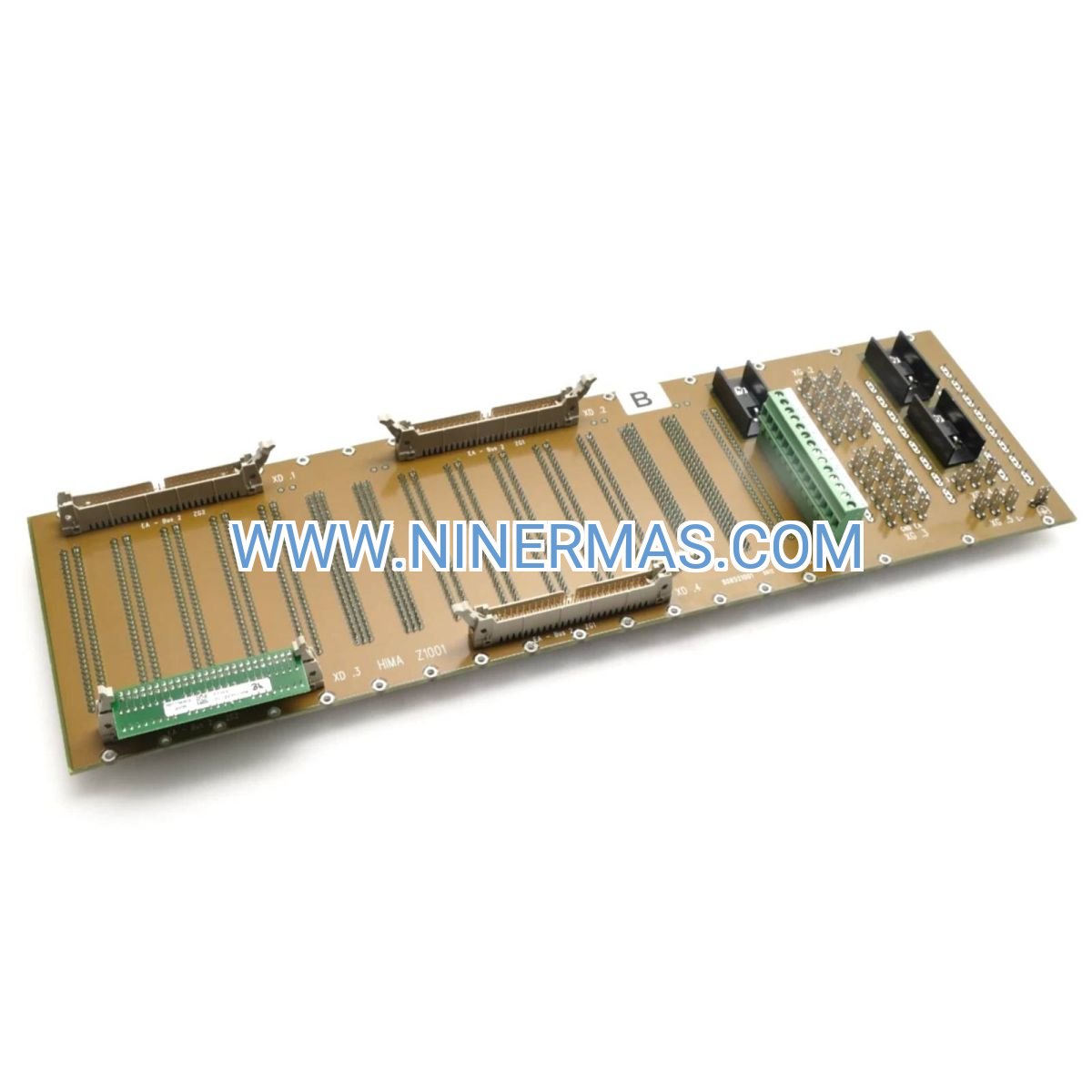

Z1001 Safety System Backplane Module (Industrial-Grade Interface Solution)

The Z1001 represents HIMA's commitment to fail-safe automation infrastructure, providing a mission-critical backplane interface for terminal block systems in high-consequence industrial environments. This module serves as the foundational connectivity layer between safety controllers and field instrumentation, ensuring signal integrity and system reliability where operational failures are not an option.

Designed for process industries requiring Safety Integrity Level 3 (SIL 3) compliance, the Z1001 addresses the core challenge of maintaining secure, traceable signal paths in complex safety instrumented systems. Plant engineers and automation integrators rely on this backplane module to establish robust communication architectures that withstand harsh operating conditions while enabling rapid maintenance and system expansion.

With factory-validated performance and comprehensive certification documentation, the Z1001 eliminates integration uncertainties and accelerates project commissioning timelines. Its modular construction philosophy supports both greenfield installations and brownfield retrofits across oil & gas, chemical processing, and power generation sectors.

Core Features & Business Value

→ SIL 3 Certified Architecture
Meets IEC 61508 functional safety standards with documented failure rates and diagnostic coverage, reducing liability exposure and ensuring regulatory compliance for critical safety applications.

→ Hot-Swap Capability
Enables module replacement during live operations without process interruption, minimizing unplanned downtime costs and supporting continuous production requirements in 24/7 facilities.

→ DIN Rail Mounting System
Universal mounting compatibility accelerates installation workflows and reduces panel fabrication costs, with tool-free clip mechanisms that simplify field modifications and system reconfigurations.

→ Integrated Diagnostic Functions
Built-in self-monitoring detects connection faults and signal degradation before they impact process safety, enabling predictive maintenance strategies that extend mean time between failures (MTBF).

→ Wide Temperature Operating Range
Proven performance from -20°C to +60°C supports deployment in non-climate-controlled environments, eliminating costly HVAC requirements for remote installations and offshore platforms.

✓ Backward Compatibility Assurance
Seamless integration with legacy HIMA systems protects existing capital investments while providing migration pathways to next-generation HIMax and HIMatrix platforms.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD) – Oil & Gas Sector
In offshore production facilities and refinery operations, the Z1001 provides the critical interface layer for emergency isolation valves and blowdown systems. When hazardous conditions are detected, split-second signal transmission through the backplane module triggers coordinated shutdown sequences that prevent catastrophic releases. The module's vibration-resistant construction withstands platform motion and rotating equipment proximity, while its SIL 3 rating satisfies API RP 14C requirements for offshore safety systems.

Burner Management Systems (BMS) – Power Generation
Combined-cycle power plants and industrial boiler operations depend on the Z1001 to interconnect flame detection sensors, fuel valve actuators, and purge sequence controllers. The backplane's diagnostic capabilities continuously verify signal path integrity, preventing dangerous fuel accumulation scenarios. Hot-swap functionality allows technicians to replace I/O modules during scheduled outages without extending maintenance windows, directly improving plant availability factors.

Reactor Protection Systems – Chemical Processing
Batch chemical reactors and continuous polymerization processes utilize the Z1001 to coordinate temperature, pressure, and level instrumentation with emergency cooling and pressure relief systems. The module's screw terminal design ensures vibration-proof connections in high-agitation environments, while its flame-retardant housing meets NFPA 70 requirements for hazardous location control rooms.

Machine Safety Interlocks – Manufacturing Automation
Packaging lines, robotic work cells, and material handling systems integrate the Z1001 to create safety-rated control architectures that protect personnel from mechanical hazards. The backplane enables rapid reconfiguration when production lines are retooled, with color-coded terminals that reduce wiring errors during changeover activities.

Fire & Gas Detection Networks – Offshore Platforms
Floating production storage and offloading (FPSO) vessels and fixed platforms deploy the Z1001 as the backbone for multi-zone fire and toxic gas detection systems. The module's IP20 protection rating suits control room installations, while its wide temperature tolerance accommodates tropical and arctic operating environments without derating.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the Z1001 for your safety system architecture, verify compatibility with your existing HIMA controller platform (HIMatrix, HIMax, or legacy H51q/H41q systems). Confirm that your panel design allocates sufficient DIN rail space and maintains recommended clearances for heat dissipation. For applications requiring more than standard I/O density, consider the Z1004 or Z6011 variants within the same product family.

Extended Functionality & System Integration

Engineering Software Compatibility: The Z1001 integrates seamlessly with HIMA's SILworX engineering suite, enabling offline configuration, simulation, and documentation generation. System integrators can pre-configure backplane addressing and diagnostic parameters before field installation, reducing commissioning time by up to 40%.

Redundancy Architecture Support: When deployed in fault-tolerant configurations, the Z1001 supports dual-channel safety architectures with automatic switchover capabilities. This redundancy approach achieves 99.99% system availability while maintaining SIL 3 integrity, critical for continuous process industries where unplanned shutdowns cost $50,000-$500,000 per hour.

Remote Monitoring Integration: While the backplane itself operates as a passive interconnect, it interfaces with HIMA I/O modules that support Ethernet/IP and PROFINET communication protocols. This enables integration with plant-wide asset management systems for centralized diagnostics and predictive maintenance analytics.

Customization Options: For OEM applications requiring private labeling or specialized terminal configurations, NINERMAS offers factory customization services with minimum order quantities starting at 50 units. Custom options include alternative terminal block spacing, integrated cable management accessories, and application-specific documentation packages.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock Z1001 modules ship within 24-48 hours via DHL Express or FedEx International Priority, with typical transit times of 3-7 business days to major industrial centers worldwide. All shipments include anti-static packaging and shock-monitoring labels to ensure product integrity.

Custom Configuration Lead Time: Factory-configured units with pre-loaded firmware or specialized testing protocols require 15-20 business days from order confirmation. Expedited processing available for critical path projects with premium freight options.

Warranty Coverage: Each Z1001 module includes a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs up to 36 months available for volume purchases and maintenance contract customers.

Technical Support Services: Our application engineering team provides complimentary pre-sales consultation for system architecture design, I/O point allocation, and safety integrity calculations. Post-installation support includes remote diagnostics assistance and on-site commissioning services (travel costs apply).

Documentation Package: Every shipment includes installation manual (English/Chinese), IEC 61508 compliance certificates, material traceability reports, and CAD drawings in DXF/PDF formats. Additional language translations available upon request.

Frequently Asked Questions

What HIMA controller platforms are compatible with the Z1001 backplane module?
The Z1001 supports all current HIMA safety controller families including HIMatrix, HIMax, and legacy H51q/H41q systems. It maintains full backward compatibility with installations dating to the early 2000s, protecting your existing automation infrastructure investments while enabling phased migration to newer platforms.

Can the Z1001 be installed in hazardous area classifications such as Class I Division 2 or Zone 2 environments?
The Z1001 carries IP20 ingress protection and is designed for control room installations in non-hazardous areas. For field-mounted applications in classified locations, the backplane must be housed within explosion-proof or purged enclosures meeting local electrical code requirements (NEC 500/505 or IECEx standards).

How does the hot-swap capability work, and what precautions are necessary during module replacement?
The Z1001's backplane architecture isolates individual I/O module slots, allowing technicians to remove and replace modules without de-energizing the entire system. However, proper lockout/tagout procedures must be followed, and replacement modules should be pre-configured to match the existing system parameters to prevent inadvertent safety function disruption.

What diagnostic information does the Z1001 provide for predictive maintenance programs?
When paired with HIMA's intelligent I/O modules, the backplane enables monitoring of connection resistance, signal quality metrics, and thermal conditions. These parameters feed into plant asset management systems, triggering maintenance alerts when degradation trends indicate approaching failure thresholds—typically 60-90 days before actual faults occur.

Are there any special storage requirements for spare Z1001 modules in our maintenance inventory?
Store spare modules in their original anti-static packaging within the -40°C to +85°C temperature range and below 95% relative humidity (non-condensing). Avoid prolonged exposure to direct sunlight or corrosive atmospheres. Modules stored under these conditions maintain full warranty coverage for up to 5 years from manufacture date.

What is the typical mean time between failures (MTBF) for the Z1001 in continuous operation?
Under normal industrial operating conditions (25°C ambient, 60% duty cycle), the Z1001 demonstrates an MTBF exceeding 500,000 hours based on MIL-HDBK-217F reliability predictions. Actual field performance may vary based on environmental stressors, installation quality, and maintenance practices.

Take the Next Step

Ready to enhance your safety system reliability with the Z1001 backplane module? Our technical sales team is standing by to assist with system architecture reviews, compatibility verification, and volume pricing quotations. Contact us today to discuss your specific application requirements and receive a detailed proposal within 24 hours.

Request a Quote: Email your bill of materials to sale@ninermas.com or call our direct line at +0086 187 5021 5667 to speak with an automation specialist. Mention reference code Z1001-WEB to receive priority processing and access to current promotional pricing.
