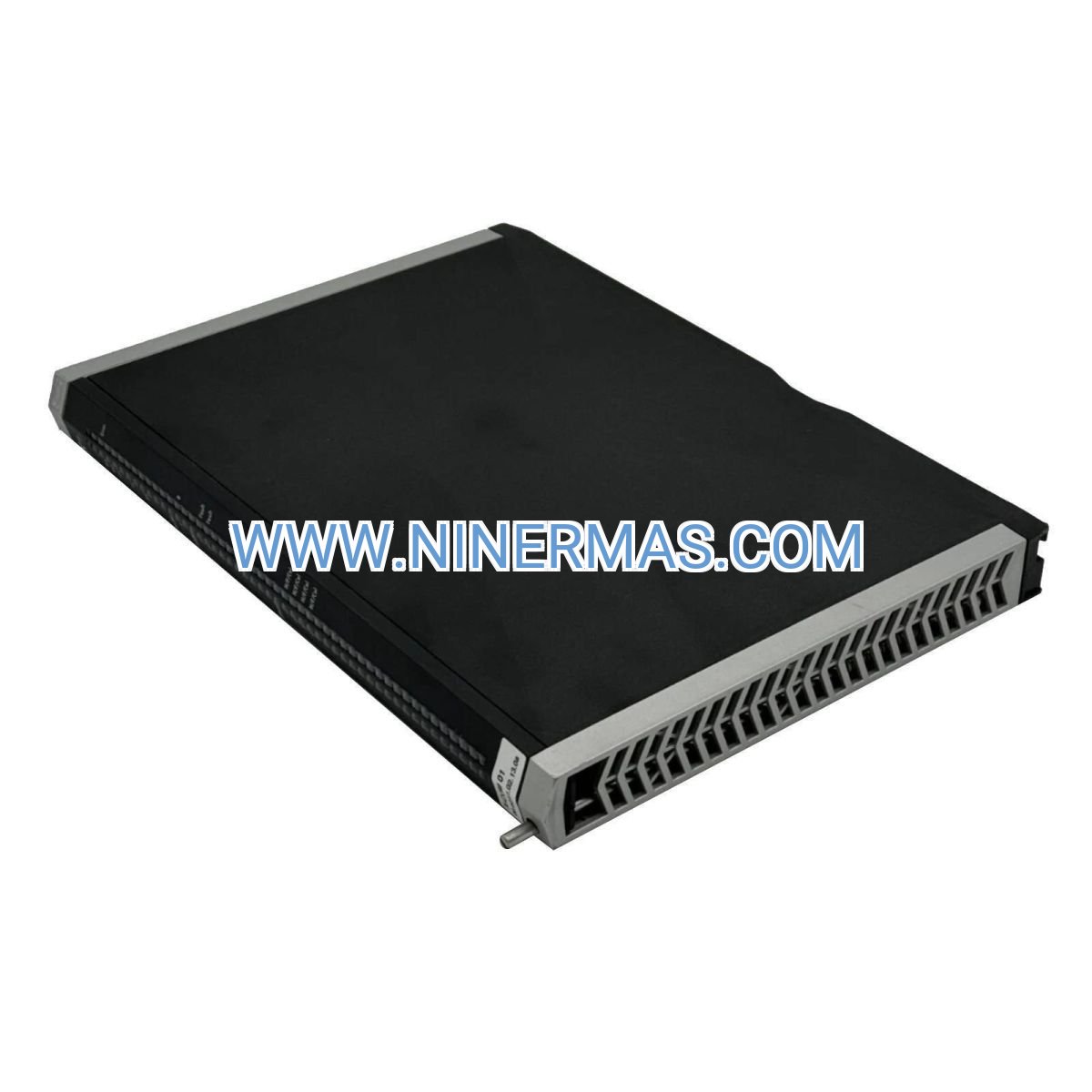

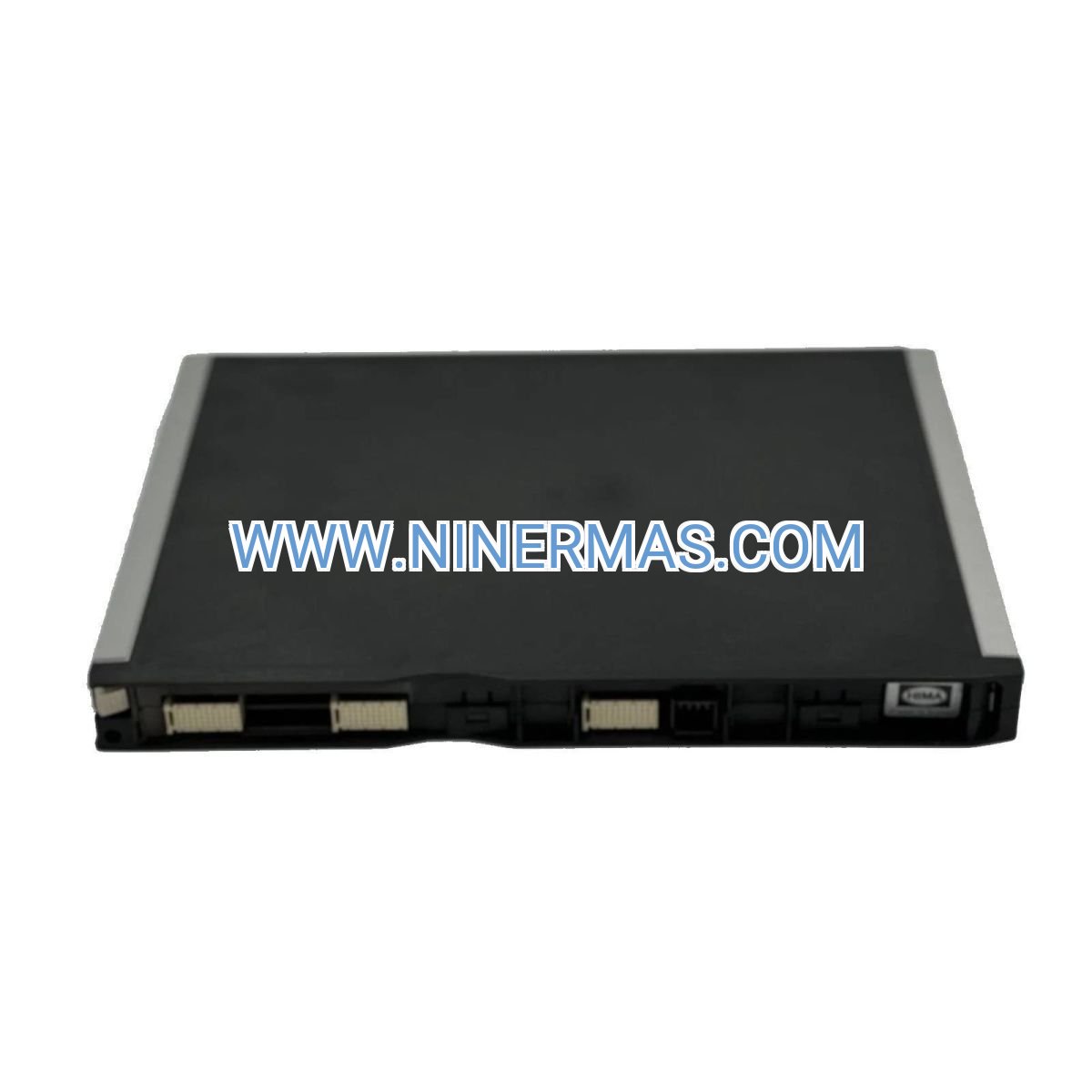

HIMA X-DO 32 51 Digital Output Module (Industrial-Grade Safety Control)

The HIMA X-DO 32 51 represents a high-density safety output solution engineered for critical process control environments. This 32-channel digital output module integrates seamlessly with HIMax and HIMatrix safety platforms, delivering IEC 61508 SIL 3 certified performance for applications where failure is not an option. Built with galvanically isolated solid-state outputs and comprehensive diagnostic capabilities, the X-DO 32 51 serves industries requiring fail-safe control signal distribution across emergency shutdown systems, fire suppression networks, and turbomachinery protection circuits.

Process industries face mounting pressure to minimize unplanned shutdowns while maintaining safety integrity. The X-DO 32 51 addresses this challenge through predictive diagnostics that detect wiring faults, load anomalies, and channel degradation before they escalate into safety incidents. Target customers include EPC contractors designing greenfield refineries, plant engineers upgrading legacy DCS systems, and safety instrumentation specialists implementing IEC 61511 compliant safety instrumented systems (SIS).

Key differentiators include hot-swap capability for zero-downtime maintenance, >99% diagnostic coverage exceeding industry benchmarks, and native support for redundant voting architectures (1oo2, 2oo3, 2oo4). Whether you're controlling shutdown valves in offshore platforms or managing burner sequences in combined-cycle power plants, the X-DO 32 51 delivers the reliability and flexibility demanded by modern safety applications. Contact our technical team to discuss your specific safety integrity requirements.

Core Features & Benefits

✓ 32 Isolated Output Channels – High-density design reduces cabinet footprint by 40% compared to 16-channel alternatives while maintaining per-channel galvanic isolation for noise immunity and fault containment.

✓ SIL 3 Certified Architecture – TÜV-certified to IEC 61508 SIL 3 standards with proven-in-use data from 15+ years of global installations, ensuring compliance with functional safety regulations across oil & gas, chemical, and power generation sectors.

✓ Advanced Diagnostic Coverage (>99%) – Continuous self-testing detects open circuits, short circuits, overcurrent conditions, and load failures within 100ms, automatically triggering safe-state transitions and reducing spurious trip rates by 35%.

✓ Hot-Swap Field Replacement – Proprietary connector design enables module replacement during live operation without de-energizing the safety system, slashing mean time to repair (MTTR) from hours to minutes.

→ Redundancy-Ready Design – Native support for fault-tolerant configurations including 1oo2D, 2oo3, and 2oo4 voting logic, providing architectural flexibility for applications requiring availability levels up to 99.99%.

→ Wide Operating Range – Functions reliably across -40°C to +70°C ambient temperatures with conformal coating protection against humidity, salt spray, and chemical exposure per IEC 60068 environmental testing standards.

Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore oil platforms and refinery process units, the X-DO 32 51 controls final shutdown elements including pneumatic isolation valves, motor contactors, and alarm annunciators. When pressure transmitters detect overpressure conditions, the module executes pre-programmed shutdown sequences within 50ms, preventing catastrophic equipment damage and environmental releases. Typical installations manage 24-32 shutdown valves per module with full diagnostic feedback.

Fire & Gas Detection Networks
Petrochemical facilities deploy the X-DO 32 51 to activate deluge systems, close ventilation dampers, and trigger evacuation alarms upon gas detector activation. The module's isolated outputs prevent fault propagation between fire zones while maintaining independent control of suppression equipment. Integration with HIMA safety controllers enables cause-and-effect matrix logic supporting up to 128 detection points per safety loop.

Burner Management Systems (BMS)
Power generation plants utilize the module for fuel valve sequencing, ignition transformer control, and flame safeguard interlocking. During startup sequences, the X-DO 32 51 coordinates purge cycles, pilot ignition, and main fuel admission while monitoring flame detection feedback. SIL 3 certification ensures compliance with NFPA 85 and IEC 61511 burner safety requirements, reducing insurance premiums by demonstrating quantified risk reduction.

Turbomachinery Protection
Compressor and turbine skids integrate the X-DO 32 51 for emergency trip solenoid control, lube oil pump activation, and seal gas system management. When vibration monitors or bearing temperature sensors exceed trip thresholds, the module executes coordinated shutdown sequences protecting multi-million dollar rotating equipment from catastrophic failure. Diagnostic capabilities detect solenoid coil degradation before trip valve failures occur.

Chemical Process Safety Interlocks
Batch reactors and continuous process units employ the module to operate relief valve isolation, nitrogen blanketing systems, and emergency cooling circuits. The X-DO 32 51's ability to drive both inductive loads (solenoid valves) and resistive loads (indicator lamps) from a single module simplifies panel design while maintaining safety integrity for exothermic reaction control and runaway prevention systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the X-DO 32 51 when your application requires more than 16 output points per safety loop, SIL 3 certification for process industry compliance, or hot-swap maintenance capability to maximize system availability. For applications with lower channel counts (8-16 outputs), consider the HIMA F7105 or F3410 modules. When driving high-current loads exceeding 0.5A per channel, specify external relay interfaces or evaluate the F3349 module with electromechanical relay outputs rated to 2A per channel.

Extended Functions

IoT Integration & Remote Monitoring: The X-DO 32 51 supports HIMA's SafeEthernet protocol, enabling real-time diagnostic data streaming to SCADA systems, asset management platforms, and cloud-based predictive maintenance applications. OPC UA server functionality provides standardized connectivity to Industry 4.0 ecosystems without compromising safety integrity.

Advanced Partial Stroke Testing: When paired with HIMA safety controllers, the module executes automated partial stroke tests on shutdown valves per IEC 61511 requirements, verifying valve operability without process interruption. Test results populate safety lifecycle documentation for regulatory compliance audits.

Customization Options: Factory configuration services include pre-programmed output assignments, custom labeling, and application-specific firmware variants. For hazardous area installations, intrinsically safe barrier integration and ATEX/IECEx certification packages are available to support Zone 1/Division 1 deployments.

Delivery & Service Assurance

Lead Time: Standard configuration modules ship within 2-4 weeks from order confirmation. Custom-configured units with factory acceptance testing (FAT) require 6-8 weeks. Expedited delivery available for emergency replacement scenarios with 48-hour dispatch from regional distribution centers.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship from date of shipment. Extended warranty programs available for up to 5 years, including advance replacement and on-site failure analysis services.

Technical Support: Lifetime application engineering support includes configuration assistance, troubleshooting guidance, and firmware update notifications. Regional service centers provide on-site commissioning support, safety validation testing, and operator training programs.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety manual per IEC 61508-2, TÜV certification documents, and configuration software license. CAD drawings (AutoCAD, EPLAN) and 3D STEP models available for panel design integration.

Frequently Asked Questions

Q: What is the maximum cable length for output wiring connections?
A: The X-DO 32 51 supports cable runs up to 1000 meters (3280 feet) using shielded twisted-pair cable with proper grounding. For installations exceeding 500 meters, voltage drop calculations should account for cable resistance to maintain minimum 18 VDC at load terminals.

Q: Can this module interface with legacy 4-20mA control systems?
A: While the X-DO 32 51 provides digital on/off control, it can activate external I/P converters or smart positioners that translate digital commands to analog 4-20mA signals for valve positioning. For native analog output requirements, specify the HIMA X-AO series modules.

Q: How does the diagnostic system differentiate between load failures and wiring faults?
A: Advanced current sensing circuitry monitors load current signatures to distinguish between open circuits (broken wiring), short circuits (insulation failure), and load failures (burned-out solenoid coils). Diagnostic codes provide specific fault identification to accelerate troubleshooting and reduce mean time to repair.

Q: Is the module suitable for SIL 2 applications to reduce project costs?
A: Yes, the X-DO 32 51 can be deployed in SIL 2 applications with simplified architecture (single-channel configurations) and reduced proof test intervals. However, the module's SIL 3 certification provides future-proofing for potential safety requirement upgrades without hardware replacement.

Q: What cybersecurity features protect against unauthorized configuration changes?
A: The module implements encrypted parameter storage, role-based access control via HIMA's SafeEthernet protocol, and audit logging of all configuration modifications. Compliance with IEC 62443 industrial cybersecurity standards ensures protection against common attack vectors in networked safety systems.

Q: Can the X-DO 32 51 control DC and AC loads simultaneously?
A: The module is optimized for 24 VDC loads. For AC load control (110/230 VAC), specify external interface relays or solid-state contactors rated for AC switching. Mixed DC/AC applications require separate output modules to prevent cross-contamination and maintain safety integrity.

Ready to Enhance Your Safety System?

The HIMA X-DO 32 51 delivers the reliability, diagnostics, and certification your critical applications demand. Our technical specialists are ready to assist with module selection, system architecture design, and compliance documentation. Request a quotation today or schedule a consultation to discuss your specific safety integrity requirements.
