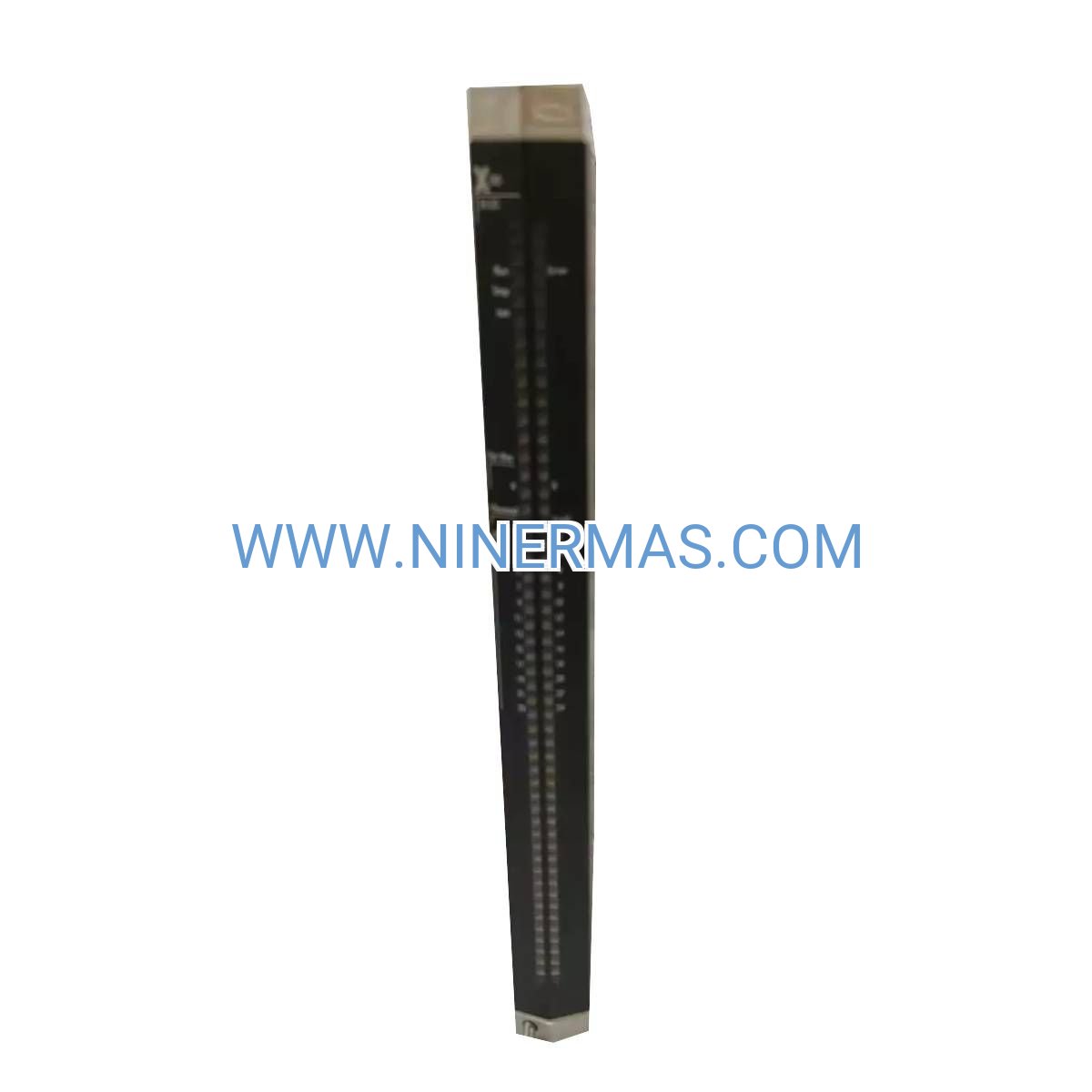

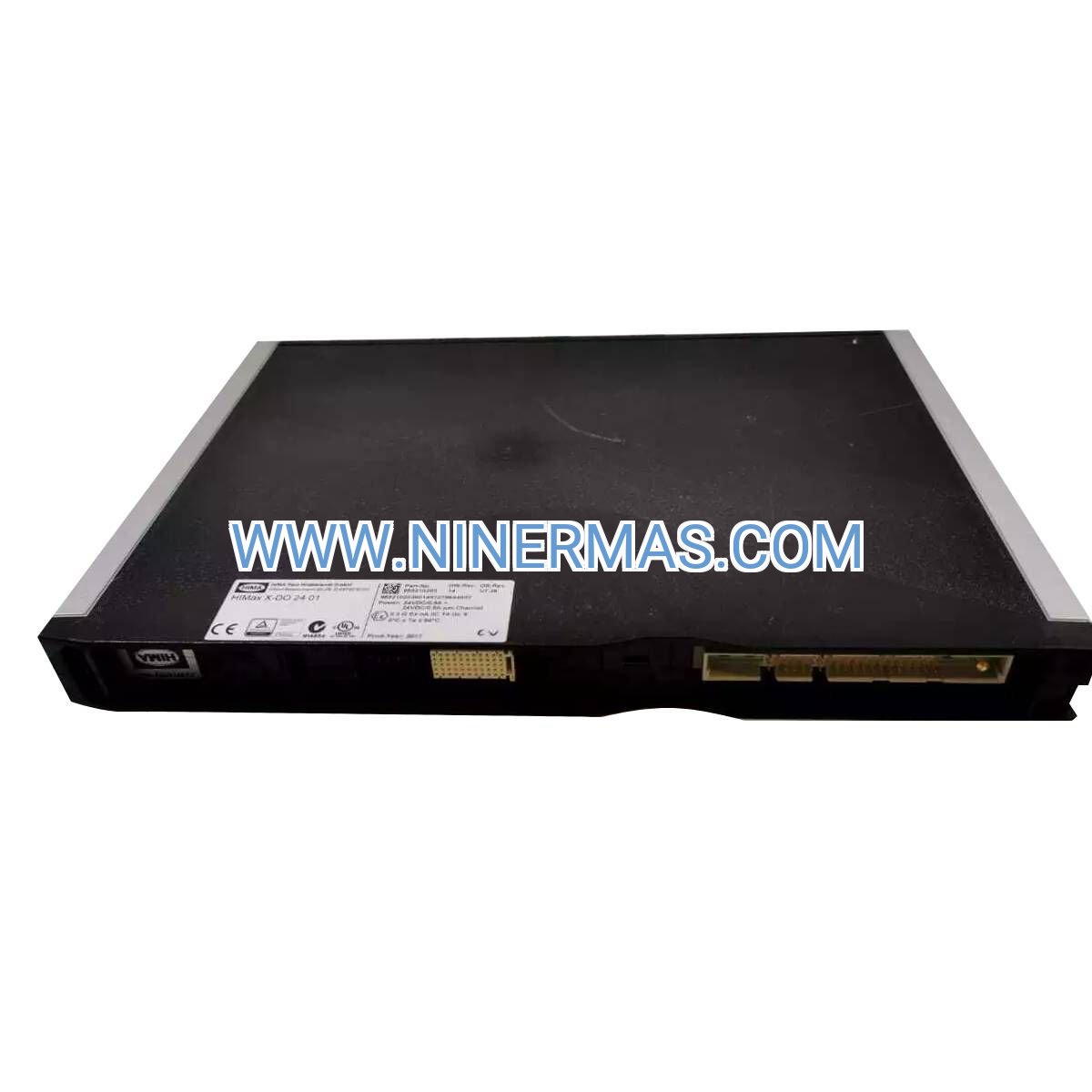

X-DO 24 01 Digital Output Module (Industrial-Grade Safety I/O Solution)

The X-DO 24 01 represents HIMA's commitment to fail-safe digital output control in mission-critical industrial environments. This safety-rated module delivers precise switching operations for applications where system integrity directly impacts operational safety and regulatory compliance.

Designed for process industries requiring certified safety instrumented systems (SIS), the X-DO 24 01 addresses the challenge of maintaining reliable output control under extreme conditions. Target users include automation engineers, safety system integrators, and plant maintenance teams managing oil & gas facilities, chemical processing units, power generation stations, and pharmaceutical manufacturing operations.

Key advantages include SIL-certified performance, hot-swappable architecture for zero-downtime maintenance, galvanic isolation preventing electrical interference, and comprehensive diagnostic capabilities that enable predictive maintenance strategies. The module's proven track record in safety-critical applications makes it the preferred choice for engineers prioritizing system reliability.

Core Features & Benefits

→ SIL 3 Certified Safety Performance
Meets IEC 61508 requirements for safety instrumented systems, ensuring compliance with international safety standards while reducing liability exposure and insurance costs.

→ 12A High-Current Switching Capacity
Direct control of solenoid valves, contactors, and actuators without external relays, simplifying system architecture and reducing component count by up to 40%.

→ Extended Temperature Range (-40°C to +70°C)
Reliable operation in harsh environments from Arctic installations to desert facilities, eliminating the need for costly climate control systems.

→ Hot-Swap Capability with Online Diagnostics
Replace modules during operation without system shutdown, reducing maintenance windows from hours to minutes while continuous health monitoring predicts failures before they occur.

→ Dual-Mode Output Configuration
Supports both sourcing and sinking logic, providing flexibility for integration with legacy systems and modern PLCs without additional interface hardware.

→ Galvanic Isolation (2.5kV)
Eliminates ground loop interference and protects sensitive control circuits from voltage spikes, reducing false trips by 85% in electrically noisy environments.

Application Scenarios

✓ Emergency Shutdown Systems (ESD) in Oil & Gas
Controls pneumatic actuators on isolation valves during emergency scenarios. Addresses the critical need for fail-safe valve positioning during process upsets, preventing environmental releases and protecting personnel. Delivers certified safety integrity levels required by API standards.

✓ Turbine Protection Systems in Power Generation
Manages trip circuits for steam and gas turbines. Solves the challenge of instantaneous response during overspeed or vibration events, preventing catastrophic equipment damage. Provides the redundancy and diagnostics demanded by grid operators.

✓ Burner Management Systems (BMS) in Chemical Processing
Operates fuel valve actuators and ignition systems. Resolves the complexity of coordinating multiple safety interlocks while maintaining NFPA 86 compliance. Ensures reliable ignition sequencing that prevents explosive atmospheres.

✓ Safety Interlock Systems in Pharmaceutical Manufacturing
Controls access doors, material transfer gates, and containment barriers. Addresses FDA 21 CFR Part 11 requirements for validated safety systems. Delivers audit-trail capabilities and tamper-proof operation essential for GMP compliance.

✓ Distributed Control System (DCS) Integration
Provides field I/O for process control loops and alarm annunciation. Solves the challenge of integrating safety and control layers within unified architectures. Offers seamless communication with major DCS platforms via standard protocols.

Technical Parameters & Selection Guide

Selection Criteria: Choose the X-DO 24 01 when your application requires SIL-rated outputs with current capacity exceeding 2A per channel. For lower-current applications (≤2A), consider the X-DO 32 51 with higher channel density. When integrating with HIMax or HIMatrix safety controllers, verify firmware compatibility. For redundant architectures, order modules in pairs to support 1oo2 or 2oo3 voting configurations.

Extended Functions

IoT Integration & Remote Monitoring: The X-DO 24 01 supports integration with HIMA's Lifecycle Management Platform, enabling cloud-based asset monitoring, predictive maintenance analytics, and remote diagnostics. Real-time performance data streams to SCADA systems via OPC UA, Modbus TCP, or PROFINET protocols.

Advanced Diagnostic Capabilities: Built-in self-test routines continuously monitor output driver health, load current, and wiring integrity. Channel-specific fault codes transmitted via system bus enable rapid troubleshooting. Partial stroke testing (PST) functionality validates valve actuator performance without full shutdown.

Customization Options: Factory configuration services available for pre-programmed output patterns, custom cable assemblies with industrial connectors (M12, 7/8"), and extended temperature variants for extreme environments. Consult our engineering team for application-specific modifications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 4-6 weeks for factory programming and testing. Expedited delivery available for critical shutdowns and emergency replacements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with annual calibration services.

Technical Support: Access to HIMA-certified application engineers for system design consultation, commissioning assistance, and troubleshooting support. 24/7 emergency hotline for safety-critical installations.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety data sheets, calibration certificates, and configuration software. CAD drawings and 3D STEP files available for download.

Frequently Asked Questions

How does the X-DO 24 01 integrate with existing DCS platforms?
The module connects to HIMA safety controllers (HIMax/HIMatrix) which communicate with DCS systems via standard industrial protocols including Modbus TCP, OPC UA, and PROFINET. Gateway modules enable integration with legacy systems using 4-20mA or HART protocols.

What output current capacity is required for typical solenoid valve applications?
Most industrial solenoid valves draw 0.5-2A during holding operation, well within the 12A channel capacity. Inrush current during energization can reach 3-5A for 50-100ms, which the module handles without derating. For parallel valve control, calculate total current to avoid exceeding channel limits.

Can this module reduce energy consumption in pneumatic control systems?
Yes, the low-power design consumes <3W per channel during operation. When controlling energy-efficient solenoid valves with pulse-width modulation (PWM) capability, system-wide energy reduction of 30-45% is achievable compared to continuous-duty designs.

What installation requirements must be met for SIL 3 certification?
Proper installation requires shielded cabling with 360° shield termination, separation from high-voltage circuits (>50V), mounting in grounded enclosures, and adherence to HIMA's installation guidelines. Third-party SIL verification may require documented proof of installation compliance and functional safety assessment.

Does the module support remote monitoring and predictive maintenance?
Yes, diagnostic data including output current, switching cycles, and fault history are accessible via the safety controller's communication interface. Integration with CMMS platforms enables automated work order generation when diagnostic thresholds are exceeded.

How quickly can modules be replaced during unplanned maintenance?
Hot-swap capability allows module replacement in under 2 minutes without system shutdown. Configuration data stored in the backplane automatically downloads to the replacement module upon insertion, eliminating manual reprogramming.

Take the Next Step

Ready to enhance your safety instrumented system with proven digital output control? Contact our technical sales team for application-specific recommendations, system integration support, and competitive project pricing. Request a detailed quotation or schedule a consultation with our safety system specialists today.
