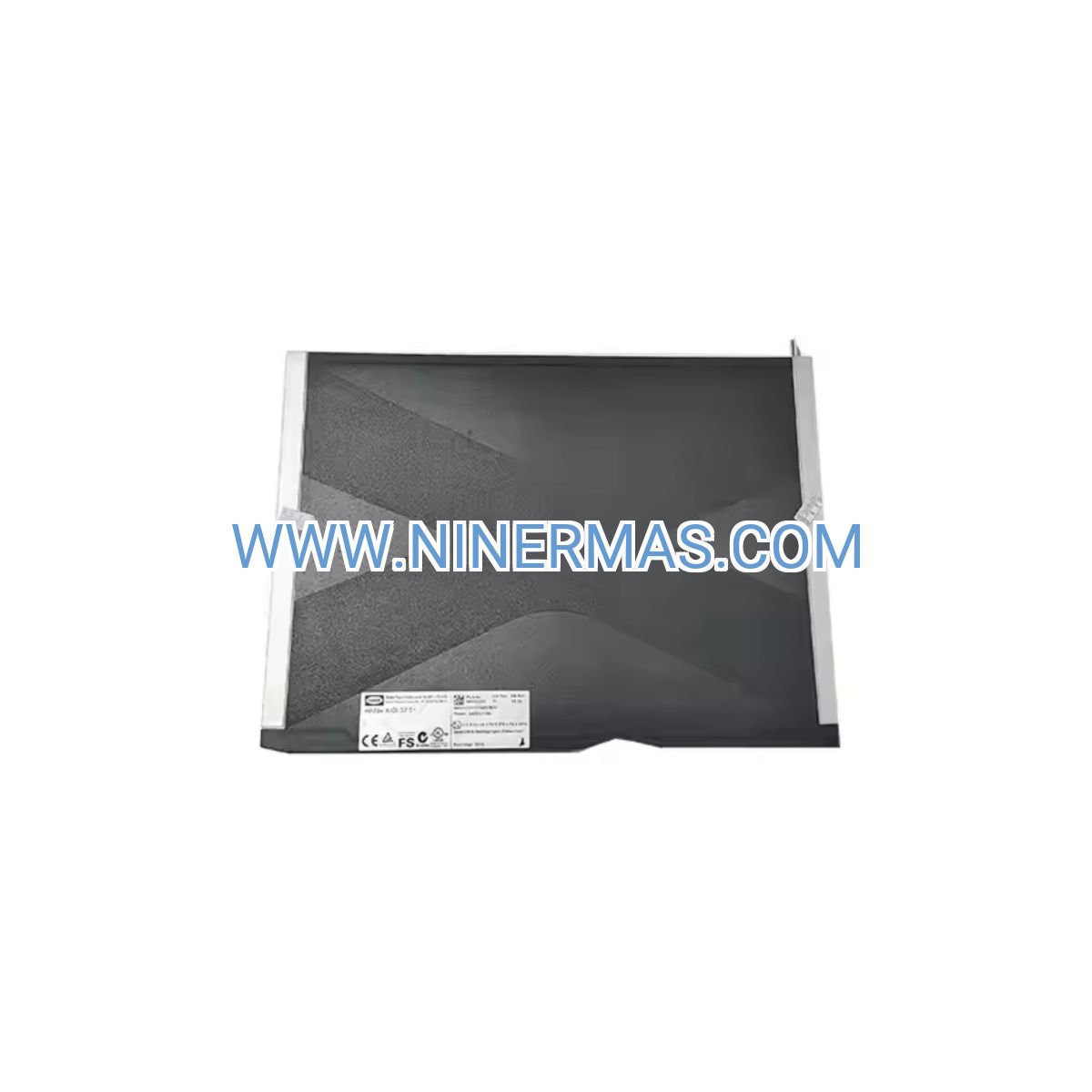

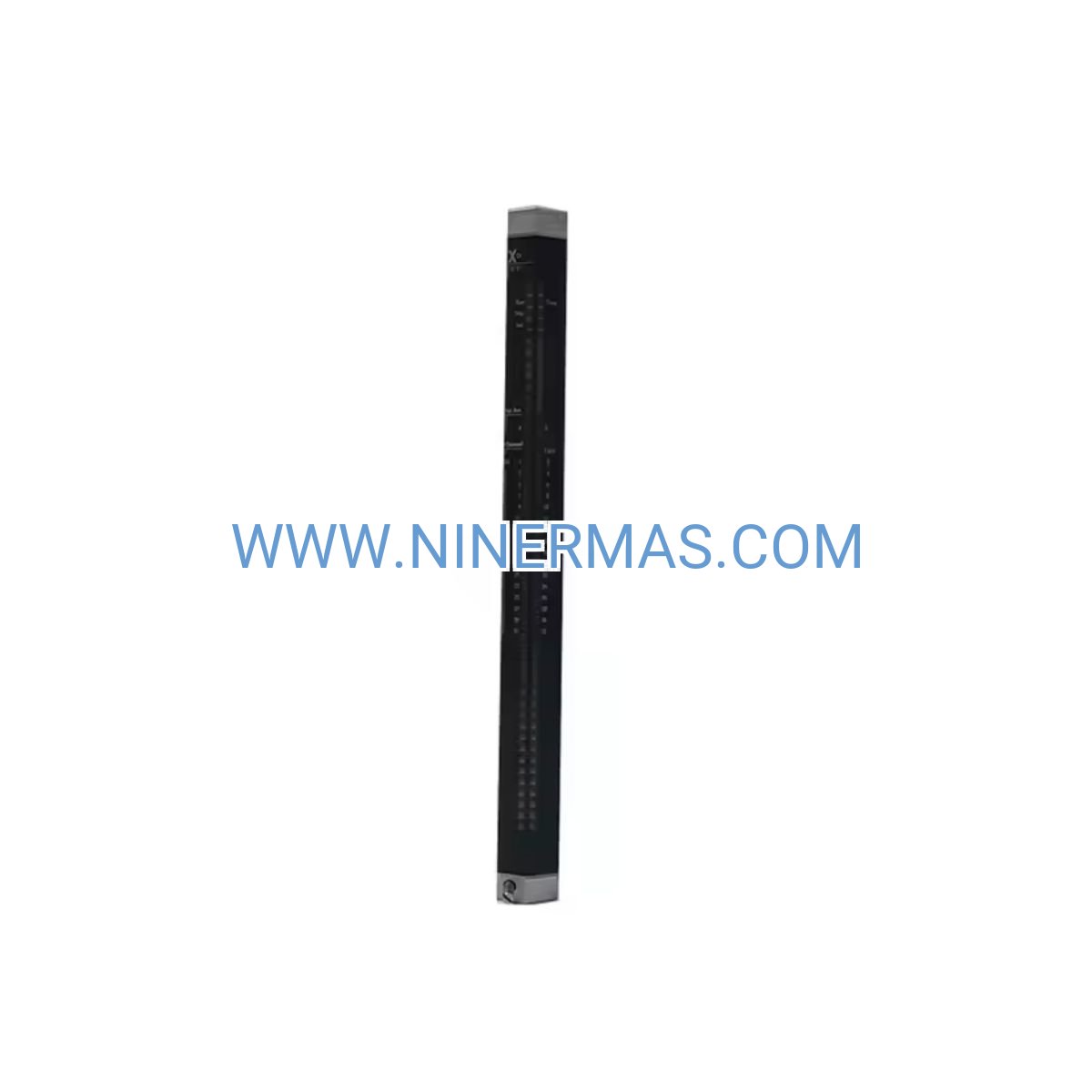

X-DI6451 High-Density Safety Input Module (Industrial-Grade SIL3 Certified)

The X-DI6451 represents HIMA's advanced approach to safety-critical signal acquisition, delivering 64 independent digital input channels within a single compact module. Designed for integration with HIMax safety platforms, this module serves as the frontline interface between field instrumentation and your emergency shutdown logic, providing the reliability and diagnostic depth demanded by process industries worldwide.

When plant operations depend on split-second detection of hazardous conditions, the X-DI6451 ensures every sensor signal—from emergency stop buttons to gas detectors—reaches your safety controller with verified integrity. Its SIL 3 certification per IEC 61508 confirms systematic capability for the most critical safety functions, while comprehensive self-diagnostics maintain >99% fault coverage throughout the module's operational life.

Whether you're designing a new emergency shutdown system for an offshore platform, expanding fire & gas detection coverage in a refinery, or upgrading legacy safety I/O in a chemical plant, the X-DI6451 combines proven German engineering with the channel density and diagnostic intelligence modern safety applications require.

Core Capabilities & Business Value

→ 64 Independent Safety-Rated Inputs
Monitor up to 64 field devices per module, reducing cabinet space requirements by 40-60% compared to traditional 16-channel architectures while simplifying wiring and lowering installation costs.

✓ SIL 3 Systematic Capability
Achieve the highest safety integrity level for process industry applications, enabling compliance with IEC 61508, IEC 61511, and industry-specific standards (API, NFPA) without additional external safety barriers.

→ Galvanic Isolation & Noise Immunity
Channel-to-bus isolation protects against ground loops and electrical interference in harsh industrial environments, ensuring signal integrity even in high-EMI areas near VFDs, welding equipment, or radio transmitters.

✓ Hot-Swap Capability in Redundant Systems
Replace modules during operation without safety system shutdown when configured redundantly, eliminating costly production interruptions for maintenance and reducing mean time to repair (MTTR) by 70%.

→ Comprehensive Diagnostic Coverage
Automatic detection of wire breaks, short circuits, and channel faults with per-channel status reporting enables predictive maintenance strategies and reduces nuisance trips by identifying wiring issues before they impact operations.

✓ Wide Operating Temperature Range
-40°C to +70°C operation supports installations in extreme climates—from Arctic gas processing to Middle Eastern desert facilities—without environmental enclosures or active cooling.

Industry Applications & Problem Resolution

Emergency Shutdown Systems (Oil & Gas Production)
Interface with hundreds of field devices across wellhead platforms, separation units, and export terminals. The X-DI6451's high channel density reduces I/O cabinet footprint by 50%, critical for offshore installations where space commands premium costs. Typical deployment monitors emergency stop stations, high-level switches in separators, low-pressure trips on compressors, and fire detection loops.

Fire & Gas Detection Networks (Petrochemical Complexes)
Connect flame detectors, combustible gas sensors, toxic gas monitors, and manual call points across process units. Channel-level diagnostics identify detector faults immediately, ensuring your F&G system maintains target availability >99.9% while meeting ISA TR84.00.07 performance requirements for continuous mode systems.

Burner Management & Boiler Safety (Power Generation)
Monitor air/fuel valve limit switches, flame scanner inputs, furnace pressure transmitters, and purge confirmation switches in utility boilers and HRSGs. Fast 10ms response time supports rapid flame failure detection, while SIL 3 rating satisfies NFPA 85 requirements for boiler safety interlocks.

Process Safety Interlocks (Chemical Manufacturing)
Track reactor temperature switches, distillation column level transmitters, pump seal failure detectors, and relief valve position indicators. Integration with HIMA safety controllers enables complex voting logic (2oo3, 1oo2) for critical trips, reducing spurious trip rates while maintaining required risk reduction.

Turbomachinery Protection (Compression & Pumping)
Interface with vibration monitors, bearing RTDs, thrust position sensors, and overspeed detection systems on critical rotating equipment. Redundant module configurations provide fault-tolerant monitoring for assets where unplanned shutdowns cost $50K-500K per event.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the X-DI6451 when your application requires high-density digital input acquisition (40+ points per cabinet location), SIL 3 safety rating, or integration with existing HIMax safety controllers. For applications with 32 or fewer inputs, consider the X-DI3202 for cost optimization. When monitoring analog process variables (4-20mA transmitters), pair with X-AI analog input modules for complete signal coverage.

Advanced Integration & System Architecture

The X-DI6451 operates as a distributed I/O node within the HIMax safety platform, communicating via the SafeEthernet network for deterministic, fault-tolerant data exchange. Deploy in simplex configurations for non-critical monitoring or redundant pairs for SIL 3 applications requiring fault tolerance. The module supports online configuration changes through HIMA's SILworX engineering environment, enabling logic modifications without production interruption.

Typical System Architecture: Combine X-DI6451 input modules with HIMA H41Q or F60 safety controllers for shutdown logic execution, X-DO output modules for final element control (valve solenoids, motor contactors), and X-AI modules for analog transmitter monitoring. Integration with DCS systems via OPC UA or Modbus TCP enables coordinated process control and safety system visualization on a unified operator interface.

Cybersecurity Features: Built-in authentication and encrypted communication protect against unauthorized configuration changes, while network segmentation support enables compliance with IEC 62443 industrial cybersecurity standards—critical for facilities subject to CFATS, MTSA, or EU NIS Directive requirements.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-direct orders with custom configuration or firmware versions. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares inventory.

Technical Support: Our application engineers provide pre-sales consultation for system architecture design, I/O point allocation, and safety integrity level verification. Post-sales support includes configuration assistance, troubleshooting guidance, and on-site commissioning services (available in major industrial regions).

Documentation Package: Each module ships with factory calibration certificate, test report, quick-start guide, and access to complete technical manuals including wiring diagrams, HART/Foundation Fieldbus integration notes, and SIL certification documentation for safety validation.

Frequently Asked Questions

Can the X-DI6451 interface with NAMUR proximity sensors?
Yes, the module accepts NAMUR sensor signals when configured appropriately. For applications with predominantly NAMUR devices, consult our application team for optimal barrier and power supply selection to ensure diagnostic coverage is maintained.

What is the maximum cable length for field wiring?
Up to 1000 meters (3280 feet) for shielded twisted-pair cable in typical industrial environments. Actual distance depends on cable capacitance, EMI levels, and whether barriers are used. For installations exceeding 500m, we recommend cable specification review.

Does this module support partial stroke testing of shutdown valves?
The X-DI6451 provides input monitoring; partial stroke testing requires coordinated output control via X-DO modules and safety logic in the HIMax controller. We offer complete PST solution packages including valve controllers, I/O modules, and pre-validated logic templates.

How does the module handle sensor power supply failures?
Wire break detection identifies open circuits caused by power supply failure, sensor disconnection, or cable damage. The safety controller receives a diagnostic alarm and can be configured to initiate safe shutdown or alert operators depending on the criticality of the affected input.

Is the X-DI6451 suitable for hazardous area installations?
The module itself is designed for safe area (Zone 2/Division 2) cabinet mounting. For field devices in Zone 1/Division 1 areas, use approved intrinsic safety barriers or galvanic isolators between the module and field wiring. ATEX/IECEx documentation available upon request.

What cybersecurity certifications does the HIMax platform hold?
The HIMax system is designed to IEC 62443-3-3 security level SL2, with optional SL3 configuration available. This includes secure boot, role-based access control, encrypted communications, and audit logging—essential for critical infrastructure protection programs.

Take the Next Step

Ready to enhance your safety system's reliability and reduce I/O infrastructure costs? Contact our safety system specialists for application-specific consultation, detailed quotations, or to request evaluation units for your next project. We support engineering teams worldwide with rapid response technical support and global logistics capabilities.
