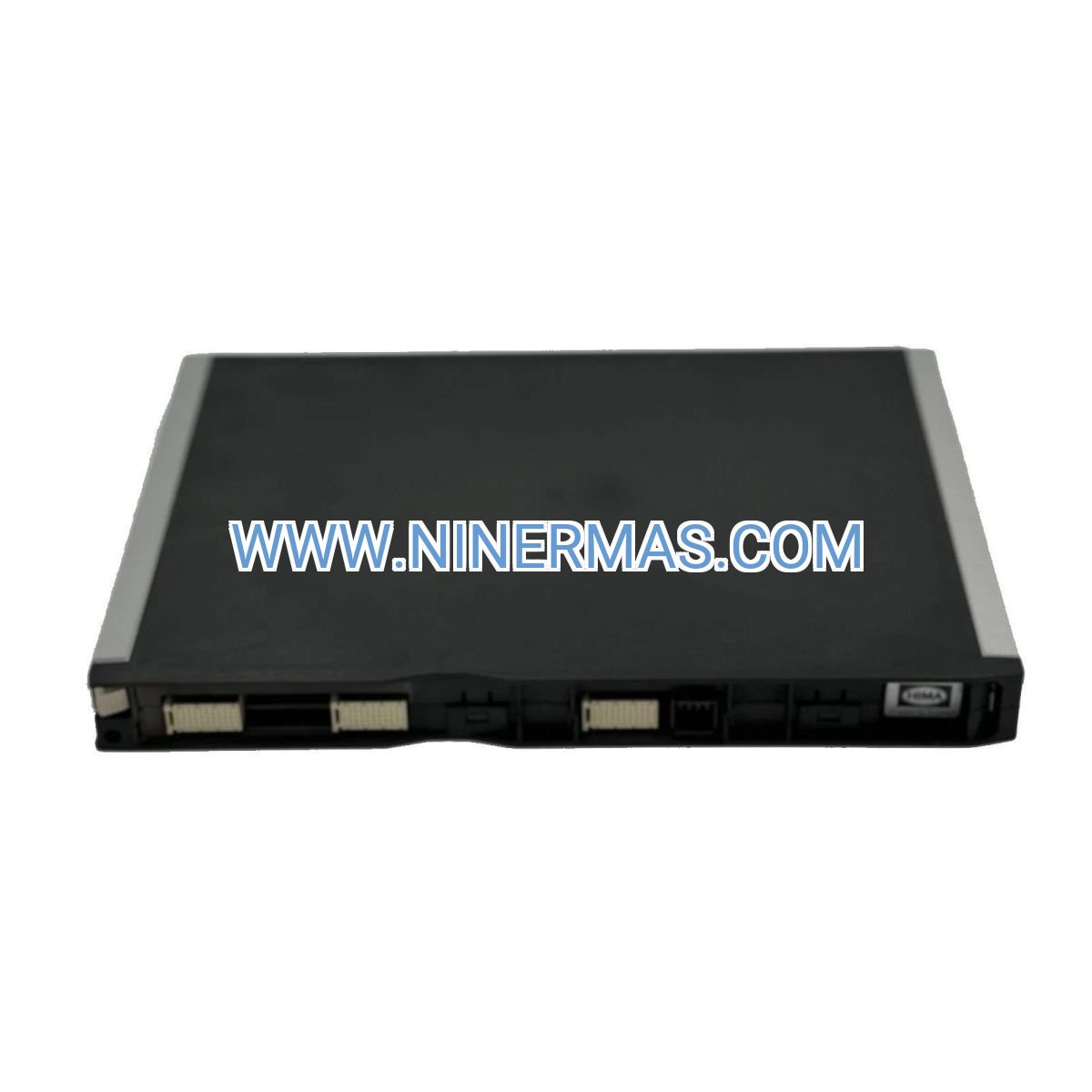

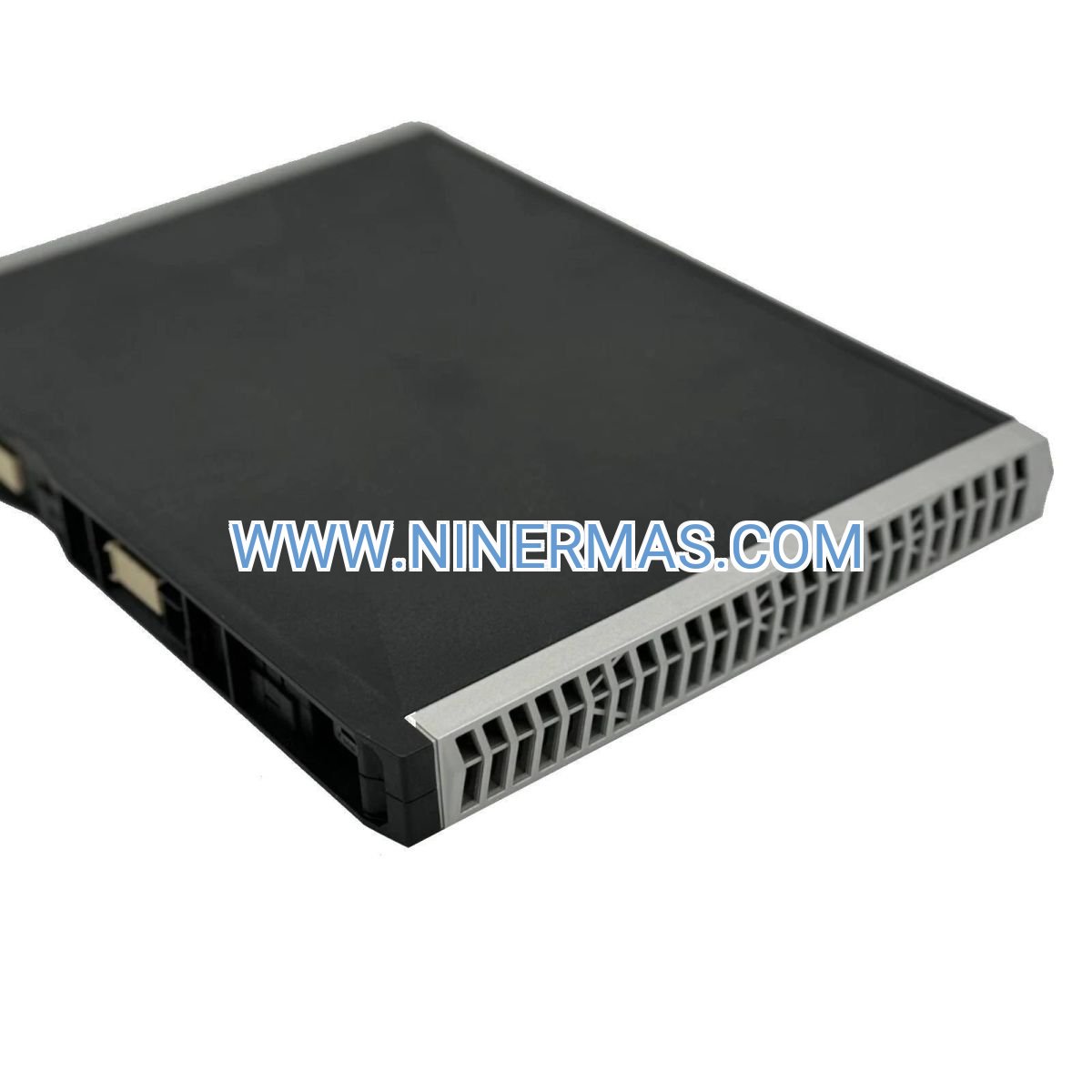

HIMA X-DI 64 51 – Industrial-Grade 64-Channel Safety Input Module

The HIMA X-DI 64 51 represents a breakthrough in safety-critical signal acquisition, delivering 64 galvanically isolated digital input channels within a single compact module. Engineered for HIMax and HIMatrix safety platforms, this module transforms complex multi-point monitoring into streamlined, space-efficient architecture while maintaining SIL 3 integrity across every channel.

Designed for process industries where safety instrumentation density directly impacts operational efficiency, the X-DI 64 51 consolidates what traditionally required multiple lower-density modules into one intelligent unit. From emergency stop circuits to valve position feedback, this module serves as the critical interface between field devices and your safety logic solver, ensuring every binary signal is captured with diagnostic precision.

Whether you're upgrading legacy systems or designing new safety installations, the X-DI 64 51 delivers proven reliability backed by international certifications, comprehensive diagnostics, and HIMA's decades of safety system expertise. Reduce panel space requirements by up to 40% while enhancing system maintainability and fault detection capabilities.

Core Features & Business Value

→ 64 Isolated Input Channels
Maximize I/O density with galvanically isolated channels that eliminate ground loop interference and cross-channel faults. Each input operates independently, ensuring a single channel failure never compromises adjacent signals—critical for safety integrity level compliance.

✓ SIL 3 Certified Architecture
Achieve the highest safety integrity levels per IEC 61508 and IEC 61511 standards. Pre-certified modules accelerate project timelines by eliminating custom validation requirements, reducing engineering costs by 25-35% compared to non-certified alternatives.

→ Advanced Channel Diagnostics
Detect wire breaks, short circuits, and power anomalies at the individual channel level. Real-time diagnostic feedback reduces troubleshooting time from hours to minutes, minimizing unplanned downtime and maintenance labor costs.

✓ HIMax/HIMatrix Native Integration
Seamless compatibility with HIMA's proven safety platforms ensures plug-and-configure deployment. No custom drivers or middleware required—simply slot the module, configure via engineering software, and commission with confidence.

→ Extended Temperature Range (-40°C to +70°C)
Operate reliably in harsh industrial environments from Arctic facilities to desert installations. Ruggedized design withstands temperature extremes, vibration, and electromagnetic interference without performance degradation.

✓ Hot-Swappable Design (System-Dependent)
Replace modules during operation without system shutdown on supported configurations. Reduce maintenance windows and eliminate costly production interruptions during routine service or emergency repairs.

Typical Application Scenarios

Oil & Gas Emergency Shutdown Systems
Monitor critical safety instrumentation including pressure switches, temperature sensors, flame detectors, and valve limit switches across offshore platforms and onshore processing facilities. The high channel density reduces cabinet footprint in space-constrained environments while maintaining redundant safety loops.

Chemical Process Safety Interlocks
Capture binary signals from reactor vessel instrumentation, emergency stop pushbuttons, gas detection systems, and isolation valve feedback. Galvanic isolation prevents hazardous area signal contamination, ensuring reliable operation in classified Zone 1 and Zone 2 locations.

Power Generation Turbine Protection
Interface with vibration monitors, bearing temperature switches, overspeed detectors, and lubrication system alarms. Sub-millisecond response times enable rapid turbine trip sequences, protecting multi-million dollar assets from catastrophic failure.

Pharmaceutical Clean Room Monitoring
Aggregate door interlock status, differential pressure alarms, HVAC fault signals, and equipment permissive switches. Comprehensive diagnostics support FDA 21 CFR Part 11 compliance by providing auditable signal integrity verification.

Water Treatment Plant Automation
Consolidate pump status feedback, level switch inputs, chlorine leak detection, and motor overload signals. Reduce wiring runs by centralizing I/O acquisition near field devices, lowering installation costs by 30-45% compared to distributed architectures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the X-DI 64 51 when your application requires maximum input density within minimal rack space, particularly for safety-critical monitoring with SIL 3 requirements. For lower channel counts (16-32 inputs), consider the HIMA F6251 series. For applications requiring analog signal processing alongside digital inputs, evaluate mixed I/O modules or separate analog input modules to optimize system architecture.

Extended Functions & Integration Capabilities

IoT & Remote Monitoring Integration: When paired with HIMA communication modules (such as the Z7131 interface), the X-DI 64 51 enables secure data transmission to SCADA systems, cloud-based analytics platforms, and mobile monitoring applications. Access real-time channel status, diagnostic alerts, and historical trend data from anywhere with encrypted connectivity.

Redundant Configuration Support: Deploy in redundant safety architectures for applications demanding 99.99%+ availability. The module supports hot-standby configurations where dual modules monitor identical field signals, automatically switching to backup channels upon primary path failure.

Custom Signal Conditioning: For non-standard input voltage ranges or specialized sensor interfaces, NINERMAS engineering team provides custom signal conditioning solutions including voltage dividers, current-to-voltage converters, and optocoupler interfaces tailored to your specific field device requirements.

Delivery Timeline & Service Guarantee

Standard Delivery: 5-7 business days for in-stock units via express courier with full tracking and insurance. Expedited 2-3 day delivery available for urgent projects at additional cost.

Custom Configuration Lead Time: 10-15 business days for factory-programmed modules with pre-loaded configurations, tested and documented per your specifications.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited access to HIMA-certified engineers for configuration assistance, troubleshooting guidance, and integration support. Average response time under 4 hours for technical inquiries.

Documentation Package: Every module ships with installation manual, wiring diagrams, configuration templates, safety certification documents, and compliance declarations—everything needed for rapid commissioning and regulatory approval.

Frequently Asked Questions

How does the 64-channel architecture reduce installation costs compared to multiple lower-density modules?
Consolidating 64 inputs into a single module eliminates redundant backplane connections, reduces wiring termination points by 60-75%, and decreases panel space requirements. Typical projects report 30-45% lower installation labor costs and 40% reduction in cabinet footprint.

What input voltage tolerance does the X-DI 64 51 accept for reliable signal detection?
While nominal voltage is 24V DC, the module typically accepts a range of 18-30V DC with configurable threshold levels. Consult the technical datasheet for exact switching thresholds, current draw per channel, and recommended field device specifications.

Can I integrate this module with legacy HIMA H41/H51 safety controllers?
The X-DI 64 51 is specifically engineered for HIMax and HIMatrix platforms. For legacy H-series systems, contact our engineering team to evaluate migration paths or compatible alternative modules that maintain backward compatibility.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
Channel-level diagnostics provide real-time status indication including wire continuity verification, input signal presence, power supply health, and communication integrity. LED indicators and software-based diagnostic screens pinpoint faults to specific channels within seconds.

Does the module support hot-swapping during live operation without safety system shutdown?
Hot-swap capability depends on your specific HIMax/HIMatrix configuration and redundancy architecture. Consult your system integration documentation or contact our technical team to verify hot-swap support for your installation.

How do I calculate power budget requirements when adding multiple X-DI 64 51 modules to my rack?
Each module's power consumption varies based on active input channels and diagnostic load. Reference the power consumption specifications in the datasheet (typically 8-12W per module) and ensure your backplane power supply provides adequate headroom—we recommend 20% margin above calculated total load.

Ready to Enhance Your Safety System Architecture?

Contact our safety system specialists today for application-specific configuration guidance, competitive project pricing, and technical documentation. Whether you're designing a new installation or upgrading existing infrastructure, our team provides expert support from initial specification through commissioning and beyond.
