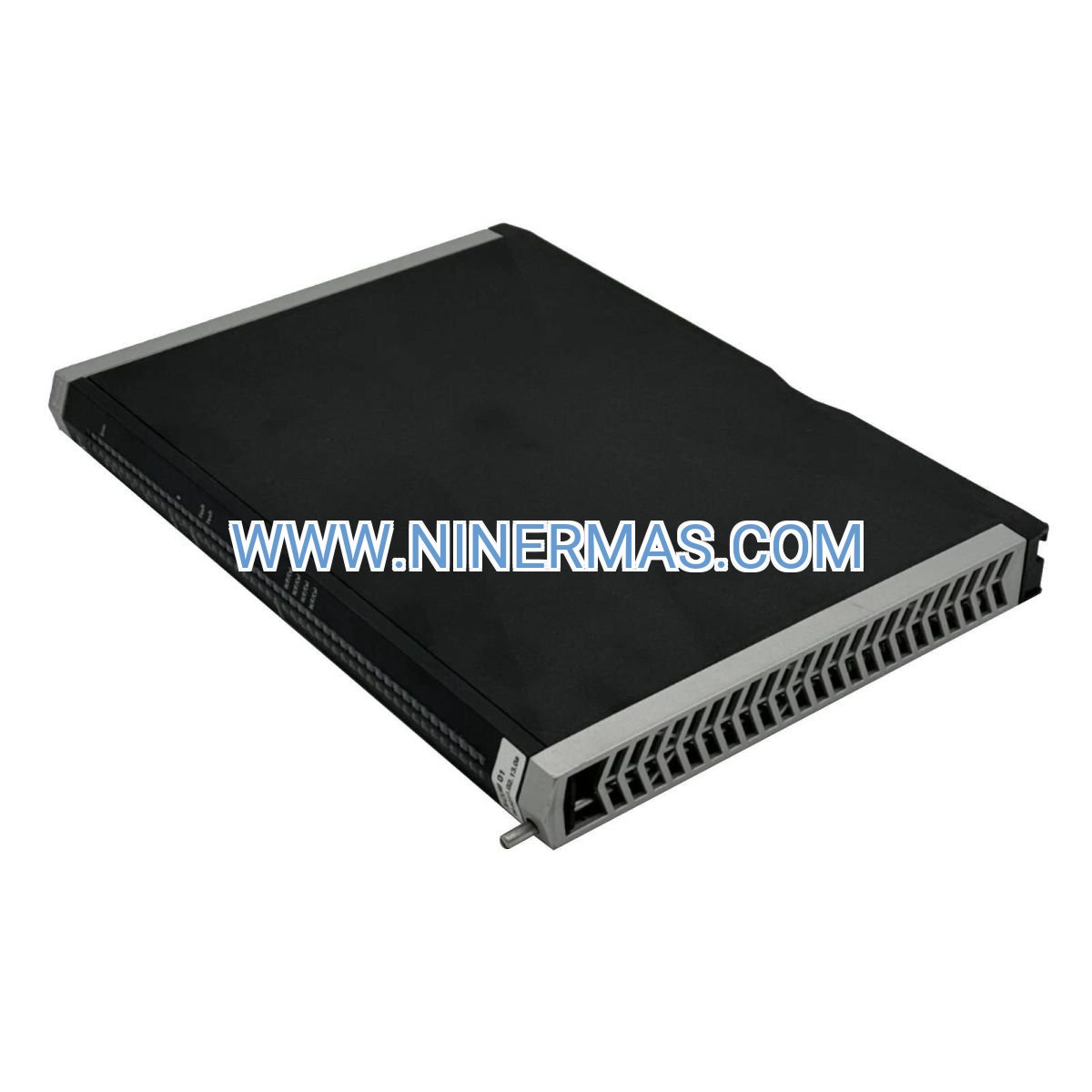

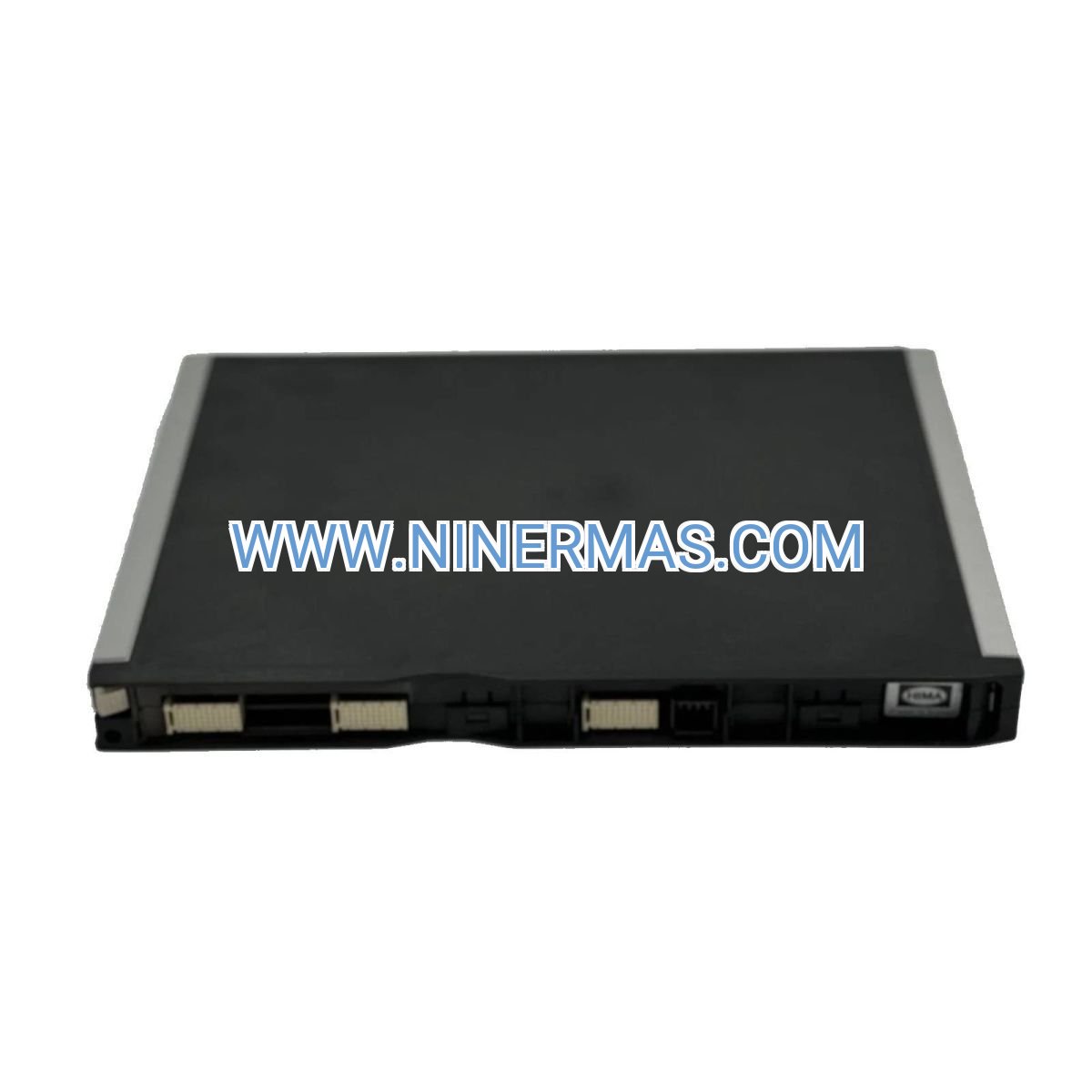

HIMA X-DI 32 02 Digital Input Module (Industrial-Grade Safety I/O Solution)

The HIMA X-DI 32 02 represents a high-density digital input solution engineered for safety-critical process control environments. This 32-channel module provides galvanically isolated signal acquisition for HIMax and HIMatrix safety platforms, delivering TÜV-certified SIL 3 performance across oil & gas, petrochemical, and power generation sectors. Built for continuous operation in harsh industrial conditions, the X-DI 32 02 combines robust hardware design with comprehensive diagnostic capabilities to ensure maximum uptime and regulatory compliance.

Process industries face mounting pressure to maintain safety integrity while optimizing operational efficiency. Traditional input modules often compromise between channel density and isolation quality, forcing engineers to deploy multiple cards and complex wiring schemes. The X-DI 32 02 eliminates this tradeoff by integrating 32 fully isolated channels in a single compact form factor, reducing cabinet space requirements by up to 40% compared to legacy 16-channel designs while maintaining individual channel protection against ground loops and electrical interference.

Designed for safety instrumented systems (SIS) engineers, automation specialists, and plant maintenance teams managing emergency shutdown (ESD) and fire & gas (F&G) applications, this module streamlines system architecture without sacrificing reliability. Whether you're upgrading aging DCS infrastructure or designing greenfield facilities, the X-DI 32 02 delivers proven performance backed by global safety certifications and HIMA's four-decade legacy in mission-critical control systems.

Core Features & Benefits

✓ 32 Galvanically Isolated Channels: Each input features complete electrical isolation from system backplane and adjacent channels, preventing fault propagation and ensuring independent signal integrity even during ground potential differences or transient voltage events.

✓ SIL 3 Safety Certification: TÜV-certified per IEC 61508 with systematic capability SC 3 and hardware fault tolerance supporting 1oo1, 1oo2, and 2oo3 voting architectures—enabling flexible safety integrity level achievement without over-engineering.

✓ Sub-3ms Response Time: Rapid signal processing ensures timely detection of critical events such as emergency stop activations, flame detector trips, or vibration threshold exceedances, meeting the most demanding safety loop timing requirements.

✓ Hot-Swap Capability: Field-replaceable during live operation without system shutdown or safety function interruption, reducing mean time to repair (MTTR) by 60% and eliminating costly production stoppages for routine maintenance.

✓ Extended Temperature Range: Operates reliably from -40°C to +70°C, accommodating outdoor installations, unheated enclosures, and extreme climate zones without derating or auxiliary cooling systems.

✓ Comprehensive Diagnostics: Continuous self-monitoring with >99% diagnostic coverage detects wire breaks, short circuits, power supply deviations, and internal faults—automatically reporting anomalies to supervisory systems for predictive maintenance.

Typical Application Scenarios

→ Offshore Oil & Gas Platforms: Monitor emergency shutdown valves, fire detection loops, and gas detector arrays across topside and subsea installations. The module's salt-fog resistance and vibration tolerance ensure reliable operation in marine environments where equipment failure could trigger catastrophic events.

→ Petrochemical Reactor Protection: Interface with high-integrity pressure switches, temperature sensors, and level transmitters safeguarding exothermic processes. Galvanic isolation prevents ground loop interference common in electrically noisy refinery environments, while SIL 3 certification satisfies API 670 and ISA 84 mandates.

→ Power Generation Turbine Monitoring: Acquire signals from vibration probes, bearing temperature RTDs, and overspeed detection systems protecting gas and steam turbines. Fast response times enable protective actions before mechanical damage occurs, reducing unplanned outages by 35% in typical deployments.

→ Pipeline Compressor Stations: Integrate with leak detection systems, valve position switches, and pressure relief device monitors across remote unmanned facilities. Low power consumption and wide temperature tolerance minimize infrastructure requirements in field-deployed cabinets.

→ Chemical Batch Processing: Connect to reactor agitator interlocks, emergency vent controls, and personnel safety systems in multi-product manufacturing plants. Hot-swap functionality allows module replacement during campaign changeovers without disrupting adjacent production lines.

Technical Parameters & Selection Guide

Selection Criteria: Choose the X-DI 32 02 when your application requires high channel density with individual isolation, SIL 3 certification, and compatibility with HIMax/HIMatrix platforms. For legacy H41/H51 systems, consider F-series alternatives. Verify that field devices provide 24V DC signal levels; for 48V or 110V applications, external signal conditioning may be required. Consult HIMA system capacity planning guides to ensure backplane power budget and I/O addressing limits accommodate your configuration.

Extended Functions

Redundant System Integration: Deploy in fault-tolerant architectures using 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting logic. The module's deterministic scan times and synchronized diagnostics enable seamless integration with redundant controllers, maintaining safety integrity even during single-point failures.

Remote Monitoring Connectivity: Diagnostic data streams to SCADA/DCS platforms via standard communication modules, enabling condition-based maintenance strategies. Track channel utilization, fault history, and environmental stress factors to optimize spare parts inventory and predict end-of-life replacement cycles.

Customizable Input Filtering: Software-configurable debounce times accommodate diverse field device characteristics—from fast-acting proximity sensors requiring minimal filtering to mechanical switches needing extended debounce periods to eliminate contact bounce artifacts.

Cybersecurity Hardening: Firmware adheres to IEC 62443 industrial cybersecurity standards, with secure boot processes and cryptographic verification preventing unauthorized code execution. Ideal for facilities subject to NERC CIP or EU NIS Directive compliance mandates.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom-configured modules with pre-loaded application parameters available within 10-15 business days. Expedited delivery options available for emergency replacement scenarios.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure applications requiring multi-year coverage and guaranteed replacement inventory.

Technical Support: Access to HIMA-certified application engineers for integration assistance, configuration optimization, and troubleshooting support. Remote diagnostic services available to analyze system logs and recommend corrective actions, reducing on-site service calls by 50%.

Documentation Package: Each module ships with factory calibration certificates, conformity declarations (CE, TÜV), installation quick-start guides, and digital access to comprehensive technical manuals including wiring diagrams, programming examples, and safety validation reports.

Frequently Asked Questions

Q: How does the X-DI 32 02 interface with existing HIMA safety controllers?
A: The module installs directly into HIMax or HIMatrix system racks via the proprietary backplane connector. Configuration occurs through HIMA's SILworX engineering software, which automatically recognizes the module type and presents appropriate parameter settings. No external wiring required between module and controller.

Q: What field wiring practices ensure optimal signal integrity?
A: Use shielded twisted-pair cables with 0.5-1.5 mm² conductor cross-section. Terminate shields at cabinet entry using 360-degree clamp connections; avoid pigtail grounding. Maintain minimum 300mm separation from high-voltage AC power cables. For cable runs exceeding 500 meters, consider signal repeaters or barrier-isolated transmitters.

Q: Can I retrofit this module into older HIMA H41 or H51 systems?
A: No, the X-DI 32 02 is mechanically and electrically compatible only with HIMax and HIMatrix platforms introduced after 2010. For H-series upgrades, HIMA offers migration paths using F5203 or F5204 digital input modules with similar functionality.

Q: What diagnostic information is available for predictive maintenance?
A: The module reports channel-specific wire break detection, short-circuit conditions, power supply voltage deviations, internal temperature excursions, and communication errors. Diagnostic data timestamps enable trend analysis to identify degrading field wiring or environmental stress before failures occur.

Q: How do I calculate the maximum cable length for my installation?
A: Maximum distance depends on cable resistance and field device current draw. For typical 24V DC sensors drawing 10 mA with 0.75 mm² cable (23 Ω/km), practical limits reach 800-1000 meters. Use HIMA's cable voltage drop calculator tool or consult application engineering for installations exceeding 500 meters.

Q: Does the module support both sourcing and sinking input configurations?
A: The X-DI 32 02 operates in sinking mode (common positive), where field devices switch the negative side of the 24V DC circuit. For sourcing applications (common negative), external signal conditioning or alternative module variants may be required—contact technical support for configuration guidance.

Take the Next Step

Ready to enhance your safety instrumented system with proven high-density input technology? Our application specialists are available to discuss your specific requirements, provide detailed technical specifications, and recommend optimal configurations for your process environment. Request a quotation today or schedule a consultation to explore how the HIMA X-DI 32 02 integrates with your existing infrastructure.
