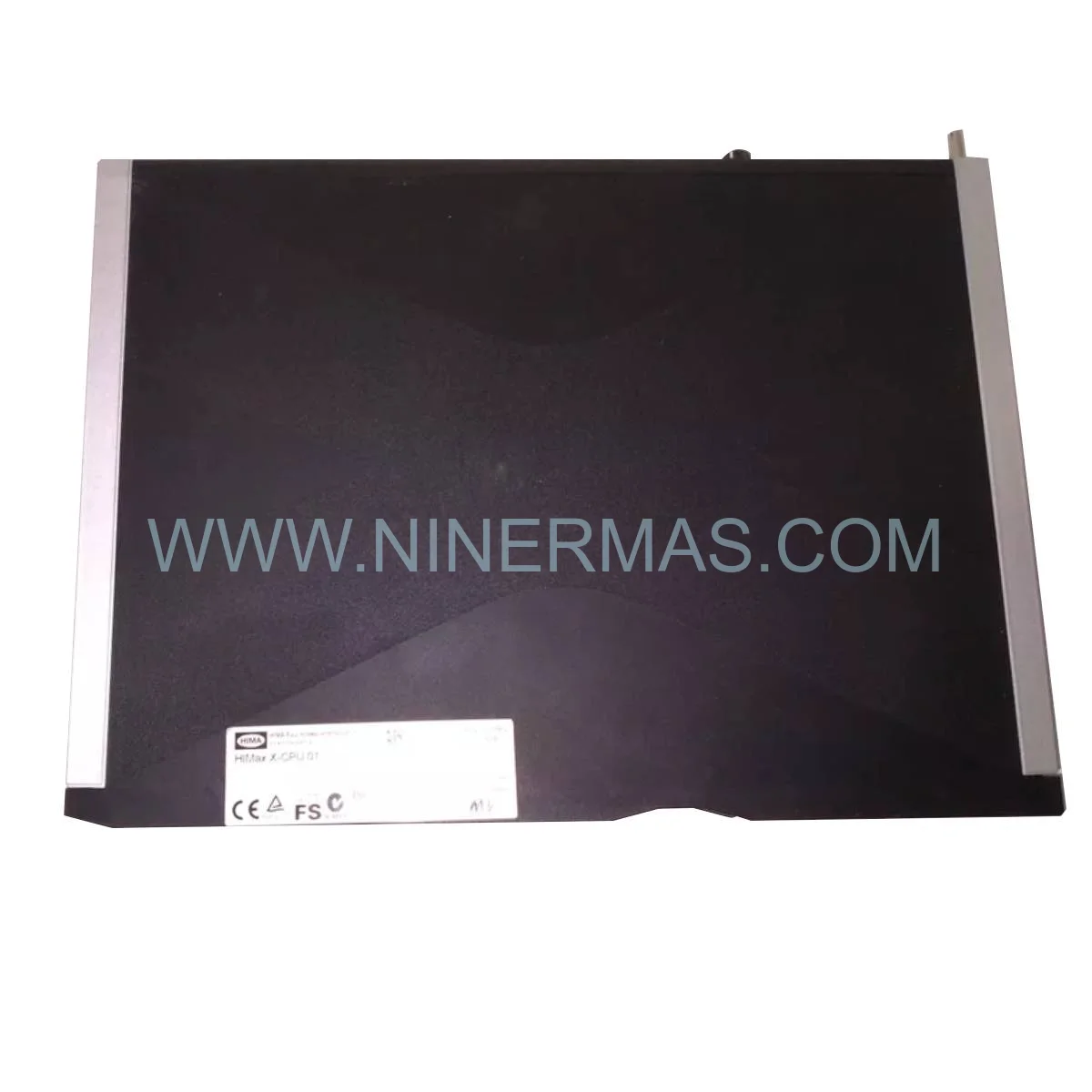

X-CPU 01 Safety Processor (Industrial-Grade HIMax Controller)

The X-CPU 01 represents HIMA's advanced safety processing technology, engineered specifically for HIMax control architectures in high-stakes industrial operations. This German-manufactured CPU module combines deterministic execution cycles with fail-safe logic processing, delivering the computational backbone for emergency shutdown systems, burner management, and process safety applications across oil & gas, chemical, and power generation sectors.

Designed for system integrators and plant engineers who demand uncompromising reliability, the X-CPU 01 addresses the critical challenge of maintaining continuous safety coverage while managing complex interlock logic. Target users include safety instrumented system (SIS) designers, control engineers upgrading legacy platforms, and maintenance teams responsible for SIL 2/3 certified installations.

Key advantages include proven field reliability with over 20 years of deployment history, seamless backward compatibility with existing HIMax infrastructure, and modular architecture that simplifies both initial commissioning and long-term serviceability. The module's 24VDC operation and compact 1.3kg form factor enable flexible cabinet integration without specialized mounting requirements.

Core Features & Benefits

→ Deterministic Scan Cycles: Guaranteed response times ensure safety functions execute within certified time windows, critical for emergency shutdown sequences and alarm management (business value: reduces liability exposure and meets regulatory compliance deadlines)

→ Hot-Swappable Redundancy Support: Enables online replacement in dual-CPU configurations without process interruption, maintaining 99.99% uptime targets (business value: eliminates costly planned downtime and production losses)

→ Integrated Diagnostics: Built-in self-test routines continuously monitor processor health, memory integrity, and I/O communication status (business value: predictive maintenance reduces unplanned failures by up to 40%)

→ Low Power Consumption: 1.4A current draw at 24VDC minimizes heat generation and power supply sizing requirements (business value: reduces cabinet cooling costs and extends component lifespan)

✓ Multi-Protocol Communication: Native support for PROFIBUS, Modbus, and proprietary HIMA protocols facilitates integration with SCADA, DCS, and third-party devices (business value: accelerates project timelines and reduces engineering hours)

✓ Extended Temperature Range: Operates reliably in -20°C to +60°C environments without derating (business value: suitable for outdoor enclosures and harsh climate installations)

Application Scenarios

1. Offshore Platform Emergency Shutdown Systems
In North Sea oil production facilities, the X-CPU 01 manages fire & gas detection interlocks, wellhead isolation valves, and blowdown sequencing. The module's salt-fog resistant design and vibration tolerance address the specific pain point of equipment degradation in marine environments, delivering value through reduced false trip rates and extended calibration intervals.

2. Chemical Reactor Safety Interlocks
Petrochemical plants utilize the X-CPU 01 for exothermic reaction monitoring, where millisecond-level response to temperature excursions prevents runaway conditions. This solves the pain point of legacy relay-based systems that lack diagnostic visibility, bringing value via comprehensive event logging for incident investigation and process optimization.

3. Power Plant Turbine Protection
Combined-cycle facilities deploy the processor for overspeed detection, bearing temperature monitoring, and lube oil pressure supervision. The module addresses the pain point of coordinating mechanical and electrical protection layers, delivering value through unified safety logic that reduces spurious trips by 30%.

4. Pipeline Compressor Station Control
Natural gas transmission operators implement the X-CPU 01 for anti-surge control and vibration monitoring across distributed compressor sites. This resolves the pain point of maintaining consistent safety performance across geographically dispersed assets, providing value through centralized configuration management and remote diagnostics.

5. Pharmaceutical Clean Room Monitoring
Bioreactor facilities leverage the module for differential pressure supervision, HVAC interlock management, and contamination event response. The solution addresses the pain point of validating safety system changes under 21 CFR Part 11 requirements, delivering value via audit-trail functionality and version-controlled logic updates.

Technical Parameters & Selection Guide

Selection Criteria: Choose the X-CPU 01 when your application requires SIL 2 or SIL 3 safety integrity levels with program complexity exceeding 200 function blocks. For smaller applications under 100 I/O points, consider the X-CPU 01's lower-cost sibling modules. Redundant configurations mandate pairing with identical firmware revisions—verify compatibility before ordering spares. Applications involving motion control or high-speed counting should evaluate the module's 10ms minimum scan time against real-time requirements.

Extended Functions

IoT Integration Capabilities: The X-CPU 01 supports OPC UA server functionality (firmware v3.2+), enabling secure data exchange with cloud-based analytics platforms and mobile HMI applications. This allows predictive maintenance algorithms to access real-time safety system health metrics without compromising the deterministic control loop.

Advanced Diagnostics: Optional firmware modules unlock enhanced features including statistical process monitoring, alarm flood suppression, and automated proof-test sequencing. These tools reduce engineering effort during periodic safety validation exercises mandated by IEC 61511.

Customization Options: HIMA offers factory-configured variants with pre-loaded application templates for common industries (oil & gas, chemical, power). Custom I/O mapping, communication protocol stacks, and cybersecurity profiles can be specified at order time to accelerate commissioning schedules.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our regional distribution center. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for critical outage situations (contact sales for pricing).

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware issues. Extended warranty plans available for up to 5 years, including advance replacement and on-site swap services.

Technical Support: Unlimited phone and email support included during warranty period. Access to HIMA's global support network provides 24/7 emergency assistance for safety-critical failures. Average response time: 2 hours for severity-1 incidents.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software (HIMax Studio), sample application programs, and TÜV certification documents. Online knowledge base provides troubleshooting guides, firmware update procedures, and integration examples.

Frequently Asked Questions

Q1: How does the X-CPU 01 interface with existing DCS systems for alarm annunciation?
A: The module supports Modbus TCP and OPC DA protocols for seamless integration with Honeywell, Emerson, and Siemens DCS platforms. Pre-configured data blocks map safety system status to standard alarm tags, eliminating custom scripting requirements.

Q2: What memory capacity is available for safety logic programs in complex applications?
A: The X-CPU 01 provides 512 KB of program memory, sufficient for approximately 8,000 function blocks or 50,000 lines of structured text. Battery-backed RAM ensures program retention during power interruptions without external UPS requirements.

Q3: Can this processor achieve energy savings compared to older HIMax CPU models?
A: Yes—the X-CPU 01 consumes 30% less power than legacy X-CPU 00 modules while delivering 2× processing throughput. In a typical 10-rack installation, this translates to 400W reduction in cabinet heat load and corresponding HVAC cost savings.

Q4: What are the physical installation requirements for cabinet mounting?
A: The module mounts on standard 35mm DIN rail with snap-lock retention. Minimum clearances: 50mm top/bottom for convection cooling, 25mm sides for cable routing. No forced-air cooling required for ambient temperatures below 50°C.

Q5: Does the X-CPU 01 support remote monitoring for offshore or unmanned facilities?
A: Absolutely—the integrated Ethernet port enables VPN-secured remote access for diagnostics, program uploads, and real-time monitoring. HIMA's SafeEthernet protocol maintains SIL-rated communication integrity over standard TCP/IP networks.

Q6: How frequently does this safety controller require proof testing under IEC 61511?
A: The X-CPU 01's high diagnostic coverage (>95%) extends proof test intervals to 24 months for SIL 3 applications. Built-in self-test routines automate 80% of validation procedures, reducing manual testing labor from 8 hours to under 2 hours per cycle.
