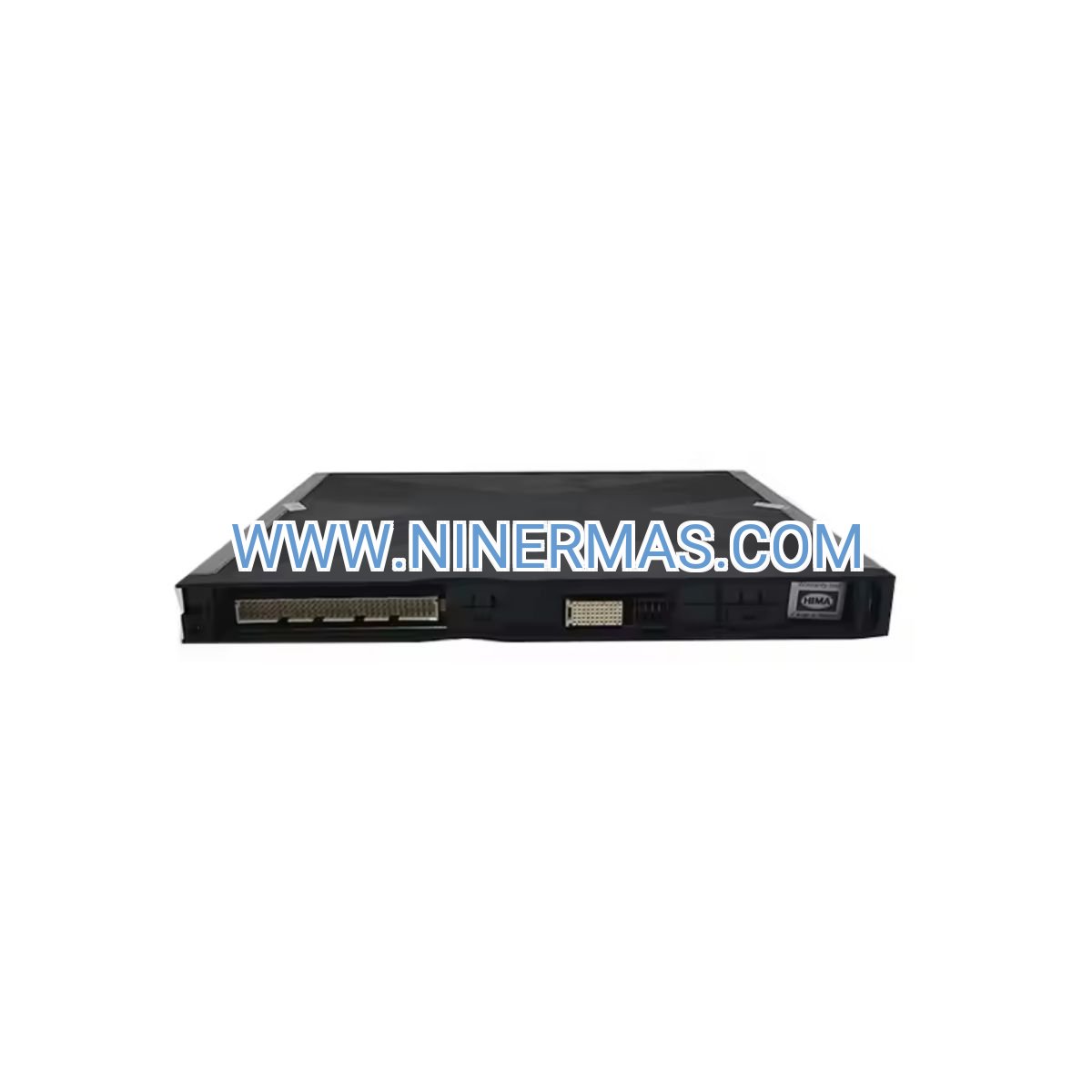

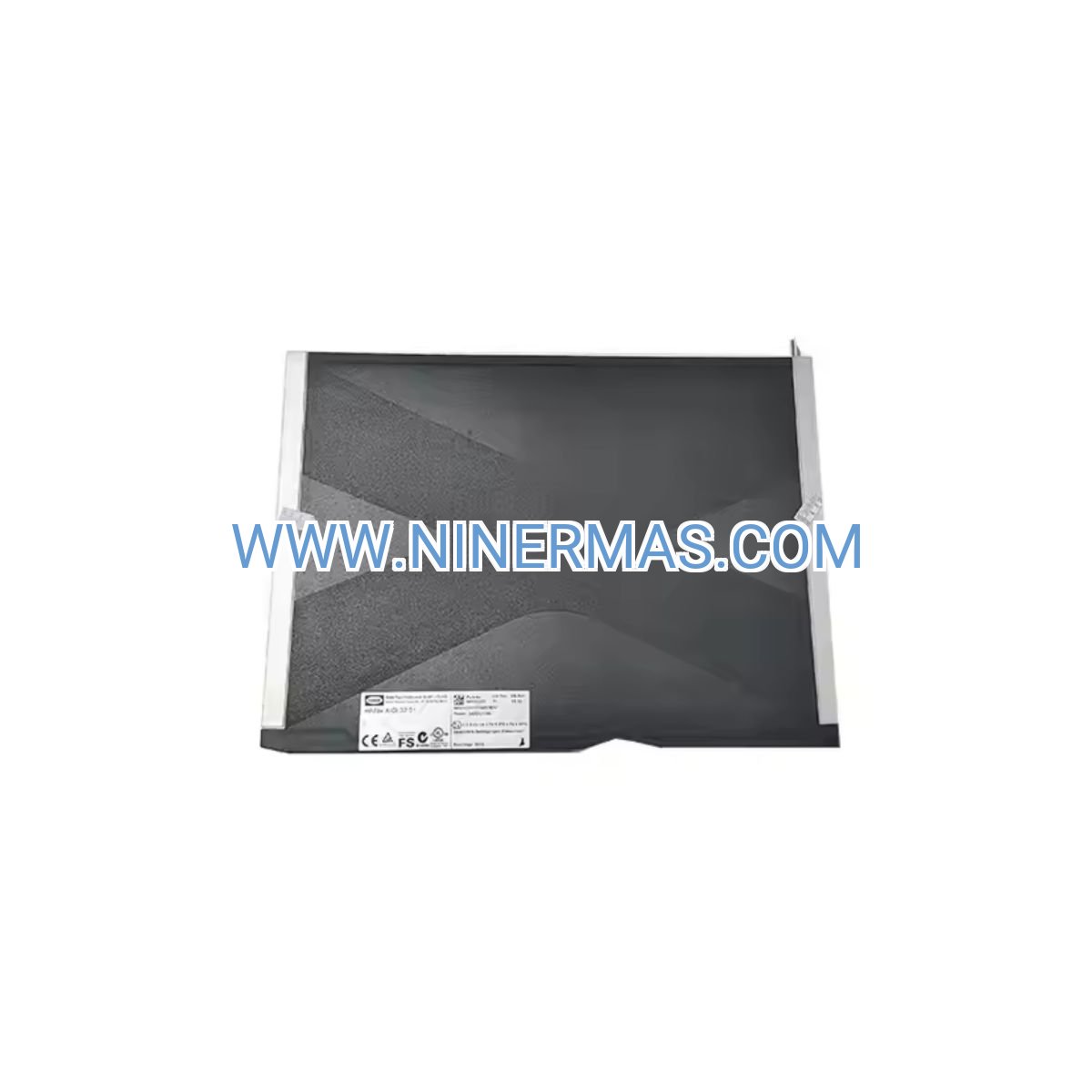

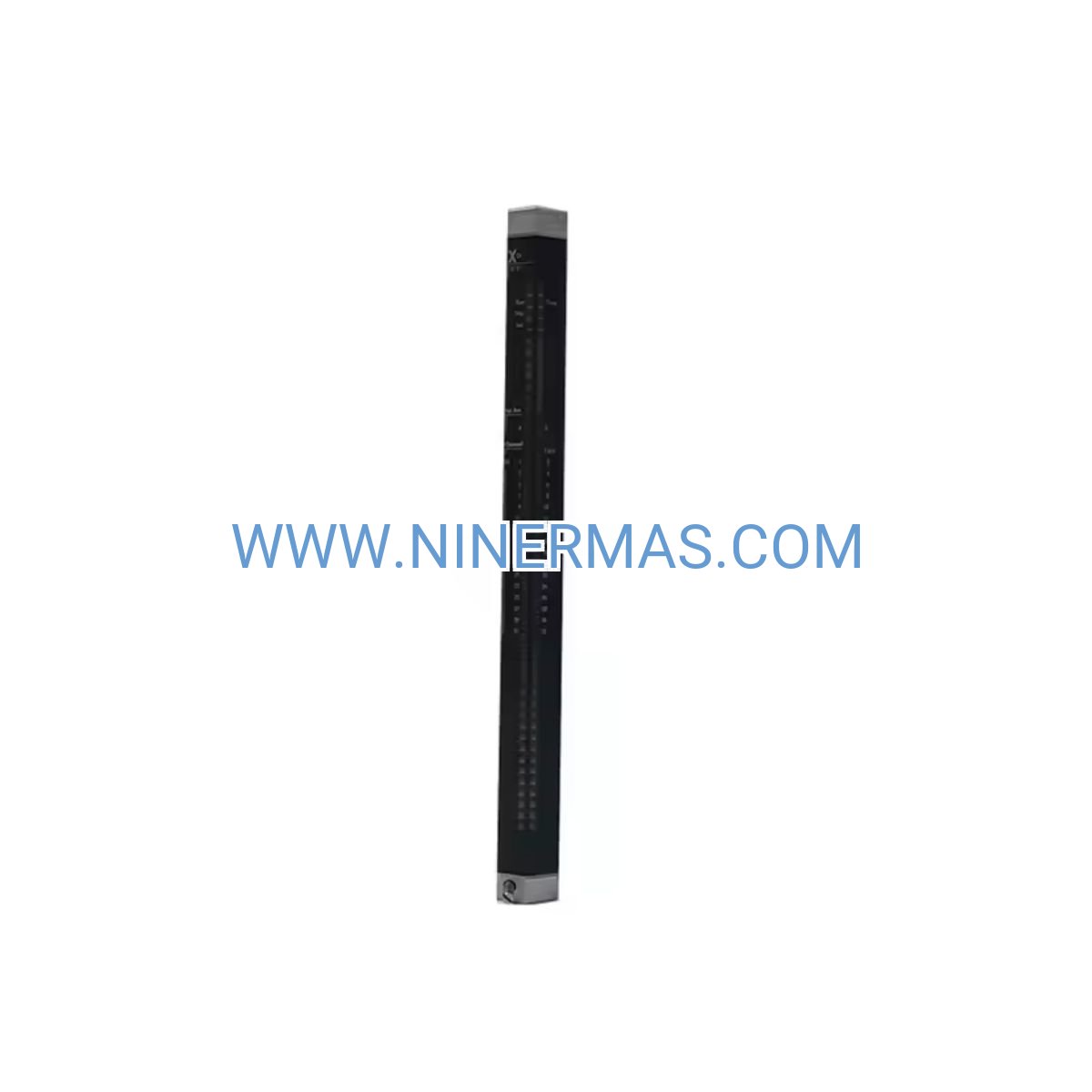

HIMA X-AO1601 Analog Output Module (Industrial-Grade 16-Channel SIL3 Control Interface)

The HIMA X-AO1601 represents a mission-critical analog output solution for safety instrumented systems requiring uncompromising precision and reliability. This 16-channel module delivers factory-calibrated 4-20 mA current loop signals within the HIMax safety platform, serving as the vital link between your control logic and field actuators in high-consequence industrial environments.

Engineered for process industries where equipment failure translates to production loss, environmental incidents, or personnel safety risks, the X-AO1601 addresses the fundamental challenge of maintaining accurate, verifiable control signals under extreme operating conditions. Target users include instrumentation engineers, safety system integrators, and plant automation teams managing turbomachinery protection, emergency shutdown systems, and burner management applications across oil & gas, petrochemical, power generation, and pharmaceutical facilities.

What sets this module apart is its combination of SIL 3-capable architecture with hot-swappable serviceability—enabling you to achieve both the highest safety integrity levels and minimal maintenance downtime. With >99% diagnostic coverage, galvanic isolation on every channel, and proven MTBF exceeding 100,000 hours, the X-AO1601 delivers the operational confidence demanded by critical control loops.

Core Features & Benefits

→ 16 Independent Isolated Outputs
Each channel features dedicated galvanic isolation (channel-to-channel and channel-to-backplane), preventing ground loops and cross-contamination between control circuits. This architecture ensures a single-point failure cannot cascade across your safety system.

✓ Factory-Calibrated Precision (±0.1% FSR)
Ships with traceable calibration certificates meeting ISO/IEC 17025 standards. Eliminates field calibration labor while guaranteeing measurement accuracy from commissioning through proof testing intervals up to 10 years.

→ Hot-Swappable Maintenance
Replace failed modules without system shutdown or process interruption. Reduces mean time to repair (MTTR) by 75% compared to traditional I/O architectures, directly improving plant availability metrics.

✓ Comprehensive Built-In Diagnostics
Continuous self-monitoring detects wire breaks, short circuits, output saturation, and power supply anomalies. Diagnostic alarms integrate seamlessly with DCS/SCADA systems via Modbus TCP, PROFINET, or OPC UA protocols.

→ Extended Temperature Range (-40°C to +70°C)
Qualified for installation in non-climate-controlled enclosures, offshore platforms, and desert environments. Conformal coating protects against humidity, salt spray, and industrial contaminants per IEC 60068-2-52.

✓ SIL 3 Certification (IEC 61508)
When deployed in redundant configurations (1oo2 or 2oo3 voting), achieves Safety Integrity Level 3 with systematic capability SC3. Certified by TÜV Rheinland with complete safety manual and FMEDA documentation provided.

Application Scenarios

Turbomachinery Protection Systems
In gas turbine, steam turbine, and centrifugal compressor installations, the X-AO1601 drives electro-pneumatic valve positioners controlling fuel flow, guide vanes, and anti-surge valves. When vibration or temperature thresholds are exceeded, the module executes emergency trip sequences within 50 milliseconds, preventing catastrophic mechanical failure. Typical deployments include LNG liquefaction trains, pipeline compression stations, and combined-cycle power plants where a single unplanned shutdown costs $500K-$2M in lost production.

Emergency Shutdown (ESD) Systems
Serves as the final control element interface in SIL 2/SIL 3 ESD logic solvers. During process upsets—such as overpressure, toxic gas release, or fire detection—the module commands pneumatic actuators to isolate process sections, close block valves, and activate deluge systems. The module's fail-safe design ensures outputs default to safe state (0 mA or 4 mA) upon power loss or processor fault.

Burner Management Systems (BMS)
Regulates fuel gas flow control valves and combustion air dampers in industrial boilers, process heaters, and thermal oxidizers. Precise 4-20 mA signals maintain optimal air-fuel ratios, reducing NOx emissions by 15-30% while preventing dangerous furnace conditions. Compliance with NFPA 85/86 and FM approval ensures insurability of fired equipment.

Process Control Integration
Interfaces with smart valve positioners (HART, FOUNDATION Fieldbus) in chemical reactors, distillation columns, and pipeline metering stations. The module's 12-bit resolution (0.024% of span) enables tight control of flow, pressure, and level loops—critical for product quality in pharmaceutical batch processes and specialty chemical manufacturing.

Offshore Oil & Gas Platforms
Deployed in FPSO vessels, fixed platforms, and subsea control systems where space, weight, and harsh marine environments demand compact, ruggedized solutions. The module's low power consumption (8W max) and wide voltage tolerance (18-32 VDC) suit solar/battery-backed emergency power systems.

Technical Parameters & Selection Guide

Selection Criteria:

• Channel Count: Choose X-AO1601 (16-ch) for dense I/O applications. For smaller systems, consider X-AO0801 (8-ch) variant.
• Redundancy: SIL 3 applications require 1oo2 or 2oo3 module redundancy. Budget 2-3 modules per safety function.
• Cable Length: Maximum 1200m with 0.5mm² shielded cable @ 600Ω load. Use barrier-mounted isolators for longer runs.
• Environmental: Conformal-coated version (X-AO1601-CC) recommended for offshore/marine installations.
• Compatibility: Requires HIMax rack (H41q or H51q series) and compatible processor module (X-CPU01/02).

Extended Functions

HART Protocol Pass-Through
Transparent HART communication allows digital configuration and diagnostics of smart valve positioners without additional gateways. Access device parameters, perform valve stroking tests, and retrieve maintenance alerts via HIMA's SILworX engineering station or third-party asset management systems.

Partial Stroke Testing (PST)
Integrated PST functionality enables automated proof testing of shutdown valves without process interruption. The module executes programmable stroke profiles (e.g., 10% travel) while monitoring actuator response time and signature analysis—extending proof test intervals from 1 year to 5-10 years and reducing testing costs by 60-80%.

Cybersecurity Features
Role-based access control (RBAC) and encrypted configuration downloads protect against unauthorized modifications. Audit logging tracks all parameter changes with timestamp and user ID, supporting IEC 62443 compliance for industrial cybersecurity.

Predictive Maintenance Integration
Continuous monitoring of output current deviation, temperature drift, and power supply quality feeds machine learning algorithms in HIMA's LifeSign asset health platform. Predictive alerts identify degrading components 3-6 months before failure, enabling condition-based maintenance strategies.

Custom Scaling & Linearization
User-defined transfer functions accommodate non-linear valve characteristics, split-range control, and custom engineering units. Square-root extraction for flow applications and 25-point linearization tables handle complex actuator profiles.

Delivery & Service Assurance

Lead Time:

• Standard modules: 3-5 business days (in-stock items)
• Custom configurations: 2-3 weeks (factory programming/testing)
• Expedited service: 24-48 hour dispatch available for critical outages

Warranty Coverage:
12-month manufacturer warranty covering defects in materials and workmanship. Extended warranties (24/36 months) and advance replacement programs available. Warranty includes firmware updates and technical support access.

Technical Support:

• 24/7 global hotline with L2/L3 escalation (avg. response <2 hours)
• Remote diagnostics via secure VPN connection
• On-site commissioning and troubleshooting (quoted separately)
• Annual health checks and performance verification services

Documentation Package:
Every module ships with installation manual, safety manual (per IEC 61508-2), FMEDA report, calibration certificate, and SILworX configuration templates. Multilingual documentation available in English, German, Chinese, and Spanish.

Training & Certification:
Complimentary access to HIMA's online training portal covering module installation, configuration, and troubleshooting. Paid certification courses available for safety system engineers seeking TÜV Functional Safety Expert credentials.

Frequently Asked Questions

What is the difference between the X-AO1601 and legacy F-AO modules?
The X-AO1601 offers 2× channel density (16 vs. 8), hot-swap capability, and integrated HART support not available in F-series modules. Backward compatibility with existing HIMax racks is maintained through firmware updates.

Can I mix X-AO1601 modules with other HIMax I/O in the same rack?
Yes, the HIMax backplane supports heterogeneous I/O mixing. A single H51q rack accommodates up to 16 modules of any type (analog input, digital I/O, communication). Power budget and processor scan time are the only constraints.

How do I configure output fail-safe states (0mA vs. 4mA vs. hold-last-value)?
Fail-safe behavior is programmed per channel via SILworX software. Options include: 0 mA (de-energize), 4 mA (low alarm), 20 mA (high alarm), or hold-last-value (for non-safety loops). Configuration is validated during FAT and locked via password protection.

What cable specifications are recommended for 4-20mA wiring?
Use twisted-pair shielded cable (minimum 0.5mm² / 20 AWG) with drain wire. Shield grounding at control room end only (single-point ground). For hazardous areas, use intrinsically safe barriers rated for Zone 1/Div 1 applications. Maximum capacitance: 0.2 µF per channel.

Is the module suitable for Zone 2 / Class I Div 2 installations?
Yes, the X-AO1601 carries ATEX/IECEx certification for Zone 2 (Group IIC T4) when installed in appropriate enclosures. For Zone 1 applications, use HIMA's intrinsically safe barrier modules (X-ZB series) between the output module and field devices.

How often should I perform proof testing on SIL 3 configurations?
Per IEC 61508, proof test intervals depend on target PFDavg. With the X-AO1601's >99% diagnostic coverage, intervals of 5-10 years are achievable in 1oo2 architectures. Consult the safety manual's FMEDA tables for specific calculations based on your application's risk reduction requirements.

Ready to Enhance Your Safety System Reliability?

The HIMA X-AO1601 delivers the precision, diagnostics, and proven reliability your critical control loops demand. Whether you're upgrading legacy I/O, expanding existing HIMax systems, or designing new SIL 3 applications, our team provides expert guidance from specification through commissioning.

Contact our industrial automation specialists today:

• Request a detailed quotation with lead time confirmation
• Schedule a technical consultation to review your application requirements
• Download CAD drawings, wiring diagrams, and configuration examples
• Arrange factory acceptance testing (FAT) for custom configurations
