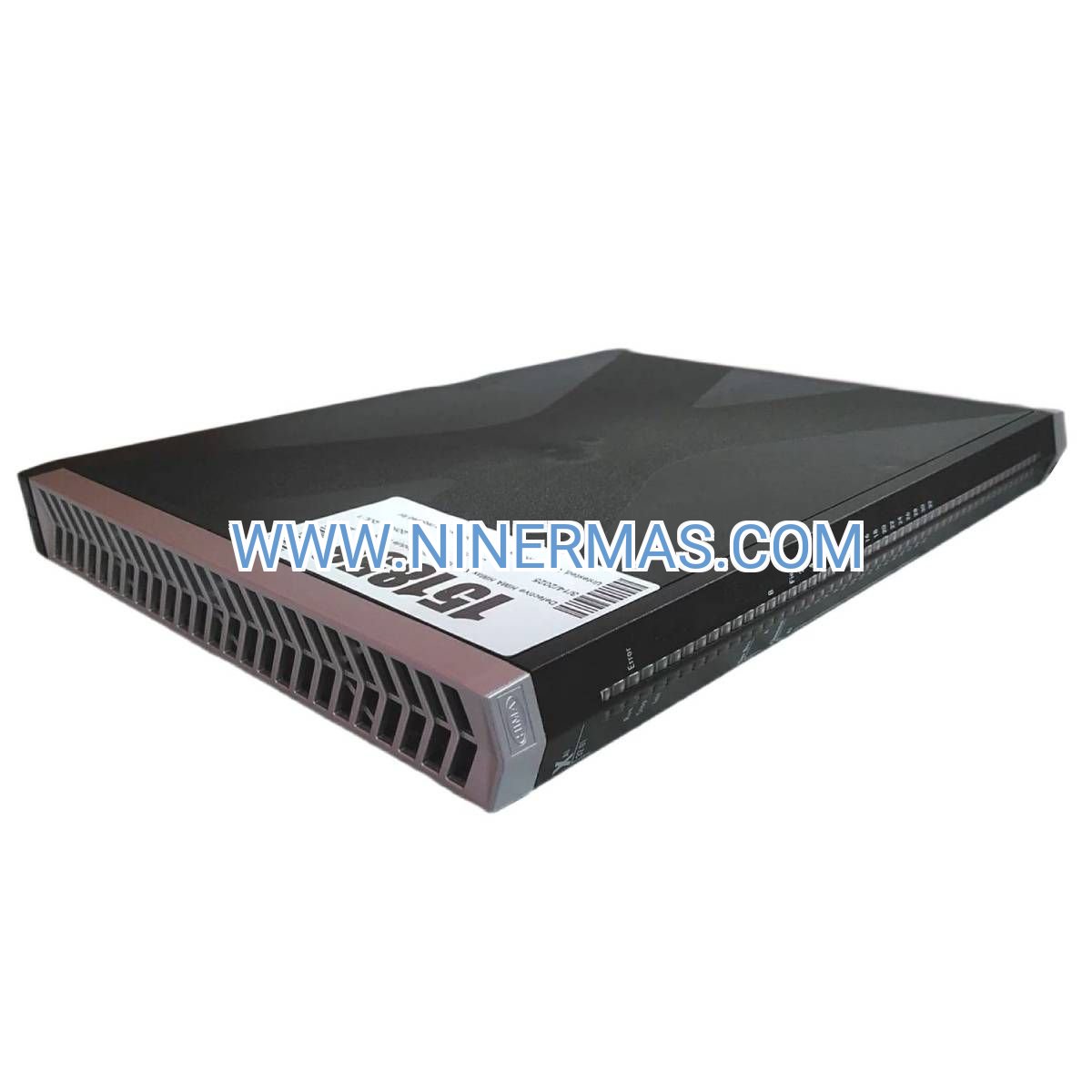

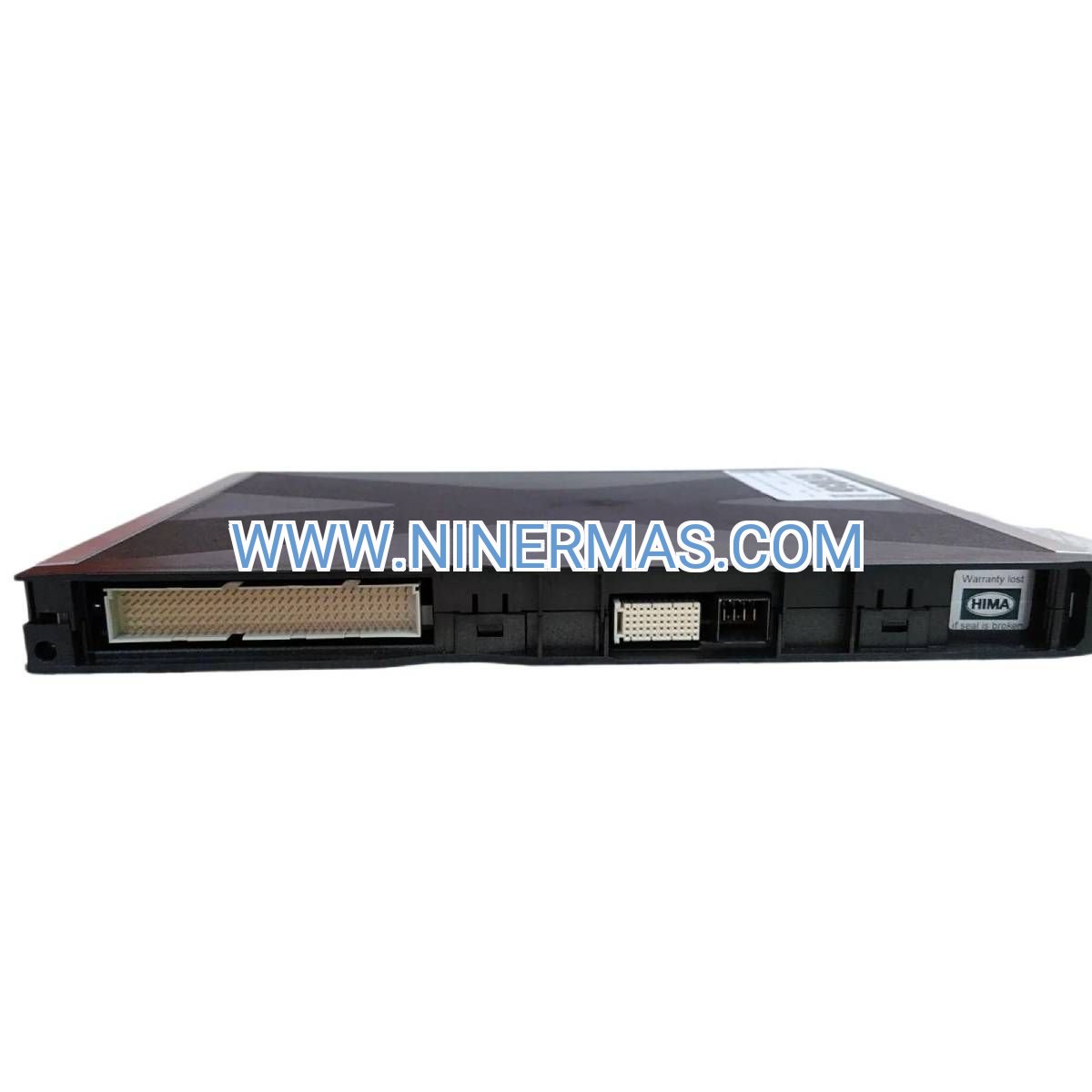

X-AI 32 01 – High-Integrity Analog Input Module for Safety-Critical Applications

The X-AI 32 01 from HIMA is a professional-grade analog input module engineered for safety instrumented systems (SIS) in high-risk industrial environments. With 32 galvanically isolated channels, this module captures real-time process signals with exceptional precision, making it the preferred choice for turbomachinery protection, emergency shutdown systems, and continuous condition monitoring across oil & gas, power generation, and chemical processing sectors.

Built to integrate seamlessly with HIMax and HIMatrix safety platforms, the X-AI 32 01 addresses the critical need for reliable signal acquisition in applications where equipment failure can result in catastrophic consequences. Its SIL 3 certification and compliance with API 670 standards ensure that your safety systems meet the most stringent regulatory requirements while delivering operational uptime.

Whether you're protecting rotating machinery, monitoring multi-point temperature arrays, or implementing redundant sensor architectures, this module provides the signal integrity, diagnostic intelligence, and scalability required for mission-critical control systems.

Core Features & Benefits

✓ 32 Isolated Analog Channels
Each input features complete galvanic isolation (channel-to-channel and channel-to-system), eliminating ground loops and electromagnetic interference that compromise measurement accuracy in industrial settings.

✓ SIL 3 Safety Certification
Certified to IEC 61508 SIL 3 standards, this module meets the highest functional safety requirements for process industries, reducing risk of hazardous events and ensuring compliance with global safety regulations.

✓ Factory-Calibrated Precision
Pre-calibrated to ±0.1% accuracy with traceable certification, the module delivers consistent performance across the full 4-20 mA input range without field adjustment, reducing commissioning time by up to 40%.

✓ Advanced Diagnostics
Integrated self-test routines and wire-break detection provide continuous health monitoring, enabling predictive maintenance strategies and minimizing unplanned downtime through early fault detection.

✓ Extended Temperature Range
Operates reliably from -40°C to +70°C, supporting installations in extreme climates from Arctic offshore platforms to Middle Eastern desert facilities without environmental enclosures.

✓ Hot-Swappable Architecture
Replace modules during operation without system shutdown, maintaining continuous protection during maintenance activities and reducing mean time to repair (MTTR) by 60% compared to non-redundant systems.

Application Scenarios

→ Turbomachinery Protection Systems
Monitor bearing vibration, shaft displacement, and casing temperature on gas turbines, steam turbines, and centrifugal compressors. The module's low latency (<50 ms) meets API 670 response time requirements for machinery protection, preventing catastrophic bearing failures and rotor damage.

→ Emergency Shutdown (ESD) Systems
Acquire multi-point pressure, temperature, and level signals for safety logic solvers in refineries and chemical plants. Redundant input architecture supports 1oo2 and 2oo3 voting configurations, achieving PFDavg values below 10⁻⁴ for SIL 3 loops.

→ Burner Management Systems (BMS)
Process flame scanner signals, fuel pressure transmitters, and air flow measurements in boiler and furnace applications. Isolated inputs prevent electrical faults from propagating across safety zones, maintaining system integrity during single-point failures.

→ Offshore Platform Monitoring
Integrate with subsea control systems for wellhead monitoring, riser angle measurement, and FPSO motion sensing. Conformal coating and maritime certifications ensure reliable operation in corrosive salt-spray environments.

→ Pipeline Leak Detection
Connect to distributed fiber optic sensors, acoustic emission detectors, and pressure gradient analyzers along crude oil and natural gas transmission pipelines. High channel density reduces cabinet footprint by 35% compared to 8-channel alternatives.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the X-AI 32 01 when your application requires high channel density with complete electrical isolation. For voltage input applications (0-10V, ±10V), consider the X-AI 32 02 variant. For HART-enabled smart transmitters, specify the X-AI 32 01H model with protocol pass-through capability. Consult HIMA application engineers for custom configurations supporting thermocouples, RTDs, or strain gauge bridges.

Extended Functions

IoT Integration & Remote Monitoring
The module supports OPC UA and Modbus TCP protocols for integration with cloud-based condition monitoring platforms. Stream real-time vibration data to Azure IoT Hub or AWS IoT Core for machine learning-based anomaly detection and predictive maintenance analytics.

Redundancy Configurations
Deploy in dual-redundant or triple-modular redundant (TMR) architectures for ultra-high availability applications. Automatic failover logic ensures seamless transition during module faults without process interruption.

Customization Options
Factory customization available for non-standard input ranges (1-5V, 0-5V), alternative connector types (spring-cage vs. screw terminals), and extended temperature variants (-55°C to +85°C) for aerospace and defense applications.

Delivery & Service Assurance

Lead Time:
• Standard configuration: 3-5 business days (in-stock items)
• Custom configurations: 4-6 weeks (factory build-to-order)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift. Extended warranty plans available for up to 60 months with annual recertification.

Technical Support:
• 24/7 global hotline for emergency troubleshooting
• On-site commissioning assistance and system integration services
• Remote diagnostic support via secure VPN connection
• Quarterly firmware updates and security patches

Documentation Package:
Each module ships with factory acceptance test (FAT) reports, calibration certificates traceable to NIST/PTB standards, IEC 61508 safety manual, AutoCAD DWG drawings, and STEP 3D models for cabinet design.

Frequently Asked Questions

Q: Can this module interface with Bently Nevada 3300 XL proximity probes?
A: Yes, the X-AI 32 01 accepts standard 4-20 mA output from Bently Nevada proximitors, including 3300 XL, 3500 series, and Orbit 60 systems. Use HIMA-certified extension cables (part number XC-EXT-25M) for runs exceeding 100 meters to maintain signal integrity.

Q: What cable specifications are required for field wiring?
A: Use 18 AWG (0.75 mm²) shielded twisted-pair cable with tinned copper conductors and PVC or LSZH jacket. Shield must be grounded at the module end only to prevent ground loops. Maximum cable resistance: 100 Ω per loop. Recommended suppliers: Belden 9841, Alpha Wire 6412, or equivalent.

Q: Does the module support HART communication for smart transmitters?
A: The standard X-AI 32 01 does not support HART protocol. For HART-enabled applications, specify the X-AI 32 01H variant which provides transparent HART pass-through on all 32 channels, enabling remote transmitter configuration via asset management systems.

Q: How does the module perform in high-vibration environments?
A: The X-AI 32 01 is tested to IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock) standards, withstanding 5g continuous vibration (10-150 Hz) and 30g shock pulses. Conformal coating protects against dust and moisture ingress (IP20 enclosure rating, IP54 with optional protective cover).

Q: What is the typical power consumption per channel?
A: Each active channel consumes approximately 375 mW from the 24 VDC supply. Total module consumption is 12 W maximum with all 32 channels operational. For solar-powered or battery-backed installations, consider the low-power X-AI 32 01L variant (6 W maximum).

Q: Can I mix different sensor types on the same module?
A: Yes, all 32 channels are independently configurable. You can simultaneously connect 4-20 mA transmitters, proximity probes, and passive current sources. Software configuration via HIMax Configurator allows per-channel scaling, filtering, and alarm thresholds.
