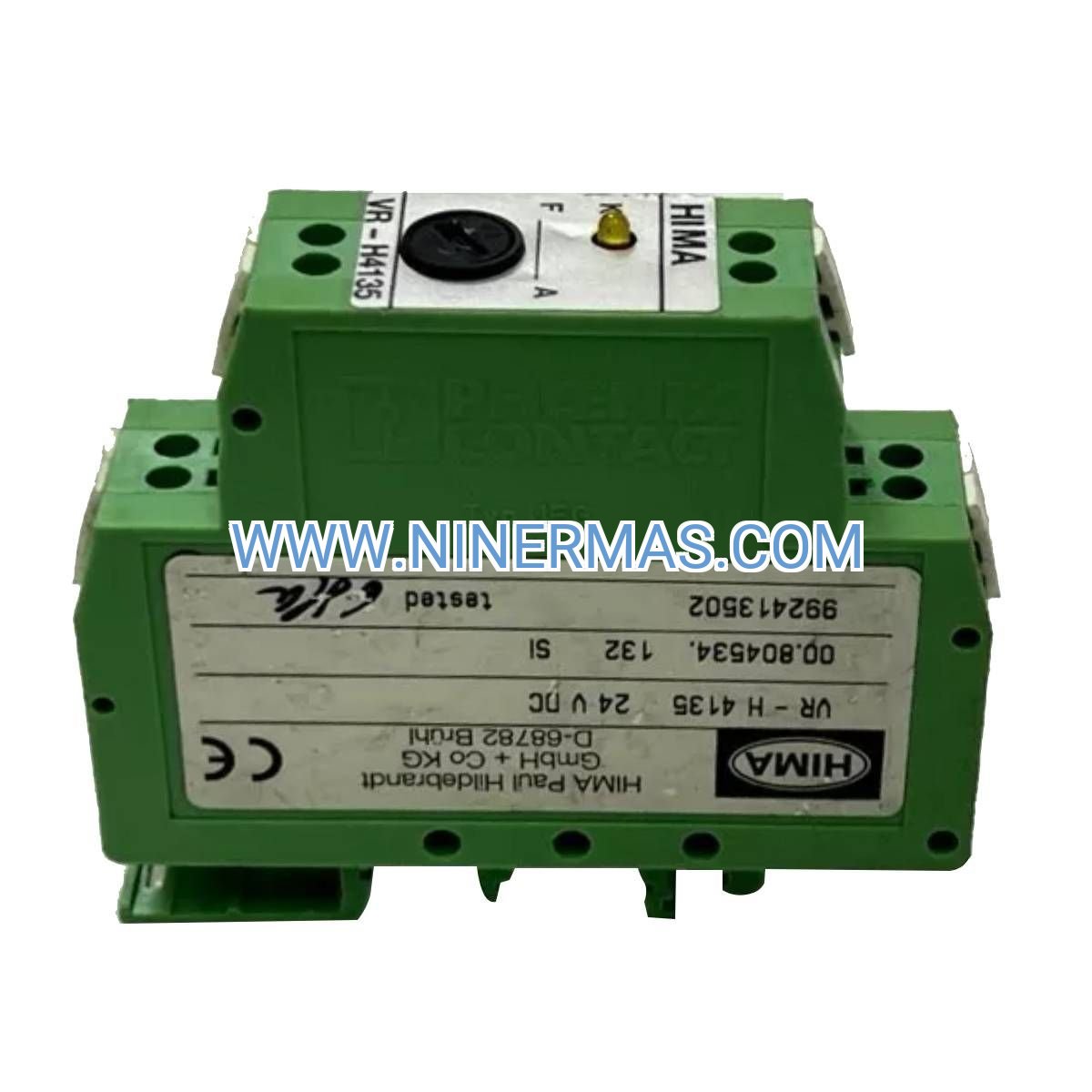

VR-H 4135 Safety Relay Module (Industrial-Grade Fail-Safe Protection)

The VR-H 4135 is a TÜV-certified safety relay module engineered by HIMA for mission-critical shutdown applications in process industries. Designed to meet SIL3 (IEC 61508) and PLe (ISO 13849-1) standards, this compact DIN-rail device provides redundant monitoring of emergency stop buttons, safety interlocks, and protective equipment across oil refineries, chemical plants, and power generation facilities.

Built for environments where equipment failure can lead to catastrophic consequences, the VR-H 4135 eliminates single points of failure through dual-channel architecture and force-guided relay contacts. Its self-diagnostic capabilities detect internal faults within milliseconds, ensuring your safety systems remain operational 24/7/365.

Whether you're upgrading legacy relay panels or designing new safety instrumented systems (SIS), the VR-H 4135 delivers proven German engineering with global certification compliance, backed by comprehensive technical documentation and responsive factory support.

Core Features & Benefits

✓ SIL3-Certified Reliability
Achieves Safety Integrity Level 3 per IEC 61508, providing 99.9% probability of safe operation on demand. Ideal for high-consequence scenarios requiring the highest non-redundant safety rating.

✓ Force-Guided Contact Technology
Mechanically linked relay contacts guarantee simultaneous opening, preventing dangerous welding failures that plague standard contactors. Extends service life to 10 million operations under rated load.

✓ Dual-Channel Monitoring Capability
Supports both single-channel (with test pulse) and dual-channel configurations without external logic. Adapts to Category 3 or Category 4 safety architectures per ISO 13849-1.

→ Integrated LED Diagnostics
Real-time visual indicators for input status, output state, and fault conditions reduce troubleshooting time by 60%. Simplifies commissioning and maintenance in complex control cabinets.

→ Compact DIN-Rail Design
Occupies just 22.5mm width on standard 35mm rail, saving valuable panel space. Screw-clamp terminals accept 0.5-2.5mm² wire for secure, vibration-resistant connections.

→ Wide Operating Temperature Range
-25°C to +60°C operational capability ensures reliable performance in extreme climates, from Arctic offshore platforms to Middle Eastern desert facilities.

Typical Application Scenarios

1. Offshore Oil & Gas Platforms
Challenge: Emergency shutdown (ESD) systems must isolate wellheads and process equipment within seconds during blowout or fire events.
Solution: VR-H 4135 monitors ESD push buttons and flame detectors, triggering pneumatic valve actuators to halt hydrocarbon flow. ATEX Zone 2 compatibility allows installation in classified areas.
Value: Prevents environmental disasters and protects personnel in unmanned offshore installations.

2. Chemical Reactor Safety Interlocks
Challenge: Runaway exothermic reactions require instantaneous cooling system activation and feed isolation to prevent vessel rupture.
Solution: Dual-channel configuration monitors reactor temperature switches and pressure transmitters, activating quench valves and stopping agitator motors when thresholds are exceeded.
Value: Reduces insurance premiums by demonstrating compliance with IEC 61511 process safety standards.

3. Power Plant Turbine Protection
Challenge: Steam turbine overspeed conditions can cause catastrophic blade failure, requiring trip systems with <30ms response time.
Solution: VR-H 4135 processes signals from redundant speed sensors, de-energizing trip solenoids to close steam admission valves before critical RPM is reached.
Value: Protects multi-million dollar assets while maintaining grid stability during fault conditions.

4. Robotic Work Cell Safeguarding
Challenge: Collaborative robots and automated assembly lines require safety light curtain integration to prevent operator injury during maintenance access.
Solution: Module monitors light curtain muting signals and safety gate position switches, halting robot motion within one safety-rated stop time (STO) cycle.
Value: Achieves PLe performance level required by machinery directive 2006/42/EC for CE marking.

5. Mining Conveyor Emergency Stop Systems
Challenge: Kilometers of belt conveyors require distributed emergency stop stations with centralized monitoring and reset capability.
Solution: Multiple VR-H 4135 modules wired in series create a safety chain, with any activated E-stop cutting power to all conveyor drives simultaneously.
Value: Complies with MSHA regulations while reducing wiring complexity compared to traditional relay ladder logic.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose VR-H 4135 for applications requiring 4 independent safety outputs without auxiliary contacts
• For higher current loads (>2A), pair with HIMA H4135A relay amplifier modules
• Zone 1/Division 1 hazardous areas require VR-H 4135-EX variant with intrinsic safety barriers
• Applications needing programmable logic should consider HIMA HIMax modular safety controllers

Extended Functions

Remote Monitoring Integration: Terminal blocks provide auxiliary contacts for PLC/SCADA integration, enabling real-time safety system status monitoring via Modbus RTU or Profibus DP gateways. Facilitates predictive maintenance by tracking activation cycles and fault history.

Cascaded Safety Chains: Multiple VR-H 4135 modules can be series-connected to create distributed emergency stop networks spanning large facilities. Supports both hardwired and safety bus topologies (via external interface modules).

Custom Terminal Labeling: Factory-programmable terminal markers available for OEM panel builders requiring project-specific wire identification. Reduces commissioning errors in multi-module installations.

Delivery & Service Assurance

Lead Time:

• Standard Configuration: 3-5 business days (in-stock items)
• Custom Variants: 4-6 weeks (factory-direct orders)
• Express Shipping: Available for critical downtime situations

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty plans available for mission-critical applications.

Technical Support: Lifetime application engineering assistance via email/phone. Access to certified safety engineers for SIL verification calculations and compliance documentation.

Documentation Package: Each module ships with TÜV certificate, CE declaration of conformity, wiring diagrams, and IEC 61508 reliability data (MTBF, PFDavg values).

Frequently Asked Questions

Q: How does the VR-H 4135 differ from standard industrial relays?
A: Unlike general-purpose relays, the VR-H 4135 features force-guided contacts that mechanically prevent dangerous failures, continuous self-diagnostics per IEC 61508, and TÜV certification for safety-critical applications. Standard relays lack these fail-safe mechanisms.

Q: Can this module handle inductive loads like solenoid valves?
A: Yes, but contact life is reduced with inductive loads. For 24V DC solenoids, use external flyback diodes (1N4007 or equivalent) across coil terminals. For AC loads or currents exceeding 2A, specify HIMA H4135A amplifier relays.

Q: What is the maximum cable length for safety input circuits?
A: Up to 300 meters using shielded twisted-pair cable (0.75mm² minimum). Longer distances require signal repeaters or safety PLCs with distributed I/O. Always calculate voltage drop to ensure ≥19.2V at module terminals.

Q: Is periodic proof testing required for SIL3 compliance?
A: Yes. IEC 61508 mandates functional testing at intervals determined by your safety instrumented function (SIF) calculations. Typical proof test intervals range from 1-3 years depending on application PFDavg targets. Consult your safety engineer for site-specific requirements.

Q: Does the VR-H 4135 support automatic reset after fault clearance?
A: No. The module requires manual reset via dedicated reset input to prevent unintended equipment restart. This design complies with machinery safety standards requiring deliberate operator action after emergency stop activation.

Q: Are replacement parts available for legacy HIMA H4135 installations?
A: The VR-H 4135 is backward-compatible with H4135/H4135A wiring schemes. However, verify terminal assignments and update safety documentation when retrofitting. Contact our technical team for migration guides.

Start Your Safety System Upgrade Today

Protect your personnel, assets, and environment with proven HIMA safety technology. Our engineering team is ready to assist with product selection, SIL verification calculations, and compliance documentation.

Next Steps:

• Add to cart for immediate purchase with global shipping
• Request a formal quotation for multi-unit projects
• Contact our safety specialists for application-specific guidance
