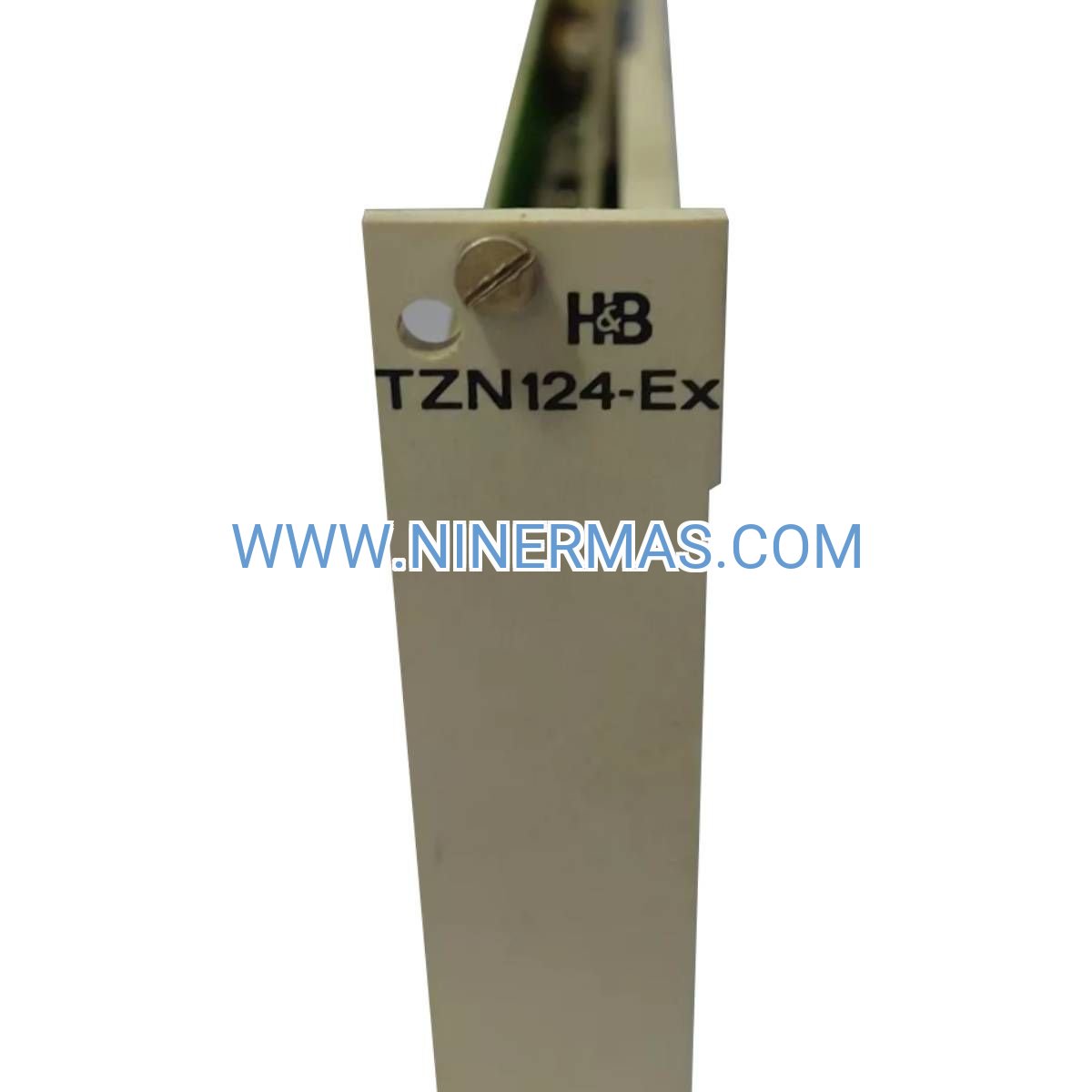

TZN124-EX Explosion-Proof Safety Controller (ATEX/IECEx Certified for Zone 1/2)

The TZN124-EX represents HIMA's advanced approach to functional safety in explosive atmospheres. This industrial-grade safety controller combines SIL 3 integrity with ATEX/IECEx certification, delivering fail-safe process monitoring for oil & gas, petrochemical, and mining operations. Built on proven dual-channel architecture, it ensures continuous protection even under extreme environmental conditions from -40°C to +70°C.

Designed for engineers managing critical infrastructure in hazardous zones, the TZN124-EX eliminates single points of failure through redundant processing paths. Its hot-swap capability minimizes downtime during maintenance, while comprehensive self-diagnostics provide real-time visibility into system health. Whether you're upgrading legacy safety systems or designing new installations, this module integrates seamlessly with HIMA HIMax/HIMatrix platforms and industry-standard protocols.

With over 100,000 hours MTBF and response times under 50ms, the TZN124-EX delivers the reliability demanded by safety-critical applications. Factory-calibrated and backed by global technical support, it's the trusted choice for facilities where operational safety is non-negotiable.

Core Capabilities & Business Value

✓ SIL 3 Certified Safety Integrity
Meets IEC 61508 requirements for the highest level of functional safety in process industries. Reduces liability exposure and ensures regulatory compliance across international jurisdictions.

✓ ATEX/IECEx Zone 1/2 Approval
Certified for installation in explosive atmospheres (gas/vapor/mist). Eliminates the need for costly explosion-proof enclosures in many applications, lowering total installation costs by 20-35%.

✓ Dual-Channel Redundant Architecture
Two independent processing channels with continuous cross-checking. Achieves 99%+ diagnostic coverage, detecting latent faults before they compromise safety functions.

✓ Hot-Swap Maintenance Capability
Replace modules during operation without system shutdown. Reduces planned maintenance windows from hours to minutes, protecting production schedules in 24/7 facilities.

✓ Multi-Protocol Network Integration
Native support for PROFIBUS DP, Modbus RTU/TCP, and HIMA proprietary protocols. Simplifies integration with existing DCS/SCADA infrastructure and third-party safety devices.

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in Arctic offshore platforms and desert refineries alike. Eliminates need for climate-controlled cabinets in many installations.

Industry Applications & Problem-Solving

→ Offshore Oil & Gas Platforms
Manages emergency shutdown (ESD) systems and fire & gas detection in Zone 1 areas. Withstands salt spray, vibration, and temperature extremes while maintaining SIL 3 performance. Typical deployment: 12-24 modules per platform controlling wellhead isolation, flare systems, and HVAC interlocks.

→ Petrochemical Refineries
Monitors critical process parameters (pressure, temperature, flow) in cracking units, distillation columns, and storage tank farms. Prevents runaway reactions and overpressure events through sub-50ms response times. Integrates with existing DCS for coordinated process control and safety management.

→ Chemical Manufacturing Plants
Controls batch reactors, solvent recovery systems, and hazardous material handling in ATEX-classified zones. Supports complex safety logic including permissive interlocks, sequential shutdown, and partial stroke testing of final elements.

→ Underground Mining Operations
Provides methane monitoring, ventilation control, and conveyor safety systems in potentially explosive coal dust environments. Rugged construction withstands shock, vibration, and humidity while maintaining certification compliance.

→ Pharmaceutical Clean Room Facilities
Manages solvent handling, powder processing, and sterile manufacturing areas requiring both explosion protection and contamination control. IP65-rated terminal area prevents ingress while allowing thorough cleaning protocols.

Technical Specifications & Selection Guide

Selection Criteria: Choose TZN124-EX when your application requires SIL 3 safety functions in Zone 1/2 hazardous areas with operating temperatures beyond standard industrial ranges. For non-hazardous locations, consider standard HIMA safety modules for cost optimization. Verify that your safety function's required risk reduction aligns with SIL 3 capability (PFDavg 10⁻⁴ to 10⁻³).

Advanced Integration Features

Industrial IoT Connectivity: Optional Ethernet/IP and OPC UA interfaces enable integration with modern SCADA systems and cloud-based asset management platforms. Stream diagnostic data to predictive maintenance systems for condition-based servicing strategies.

Cybersecurity Hardening: Implements IEC 62443 security measures including role-based access control, encrypted communications, and audit logging. Protects safety systems from unauthorized access and cyber threats in connected industrial environments.

Partial Stroke Testing (PST): Supports automated testing of shutdown valves without process interruption. Reduces proof test intervals and validates final element functionality per IEC 61511 requirements.

Custom Logic Programming: Configure complex safety functions using HIMA's SILworX engineering suite. Supports function block diagrams (FBD), ladder logic (LD), and structured text (ST) per IEC 61131-3 standards.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for stock items shipped from our regional distribution centers in North America, Europe, and Asia-Pacific. All modules ship with factory calibration certificates and test reports.

Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific logic and I/O mapping. Includes factory acceptance testing (FAT) documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications.

Technical Support: Global 24/7 hotline staffed by certified safety engineers. Remote diagnostics via secure VPN connections. On-site commissioning support available in major industrial regions.

Documentation Package: Each module includes installation manual, safety manual (per IEC 61508-2), certificate of conformity, ATEX/IECEx certificates, and CAD drawings for panel layout. Software tools and example programs available via download portal.

Frequently Asked Questions

What is the maximum cable length for digital inputs on the TZN124-EX safety controller?
Digital inputs support cable runs up to 300 meters using shielded twisted-pair cable (0.75mm² minimum). For longer distances, use barrier-isolated signal conditioners or fiber optic converters to maintain signal integrity and noise immunity.

Can the TZN124-EX interface directly with smart transmitters using HART protocol?
Yes, analog input channels are HART-transparent, allowing pass-through communication with intelligent field devices. Use HIMA's configuration software to access extended diagnostics and device parameters without additional hardware.

How does the module achieve energy efficiency in continuous operation?
Advanced power management reduces consumption to 8W typical through intelligent sleep modes for unused channels and optimized processor clock speeds. Over a 10-year lifecycle, this saves approximately 700 kWh compared to legacy safety controllers—reducing both operating costs and heat load in control cabinets.

What installation clearances are required for proper thermal management?
Maintain 50mm minimum spacing above and below the module for natural convection cooling. Side-by-side mounting is permitted with no spacing required. For ambient temperatures exceeding 60°C, install forced ventilation or reduce module density to alternate DIN rail positions.

Is remote firmware updating supported for deployed safety systems?
Firmware updates require physical access and use of HIMA's certified programming tool to maintain IEC 61508 compliance. Remote updates are not permitted for safety-critical functions, but diagnostic firmware can be updated via network interfaces following documented change management procedures.

How do I verify ongoing SIL 3 compliance during the operational phase?
Implement proof testing per your safety requirements specification (SRS), typically every 12-24 months. The module's built-in diagnostics continuously monitor critical components; any detected fault triggers immediate alarm and safe state transition. Maintain test records and update safety lifecycle documentation per IEC 61511 requirements.

Start Your Safety System Upgrade

Ready to enhance your hazardous area protection with proven SIL 3 technology? Our application engineers are available to review your safety requirements, recommend optimal configurations, and provide budget quotations. Contact us today for technical datasheets, compliance certificates, and project-specific pricing.

Request Information: Email your process description and I/O list to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
