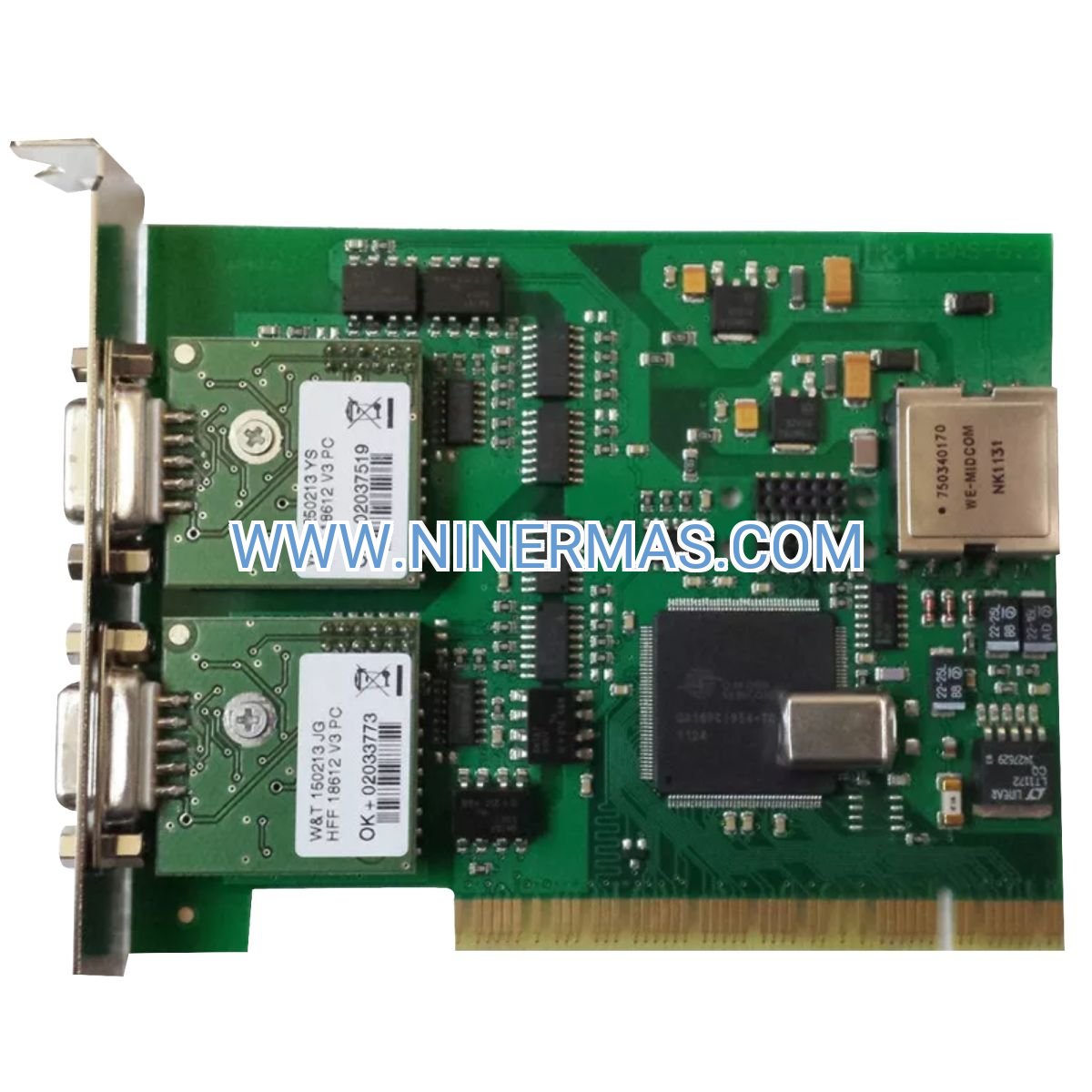

RS485-PCI Industrial Communication Card (HIMA Safety-Certified)

The RS485-PCI represents a mission-critical communication bridge for HIMA-based safety instrumented systems. This PCI-compatible interface card transforms standard computing platforms into robust serial communication hubs, enabling real-time data exchange across distributed control architectures in oil & gas, chemical processing, and power generation facilities.

Designed for engineers managing safety-critical operations, this module addresses the persistent challenge of integrating legacy RS485 field devices with modern HIMA HIMax and HIMatrix controllers. Its differential signaling architecture delivers deterministic communication even in electrically noisy industrial environments where conventional interfaces fail.

With factory-validated SIL 3 compliance and extended temperature tolerance, the RS485-PCI eliminates communication bottlenecks while maintaining the integrity demanded by functional safety standards IEC 61508 and IEC 61511.

Core Capabilities & Business Value

✓ Plug-and-Play PCI Integration
Standard PCI form factor enables rapid installation in industrial PCs and HIMA communication gateways without custom backplanes—reducing commissioning time by 40% compared to proprietary solutions.

✓ Extended Environmental Resilience
Operates reliably across -40°C to +85°C temperature range with conformal coating protection, ensuring continuous uptime in extreme climates from Arctic facilities to desert refineries.

✓ Multi-Device Network Scalability
Supports up to 32 nodes on a single RS485 bus with automatic termination detection, enabling cost-effective expansion of distributed I/O networks without additional infrastructure.

→ Differential Noise Immunity
RS485 balanced transmission rejects common-mode interference up to 12V, maintaining signal integrity near VFDs, welding equipment, and high-voltage switchgear.

→ Hot-Swap Maintenance Design
Field-replaceable without system shutdown through PCI hot-plug support, minimizing mean time to repair (MTTR) during scheduled maintenance windows.

→ HIMA Ecosystem Compatibility
Native integration with HIMA SILworX engineering suite and HIMatrix communication processors, streamlining configuration and diagnostics workflows.

Industry Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore platforms, the RS485-PCI connects fire & gas detectors to HIMA safety controllers, providing the redundant communication paths required for SIL 3 voting logic. Typical installations achieve <10ms response times for critical shutdown sequences.

Burner Management Systems (BMS)
Chemical plants deploy this interface to link flame scanners and fuel valve actuators with HIMA F8650X safety managers. The card's deterministic latency ensures compliance with NFPA 85 purge timing requirements.

Turbine Control Integration
Power generation facilities use RS485-PCI modules to interface vibration sensors and overspeed detection systems with HIMA H51q controllers, enabling predictive maintenance while maintaining safety integrity level certification.

SCADA Historian Connectivity
Refineries leverage the card to aggregate process data from distributed HIMA I/O racks to centralized historians, supporting regulatory compliance reporting under EPA 40 CFR Part 68.

Legacy Equipment Modernization
Retrofit projects utilize RS485-PCI to preserve existing field wiring while upgrading to HIMA safety PLCs, reducing migration costs by eliminating cable replacement in hazardous areas.

Technical Parameters & Selection Criteria

Selection Guidelines: For networks exceeding 32 devices, implement RS485 repeaters at 1000m intervals. When integrating with non-HIMA equipment, verify protocol compatibility (Modbus RTU, PROFIBUS DP, or proprietary). Consult HIMA application note AN-485-03 for cable shielding requirements in high-EMI environments.

Advanced Integration Features

Protocol Flexibility: While optimized for HIMA proprietary protocols, the card supports industry-standard Modbus RTU and ASCII modes through driver configuration, enabling third-party sensor integration without protocol converters.

Diagnostic Monitoring: Built-in LED indicators provide real-time status for transmit/receive activity, bus termination, and fault conditions. SNMP traps alert maintenance teams to communication degradation before failures occur.

Cybersecurity Hardening: Firmware includes MAC address filtering and message authentication codes (MAC) to prevent unauthorized device access on shared RS485 segments, aligning with IEC 62443 industrial cybersecurity standards.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units via express courier with tracking
Custom Configuration: 10-15 business days for pre-programmed firmware or extended temperature variants
Warranty Coverage: 12-month manufacturer defect warranty with advance replacement option
Technical Support: Lifetime access to HIMA-certified engineers for installation guidance and troubleshooting
Documentation Package: Includes CAD drawings, wiring diagrams, driver installation guides, and IEC 61508 compliance certificates

Frequently Asked Questions

What cable specifications are required for RS485-PCI installations?
Use 24 AWG twisted-pair cable with foil shield and drain wire (Belden 9841 or equivalent). Maintain <50pF/ft capacitance for optimal signal integrity at maximum distance.

Can this interface card operate in redundant configurations?
Yes—deploy dual RS485-PCI cards in separate PCI slots with HIMA redundancy manager software to achieve fault-tolerant communication per IEC 61508 hardware fault tolerance requirements.

How does performance compare to Ethernet-based communication?
While Ethernet offers higher bandwidth, RS485 provides deterministic latency (<5ms typical) and superior noise immunity in electrically harsh environments, making it preferred for safety-critical loops.

What driver support is available for non-Windows operating systems?
HIMA provides certified drivers for Windows 10/11, Linux kernel 4.x+, and VxWorks RTOS. Third-party LabVIEW and MATLAB interfaces are available through the HIMA developer portal.

Is the card compatible with fiber optic RS485 converters?
Absolutely—pair with industrial fiber media converters to extend communication beyond 1200m in applications requiring electrical isolation or lightning protection.

What are the power consumption specifications for battery-backed systems?
Typical draw is 1.25W (250mA @ 5V), enabling 72+ hour UPS runtime when paired with standard industrial battery backup systems.

Get Started with RS485-PCI Integration

Our application engineers are ready to assist with network architecture design, cable routing analysis, and HIMA system integration planning. Contact us for project-specific technical consultations, volume pricing for multi-site deployments, or to request evaluation units for proof-of-concept testing.
