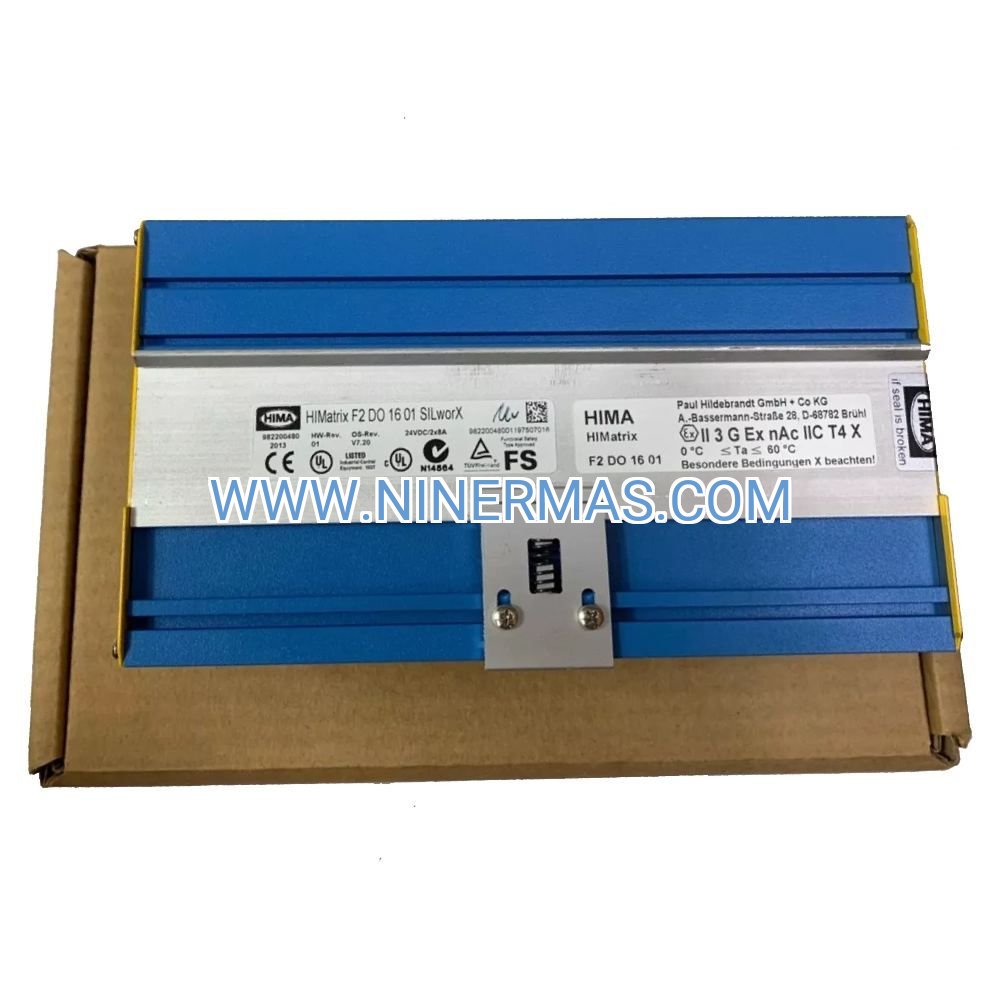

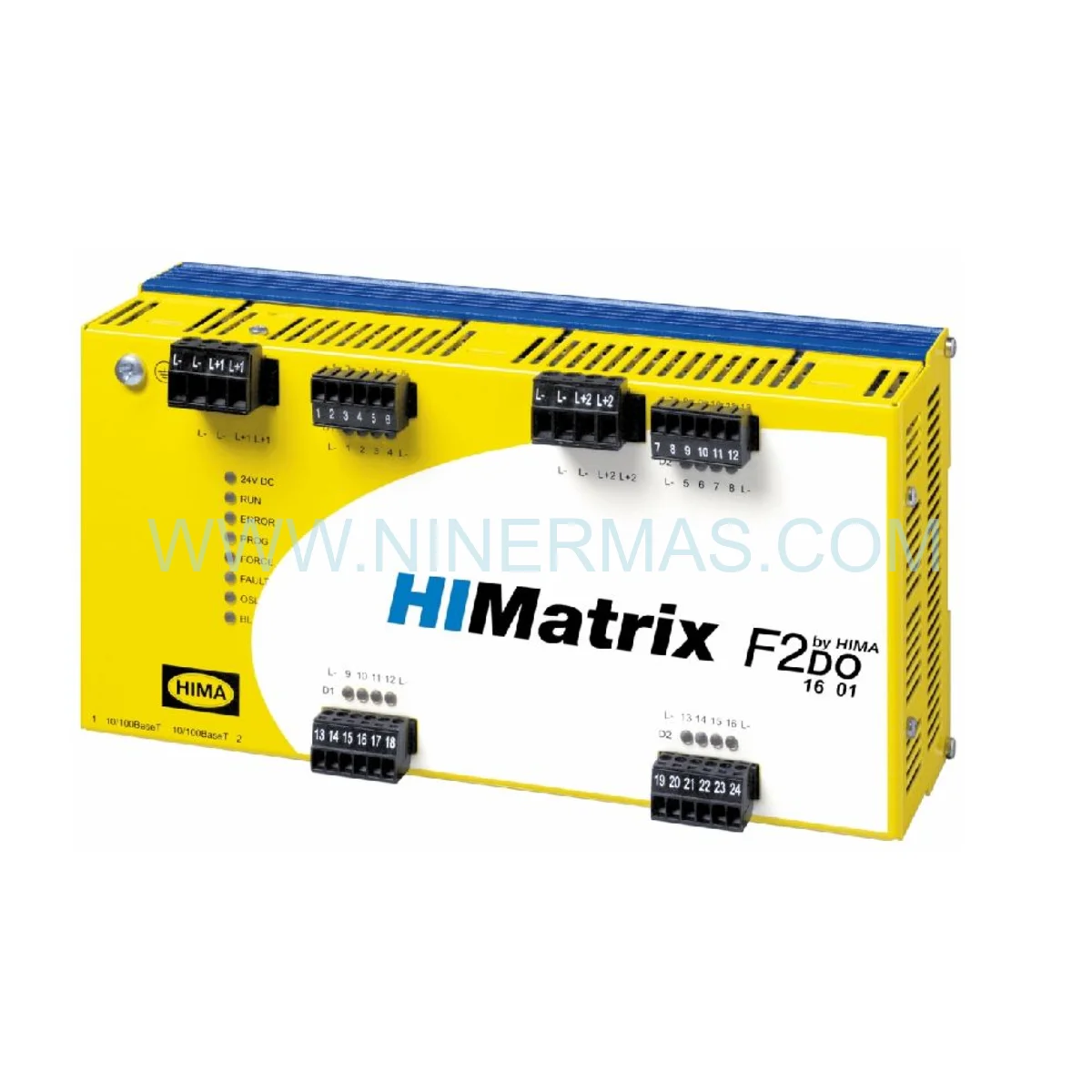

HIMA F2 DO 16 01 – Industrial-Grade 16-Channel Safety Output Module

The HIMA F2 DO 16 01 is a high-performance digital output module engineered for safety-critical industrial automation systems. Designed for seamless integration within the HIMatrix platform, this controller delivers 16 independently controlled output channels with SIL 3 certification, ensuring fail-safe operation in process industries, energy generation, and manufacturing environments where reliability is non-negotiable.

Built to withstand harsh industrial conditions, the F2 DO 16 01 combines robust hardware design with intelligent diagnostics and dual Ethernet connectivity. Whether you're upgrading legacy safety systems or deploying new automation infrastructure, this module provides the precision, redundancy, and compliance required for mission-critical applications.

Backed by HIMA's decades of safety engineering expertise, the F2 DO 16 01 offers plug-and-play compatibility with HIMatrix controllers, comprehensive technical documentation, and global support—making it the trusted choice for engineers who demand uncompromising safety performance.

Core Features & Technical Advantages

✓ SIL 3 Certified Safety Architecture
Meets IEC 61508 standards for safety-critical applications, providing certified protection for emergency shutdown systems, fire & gas detection, and burner management with proven failure rates below industry thresholds.

✓ 16 Independent Digital Outputs
Each channel supports up to 2A continuous current (40°C ambient), enabling direct control of solenoid valves, indicator lamps, and relay coils without external amplification—reducing system complexity and installation costs.

✓ Dual Ethernet Interfaces with Integrated Switch
Built-in 10/100 Mbps Ethernet ports support redundant network topologies, allowing seamless integration into SCADA systems and enabling real-time diagnostics without disrupting control operations.

✓ Intelligent Overload Protection
Automatic current limiting and cyclic retry logic protect outputs from short circuits and overloads, maintaining system availability while preventing component damage—critical for 24/7 operations.

✓ Wide Operating Temperature Range
Rated for 0°C to +60°C operation with extended storage capability (-40°C to +85°C), ensuring reliable performance in extreme climates from Arctic facilities to desert refineries.

✓ Compact DIN-Rail Mounting
Space-efficient design (207mm W × 114mm H × 66mm D) fits standard control cabinets, while IP20 protection and screw-terminal connections simplify installation and maintenance.

Typical Application Scenarios

→ Oil & Gas Emergency Shutdown Systems
Deploy in offshore platforms and refineries to control safety valves and isolation systems. The module's SIL 3 rating and redundant diagnostics ensure compliance with API and IEC standards while minimizing spurious trips that cost $500K+ per incident.

→ Chemical Process Interlocks
Manage reactor cooling systems, pressure relief valves, and material feed controls in pharmaceutical and specialty chemical plants. Fast response times (≥20ms) and certified safety integrity prevent runaway reactions and protect personnel.

→ Power Generation Turbine Protection
Control steam valve actuators, lubrication pumps, and flame monitoring systems in combined-cycle plants. Dual Ethernet connectivity enables integration with DCS platforms while maintaining independent safety logic execution.

→ Manufacturing Machine Safeguarding
Operate safety gates, light curtain resets, and two-hand control circuits on automated assembly lines. The module's 16-channel capacity consolidates multiple safety zones into a single, cost-effective package.

→ Water Treatment Chlorination Control
Regulate dosing pump contactors and alarm beacons in municipal water facilities. Overload protection and diagnostic feedback reduce maintenance calls while ensuring regulatory compliance for public health systems.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the F2 DO 16 01 when your application requires certified safety outputs with moderate current capacity. For higher current loads (>2A), consider relay interface modules. For analog control, explore the F2 AO series. Verify that your HIMatrix controller firmware supports F2-series modules (check compatibility matrix in technical documentation).

Extended Functions & Integration Capabilities

SCADA & HMI Connectivity
Integrate with Siemens WinCC, Wonderware, or Ignition platforms via Modbus TCP or OPC UA protocols. Real-time output status monitoring and remote diagnostics reduce mean time to repair (MTTR) by up to 40%.

Redundant Controller Pairing
Deploy in 1oo2 or 2oo3 voting configurations with HIMatrix redundant controllers for applications demanding >99.99% availability. Automatic failover ensures uninterrupted operation during controller maintenance or faults.

Custom Logic Programming
Utilize HIMA's SILworX engineering suite to develop application-specific safety logic with IEC 61131-3 compliant languages (Ladder, FBD, ST). Pre-certified function blocks accelerate project timelines and simplify validation.

Cybersecurity Hardening
Implement network segmentation, MAC filtering, and encrypted communications to meet IEC 62443 industrial cybersecurity standards—critical for protecting safety systems from evolving cyber threats.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units (North America/Europe)
Custom Configuration: 10-15 business days for pre-programmed or tested assemblies
Warranty Period: 12 months from shipment date, covering manufacturing defects
Technical Support: Lifetime access to HIMA's global support network (email, phone, remote diagnostics)
Documentation Package: Includes installation manual, wiring diagrams, safety certification documents, and SILworX configuration templates

Expedited shipping available for critical outages—contact our team for emergency replacement options.

Frequently Asked Questions

Q: Can the F2 DO 16 01 control 120V AC solenoid valves directly?
A: No, this module outputs 24V DC only. For AC loads, use external relay interfaces or specify HIMA's AC-rated output modules during system design.

Q: What's the maximum cable length between the module and field devices?
A: Up to 100 meters with shielded twisted-pair cable (0.75mm² minimum). Longer runs may require signal repeaters or current boosters to maintain voltage levels.

Q: Does this module support hot-swapping during operation?
A: No. Always de-energize the system before installing or removing modules to prevent damage and ensure personnel safety. Follow lockout/tagout procedures per OSHA 1910.147.

Q: How do I verify SIL 3 compliance for my specific application?
A: Review the module's safety manual (available on HIMA's website) and conduct a site-specific safety integrity analysis per IEC 61511. HIMA's engineering services team can assist with validation.

Q: Can I mix F2 and F3 series modules in the same HIMatrix rack?
A: Yes, but verify controller compatibility and power budget. Consult the HIMatrix system planning guide or contact technical support for configuration validation.

Q: What diagnostic features help reduce troubleshooting time?
A: LED indicators show power, communication, and per-channel status. Ethernet diagnostics provide real-time current monitoring, overload alerts, and wiring fault detection accessible via web interface or SCADA.

Ready to Enhance Your Safety System?

The HIMA F2 DO 16 01 delivers the reliability and certification your critical processes demand. Whether you're replacing aging components or designing new installations, our team provides expert guidance from specification through commissioning.

Next Steps:
→ Request a detailed quotation with volume pricing
→ Schedule a technical consultation to review your application
→ Download the complete datasheet and safety manual
→ Inquire about factory acceptance testing (FAT) services

Contact our industrial automation specialists today:
