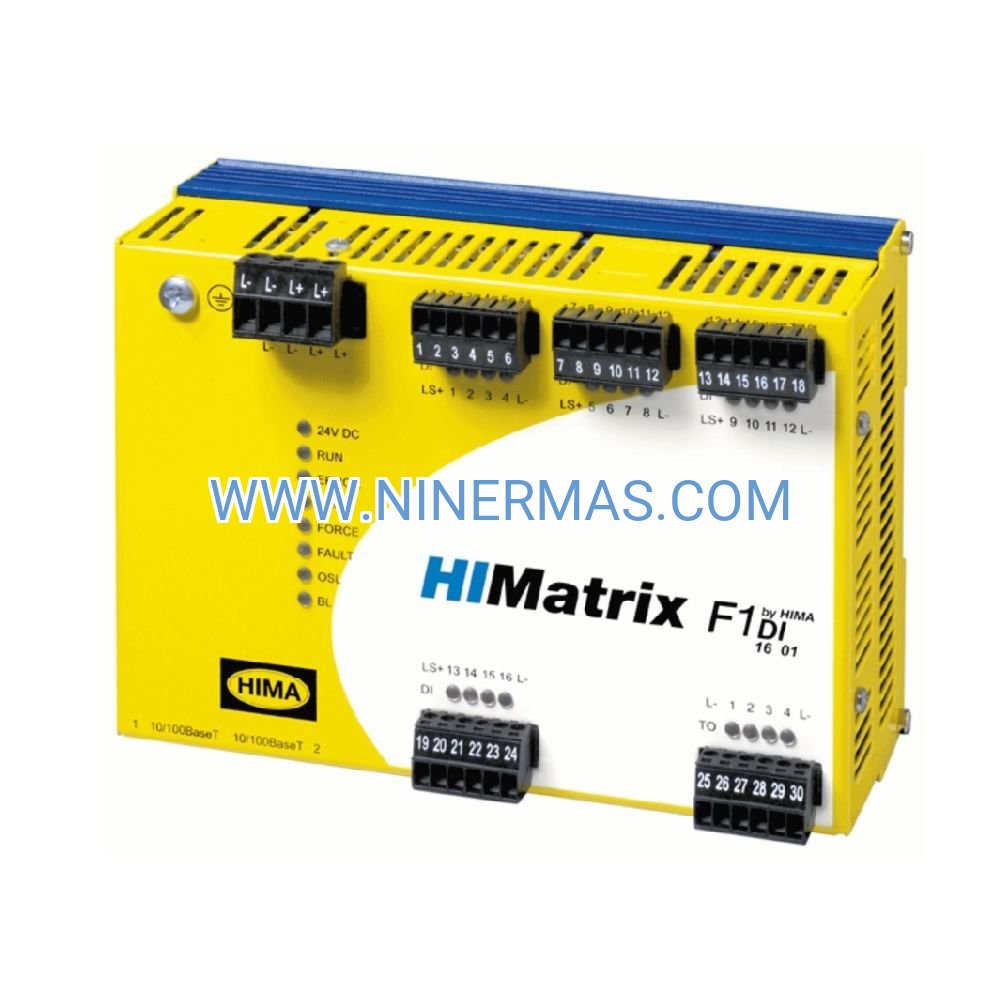

HIMA F1 DI 16 01 Digital Input Module (Industrial-Grade Safety Controller)

The HIMA F1 DI 16 01 represents a mission-critical digital input controller engineered for safety-instrumented systems where failure is not an option. Featuring 16 non-isolated input channels with dual Ethernet connectivity, this HIMatrix-series module delivers deterministic signal processing for emergency shutdown systems, fire & gas detection networks, and process safety applications across oil & gas, chemical, and power generation facilities.

Designed for system integrators and plant engineers managing high-consequence operations, the F1 DI 16 01 combines rapid 20ms response time with SIL 3-capable architecture. Its compact DIN-rail form factor and integrated Ethernet switch enable flexible deployment in distributed safety networks while maintaining compliance with IEC 61508 and IEC 61131-2 standards.

Whether you're upgrading legacy safety systems or designing new SIS architectures, this controller provides the reliability, diagnostics, and network flexibility demanded by modern industrial safety applications. Backed by HIMA's proven track record in functional safety, the F1 DI 16 01 ensures your critical processes remain protected 24/7/365.

Core Features & Benefits

→ 16 High-Speed Digital Inputs
Non-galvanically separated channels with 250µs switching time process safety sensor signals from emergency stops, flame detectors, pressure switches, and level monitors. Accepts 15-30 VDC high-level signals with 7.5V typical switching threshold for reliable detection across industrial voltage ranges.

→ Dual Ethernet Architecture
Two RJ-45 ports (10BASE-T/100BASE-Tx) with integrated switch support ring, star, or daisy-chain topologies. Enables redundant communication paths for enhanced availability in safety-critical networks while simplifying cabinet wiring through pass-through connectivity.

→ SIL 3-Capable Safety Integrity
When configured within certified HIMA safety systems, achieves Safety Integrity Level 3 per IEC 61508. Meets safe insulation requirements of IEC 61131-2 for deployment in safety-instrumented functions protecting personnel, assets, and environment.

✓ Comprehensive Diagnostics
Built-in monitoring tracks input channel status, power supply health, and Ethernet communication integrity. Real-time diagnostics accessible via HIMA engineering software accelerate troubleshooting and reduce mean time to repair (MTTR) during maintenance windows.

✓ Industrial-Hardened Design

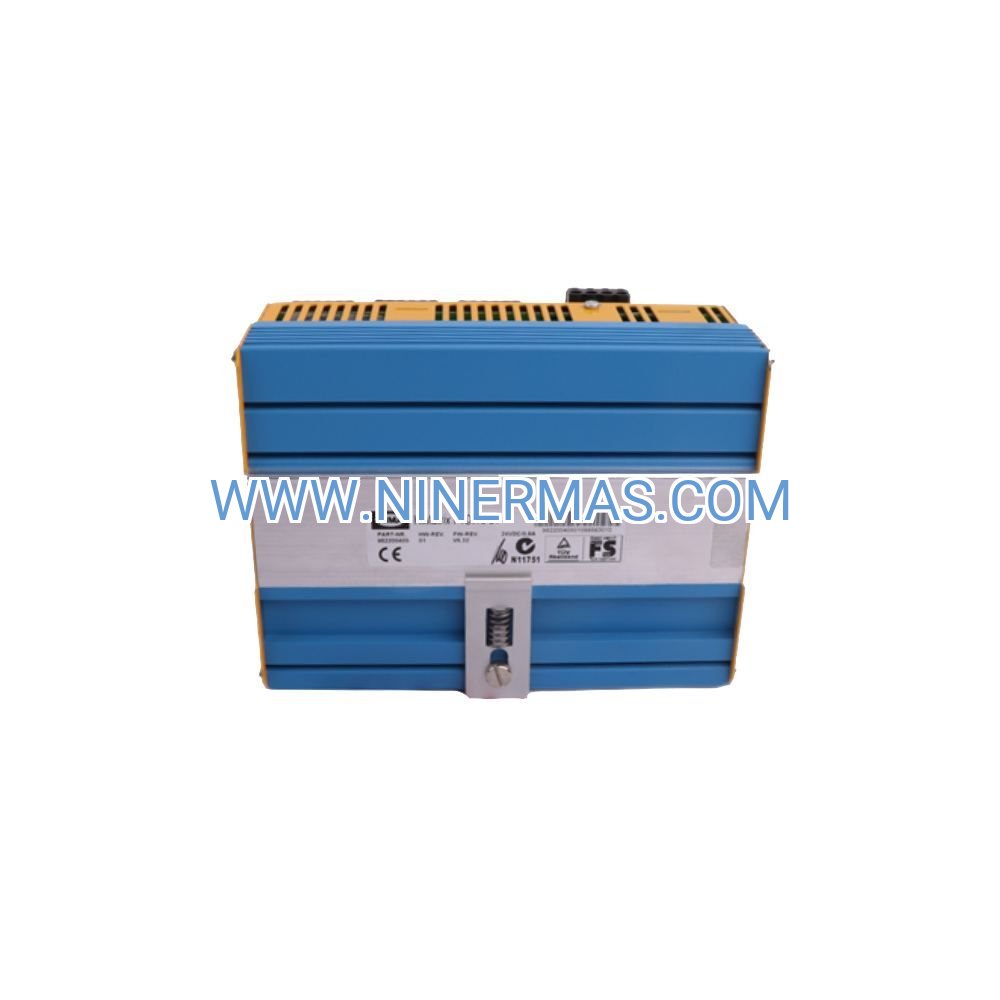

IP20-rated enclosure withstands 0°C to +60°C operating temperatures with -40°C to +85°C storage range. Compact 152×114×66mm footprint mounts on standard 35mm DIN rail, optimizing panel space in crowded control cabinets.

✓ Hot-Swap Capability
Supports online module replacement in redundant configurations when paired with compatible HIMA backplanes. Minimizes downtime during preventive maintenance or emergency repairs without compromising system safety integrity.

Typical Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore platforms and refinery units, the F1 DI 16 01 monitors critical safety sensors—high-pressure switches, low-level detectors, toxic gas alarms—initiating automated shutdown sequences within 20ms to prevent catastrophic events. Its dual Ethernet connectivity ensures fail-safe communication even during network disruptions.

Fire & Gas Detection Networks
Chemical plants deploy this controller to aggregate inputs from flame detectors, smoke sensors, and combustible gas monitors across process areas. Fast signal processing enables rapid activation of deluge systems, ventilation controls, and evacuation alarms, minimizing fire propagation and personnel exposure.

Burner Management Systems (BMS)
Power generation facilities utilize the F1 DI 16 01 to supervise flame scanners, air/fuel ratio switches, and purge confirmation contacts. The module's deterministic response ensures safe boiler startup sequences and immediate fuel cutoff upon flame failure, preventing furnace explosions.

Machine Safety Interlocks
Automated production lines integrate this controller with safety light curtains, guard door switches, and two-hand control stations. SIL 3 capability supports Category 4 / PLe safety functions per ISO 13849, protecting operators from hazardous machine motions during material loading and maintenance access.

Process Safety Monitoring
Continuous process industries connect temperature monitors, vibration sensors, and bearing RTDs to the F1 DI 16 01 for real-time equipment protection. Early fault detection prevents runaway reactions, bearing failures, and thermal excursions that could damage critical rotating equipment or pressure vessels.

Technical Parameters & Selection Guide

Selection Criteria:

• Channel Count: Choose this 16-input model when monitoring 8-16 discrete safety sensors per zone. For higher density, consider HIMA 32-channel variants.
• Isolation Requirements: Non-galvanically separated inputs suit applications with common ground reference. For electrically noisy environments, specify galvanically isolated alternatives.
• Network Topology: Dual Ethernet ports enable ring configurations for redundancy. Single-port modules available for cost-sensitive, non-redundant applications.
• Safety Integrity Level: Verify system architecture achieves target SIL rating through proper redundancy, diagnostics coverage, and proof test intervals per IEC 61508 calculations.

Extended Functions

SCADA Integration
The F1 DI 16 01 communicates via standard industrial protocols (Modbus TCP, OPC UA) for seamless integration with third-party HMI/SCADA platforms. Real-time input status, diagnostic alarms, and configuration parameters accessible through Ethernet interface enable centralized monitoring across distributed safety systems.

Redundancy Configurations
Deploy in 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architectures when paired with redundant HIMA controllers and backplanes. Automatic failover and online diagnostics maintain safety integrity during single-point failures, supporting 99.9%+ system availability targets.

Customization Options
Factory configuration services available for pre-programmed I/O mapping, network addressing, and diagnostic thresholds. Custom cable assemblies and terminal blocks streamline field installation and reduce commissioning time for large-scale projects.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from regional distribution centers. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for emergency replacements and critical project milestones.

Warranty Coverage: Comprehensive 12-month manufacturer warranty protects against defects in materials and workmanship. Extended warranty programs available for long-term service agreements and spare parts management.

Technical Support: Access to HIMA-certified application engineers for system design review, configuration assistance, and troubleshooting support. Remote diagnostics and on-site commissioning services available through authorized service partners.

Documentation Package: Each unit includes installation manual, wiring diagrams, IEC 61508 safety manual, and configuration software license. CAD drawings, HART device descriptions, and spare parts catalogs available via online technical library.

Frequently Asked Questions

What is the maximum cable length for digital input wiring in industrial environments?
Recommended maximum cable run is 300 meters using shielded twisted-pair cable (e.g., Belden 9841 or equivalent). For longer distances, consider signal repeaters or 4-20mA transmitters to maintain noise immunity and signal integrity in electrically harsh environments.

Can the F1 DI 16 01 achieve SIL 3 certification in standalone configurations?
SIL 3 capability requires integration within a certified HIMA safety system architecture (e.g., HIMatrix or HIMax platform) with proper redundancy, diagnostics, and proof testing. Standalone deployment typically achieves SIL 2; consult HIMA safety manuals for specific architectural constraints and PFDavg calculations.

Does this controller support hot-swapping during live operations?
Yes, when installed in redundant HIMA backplane configurations with proper safety procedures. The system maintains safety integrity during module replacement through automatic failover to redundant channels. Always follow HIMA service guidelines and site-specific lockout/tagout protocols.

What diagnostic capabilities are available for predictive maintenance?
Built-in diagnostics monitor input channel continuity, power supply voltage deviation, Ethernet link status, and internal processor health. Diagnostic data accessible via HIMA engineering software enables condition-based maintenance scheduling and early fault detection before safety function degradation.

Is the F1 DI 16 01 compatible with third-party safety PLCs or only HIMA systems?
Primarily designed for HIMA HIMatrix/HIMax safety platforms. Limited interoperability with third-party systems via Modbus TCP or OPC UA, but SIL certification validity depends on complete system assessment. For mixed-vendor architectures, consult certified functional safety engineers to validate safety integrity claims.

What are the power supply requirements and recommended backup strategies?
Requires 24 VDC ±15-20% with ≤15% ripple, drawing max 0.8A. Deploy redundant power supplies with diode-OR configuration for critical applications. Uninterruptible power supply (UPS) recommended for emergency shutdown systems to ensure graceful shutdown during utility power loss.

Take the Next Step

Ready to enhance your safety-instrumented system with proven HIMA technology? Contact our industrial automation specialists for application-specific guidance, system architecture review, and competitive project pricing. Whether you're upgrading legacy safety systems or designing new SIS installations, our team provides the technical expertise to ensure compliant, reliable deployment.

Request a quote today or schedule a technical consultation to discuss your specific safety requirements.
