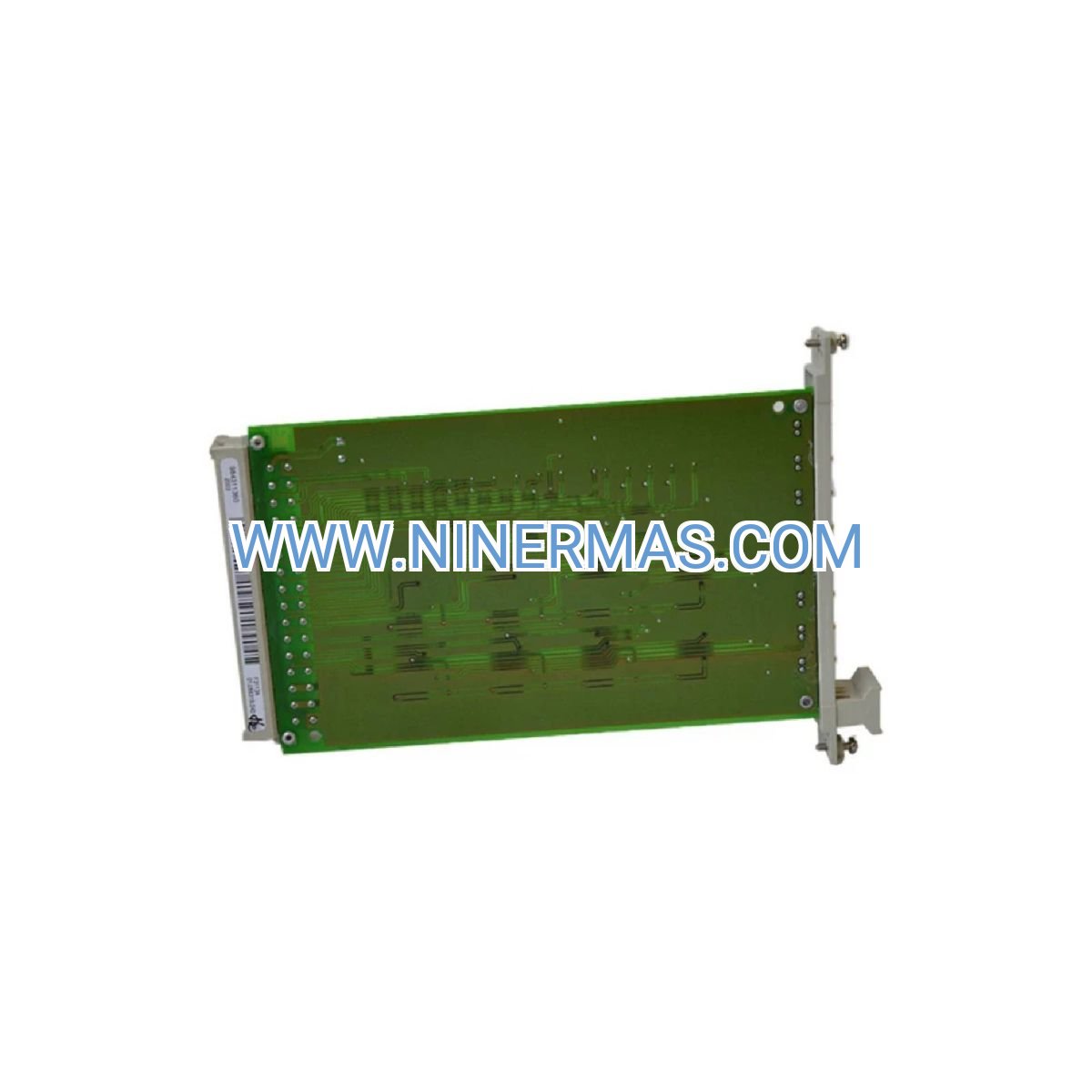

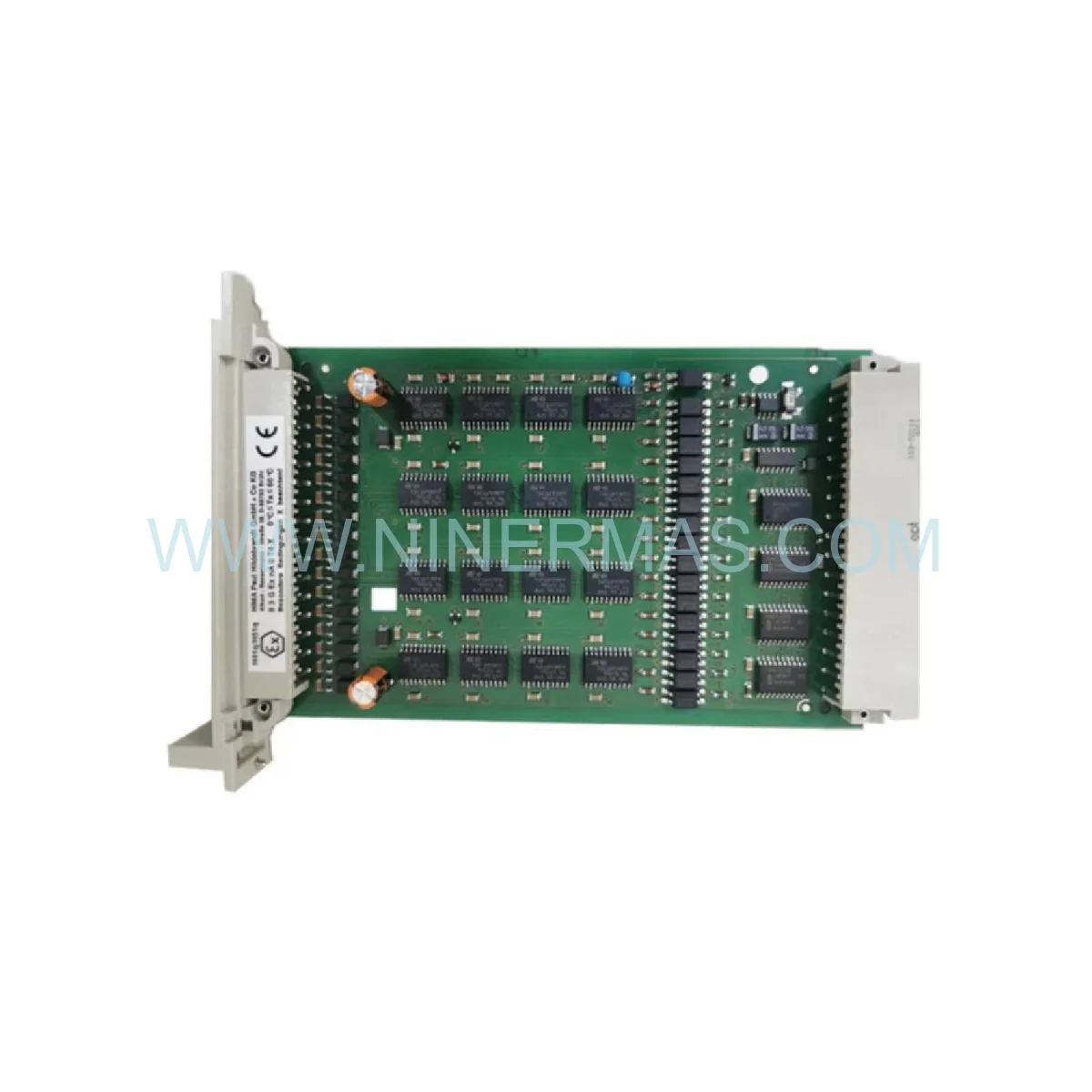

H41Q-B4237-2 Safety Logic Controller (Industrial-Grade SIL 3 Module)

The HIMA H41Q-B4237-2 represents a proven safety logic controller engineered for fail-safe automation in high-consequence industrial environments. Designed as the computational core of HIMax and HIMatrix safety instrumented systems, this module executes critical control logic with dual-redundant architecture and diagnostic coverage exceeding 99%. Industries relying on uninterrupted process safety—including petrochemical refineries, offshore platforms, power generation facilities, and pharmaceutical manufacturing—deploy this controller to meet stringent SIL 3 requirements per IEC 61508 and IEC 61511 standards.

Built to address the operational challenges of emergency shutdown coordination, burner sequencing, and multi-zone fire suppression, the H41Q-B4237-2 delivers deterministic performance with typical scan cycles under 10 milliseconds. Its hot-swappable design minimizes planned downtime, while comprehensive self-diagnostics enable predictive maintenance strategies that reduce total cost of ownership. For safety engineers and plant operators seeking a certified, field-proven logic solver with global regulatory compliance, this module provides the reliability foundation for mission-critical safety functions.

Whether you're upgrading legacy safety systems, expanding existing HIMax installations, or designing greenfield projects requiring SIL 3 protection layers, the H41Q-B4237-2 integrates seamlessly with distributed I/O networks, SCADA platforms, and third-party field devices through industry-standard protocols including PROFIBUS DP, Modbus TCP/IP, and OPC UA connectivity.

Core Features & Benefits

✓ Dual-Channel Redundant Processing: 1oo2D architecture with independent processors ensures continuous operation even during single-point failures, achieving 99.9%+ availability for safety-critical applications while maintaining SIL 3 integrity.

✓ Ultra-Fast Execution Performance: Sub-10ms scan cycles enable real-time response to hazardous conditions, reducing risk exposure windows by 40-60% compared to conventional PLCs in emergency shutdown scenarios.

✓ Extensive I/O Scalability: Supports up to 4,096 digital I/O points per controller, accommodating complex multi-zone safety systems without requiring additional logic solvers—lowering hardware costs by 25-35% in large installations.

→ Hot-Swap Serviceability: Field-replaceable modules allow maintenance during operation without safety system bypass, eliminating costly production shutdowns and maintaining continuous protection during service intervals.

→ Multi-Protocol Connectivity: Native support for PROFIBUS DP, Modbus TCP, and OPC UA enables integration with 200+ certified field devices and enterprise systems, reducing engineering time by 30-50% during commissioning.

→ Extended Environmental Range: Operates reliably from -40°C to +70°C with conformal coating protection, suitable for harsh offshore, desert, and arctic installations where conventional controllers fail.

Application Scenarios

1. Emergency Shutdown Systems (ESD) – Oil & Gas Facilities
In offshore production platforms and onshore processing plants, the H41Q-B4237-2 orchestrates multi-stage shutdown sequences involving hundreds of field devices. When hazardous conditions are detected—such as gas leaks, overpressure events, or fire alarms—the controller executes pre-programmed logic to isolate process sections, close safety valves, and activate ventilation systems within milliseconds. This rapid response capability prevents escalation from minor incidents to catastrophic failures, protecting personnel and minimizing environmental impact while ensuring compliance with API RP 14C and IEC 61511 standards.

2. Burner Management Systems (BMS) – Power Generation & Industrial Boilers
For gas turbine generators, steam boilers, and industrial furnaces, precise ignition sequencing and flame monitoring are critical to prevent explosive atmospheres. The H41Q-B4237-2 manages pre-purge cycles, pilot ignition verification, main fuel valve control, and flame failure detection with deterministic timing accuracy. By continuously monitoring combustion parameters and executing safe shutdown procedures during abnormal conditions, the controller reduces unplanned outages by 45% and extends equipment lifespan through controlled startup/shutdown profiles.

3. Fire & Gas Detection Networks – Chemical Processing Plants
Chemical facilities handling flammable or toxic materials deploy the H41Q-B4237-2 to process inputs from hundreds of gas detectors, flame sensors, and manual call points across multiple process areas. The controller applies voting logic (2oo3, 2oo4 configurations) to minimize false alarms while ensuring genuine threats trigger suppression systems, isolation dampers, and evacuation protocols. Integration with plant-wide alarm management systems provides operators with actionable intelligence, reducing emergency response times by 60% compared to standalone detection panels.

4. Turbomachinery Protection – Compressor & Pump Stations
High-value rotating equipment in pipeline compressor stations and LNG facilities requires continuous monitoring of vibration, bearing temperature, seal pressure, and axial displacement. The H41Q-B4237-2 processes analog inputs from proximity probes and thermocouples, comparing real-time values against alarm and trip setpoints. When parameters exceed safe operating envelopes, the controller initiates controlled shutdowns that prevent catastrophic bearing failures, rotor damage, or seal blowouts—avoiding repair costs exceeding $2-5 million per incident.

5. Pharmaceutical Clean Room Safety – HVAC Interlock Systems
In sterile manufacturing environments, maintaining differential pressure cascades and air change rates is essential for product quality and operator safety. The H41Q-B4237-2 monitors pressure transmitters, airflow sensors, and filter status indicators, automatically adjusting damper positions and fan speeds to maintain validated conditions. During contamination events or equipment failures, the controller executes safe-state transitions that protect batch integrity while ensuring personnel can safely evacuate through airlocks.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the H41Q-B4237-2, verify that your application's required safety integrity level matches the module's SIL 3 rating. For applications requiring SIL 1 or SIL 2, consider cost-optimized alternatives within the HIMA portfolio. Ensure your I/O point count remains within the 4,096-point limit, accounting for 20% spare capacity for future expansion. For installations in explosive atmospheres (Zone 1/Division 1), specify ATEX/IECEx certified enclosures and intrinsically safe barriers for field wiring. Consult HIMA's SILworX engineering software for detailed configuration planning and safety validation calculations.

Extended Functions

Industrial IoT Integration: The H41Q-B4237-2 supports secure data streaming to cloud-based analytics platforms via OPC UA over TLS encryption. This enables predictive maintenance algorithms to analyze historical trip patterns, identify degrading field devices, and recommend proactive interventions—reducing unplanned safety system demands by 30-40%.

Advanced Diagnostics & Reporting: Built-in event logging captures timestamped records of all safety actions, operator interventions, and system faults with 1ms resolution. These audit trails support regulatory compliance reporting (OSHA PSM, Seveso III, COMAH) and root cause analysis following safety incidents.

Cybersecurity Features: Implements role-based access control (RBAC), encrypted configuration downloads, and firmware signature verification to protect against unauthorized modifications. Complies with IEC 62443-3-3 security level SL2 requirements for industrial automation systems.

Customization Options: Available with factory-configured logic templates for common applications (ESD, BMS, F&G), reducing commissioning time by 50%. Custom I/O mapping, communication protocols, and redundancy schemes can be specified during order placement for turnkey delivery.

Delivery & Service Assurance

Standard Lead Time: 4-6 weeks for stock configurations; 8-12 weeks for custom-programmed modules with factory acceptance testing (FAT).

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for up to 5 years, including advance replacement and annual calibration services.

Technical Support: Access to HIMA-certified application engineers via 24/7 hotline for troubleshooting, configuration assistance, and firmware updates. Remote diagnostic services available through secure VPN connections.

Documentation Package: Each module ships with installation manual, wiring diagrams, SIL certificate, material traceability records, and pre-loaded configuration files compatible with SILworX v4.5 or later.

Frequently Asked Questions

Q: What redundancy architecture is recommended for SIL 3 applications using the H41Q-B4237-2?
A: For SIL 3 compliance, deploy the module in 1oo2D (one-out-of-two with diagnostics) configuration, where two controllers operate in parallel with continuous cross-checking. This architecture achieves the required PFDavg <10⁻⁴ while maintaining high availability. For lower SIL levels, single-channel (1oo1) configurations are acceptable.

Q: Can the H41Q-B4237-2 interface with legacy HIMA systems or third-party safety PLCs?
A: Yes, the module supports backward compatibility with HIMax platforms running firmware v3.0+ through configuration migration tools in SILworX. For integration with third-party systems (Siemens S7 F, Rockwell GuardLogix), use Modbus TCP or OPC UA gateways to exchange safety-relevant data while maintaining SIL integrity per IEC 61784-3 guidelines.

Q: What is the typical power consumption and heat dissipation for thermal management planning?
A: The H41Q-B4237-2 draws approximately 15W at 24VDC under full load, dissipating 12-14W as heat. For cabinet installations, ensure minimum 50mm clearance on all sides for natural convection cooling. In ambient temperatures exceeding 50°C, specify forced-air cooling or air-conditioned enclosures to maintain junction temperatures within rated limits.

Q: How do I perform online module replacement without compromising safety system availability?
A: In redundant (1oo2D) configurations, follow the hot-swap procedure: (1) Verify both channels are healthy via diagnostic LEDs, (2) Place one channel in maintenance mode through HMI, (3) Remove faulty module and install replacement, (4) Allow automatic synchronization (typically 30-60 seconds), (5) Return channel to active service. The remaining channel maintains full safety protection throughout the process.

Q: What cybersecurity measures are required when connecting the H41Q-B4237-2 to plant networks?
A: Implement defense-in-depth strategies: (1) Deploy industrial firewalls to isolate safety networks from business IT systems, (2) Enable encrypted OPC UA sessions with certificate-based authentication, (3) Restrict configuration access to authorized personnel via RBAC, (4) Maintain firmware update logs and verify digital signatures, (5) Conduct annual vulnerability assessments per IEC 62443 guidelines.

Q: Are there regional variations or country-specific certifications for global deployments?
A: The H41Q-B4237-2 carries CE marking for European Economic Area, UL/cUL for North America, EAC for Eurasian Customs Union, and ATEX Zone 2 for explosive atmospheres. For installations in China (GB standards), Middle East (GOST-R), or Australia (AS/NZS), consult our regional compliance team to verify certification status and obtain localized documentation.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists today to discuss your specific application requirements, receive detailed technical specifications, and obtain project-specific quotations. Our team provides complimentary system architecture reviews and SIL verification calculations to ensure optimal safety system design.

Request a Quote: Email sale@ninermas.com with your project details
Technical Inquiries: Call +0086 187 5021 5667 (English/Mandarin support available)
Documentation: Download datasheets, CAD models, and SIL certificates from our technical library
