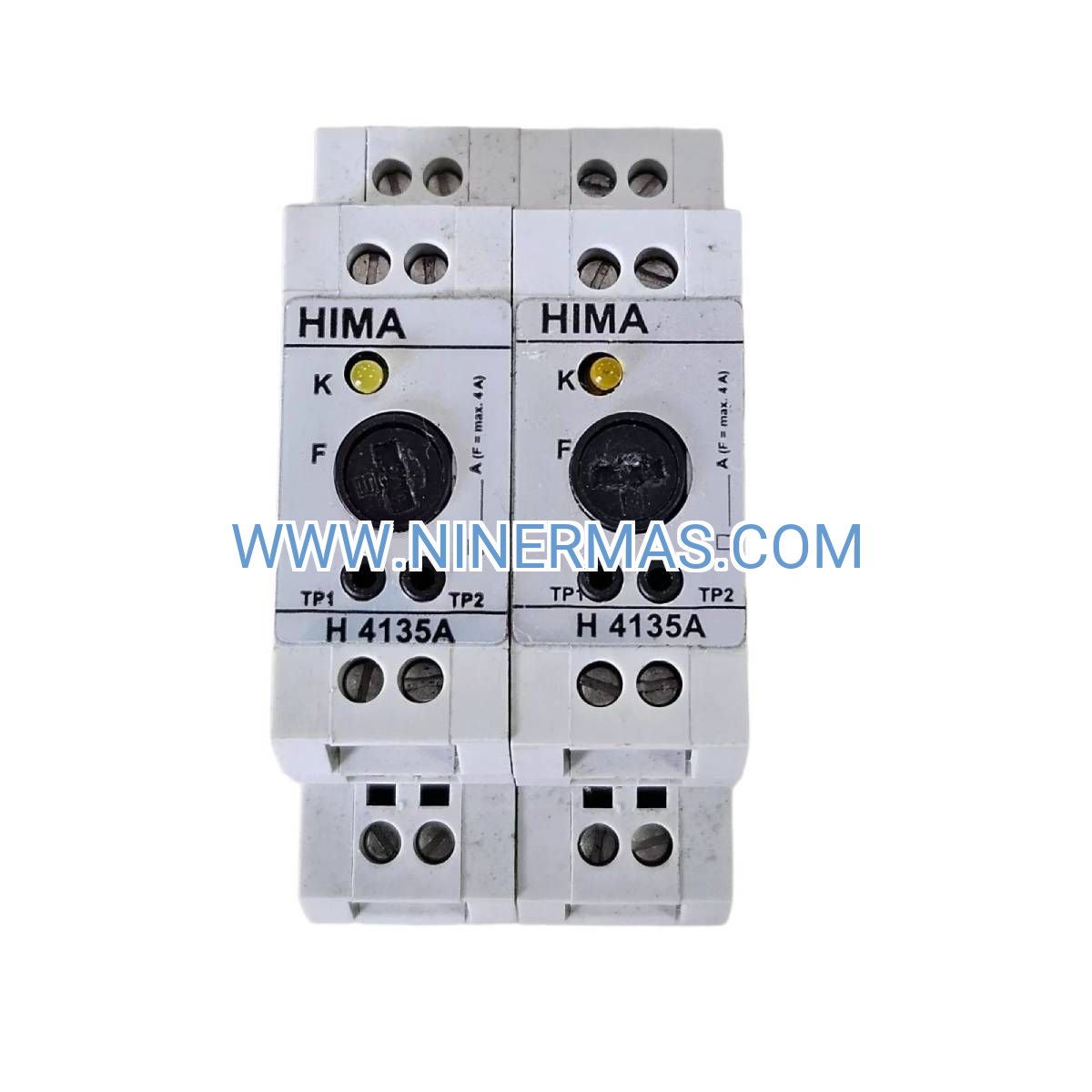

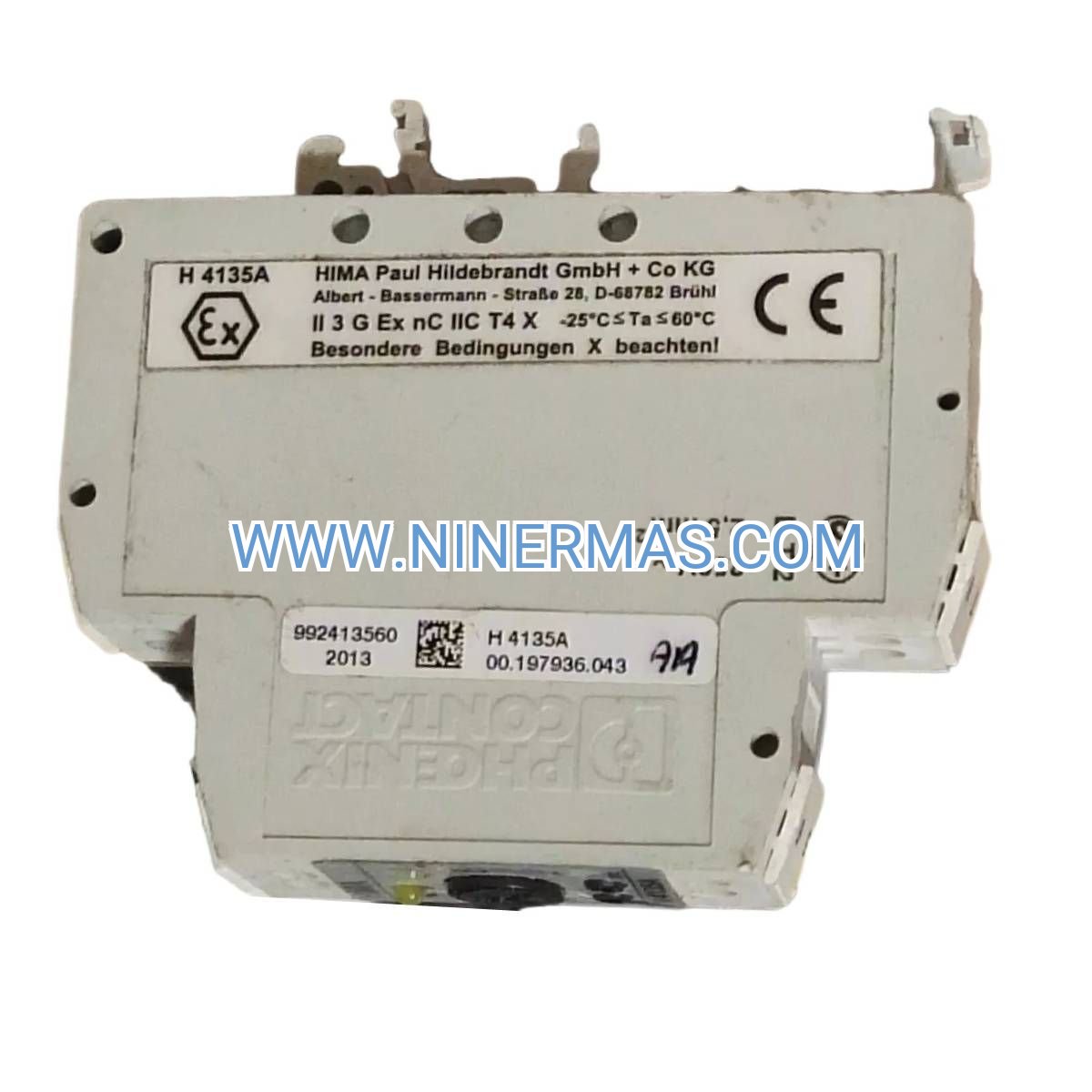

H4135A Safety Relay Amplifier (Industrial-Grade Signal Isolation)

The H4135A is a safety-certified relay amplification module engineered to provide fail-safe signal conditioning in process control environments where equipment protection and personnel safety are non-negotiable. Built to IEC 61508 SIL 3 standards, this compact DIN-rail device delivers galvanically isolated dual-channel relay outputs for integration into emergency shutdown (ESD) systems, turbomachinery protection circuits, and safety instrumented systems (SIS) across oil & gas, chemical processing, and power generation facilities.

Designed for system integrators and plant engineers managing high-consequence industrial processes, the H4135A eliminates single points of failure through redundant relay architecture while maintaining compatibility with legacy control platforms. Its hot-swappable construction and diagnostic LED indicators reduce mean time to repair (MTTR) during scheduled maintenance windows or unplanned fault conditions.

Whether you're retrofitting aging safety systems or designing greenfield installations, this relay amplifier combines proven HIMA engineering with field-tested reliability to meet the most stringent functional safety requirements in hazardous industrial environments.

Core Features & Benefits

✓ SIL 3 Certified Architecture: Dual-channel relay design with diagnostic coverage exceeds Safety Integrity Level 3 requirements per IEC 61508, providing quantified risk reduction for safety-critical control loops in high-hazard industries.

✓ Universal System Compatibility: Standard relay contact outputs interface seamlessly with HIMA HIMax/HIMatrix platforms, Siemens PCS 7, Honeywell TPS, and third-party DCS/PLC systems without proprietary communication protocols or licensing fees.

✓ 2.5kV Galvanic Isolation: Electrical separation between input and output circuits protects sensitive control equipment from ground loops, voltage transients, and electromagnetic interference in electrically noisy industrial environments.

→ Hot-Swap Serviceability: Field-replaceable module design allows technicians to exchange units during operation without system shutdown, minimizing production losses during preventive maintenance or emergency repairs.

→ Extended Temperature Range: Operates reliably from -20°C to +60°C ambient conditions, suitable for outdoor enclosures, non-climate-controlled equipment rooms, and tropical/arctic installation sites.

→ Compact DIN Rail Form Factor: Space-efficient modular housing mounts on standard 35mm DIN rail, optimizing panel real estate in crowded marshalling cabinets and retrofit applications with limited space.

Application Scenarios

Emergency Shutdown Systems (Oil & Gas): In offshore platforms and refinery units, the H4135A provides the final hardwired element between safety PLCs and pneumatic valve actuators, ensuring fail-safe closure of process isolation valves during detected overpressure, fire, or gas release events. The module's SIL 3 rating satisfies API RP 14C and IEC 61511 requirements for high-demand safety functions.

Turbomachinery Protection (Power Generation): Steam and gas turbine control systems rely on the H4135A to amplify vibration monitor signals and trip relay commands, protecting multi-million-dollar rotating equipment from catastrophic bearing failures or blade damage. Dual-channel redundancy prevents spurious trips while maintaining 99.9%+ availability for critical generation assets.

Chemical Reactor Interlocks (Process Manufacturing): Batch chemical plants use the module to enforce permissive logic for exothermic reactions, preventing runaway conditions by isolating feed streams when temperature, pressure, or agitation parameters exceed safe operating limits. The hardwired relay logic provides defense-in-depth beyond software-based controls.

Burner Management Systems (Industrial Boilers): Boiler safety chains incorporate the H4135A to de-energize fuel valves upon flame failure detection, low water level, or excess furnace pressure. The module's fast response time (<50ms) and proven reliability meet NFPA 85 and FM approval requirements for combustion safety.

Pharmaceutical Clean Room Monitoring: Sterile manufacturing environments deploy the amplifier to trigger alarm annunciation and HVAC isolation when differential pressure, particle counts, or temperature sensors detect contamination risks, protecting product quality and regulatory compliance in FDA-validated facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the H4135A when your application requires SIL 3-rated relay amplification with dual-channel redundancy for safety functions up to High Demand Mode (>1 demand/year). For lower safety integrity requirements (SIL 1-2), consider single-channel alternatives. Verify that connected load current does not exceed 5A resistive; use external contactors for higher-power actuators. Confirm ambient temperature stays within -20°C to +60°C range; specify conformal coating for corrosive atmospheres.

Extended Functions

Diagnostic Monitoring: Integrated LED indicators provide real-time status feedback for input power, relay coil energization, and fault conditions. Green LEDs confirm normal operation, while red fault indicators simplify troubleshooting during commissioning and routine inspections.

Proof Test Support: The module's relay contact design facilitates partial stroke testing and full functional testing required by IEC 61511 for periodic safety system validation. Test intervals typically range from 12-24 months depending on calculated probability of failure on demand (PFD).

Harsh Environment Protection: Optional conformal coating provides additional resistance to humidity, salt spray, and chemical vapors in offshore, marine, and coastal industrial installations. Consult factory for coating specifications and lead times.

Delivery & Service Assurance

Lead Time: Stock items ship within 3-5 business days via express courier (DHL/FedEx). Custom configurations or bulk orders (10+ units) require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical spares inventory.

Technical Support: Our application engineering team provides pre-sales consultation for system design, wiring diagrams, and SIL verification calculations. Post-sales support includes troubleshooting assistance, firmware updates (if applicable), and field service coordination.

Documentation Package: Each module ships with installation manual, dimensional drawings, terminal wiring diagrams, safety certification documents (TÜV certificates), and material traceability records for quality audits.

Frequently Asked Questions

Can the H4135A relay amplifier integrate with non-HIMA safety controllers?
Absolutely. The relay contact outputs are vendor-neutral and compatible with any safety PLC or DCS accepting dry contact inputs, including Siemens, Schneider Electric, Rockwell Automation, and ABB platforms. This makes the module ideal for multi-vendor system architectures.

What is the expected operational lifespan for industrial relay modules?
Under typical duty cycles (≤10 operations/day), the H4135A delivers 15+ years of maintenance-free service. Relay contacts are rated for 100,000+ mechanical cycles at full load, with significantly higher endurance at reduced currents.

Does this safety relay require specialized programming tools for configuration?
No software or configuration tools needed. The H4135A operates as a hardwired safety relay with fixed logic—input energization controls output relay states. This simplifies installation, reduces commissioning time, and eliminates cybersecurity vulnerabilities associated with programmable devices.

Is the module suitable for hazardous area installations in Zone 2 locations?
When installed in NEMA 4X or IP66-rated enclosures with proper grounding and cable gland sealing, the H4135A meets requirements for Zone 2 / Division 2 classified areas. Always consult local electrical codes and obtain approval from your site's electrical authority before installation.

How does dual-channel architecture improve safety integrity compared to single-channel designs?
Dual-channel relay outputs provide 1oo2 (one-out-of-two) voting logic, where both channels must fail simultaneously to create a dangerous condition. This redundancy dramatically reduces probability of failure on demand (PFD) and enables SIL 3 certification, whereas single-channel modules typically max out at SIL 2.

What maintenance procedures are recommended for relay amplifier modules?
Perform visual inspections quarterly (check for loose terminals, LED status, physical damage). Conduct functional proof tests annually or per your safety instrumented function (SIF) requirements—typically involves forcing input signals and verifying relay contact operation. Replace modules showing erratic behavior or failed diagnostics.
