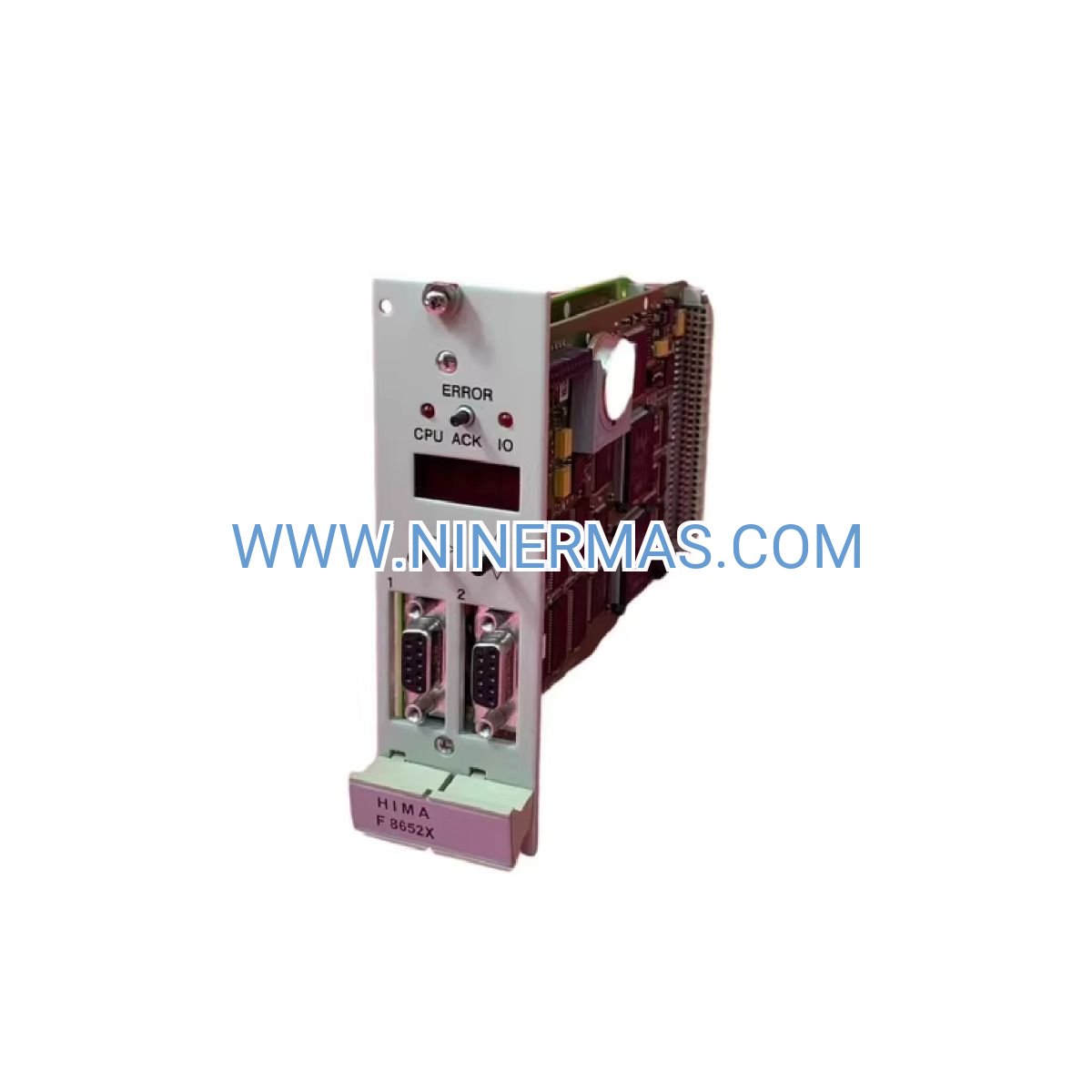

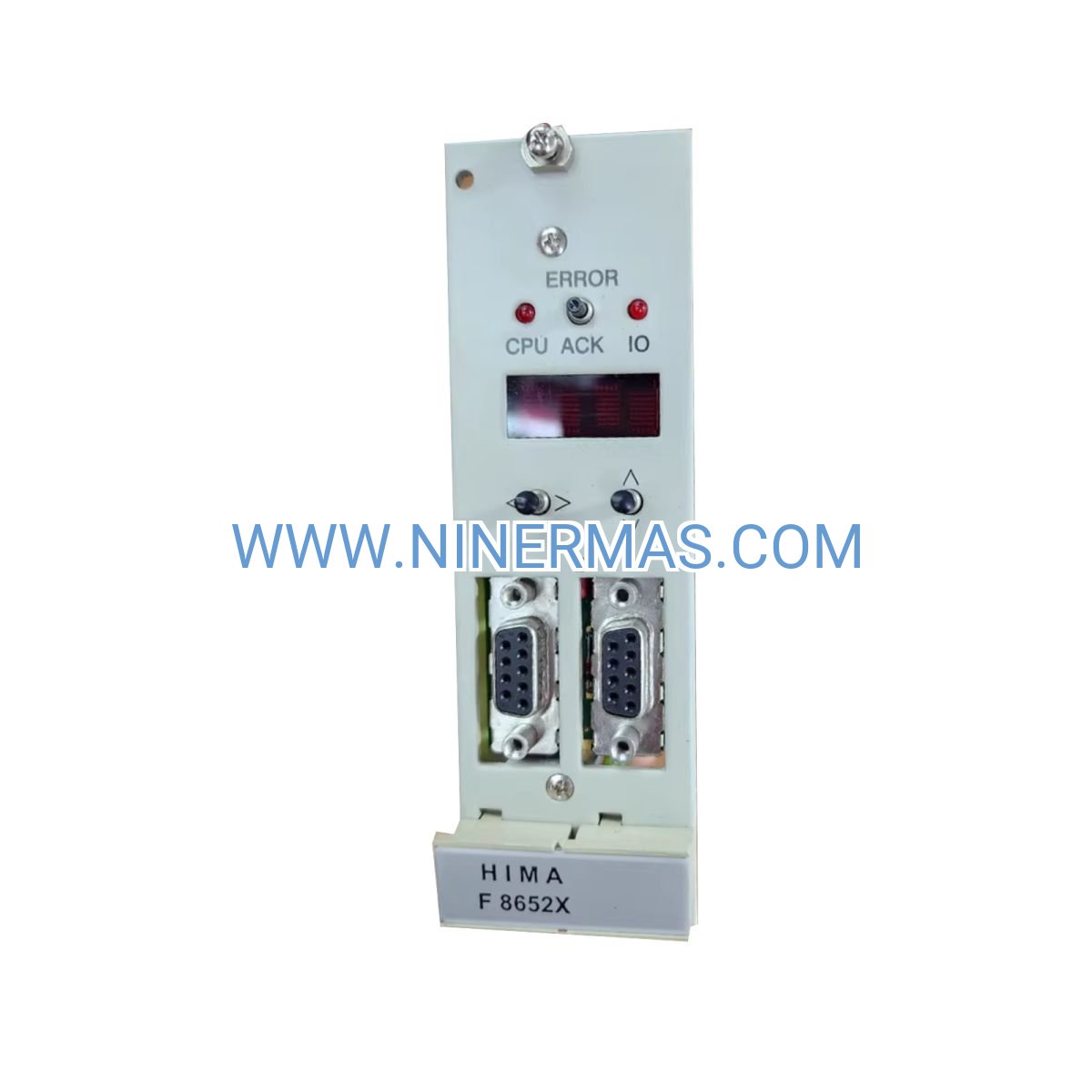

HIMA F8652 Safety Controller (Industrial-Grade SIL 3 Central Module)

The HIMA F8652 is a high-integrity safety controller designed for critical process automation and emergency shutdown applications. Built around dual Intel 386EX 32-bit processors, this central module delivers deterministic performance and fault-tolerant operation for industries where safety cannot be compromised—including oil & gas, chemical processing, power generation, and heavy manufacturing.

Certified to SIL 3 per IEC 61508/61511 standards, the F8652 serves as the logic solver in safety-instrumented systems (SIS), providing the computational backbone for emergency shutdown systems (ESD), burner management systems (BMS), and high-integrity protective interlocks. Its proven-in-use track record spans thousands of installations worldwide, making it a trusted choice for engineers specifying safety-critical control architectures.

With integrated RS-485 serial communication, onboard diagnostics, and hot-swappable design, the F8652 combines operational flexibility with the rigorous safety performance demanded by modern industrial facilities. Whether you're upgrading legacy systems or designing new safety layers, this module offers the reliability, certification, and vendor support required for long-term asset protection.

Key Features & Technical Advantages

→ Dual-Processor Redundancy: Two independent Intel 386EX processors (25 MHz) operate in parallel with continuous cross-checking, ensuring fail-safe operation even during single-point failures. Automatic switchover maintains process continuity without operator intervention.

→ Comprehensive Memory Architecture: 1MB Flash-EPROM for firmware, 512KB Flash-EPROM for application logic, and 256KB SRAM for real-time data buffering. Non-volatile storage preserves critical parameters during power interruptions.

→ Dual RS-485 Serial Ports: Multi-drop communication capability supports distributed I/O networks, HMI connectivity, and SCADA integration. Protocol support includes Modbus RTU, PROFIBUS DP, and HIMA SafeEthernet for flexible system architecture.

✓ Built-In Diagnostic Display: 4-digit matrix indicator provides instant visibility into system status, fault codes, and operational modes—reducing troubleshooting time and improving maintenance efficiency.

✓ Fail-Safe Watchdog Circuit: Dedicated 24V DC output (500mA, short-circuit protected) enables external safety relay control and provides hardware-level fault detection independent of software execution.

✓ Compact DIN Rail Design: 8 TE width fits standard control cabinet mounting, optimizing panel space utilization while maintaining accessibility for service and inspection.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD): Deploy the F8652 as the central logic solver protecting against catastrophic events—overpressure scenarios, fire/gas detection responses, equipment failure mitigation, and turbomachinery protection per API 670 standards. The module's deterministic scan cycle and proven reliability make it ideal for final safety elements in multi-layer protection schemes.

Burner Management Systems (BMS): Control combustion sequences with precision timing for fuel valve management, ignition sequencing, flame monitoring, and purge cycle execution. Dual-processor architecture meets NFPA 85 redundancy requirements for boiler and furnace applications, preventing dangerous fuel accumulation and ensuring safe light-off procedures.

Process Safety Interlocks: Implement complex safety logic for reactor protection, distillation column control, batch process sequencing, and material handling systems. The F8652's flexible I/O architecture supports diverse sensor types and actuator interfaces required for multi-variable safety functions.

Turbomachinery Protection: Monitor critical parameters—vibration, temperature, pressure, speed—and execute rapid shutdown sequences protecting high-value rotating equipment. Sub-millisecond response times prevent catastrophic failures in compressors, turbines, and pumps.

Pipeline & Tank Farm Safety: Coordinate leak detection, overfill prevention, pressure relief, and isolation valve control across distributed facilities. RS-485 networking enables centralized monitoring while maintaining local autonomous safety action.

Technical Specifications & Selection Guide

Selection Criteria: Choose the F8652 when your application requires SIL 3 certification, dual-processor redundancy, and proven compatibility with HIMA's HIMatrix or H41q/H51q safety system families. For applications requiring Ethernet connectivity or higher I/O density, consider the F8650X or newer H-series modules. For legacy system upgrades, the F8652 offers backward compatibility with F8650/F8651 modules via adapter kits.

Advanced Integration Capabilities

The F8652 integrates seamlessly with HIMA's SILworX engineering environment, supporting IEC 61131-3 programming languages including Function Block Diagram (FBD), Ladder Diagram (LD), and Structured Text (ST). This standardized approach reduces engineering time and enables code reuse across projects.

Communication protocol support extends beyond basic Modbus RTU to include PROFIBUS DP for factory automation integration and proprietary HIMA SafeEthernet for high-speed safety data exchange. The module's hot-swappable architecture allows online replacement during scheduled maintenance windows without process shutdown—a critical capability for continuous manufacturing operations.

Built-in diagnostic functions enable predictive maintenance strategies by monitoring processor load, communication health, and I/O module status. Studies show this proactive approach can reduce unplanned downtime by 35-45% compared to reactive maintenance models.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier. International shipments typically arrive within 5-7 business days depending on customs clearance.

Custom Configuration: Factory-programmed modules with pre-loaded application logic available with 10-15 business day lead time. Contact our engineering team for project-specific requirements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for mission-critical installations requiring guaranteed response times.

Technical Support: Lifetime access to our application engineering team for configuration assistance, troubleshooting guidance, and system optimization recommendations. Phone, email, and remote desktop support available during business hours (GMT+8).

Documentation Package: Each module ships with installation manual, wiring diagrams, certification documents, and quick-start guide. Full technical documentation including programming examples available for download.

Frequently Asked Questions

What safety integrity level certification does the HIMA F8652 central module achieve?
The F8652 is certified for SIL 3 operation according to IEC 61508 and IEC 61511 functional safety standards. When deployed in redundant 1oo2 or 2oo3 configurations, the system achieves systematic capability up to SIL 4, making it suitable for the most demanding safety applications in process industries.

Can this controller replace older HIMA central processing modules in existing installations?
Yes, the F8652 maintains backward compatibility with earlier F8650 and F8651 central modules through mechanical and electrical adapter kits. This enables phased migration strategies without complete system replacement, protecting your existing infrastructure investment while gaining enhanced processing capability.

What environmental conditions can the F8652 safety controller withstand?
The module operates reliably across -20°C to +60°C ambient temperature range with 5-95% relative humidity (non-condensing). Optional conformal coating provides additional protection against corrosive atmospheres, salt spray, and chemical exposure common in offshore platforms and chemical processing facilities.

How long does physical installation and system commissioning typically require?
Mechanical installation on DIN rail mounting takes approximately 10-15 minutes. Electrical termination of communication and power connections adds another 20-30 minutes. Complete system configuration and commissioning duration varies from 2-6 hours depending on application complexity, I/O count, and integration requirements with existing control systems.

Does the F8652 support remote monitoring and diagnostic capabilities?
Yes, through the dual RS-485 interfaces, the module supports remote connectivity to SCADA systems, HMI panels, and engineering workstations. Real-time diagnostic data including processor status, communication health, and fault logs can be accessed remotely, enabling predictive maintenance and reducing on-site inspection frequency.

What programming software is required for application development?
HIMA's SILworX engineering suite is the recommended programming environment, supporting IEC 61131-3 languages (FBD, LD, ST). The software includes simulation tools, safety validation utilities, and comprehensive function block libraries specifically designed for safety-instrumented system development.

Take the Next Step

Ready to enhance your facility's safety architecture with proven HIMA technology? Our application engineers are standing by to discuss your specific requirements, provide technical specifications, and develop customized solutions for your process safety challenges.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with a safety systems specialist. Request a detailed quotation, technical datasheet, or schedule a consultation to explore how the F8652 can protect your critical assets.
