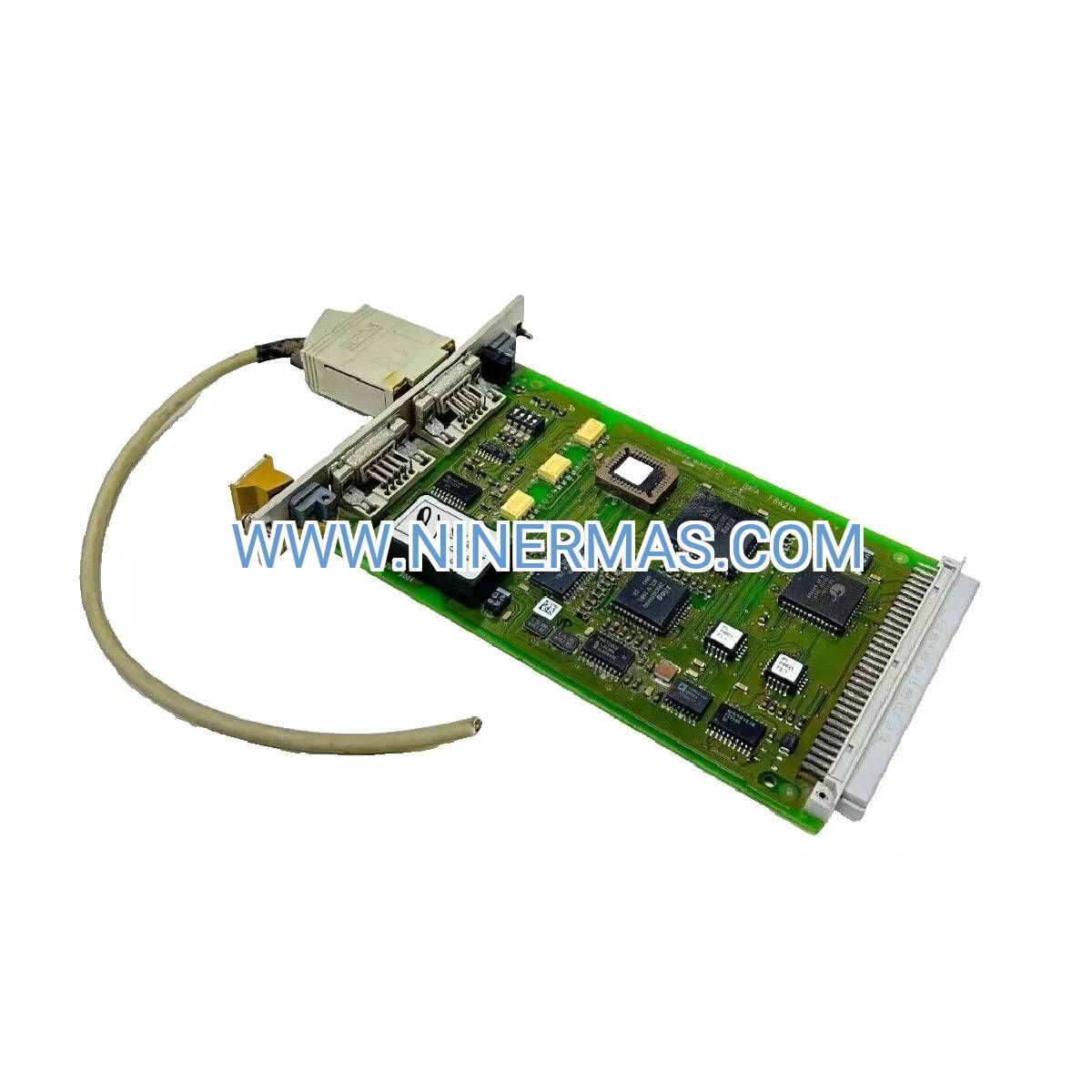

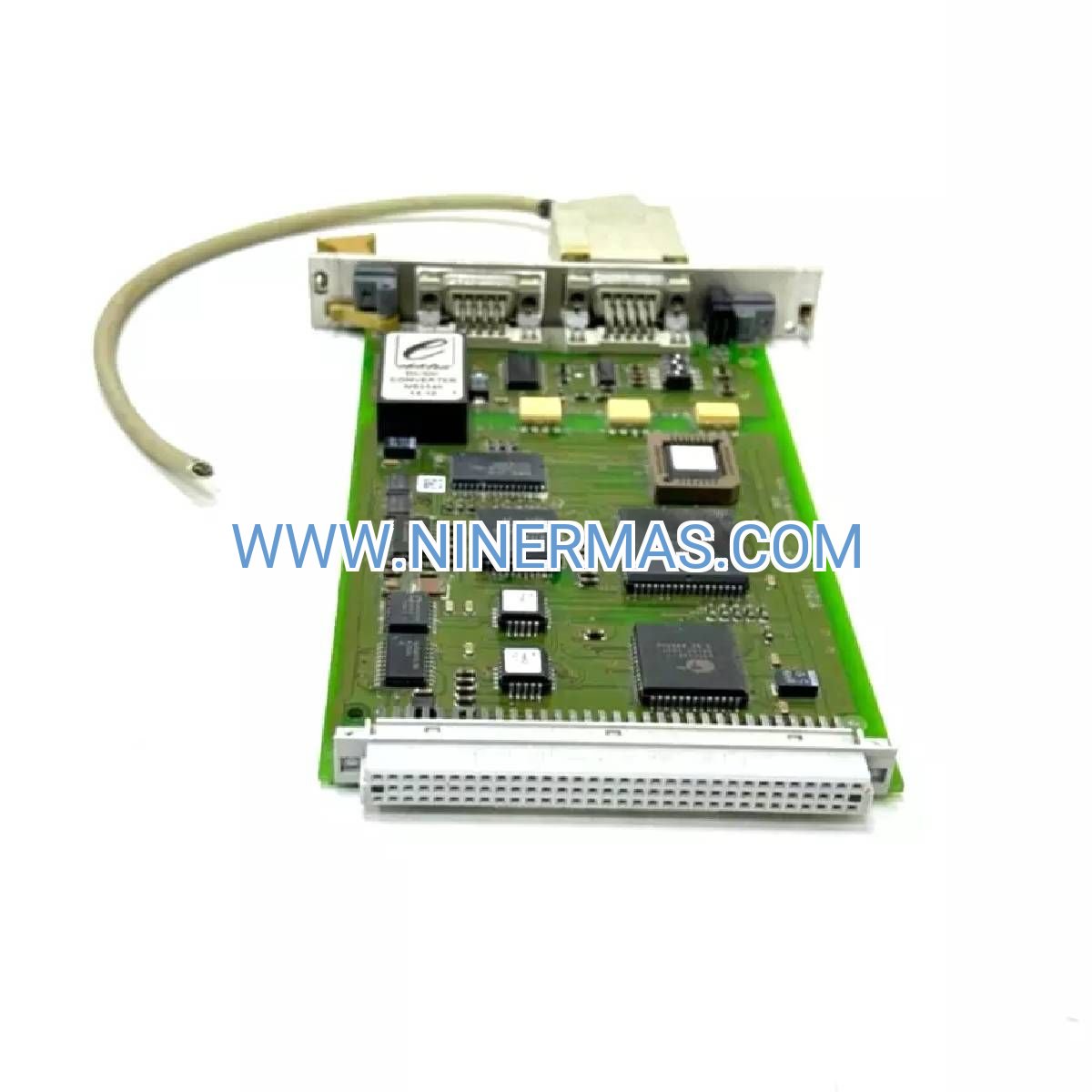

F8621 Communication Coprocessor (Industrial-Grade Safety Interface)

The F8621 represents HIMA's advanced approach to safety-critical serial communication, delivering dual-channel RS485 connectivity for HIMax and HIMatrix platforms. This coprocessor module bridges the gap between safety controllers and intelligent field instrumentation, ensuring deterministic data exchange in environments where failure is not an option.

Designed for process industries requiring SIL 3 integrity, the F8621 addresses the challenge of integrating legacy Modbus devices with modern safety architectures while maintaining full compliance with IEC 61508 standards. Target users include safety engineers, system integrators, and plant automation teams managing emergency shutdown systems, burner management, and turbine protection applications.

Key advantages include redundant communication paths for fault tolerance, hot-swap capability to eliminate planned downtime, and 2.5 kV galvanic isolation to withstand electrical transients common in heavy industrial settings. The module's conformal coating and extended temperature range (-40°C to +70°C) make it suitable for offshore platforms, refineries, and chemical plants operating in harsh climates.

Core Features & Benefits

→ Redundant RS485 Channels: Dual independent serial ports ensure continuous operation during single-point failures, critical for maintaining safety integrity in emergency shutdown scenarios
→ SIL 3 Certification (IEC 61508): Meets the highest safety standards for process automation, reducing liability and ensuring regulatory compliance across global jurisdictions
→ 115.2 kbps High-Speed Transfer: Minimizes communication latency for time-critical safety functions, enabling sub-10ms response times in burner management and turbine trip applications
→ Hot-Swappable Architecture: Field-replaceable without system shutdown or safety bypass, reducing mean time to repair (MTTR) by up to 75% compared to non-redundant designs
→ Multi-Protocol Support: Native Modbus RTU compatibility plus proprietary HIMA protocols allow seamless integration with third-party DCS, SCADA, and smart transmitters
→ Diagnostic LED Array: Real-time visual feedback for channel status, communication errors, and power supply health accelerates troubleshooting and reduces commissioning time

Application Scenarios

✓ Offshore Oil & Gas Production
Challenge: Emergency shutdown systems (ESD) on offshore platforms require 99.99% availability despite corrosive marine environments and extreme weather.
Solution: F8621's conformal coating and redundant channels maintain safety communication integrity during North Sea winter storms, connecting fire & gas detectors to HIMax controllers with zero single points of failure.
Value: Prevents platform shutdowns costing $500K+ per day while meeting API RP 14C safety requirements.

✓ Chemical Reactor Protection
Challenge: Exothermic reaction control demands real-time temperature and pressure monitoring with <50ms loop times to prevent runaway conditions.
Solution: High-speed 115.2 kbps communication enables F8621 to poll 32 smart transmitters within 30ms cycles, feeding data to SIL 3 logic solvers for immediate trip decisions.
Value: Reduces incident probability by 10x compared to slower polling systems, protecting personnel and $50M+ reactor assets.

✓ Power Plant Turbine Control
Challenge: Steam and gas turbines require coordinated shutdown sequences involving vibration monitors, overspeed detectors, and valve positioners across distributed I/O networks.
Solution: F8621 aggregates Modbus data from remote I/O racks up to 1200m away, maintaining deterministic timing for coordinated trip actions per NFPA 85 standards.
Value: Prevents catastrophic turbine failures (repair costs $2M+) while enabling predictive maintenance through continuous vibration trending.

✓ Pharmaceutical Clean Room Monitoring
Challenge: FDA-regulated production requires validated safety systems with full audit trails for environmental controls (temperature, humidity, differential pressure).
Solution: F8621 connects calibrated transmitters to HIMax safety PLCs with timestamped data logging, supporting 21 CFR Part 11 compliance for electronic records.
Value: Passes regulatory audits while preventing batch losses ($100K+ per incident) from environmental excursions.

✓ Burner Management Systems (BMS)
Challenge: Industrial boilers and furnaces require flame detection, fuel valve control, and purge sequencing with SIL 2/3 integrity per NFPA 86.
Solution: F8621 interfaces UV flame scanners and smart positioners to HIMA logic solvers, executing pre-ignition purge and flame failure responses within certified timing windows.
Value: Eliminates furnace explosions (potential fatalities + $10M+ property damage) through proven safe communication architecture.

Technical Parameters & Selection Guide

Selection Criteria: Choose F8621 when your application requires SIL 3 serial communication with Modbus devices. For applications needing only SIL 2 or non-safety communication, consider standard I/O modules. If integrating with Profibus or Ethernet networks, evaluate HIMA's F8628 (Profibus) or F8650X (Ethernet) alternatives. Verify that your HIMax CPU supports the required number of coprocessor modules (typically 4 max per rack).

Extended Functions

IoT & Industry 4.0 Integration: The F8621 supports data mirroring to cloud-based asset management platforms via HIMA's HIScout diagnostics software. This enables predictive maintenance by tracking communication error rates, signal quality degradation, and module temperature trends. Integration with OPC UA servers allows seamless connectivity to MES and ERP systems for production optimization.

Advanced Diagnostics: Built-in self-test routines continuously monitor channel integrity, detecting cable faults, termination issues, and electromagnetic interference. Diagnostic data is accessible via SILworX engineering software and can trigger automated alerts through Shopify Flow or third-party SCADA alarm systems.

Customization Options: For OEM applications requiring specific firmware configurations or extended temperature ranges (-55°C to +85°C), HIMA offers factory customization services. Contact our engineering team for projects involving >50 modules or specialized protocol implementations.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; express shipping available for critical outages
Custom Configuration: 2-3 weeks for factory-programmed modules with customer-specific parameters
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and system optimization
Documentation Package: Includes installation manual, SIL certificate, calibration report, and SILworX configuration templates
Return Policy: 30-day satisfaction guarantee with full refund for unused modules in original packaging

Frequently Asked Questions

How do I configure RS485 termination resistors for the F8621 module?
Install 120Ω termination resistors at both physical ends of the RS485 bus (not at every device). The F8621 includes internal termination that can be enabled via DIP switches on the module faceplate. For networks exceeding 32 devices, use active repeaters to maintain signal integrity.

What cable specifications ensure reliable communication over 500-meter distances?
Use shielded twisted-pair cable with 120Ω characteristic impedance (e.g., Belden 3105A or equivalent). Shield grounding should follow star topology, connected at one point only to avoid ground loops. For distances beyond 1200m, implement fiber optic converters or switch to HIMA's Ethernet-based modules.

Can the F8621 achieve energy savings compared to traditional I/O architectures?
Yes—serial communication reduces wiring costs by 60-70% versus hardwired I/O, and the module's 5W power consumption is 40% lower than equivalent distributed I/O systems. Over a 10-year lifecycle, this translates to $15K+ savings per 100 I/O points in installation and energy costs.

What are the installation requirements for hazardous area applications?
The F8621 is ATEX Zone 2 certified for installation in control rooms adjacent to hazardous areas. For Zone 1/Division 1 field mounting, use HIMA's intrinsically safe barriers or install the module in a purged/pressurized enclosure meeting IEC 60079-2 standards. Consult local electrical codes for specific requirements.

Does this module support remote monitoring and diagnostics capabilities?
Full remote diagnostics are available through HIMA's HIScout software, accessible via Ethernet connection to the HIMax CPU. Real-time monitoring includes communication error counters, signal strength indicators, and module temperature. Integration with SCADA systems enables automated alarm notification and trend analysis.

How does the F8621 compare to Siemens or Rockwell safety communication modules?
The F8621 offers superior SIL 3 certification (vs. SIL 2 for many competitors), dual-channel redundancy as standard (not optional), and 25% faster response times in Modbus polling applications. HIMA's proven failure rate (λ < 10 FIT) exceeds industry benchmarks, making it the preferred choice for critical safety applications in oil & gas and chemical sectors.
