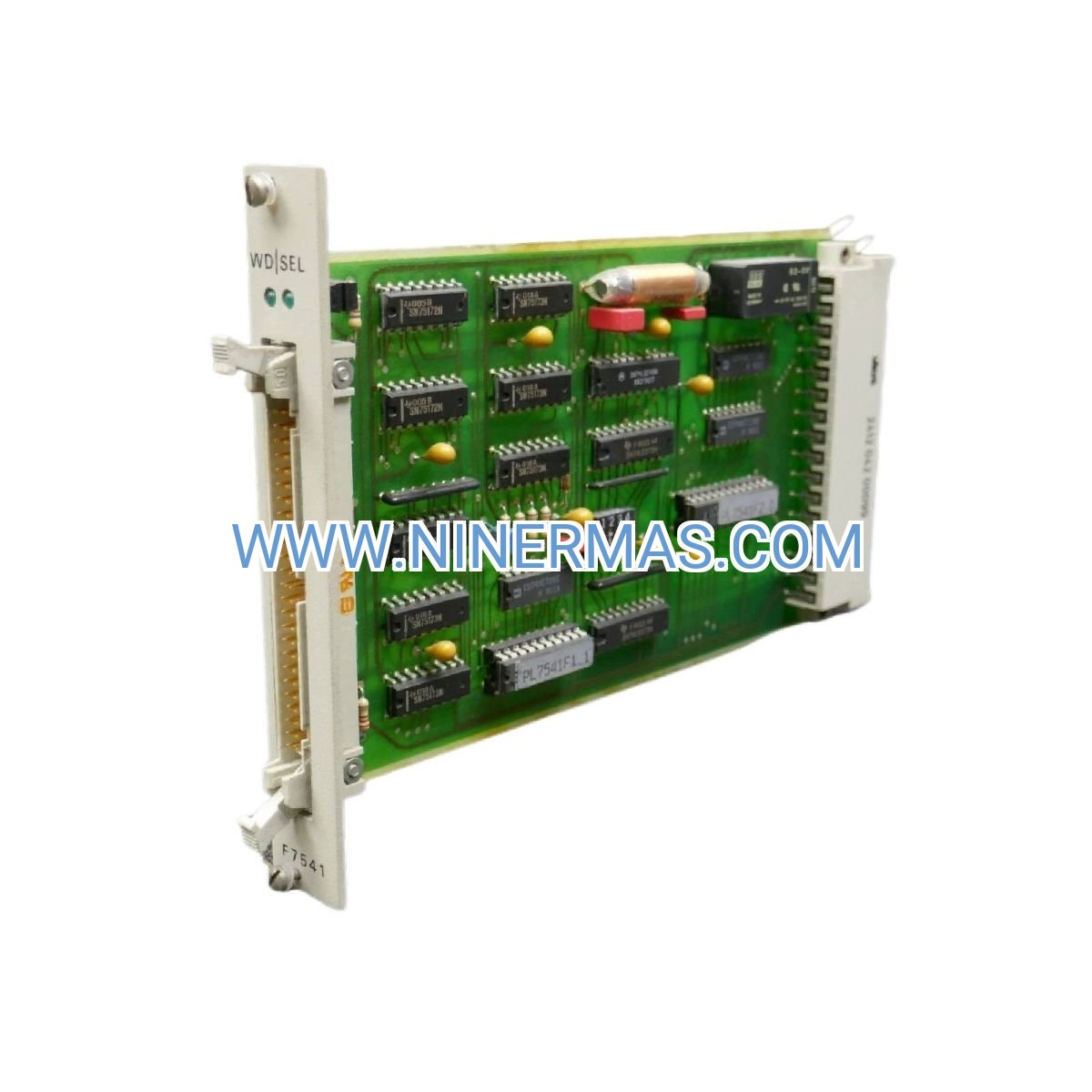

F7541 Industrial Safety Input Module (32-Channel Galvanically Isolated Design)

The F7541 represents HIMA's advanced approach to safety-critical signal acquisition, delivering 32 independently isolated 24V DC input channels engineered for demanding process control environments. This module serves as the primary interface between field instrumentation and HIMax/HIMatrix safety platforms, ensuring continuous monitoring of emergency shutdown systems, turbomachinery protection circuits, and critical process interlocks across oil & gas, power generation, and chemical processing facilities.

Designed for engineers managing complex safety instrumented systems, the F7541 addresses the challenge of reliable discrete signal monitoring in electrically harsh environments. Its galvanic isolation architecture prevents ground loop interference while maintaining signal integrity across distributed control networks. With built-in diagnostics and hot-swap capability, maintenance teams can perform module replacement without system shutdown, directly reducing operational downtime and maintenance costs.

Key differentiators include factory-verified SIL 3 certification per IEC 61508, sub-3ms signal response times for time-critical applications, and comprehensive wire-break detection across all 32 channels. The module's -40°C to +70°C operating range ensures deployment flexibility in both climate-controlled control rooms and harsh field enclosures.

Core Capabilities & Technical Advantages

✓ 32 Isolated Input Channels – Each channel features independent galvanic isolation from system ground and adjacent channels, eliminating cross-talk and providing robust protection against electrical transients up to 2kV surge immunity.

✓ SIL 3 Safety Integrity – Certified to IEC 61508 functional safety standards with proven-in-use documentation, enabling deployment in safety instrumented functions requiring up to 99.9% risk reduction. Complies with API 670 machinery protection standards and ISO 20816 vibration monitoring requirements.

✓ Hot-Swap Architecture – Field-replaceable design allows module extraction and insertion under power without disrupting adjacent I/O or controller operation. Automatic configuration download upon insertion reduces commissioning time by 60% compared to manual setup procedures.

✓ Advanced Diagnostics – Continuous self-monitoring detects open-circuit conditions, power supply deviations, backplane communication errors, and channel-level faults. Predictive maintenance algorithms flag degrading connections before failure occurs, supporting condition-based maintenance strategies.

✓ Wide Voltage Tolerance – Accepts 18-30V DC input signals while maintaining specified accuracy, accommodating voltage drops in long cable runs and compatibility with diverse field device power supplies.

→ Extended Temperature Performance – Industrial-grade components rated for -40°C to +70°C ambient operation enable installation in unheated equipment shelters, offshore platforms, and desert climates without derating.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD)
In petrochemical facilities, the F7541 monitors critical shutdown initiators including high-pressure switches, low-level transmitters, and fire & gas detector contacts. When integrated with HIMatrix controllers, the module provides dual-redundant input processing for SIL 3 voting logic, ensuring safe plant shutdown during abnormal conditions. Typical installations monitor 200+ discrete field devices across distributed process units.

Turbomachinery Vibration Monitoring
Power generation and compression facilities deploy F7541 modules to interface with proximity probe monitors, seismic vibration sensors, and bearing temperature switches on critical rotating equipment. The module's <3ms response time enables rapid detection of shaft displacement anomalies, triggering protective shutdowns before catastrophic bearing failure. Supports API 670 compliance for machinery protection systems.

Burner Management Systems (BMS)
Combined-cycle power plants and industrial boilers utilize F7541 modules for flame scanner inputs, air/fuel valve position feedback, and purge confirmation switches. The module's diagnostic coverage detects sensor failures that could compromise combustion safety, while SIL 3 certification satisfies NFPA 85 and FM approval requirements for burner control applications.

Pipeline Leak Detection Networks
Midstream oil & gas operators connect F7541 modules to distributed leak detection sensors, valve position indicators, and pump status contacts along pipeline corridors. Fiber-optic backplane extensions enable remote I/O placement up to 10km from central control facilities, reducing field wiring costs while maintaining deterministic scan times under 50ms.

Pharmaceutical Clean Room Monitoring
Biopharmaceutical manufacturers employ F7541 modules to monitor critical environmental parameters including differential pressure switches, HEPA filter status indicators, and sterile barrier integrity sensors. The module's galvanic isolation prevents electrical noise from affecting sensitive analytical equipment, while audit trail capabilities support FDA 21 CFR Part 11 compliance.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the F7541 when your application requires high-density discrete input monitoring with safety certification. For installations with fewer than 20 input points, consider the 16-channel F7531 variant to optimize rack space. Applications demanding analog signal processing should pair F7541 modules with F7126 or F7133 analog input modules within the same HIMax chassis. Verify compatibility with your controller generation – F7541 supports H51q, H41q, and current HIMax/HIMatrix platforms through firmware adaptation.

Extended Integration Capabilities

Distributed I/O Architecture: Deploy F7541 modules in remote I/O racks connected via fiber-optic SafeEthernet or redundant copper backplanes. Maximum distance of 10km between controller and remote rack enables cost-effective field installation while maintaining deterministic communication cycles under 20ms.

SCADA Integration: Native support for Modbus TCP, OPC UA, and PROFINET protocols allows seamless data exchange with third-party DCS and HMI systems. Real-time channel status, diagnostic counters, and maintenance alerts are accessible through standard industrial communication frameworks.

Cybersecurity Features: Embedded authentication mechanisms and encrypted backplane communication protect against unauthorized configuration changes. Complies with IEC 62443 industrial cybersecurity standards for secure-by-design automation components.

Custom Configuration Services: Factory pre-configuration available for large-scale deployments – specify channel labels, alarm thresholds, and diagnostic parameters during order placement. Modules ship ready for plug-and-play installation with project-specific settings pre-loaded.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipping from our regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day dispatch available for critical replacement scenarios.

Custom Configuration: Factory-configured modules ship within 10-12 business days, including full functional testing and configuration documentation.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for mission-critical installations requiring 3-5 year coverage.

Technical Support: Unlimited access to application engineering team for configuration assistance, troubleshooting guidance, and system integration planning. Average response time under 4 hours for technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents, and factory test reports. CAD drawings and 3D STEP models available for download to support panel design and layout planning.

Frequently Asked Questions

How does the F7541 module handle input signal filtering for noisy environments?
The module incorporates hardware-based RC filtering on each input channel with adjustable debounce times from 0.5ms to 20ms, configurable through controller software. This dual-stage filtering approach eliminates false triggers from contact bounce and electrical interference while maintaining fast response for genuine state changes.

What diagnostic information is available for predictive maintenance programs?
Comprehensive diagnostics include per-channel fault counters, power supply voltage monitoring, backplane communication quality metrics, and thermal status indicators. Trend analysis of diagnostic data enables condition-based maintenance scheduling, typically extending mean time between failures (MTBF) by 35-40% compared to time-based replacement strategies.

Can F7541 modules operate in redundant controller configurations?
Yes, the module fully supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) redundant architectures when deployed with HIMatrix redundant controllers. Each input channel can be read simultaneously by multiple controllers, with automatic failover maintaining continuous monitoring during controller switchover events.

What cable types and maximum lengths are recommended for field wiring?
Use shielded twisted-pair cable (minimum 0.5mm² conductor size) for optimal noise immunity. Maximum recommended cable length is 1000 meters for 24V DC signals, though actual limits depend on cable resistance and field device current draw. For installations exceeding 500 meters, consider using signal repeaters or increasing conductor size to 0.75mm².

How does the module's energy efficiency compare to previous generations?
The F7541 consumes approximately 4.5W at full load (all 32 channels active), representing a 30% reduction versus legacy F7130 modules. Lower power dissipation reduces cooling requirements in enclosed panels and enables higher module density per rack without thermal derating.

Are firmware updates required for compatibility with new controller versions?
Firmware updates are rarely necessary – the F7541 maintains forward and backward compatibility across HIMax/HIMatrix controller generations through adaptive communication protocols. When updates are recommended for new feature support, they can be performed in-situ via the controller's maintenance interface without module removal.
