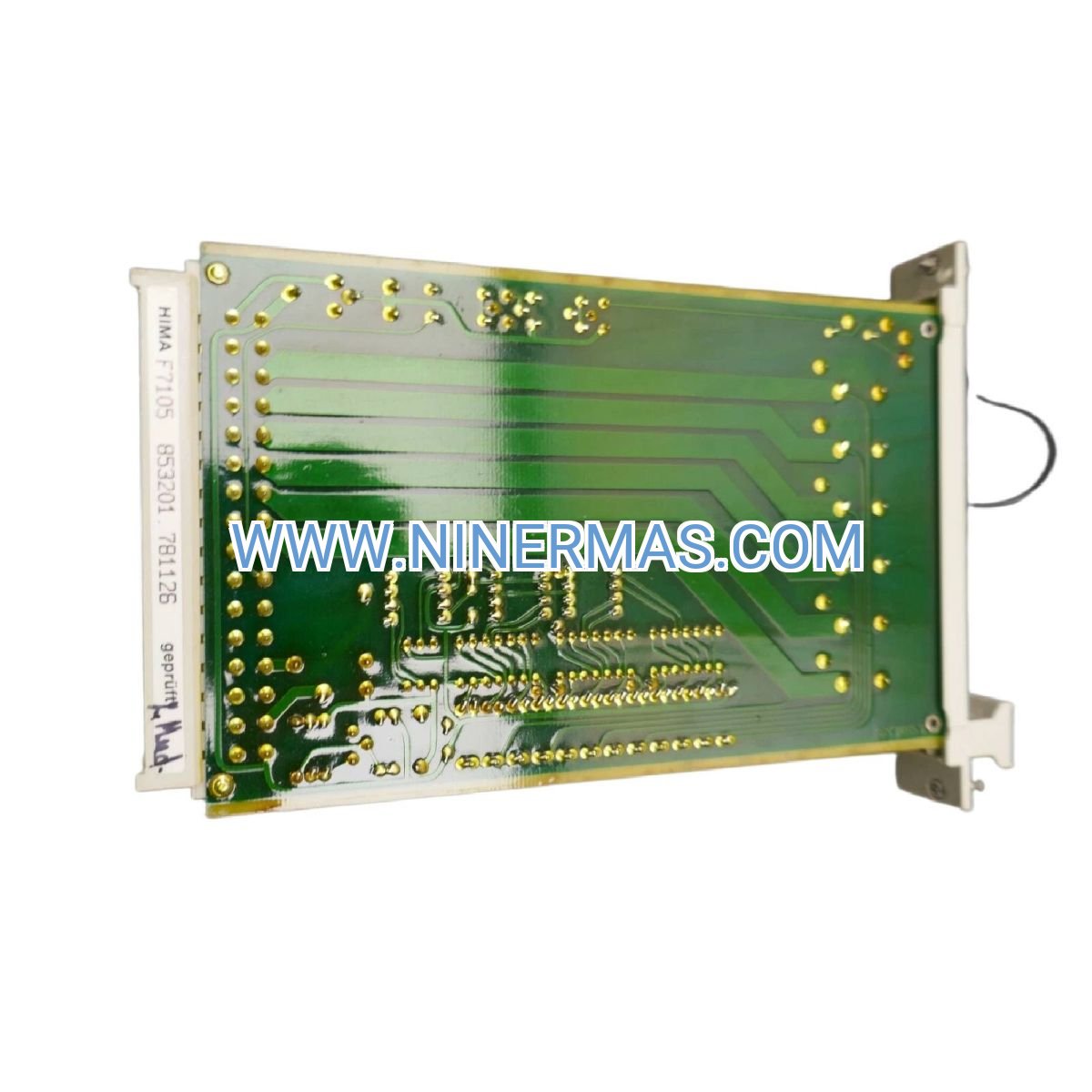

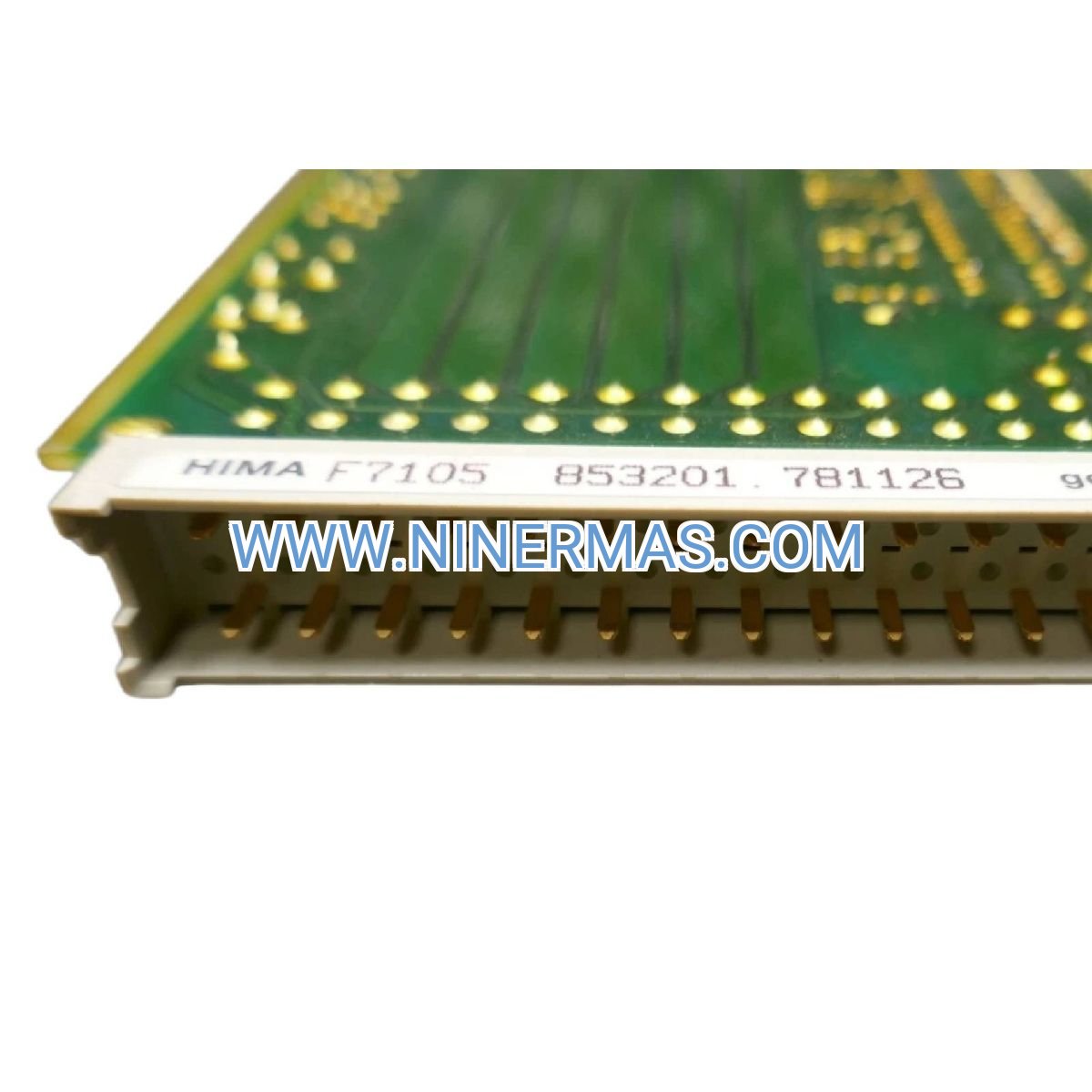

HIMA F7105 Safety-Rated Digital Output Module (Industrial-Grade 8-Channel Solution)

The HIMA F7105 represents a proven safety output solution engineered for fail-safe control in high-consequence industrial environments. This 8-channel digital output module delivers galvanically isolated 24V DC switching with 0.5A continuous rating per channel, purpose-built for actuating solenoid valves, safety contactors, and emergency shutdown devices in SIL 2/3 safety instrumented systems.

Designed for process industries, power generation facilities, and automated manufacturing operations, the F7105 addresses critical challenges in safety system reliability: deterministic response times under fault conditions, comprehensive diagnostic coverage exceeding 99%, and hot-swappable architecture that eliminates unplanned downtime during maintenance cycles. Integration with HIMA HIMax and HIMatrix platforms enables redundant output configurations supporting 1oo2 voting logic for applications demanding maximum availability.

Whether you're implementing emergency shutdown sequences in petrochemical facilities, managing burner safety chains in power plants, or executing machine safety interlocks in production lines, the F7105 provides the certified performance and diagnostic transparency required for safety-critical applications. Factory-loaded safety function blocks and auto-discovery addressing reduce engineering validation time by up to 40% compared to custom-programmed alternatives.

Core Features & Benefits

→ Galvanic Isolation Architecture: Each of the 8 output channels features complete electrical isolation from system logic and adjacent channels, preventing fault propagation and enabling safe operation in electrically noisy industrial environments. This isolation design supports mixed-voltage installations and protects upstream controllers from field-side electrical transients.

→ SIL 2/3 Safety Certification: TÜV-certified compliance with IEC 61508 functional safety standards ensures the module meets stringent requirements for safety instrumented functions. Comprehensive safety manuals and pre-calculated failure rates accelerate safety validation documentation for your specific application, reducing certification cycles and regulatory approval timelines.

→ Advanced Diagnostic Coverage: Integrated self-test routines continuously monitor for short-circuit conditions, open-load faults, over-temperature events, and communication errors with <50ms detection latency. Real-time diagnostic data streams to engineering workstations via HIMA SILworX software, enabling predictive maintenance strategies and reducing unplanned safety system trips.

→ Hot-Swappable Design: DIN rail mounting with removable spring-cage terminal blocks allows field replacement without de-energizing adjacent modules or interrupting safety system operation. Color-coded LED indicators provide instant visual confirmation of channel status, output state, and fault conditions during commissioning and troubleshooting procedures.

✓ Redundant Backplane Communication: Dual communication paths to HIMax/HIMatrix controllers eliminate single points of failure in safety logic execution, supporting safety availability targets exceeding 99.9% for continuous process operations.

✓ Extended Environmental Rating: -40°C to +70°C operating temperature range with conformal coating protection enables deployment in harsh environments including offshore platforms, desert installations, and arctic processing facilities without additional environmental enclosures.

Application Scenarios

Emergency Shutdown Systems (ESD): In petrochemical and refining operations, the F7105 controls final shutdown elements including block valves, blowdown valves, and depressurization systems. When process sensors detect hazardous conditions—such as high pressure, high temperature, or toxic gas release—the module executes deterministic valve closure sequences within safety time requirements defined by LOPA (Layer of Protection Analysis) studies. Galvanic isolation prevents electrical faults from compromising multiple shutdown loops simultaneously.

Burner Management Systems (BMS): Power generation and industrial boiler applications leverage the F7105 to manage fuel valve trains, pilot ignition circuits, air dampers, and purge sequences in compliance with NFPA 85/86 combustion safety standards. The module's <10ms response time ensures rapid fuel cutoff during flame failure events, while diagnostic monitoring detects valve actuator malfunctions before they compromise safety system integrity. Dual-channel configurations support proof-tested safety availability requirements for continuous operation facilities.

Machine Safety Interlocks: Automated production lines and robotic work cells utilize the F7105 to actuate safety contactors, electromagnetic brakes, and guard locking mechanisms meeting ISO 13849-1 PLd/PLe performance levels. When safety light curtains, emergency stop buttons, or position switches detect unsafe conditions, the module de-energizes drive systems and activates mechanical braking within Category 3/4 safety circuit requirements. Integration with HIMA safety controllers enables complex safety logic including muting sequences, bypass management, and mode-dependent protection.

Process Interlock Protection: Chemical processing, oil & gas production, and pharmaceutical manufacturing operations deploy the F7105 for critical interlock functions including reactor overpressure protection, compressor anti-surge control, turbine overspeed shutdown, and tank overflow prevention. The module's certified failure rates support safety integrity level calculations for process hazard analysis (PHA) recommendations, while comprehensive diagnostics provide evidence of safety system functionality for regulatory compliance audits.

Fire & Gas Detection Systems: Integration with fire and gas detection panels enables the F7105 to activate deluge valves, foam concentrate pumps, ventilation dampers, and emergency lighting systems. Isolated output channels prevent single-point failures from disabling multiple fire protection zones, while diagnostic monitoring ensures detection of actuator circuit faults during periodic functional testing intervals.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F7105 when your application requires 8 or fewer safety-rated outputs with current demands ≤0.5A per channel. For higher current loads (up to 2A), consider the HIMA F3422 module. Applications requiring more than 8 outputs can combine multiple F7105 modules on the same backplane, with each module independently diagnosed and hot-swappable. Verify that field devices (solenoid valves, contactors) operate within the 18-30V DC voltage range and present inductive loads ≤5H for optimal performance.

Extended Functions

Dual-Channel Output Configurations: Safety applications demanding SIL 3 integrity or high availability can configure pairs of F7105 outputs in 1oo2 (one-out-of-two) voting arrangements. The HIMA safety controller monitors both channels and detects discrepancies indicating output circuit faults, actuator failures, or wiring damage. This redundant architecture supports proof test intervals up to 10 years while maintaining safety integrity.

Remote Diagnostics Integration: When connected to HIMA Remote Service Gateway, the F7105 streams real-time diagnostic data to cloud-based monitoring platforms or customer SCADA systems via OPC UA, Modbus TCP, or PROFINET protocols. Maintenance teams receive automated alerts for degraded output channels, enabling condition-based maintenance strategies that reduce safety system unavailability by 30-50% compared to time-based inspection schedules.

Customization Options: Factory configuration services include pre-programmed safety function blocks, custom terminal labeling, and extended environmental testing for extreme conditions (vibration, shock, salt fog). Consult our engineering team for applications requiring special certifications (ATEX, IECEx, marine classification societies) or integration with legacy control systems.

Delivery & Service Assurance

Standard Lead Time: In-stock F7105 modules ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Standard delivery to major industrial centers typically requires 3-5 business days for domestic shipments, 5-7 business days for international destinations. Expedited same-day shipping available for emergency replacement requirements.

Custom Configuration Lead Time: Factory-programmed modules with customer-specific safety logic or special certifications require 2-3 weeks for engineering validation and testing. Rush processing available for critical path projects with 7-10 day delivery commitments.

Warranty Coverage: All F7105 modules include a comprehensive 12-month manufacturer warranty covering material defects, component failures, and workmanship issues. Warranty service includes advance replacement shipment (cross-ship) to minimize downtime, with failed units analyzed and root cause reports provided within 15 business days.

Technical Support: Lifetime technical support includes application engineering assistance, safety calculation verification, integration troubleshooting, and firmware update guidance. Support channels include email (response within 4 business hours), phone hotline (8:00-18:00 CST, Monday-Friday), and remote desktop sessions for complex commissioning challenges.

Documentation Package: Each F7105 shipment includes installation manual, safety manual with certified failure rate data, wiring diagrams, dimensional drawings, and TÜV certificates. Digital documentation library provides access to application notes, configuration examples, and integration guides for common safety scenarios.

Frequently Asked Questions

Q: What types of field devices can the F7105 control safely?
A: The module is designed for 24V DC solenoid valves (2-way, 3-way shutdown valves), safety contactors rated 0.5A or less, electromagnetic brakes, indicator lamps, and alarm annunciators. Each output includes integrated flyback diode protection for inductive loads up to 5H. For larger solenoid valves or contactors exceeding 0.5A, use the F7105 to drive intermediate relay coils rated within specification.

Q: How do I determine the maximum cable distance for output wiring?
A: Shielded twisted-pair cables up to 300 meters are supported when using 0.75mm² (AWG 18) minimum conductor cross-section. For installations exceeding 100 meters, calculate voltage drop: ΔV = 2 × L × I × R/1000, where L is cable length in meters, I is load current in amps, and R is conductor resistance in Ω/km. Maintain voltage at field device terminals above 18V DC under maximum load conditions. For critical applications, consider installing the F7105 closer to field devices or using higher current-rated modules.

Q: Can the F7105 integrate with non-HIMA safety controllers?
A: The F7105 is specifically engineered for HIMA HIMax and HIMatrix safety platforms and requires proprietary backplane communication protocols. Integration with third-party safety PLCs (Siemens, Rockwell, Schneider) is not supported. For multi-vendor safety system architectures, consider hardwired interfaces between safety controllers or consult our engineering team for gateway solutions that maintain safety integrity.

Q: What is the recommended proof test interval for the F7105?
A: IEC 61508 safety calculations typically support proof test intervals of 1-2 years for SIL 2 applications and 6-12 months for SIL 3 applications, depending on system architecture (1oo1 vs. 1oo2) and target safety availability. The F7105 safety manual provides detailed proof test procedures including functional testing of each output channel, diagnostic verification, and acceptance criteria. Automated proof testing via HIMA SILworX software reduces test execution time by 60% compared to manual procedures.

Q: How do I troubleshoot output channel faults during commissioning?
A: The F7105 provides three-level diagnostic indication: green LED (channel operating normally), yellow LED (warning condition such as marginal load current), red LED (fault condition including short circuit, open load, or over-temperature). Use HIMA SILworX engineering software to force individual outputs ON/OFF independent of safety logic, measure actual load current, and verify wiring continuity. Common commissioning issues include reversed polarity on DC loads, insufficient power supply capacity, or cable shield grounding errors—refer to installation manual Section 4.3 for systematic troubleshooting procedures.

Q: Does the module support partial stroke testing for valve applications?
A: While the F7105 provides precise output control, partial stroke testing (PST) requires specialized valve positioners or smart actuators with integrated position feedback. The module can trigger PST sequences by pulsing output channels, but stroke verification relies on external position transmitters connected to HIMA analog input modules. Consult our application engineering team for complete PST system design including valve selection, positioner integration, and safety logic programming.

Ready to Enhance Your Safety System Reliability?

The HIMA F7105 delivers the certified performance, diagnostic transparency, and proven reliability your safety-critical applications demand. Whether you're designing new safety instrumented systems or upgrading legacy installations, our technical team is ready to support your project from initial specification through commissioning and lifecycle management.

Next Steps: Contact our safety system specialists at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements, request detailed technical documentation, or place your order. Volume pricing and multi-module packages available for large-scale projects.
