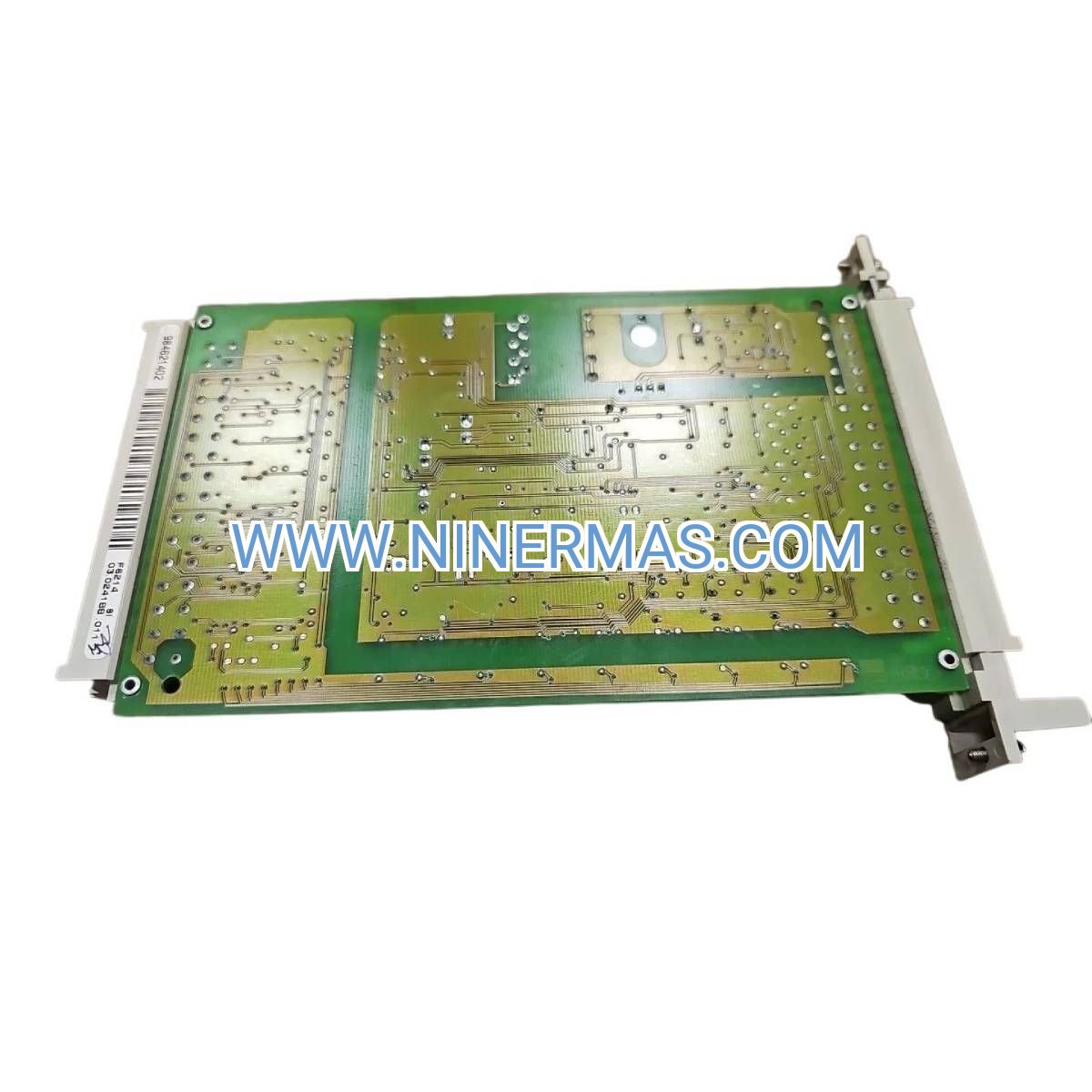

HIMA F6214 Analog Input Module — Industrial-Grade Signal Processing for Safety-Instrumented Systems

Engineered for mission-critical environments, the HIMA F6214 (SKU: F6214) is a 4-channel analog input module designed to deliver fail-safe signal acquisition in safety PLC architectures. With IEC 61508 SIL 3 certification and API 670 compliance, this module serves as the frontline interface between field transmitters and HIMA HIMatrix/HIMax safety controllers across oil & gas, chemical processing, power generation, and heavy industry sectors.

Built on proven HIMA engineering principles, the F6214 combines galvanic isolation, advanced diagnostics, and hot-swap capability to minimize downtime while maintaining the highest safety integrity levels. Whether you're retrofitting legacy H51q systems or deploying new turbomachinery protection schemes, this module provides the reliability and precision demanded by safety-critical applications.

From emergency shutdown logic to burner management and vibration monitoring, the F6214 transforms analog field signals into actionable safety data with <0.1% accuracy and >99% diagnostic coverage—ensuring your plant operates within safe operating limits 24/7.

Core Features & Benefits

→ SIL 3 Safety Integrity: TÜV-certified to IEC 61508 with systematic capability SC 3, enabling use in the most demanding safety functions including emergency shutdown (ESD) and fire & gas detection systems.

→ 16-Bit Resolution: Superior signal fidelity captures minute process variations, critical for predictive maintenance algorithms and tight process control in pharmaceutical and semiconductor applications.

→ Galvanic Isolation (2.5 kV): Channel-to-channel and channel-to-bus isolation eliminates ground loops and protects against electrical transients in noisy industrial environments, reducing false trips by up to 40%.

→ Hot-Swappable Architecture: Replace modules during operation without system shutdown—auto-configuration restores parameters from controller memory, cutting maintenance windows from hours to minutes.

→ Extended Temperature Range (-40°C to +70°C): Operates reliably in Arctic wellheads, desert refineries, and tropical offshore platforms without derating or forced cooling.

→ Comprehensive Diagnostics: Built-in self-test routines detect wire breaks, sensor faults, and out-of-range conditions in real-time, with alarm outputs to DCS/SCADA for proactive maintenance scheduling.

Application Scenarios

✓ Turbomachinery Protection Systems: Interface with Bently Nevada proximity probes and accelerometers to monitor bearing vibration, shaft displacement, and thrust position on gas turbines, steam turbines, and centrifugal compressors. Meets API 670 machinery protection standards for critical rotating equipment.

✓ Emergency Shutdown (ESD) Valves: Acquire pressure, temperature, and level transmitter signals for trip logic in offshore production platforms and onshore gas processing facilities. Proven in SIL 3 voting architectures (2oo3, 1oo2) with partial stroke testing capability.

✓ Burner Management Systems (BMS): Monitor fuel gas pressure, combustion air flow, and flame scanner intensity in boiler safety systems. Compliant with NFPA 85 and FM approval for burner control applications.

✓ Toxic Gas Detection: Process 4-20mA outputs from electrochemical H₂S, CO, and Cl₂ sensors in chemical plants and refineries. Integrated with HIMA safety logic for automatic ventilation activation and area evacuation.

✓ Pipeline Leak Detection: Analyze differential pressure and flow rate signals to identify ruptures or unauthorized tapping in crude oil and natural gas transmission networks, triggering automatic block valve closure within 2 seconds.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F6214 when your application requires SIL 3 safety integrity with moderate channel density (≤4 loops). For higher channel counts, consider the HIMA F6217 (16 channels) or Z7127 (8 channels with enhanced diagnostics). For RTD temperature inputs, specify the F3330 module instead.

Extended Functions

HART Transparency: While the F6214 does not decode HART digital signals, it passes HART FSK modulation without attenuation, allowing external HART multiplexers to access smart transmitter diagnostics and configuration parameters.

Redundancy Support: Deploy in 1oo2 or 2oo3 voting configurations with automatic cross-channel comparison and discrepancy alarms. Seamless integration with HIMA's redundant controller architectures (HIMatrix, HIMax).

Cybersecurity Hardening: Firmware signed with HIMA cryptographic keys; supports secure boot and runtime integrity verification per IEC 62443-4-2 standards for industrial control system security.

Customization Options: Factory-configured input ranges, custom calibration certificates traceable to NIST/PTB standards, and conformal coating for marine/offshore environments available upon request.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2–5 business days via DHL/FedEx Express with real-time tracking. Custom configurations require 3–4 weeks for factory programming and QA validation.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranties (24/36 months) and advance replacement programs available for critical spares inventory.

Technical Support: Lifetime access to HIMA-certified application engineers for configuration assistance, troubleshooting, and firmware updates. Remote diagnostics via secure VPN for urgent issues.

Documentation Package: Each module ships with factory calibration certificate, IEC 61508 safety manual, wiring diagrams, and STEP 7/TIA Portal configuration files. Additional languages (German, French, Spanish, Mandarin) available on request.

Frequently Asked Questions

Q: Can the F6214 interface with 3-wire RTD temperature sensors?
A: No, the F6214 is optimized for current and voltage loop inputs. For RTD applications (Pt100, Pt1000), use the HIMA F3330 temperature input module with built-in linearization.

Q: What is the maximum cable length for 4-20mA transmitter loops?
A: Up to 1,000 meters (3,280 ft) with 18 AWG shielded twisted-pair cable, assuming transmitter compliance voltage ≥12V and total loop resistance <600Ω. For longer runs, use 2-wire transmitters with higher compliance voltage.

Q: Is the F6214 suitable for Zone 2 hazardous area installation?
A: Yes, when mounted in a HIMA-approved enclosure with ATEX/IECEx certification. The module itself is not intrinsically safe; use appropriate barriers for Zone 0/1 field devices.

Q: How do I configure input scaling and alarm limits?
A: Use HIMA's SILworX engineering software (included with HIMatrix systems) or TIA Portal with HIMA GSD files. Scaling parameters are stored in non-volatile controller memory and auto-restored after module replacement.

Q: Does the module support NAMUR NE43 sensor diagnostics?
A: Yes, the F6214 detects NAMUR-compliant fault signals (3.6 mA for underrange, 21 mA for overrange) and generates discrete diagnostic alarms for predictive maintenance workflows.

Q: Can I mix voltage and current inputs on the same module?
A: Yes, each of the 4 channels is independently configurable for 0–20 mA, 4–20 mA, or ±10V via software jumpers—no hardware modifications required.

Ready to Enhance Your Safety System?

The HIMA F6214 analog input module is your proven solution for reliable, SIL 3-rated signal acquisition in the world's most demanding industrial environments. Whether you're upgrading legacy systems or designing new safety architectures, our team is ready to support your project from specification to commissioning.

Contact our technical sales team today: Request a formal quotation, discuss application-specific requirements, or schedule a virtual demo of the F6214 integrated with HIMA safety controllers. Volume discounts and multi-year service agreements available for OEMs and system integrators.
