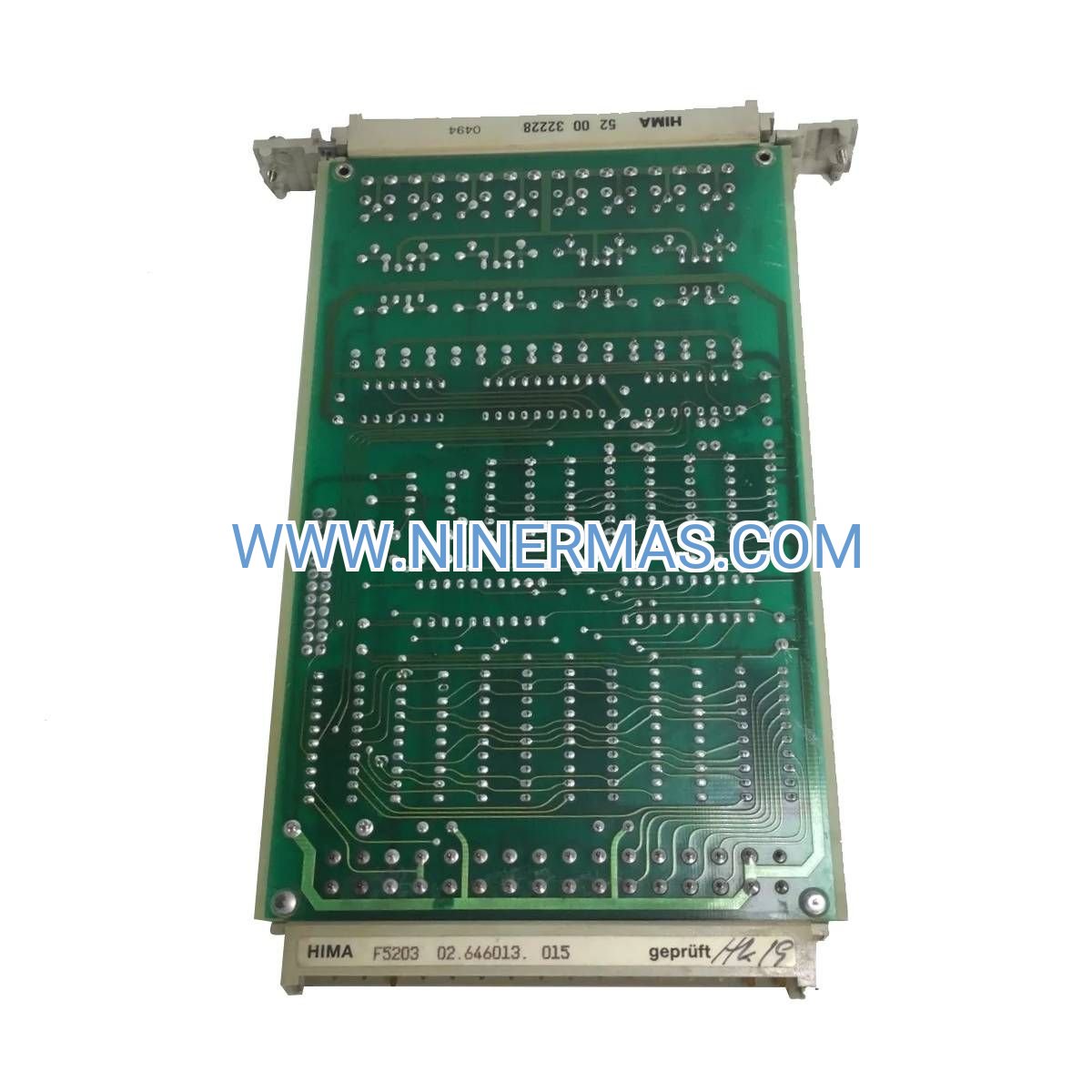

HIMA F5203 Safety Digital Input Module (Industrial-Grade 16-Channel Solution)

The HIMA F5203 represents a proven safety-rated digital input solution engineered for mission-critical industrial control environments. This 16-channel module integrates directly into HIMA HIQuad and HIMatrix safety platforms, delivering galvanically isolated signal acquisition with SIL 3 certification per IEC 61508. Designed for emergency shutdown systems, fire and gas detection networks, and process safety instrumentation, the F5203 combines diagnostic excellence with field-proven reliability across oil and gas, chemical processing, power generation, and offshore installations.

Industrial operators face mounting pressure to maintain uptime while meeting stringent safety compliance requirements. The F5203 addresses this challenge through hot-swap capability, comprehensive self-diagnostics exceeding 99% coverage, and response times under 10 milliseconds. Whether you're upgrading legacy safety systems or designing new protection layers, this module provides the foundation for dependable discrete signal processing in hazardous and non-hazardous environments.

Built to withstand extreme operating conditions from -40°C to +70°C, the F5203 delivers consistent performance in demanding applications. Its tool-free terminal connections, automatic address recognition, and LED status indicators per channel reduce installation time by up to 40% while simplifying troubleshooting and maintenance workflows.

Core Features & Industrial Benefits

→ SIL 3 Safety Integrity: Certified to IEC 61508 standards with >99% diagnostic coverage, ensuring compliance with international safety regulations for process industries and reducing liability exposure.

→ 16 Galvanically Isolated Channels: Independent input circuits eliminate ground loop interference and provide robust noise immunity, critical for reliable signal acquisition in electrically noisy industrial environments.

→ Hot-Swap Capability: Online module replacement without system shutdown minimizes planned downtime and enables maintenance during production operations, directly improving overall equipment effectiveness (OEE).

→ Extended Temperature Range: -40°C to +70°C operation supports installations in extreme climates including Arctic facilities, desert refineries, and tropical offshore platforms without additional environmental controls.

→ NAMUR Sensor Compatibility: Full support for NAMUR proximity sensors with line fault detection per DIN 19234, enabling predictive maintenance strategies and reducing false trip incidents.

→ Comprehensive Diagnostics: Channel-level fault detection, power supply monitoring, and communication status reporting accessible via HMI or engineering workstation accelerate troubleshooting and reduce mean time to repair (MTTR).

Application Scenarios Across Industries

✓ Oil & Gas Production Facilities: Emergency shutdown (ESD) systems monitoring wellhead pressure switches, flame detectors, and manual emergency stops. The F5203's SIL 3 rating meets API 670 requirements for machinery protection systems, while its hot-swap feature supports continuous operation during turnarounds.

✓ Chemical & Petrochemical Plants: Reactor protection systems processing signals from temperature sensors, toxic gas detectors, and overpressure switches. Galvanic isolation prevents electrical faults from propagating between field devices and control systems, critical for preventing cascading failures.

✓ Power Generation Stations: Turbine safety systems and boiler protection applications requiring fast response times and high availability. The module's ≤10ms response time ensures rapid detection of abnormal conditions before equipment damage occurs.

✓ Pharmaceutical Manufacturing: Clean room environmental monitoring and batch process safety interlocks where regulatory compliance demands documented safety integrity levels. The F5203's comprehensive diagnostic logging supports FDA 21 CFR Part 11 validation requirements.

✓ Marine & Offshore Platforms: FPSO (Floating Production Storage and Offloading) safety systems and subsea control applications exposed to corrosive atmospheres and vibration. ATEX Zone 2 and IECEx certifications enable installation in classified hazardous areas with appropriate barriers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F5203 when your application requires SIL 3 safety integrity with 16 or fewer discrete input points. For higher channel density, consider the HIMA F60DI3201 (32 channels). Applications in Zone 1 hazardous areas require intrinsic safety barriers or purged enclosures. Verify that your field devices provide 24V DC signal levels; for other voltage ranges, signal conditioning may be necessary.

Extended Functionality & Integration Options

Redundant Architecture Support: The F5203 operates seamlessly in redundant safety controller configurations, with automatic failover and synchronization between primary and backup modules ensuring zero single points of failure.

Engineering Software Integration: Full compatibility with HIMA SILworX engineering suite enables offline configuration, simulation, and documentation generation. Version control and change tracking support IEC 61511 lifecycle management requirements.

Protocol Connectivity: Backplane communication supports both standard and safety-rated data exchange with HIMA controllers. Optional gateways enable integration with DCS systems via Modbus, OPC UA, or HART protocols for plant-wide visibility.

Customization Services: Factory pre-configuration available for large projects, including custom terminal labeling, pre-loaded safety parameters, and application-specific testing protocols to accelerate site commissioning.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS) with full tracking and insurance. Expedited same-day shipping available for critical breakdown situations.

Custom Configuration Lead Time: 7-10 business days for factory-programmed modules with customer-specific parameters and documentation packages.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for up to 60 months.

Technical Support: Lifetime application engineering assistance including system design review, configuration validation, and troubleshooting support via phone, email, and remote desktop sessions. Response time: <4 hours for critical issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety manual per IEC 61508, TÜV certificates, and material traceability documentation for quality management systems.

Frequently Asked Questions

Can the HIMA F5203 module be installed in Zone 1 hazardous locations?
The F5203 carries ATEX Zone 2 and IECEx certification for installation in non-hazardous and Zone 2 classified areas. For Zone 1 applications, install the module in a purged/pressurized enclosure meeting IEC 60079-2 requirements, or use intrinsic safety barriers (zener barriers or galvanic isolators) between field devices and module terminals. Consult your site's hazardous area classification drawings and engage a certified electrical engineer for barrier selection.

What is the maximum recommended cable distance for reliable digital input signals?
Up to 1000 meters (3280 feet) using shielded twisted-pair cable (minimum 0.5mm² conductor cross-section) with proper grounding at the module end only. Actual distance depends on field device output impedance, cable capacitance, and electromagnetic interference levels. For distances exceeding 500 meters in high-noise environments, consider using signal repeaters or upgrading to 4-20mA analog transmitters with dry contact outputs.

Does this digital input module support NAMUR proximity sensor standards?
Yes, the F5203 provides full NAMUR sensor compatibility per DIN 19234, including automatic detection of sensor faults (short circuit, open circuit, and out-of-range conditions). The module distinguishes between normal operation, sensor failure, and cable break conditions, reporting each state to the safety controller for appropriate action. This capability is essential for predictive maintenance programs in rotating equipment monitoring.

How does the hot-swap functionality work without disrupting safety system operation?
The F5203 features electronic keying and automatic module recognition. During hot-swap: (1) Remove the failed module while the system continues operating on remaining channels or redundant modules, (2) Insert the replacement module—the backplane connector includes staggered pins that establish ground before power, (3) The safety controller automatically detects the new module, verifies its configuration matches the system database, and resumes normal operation after completing internal diagnostics (typically 2-3 seconds). No manual reset or programming required.

What diagnostic information can be accessed for troubleshooting input channel issues?
Comprehensive diagnostics include: per-channel LED indicators (green=normal, red=fault, amber=warning), channel-level fault codes accessible via HMI or engineering station, power supply voltage monitoring (alerts if voltage drops below 20V DC), backplane communication status, internal self-test results (RAM, ROM, watchdog timer), and historical fault logging with timestamps. Advanced diagnostics report input signal quality metrics including pulse width, frequency, and voltage levels for predictive maintenance analysis.

Is the F5203 compatible with legacy HIMA safety systems or only newer platforms?
The F5203 is designed for HIMA HIQuad (H41q, H51q) and HIMatrix safety controllers. It is NOT backward-compatible with older HIMA Planar or H41/H51 systems due to different backplane architectures and communication protocols. For legacy system upgrades, HIMA offers migration kits and engineering services to transition to HIQuad platforms while preserving existing I/O field wiring. Contact our technical team for system compatibility assessment and migration planning.

Ready to Enhance Your Safety System Reliability?

The HIMA F5203 digital input module delivers the safety integrity, diagnostic capability, and operational flexibility demanded by modern industrial facilities. Whether you're designing a new emergency shutdown system or upgrading existing protection layers, our application engineers are ready to assist with module selection, system architecture review, and integration planning.

Request a technical consultation today: Contact our team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements. We provide detailed quotations within 24 hours, including shipping options, warranty terms, and volume pricing for multi-module projects.
