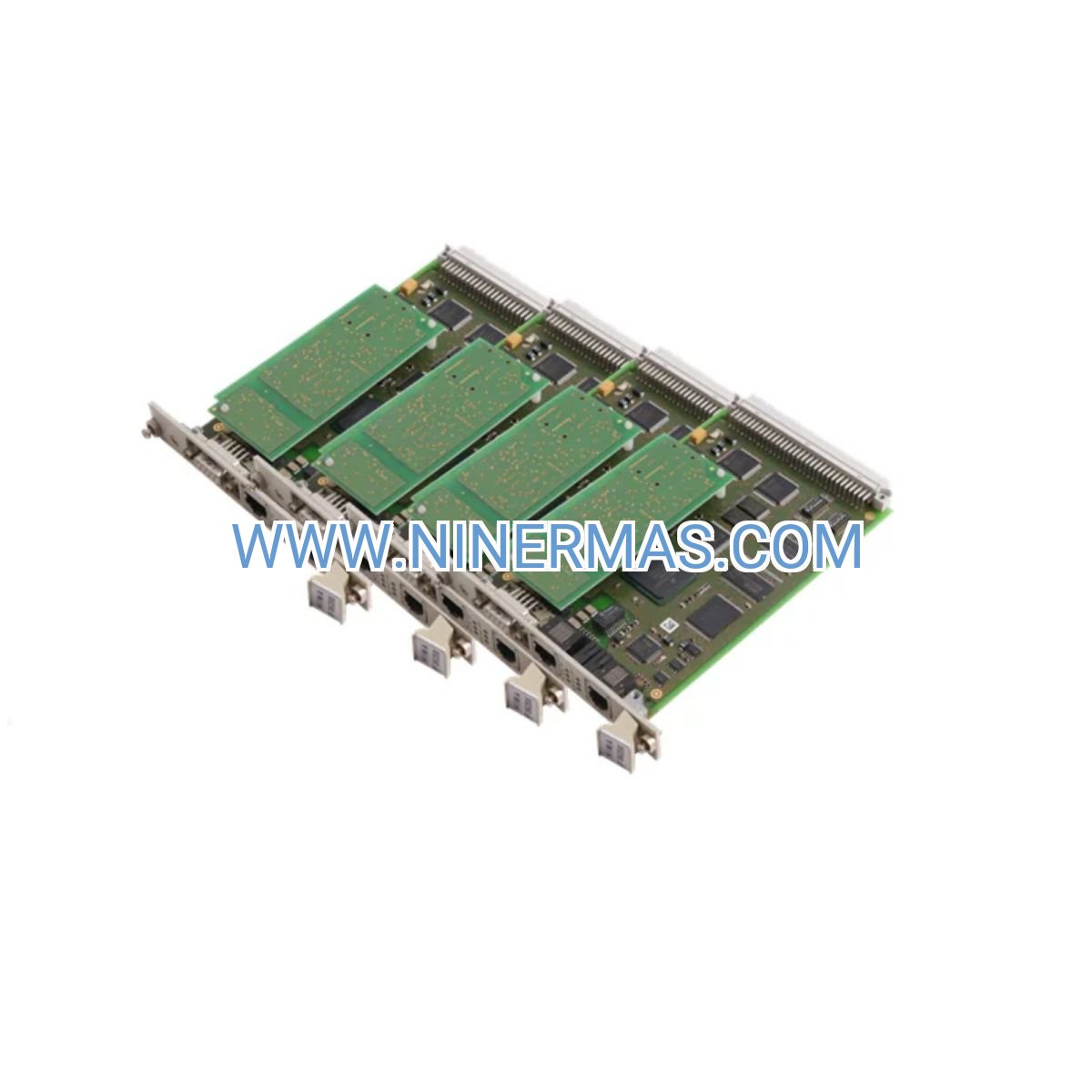

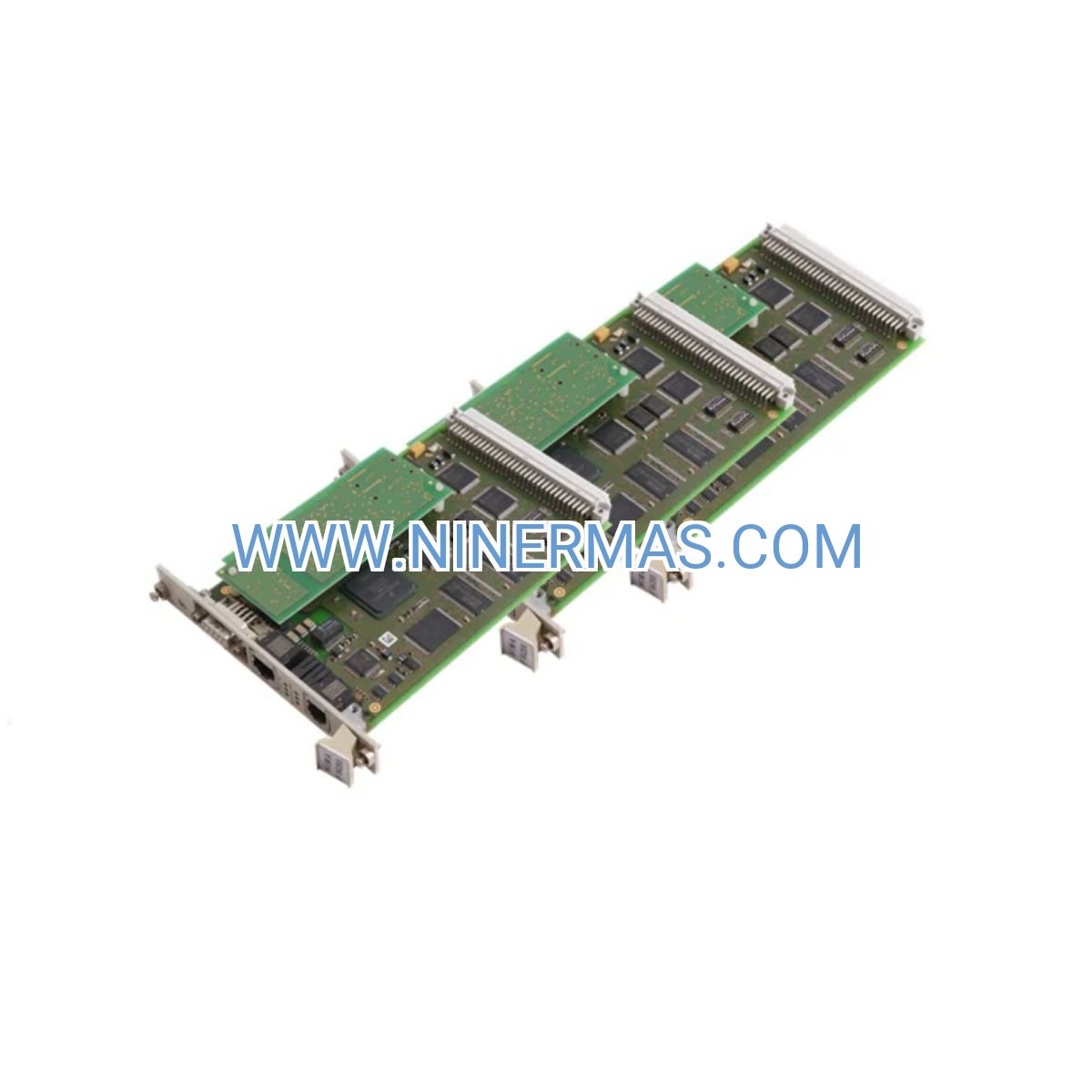

F3503030 Remote I/O Controller (Industrial-Grade Safety Platform)

The F3503030 represents HIMA's next-generation approach to distributed safety control, delivering certified SIL 3 performance for mission-critical industrial operations. This remote I/O controller bridges field instrumentation with central safety logic, enabling scalable architectures that reduce installation complexity while maintaining uncompromising safety integrity across oil & gas, chemical processing, and power generation sectors.

Designed for integration within HIMax and HIMatrix safety ecosystems, the F3503030 addresses the fundamental challenge of distributed process control: maintaining deterministic communication and fail-safe behavior across extended I/O networks. Its SafeEthernet protocol ensures predictable response times even under network congestion, while built-in diagnostics provide real-time visibility into system health—critical capabilities for operators managing emergency shutdown sequences and burner management protocols.

Whether you're retrofitting legacy DCS infrastructure or designing greenfield safety instrumented systems, the F3503030 delivers the modularity and certification pedigree required for IEC 61508 compliance. With support for both digital and analog field devices, this controller serves as the foundation for comprehensive safety architectures that protect personnel, assets, and environmental integrity.

Core Capabilities & Technical Advantages

→ SIL 3 Certified Architecture
TÜV-validated design meets IEC 61508 requirements for safety integrity level 3 applications, providing documented proof of systematic capability and random hardware failure tolerance necessary for regulatory compliance in hazardous process industries.

→ SafeEthernet Communication Protocol
Deterministic network performance with black-channel transmission ensures data integrity across distributed I/O networks, eliminating single points of failure while supporting redundant communication paths for continuous operation during maintenance activities.

→ Scalable I/O Capacity
Accommodates up to 512 input/output points per controller through modular expansion, allowing system architects to right-size installations from compact skid-mounted units to plant-wide safety networks without architectural redesign.

✓ Hot-Swappable Module Design
Field-replaceable I/O cards enable maintenance without system shutdown, reducing mean time to repair by 60% compared to fixed-configuration controllers—critical for continuous process operations where unplanned downtime carries six-figure hourly costs.

✓ Extended Environmental Range
Operates reliably across -40°C to +70°C ambient temperatures with conformal coating protection against humidity, dust, and corrosive atmospheres typical of offshore platforms and chemical processing environments.

✓ Backward Compatibility
Seamless integration with existing HIMA F-series modules protects capital investment in installed I/O infrastructure, enabling phased migration strategies that minimize project risk and commissioning complexity.

Industry Applications & Use Cases

Emergency Shutdown Systems (ESD)
In offshore oil production facilities, the F3503030 monitors critical process parameters—wellhead pressure, separator levels, flare system status—and executes coordinated shutdown sequences within milliseconds when abnormal conditions are detected. Its redundant architecture ensures fail-safe operation even during simultaneous component failures, meeting API RP 14C requirements for platform safety systems.

Burner Management Systems (BMS)
Power generation plants deploy the F3503030 to supervise boiler ignition sequences, flame detection circuits, and fuel valve interlocks. The controller's fast scan times (typically <50ms) enable precise timing control for purge cycles and flame supervision, preventing explosive atmospheres while maintaining operational efficiency across load-following scenarios.

Fire & Gas Detection Networks
Chemical processing complexes utilize distributed F3503030 controllers to aggregate inputs from hundreds of toxic gas sensors, flame detectors, and manual call points. Geographic distribution reduces cable runs by 40-50% compared to centralized architectures, while local processing capability ensures detection-to-action response times under 2 seconds.

Pipeline Safety Systems
Midstream operators implement F3503030 controllers at pump stations and valve manifolds to monitor flow rates, pressure differentials, and leak detection systems. The controller's wide temperature rating and vibration resistance make it suitable for remote installations where environmental conditions exceed commercial-grade equipment specifications.

Pharmaceutical Batch Control
GMP-regulated manufacturing environments leverage the F3503030's audit trail capabilities and deterministic I/O scanning for critical parameter monitoring during sterile processing. Integration with recipe management systems ensures repeatable batch execution while maintaining safety interlocks for exothermic reaction control.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the F3503030 when your application requires SIL 3 certification, distributed I/O architecture, or integration with existing HIMA safety systems. For standalone applications under 128 I/O points, consider compact controller alternatives. For SIL 2 applications, evaluate cost-optimized controller options. Consult factory application engineers for hazardous area classifications requiring ATEX/IECEx zone-specific enclosures.

Advanced Integration Features

OPC UA Connectivity
Native OPC UA server functionality enables seamless integration with SCADA platforms, historian databases, and cloud analytics services without proprietary gateways. Secure communication via certificate-based authentication protects operational data while enabling Industry 4.0 initiatives.

Redundancy Configurations
Supports dual-channel controller redundancy with automatic failover, ensuring continuous operation during controller maintenance or component failure. Bumpless transfer maintains process control without output disturbances during switchover events.

Custom I/O Mapping
Flexible configuration tools allow engineers to define application-specific I/O assignments, scaling parameters, and alarm thresholds without programming expertise. Pre-validated function blocks accelerate commissioning for common safety functions like 2oo3 voting and partial stroke testing.

Cybersecurity Hardening
IEC 62443 compliant design includes role-based access control, encrypted configuration files, and audit logging to meet industrial cybersecurity requirements for critical infrastructure protection.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-new units with standard configuration
Expedited Service: 10-14 business days available for urgent project requirements (surcharge applies)
Custom Configuration: 6-8 weeks for application-specific I/O mapping and FAT documentation

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for critical applications requiring guaranteed parts availability.

Technical Support: Lifecycle support includes configuration assistance, firmware updates, obsolescence management, and 24/7 emergency troubleshooting hotline. On-site commissioning services available through certified HIMA system integrators.

Documentation Package: Each controller ships with installation manual, configuration software license, TÜV certification documents, and dimensional drawings. Application-specific FAT protocols and loop drawings available upon request.

Frequently Asked Questions

Can the F3503030 interface with non-HIMA field devices?
Yes, the controller accepts standard 4-20mA analog signals and discrete 24V DC inputs from any manufacturer. However, maintaining SIL 3 certification requires using TÜV-approved I/O modules within the safety loop. Third-party devices can be integrated for non-safety monitoring functions.

What is the maximum cable distance between controller and remote I/O racks?
SafeEthernet communication supports up to 100 meters per segment using standard Cat5e/Cat6 cabling. Fiber optic media converters extend distances to 2 kilometers for geographically distributed installations such as pipeline valve stations or tank farms.

Does the system support partial stroke testing for safety valves?
Yes, integrated partial stroke test (PST) functionality enables automated valve diagnostics without process shutdown. Configurable test sequences verify valve response times and detect mechanical degradation before dangerous failures occur, extending proof test intervals up to 24 months.

How does the controller handle power supply failures?
Built-in supercapacitors provide sufficient energy to complete orderly shutdown sequences and save diagnostic data during power loss events. Redundant 24V DC power inputs with automatic load sharing ensure continuous operation if one supply fails.

What cybersecurity measures protect against unauthorized access?
Multi-layer security includes password-protected configuration access, encrypted Ethernet communication, and audit trails logging all parameter changes. Network segmentation via managed switches isolates safety networks from enterprise IT infrastructure per IEC 62443 zone/conduit models.

Is the controller suitable for hazardous area installations?
The F3503030 carries ATEX/IECEx certification for Zone 2/Division 2 installations when mounted in approved enclosures. For Zone 1/Division 1 applications, specify explosion-proof or purged enclosure options during ordering.

Ready to Enhance Your Safety System?

Contact our application engineering team to discuss your specific safety requirements and receive a detailed technical proposal. We provide complimentary system architecture reviews, SIL verification calculations, and budget quotations within 48 hours. For immediate assistance, reach our technical sales specialists at the contact information below.
