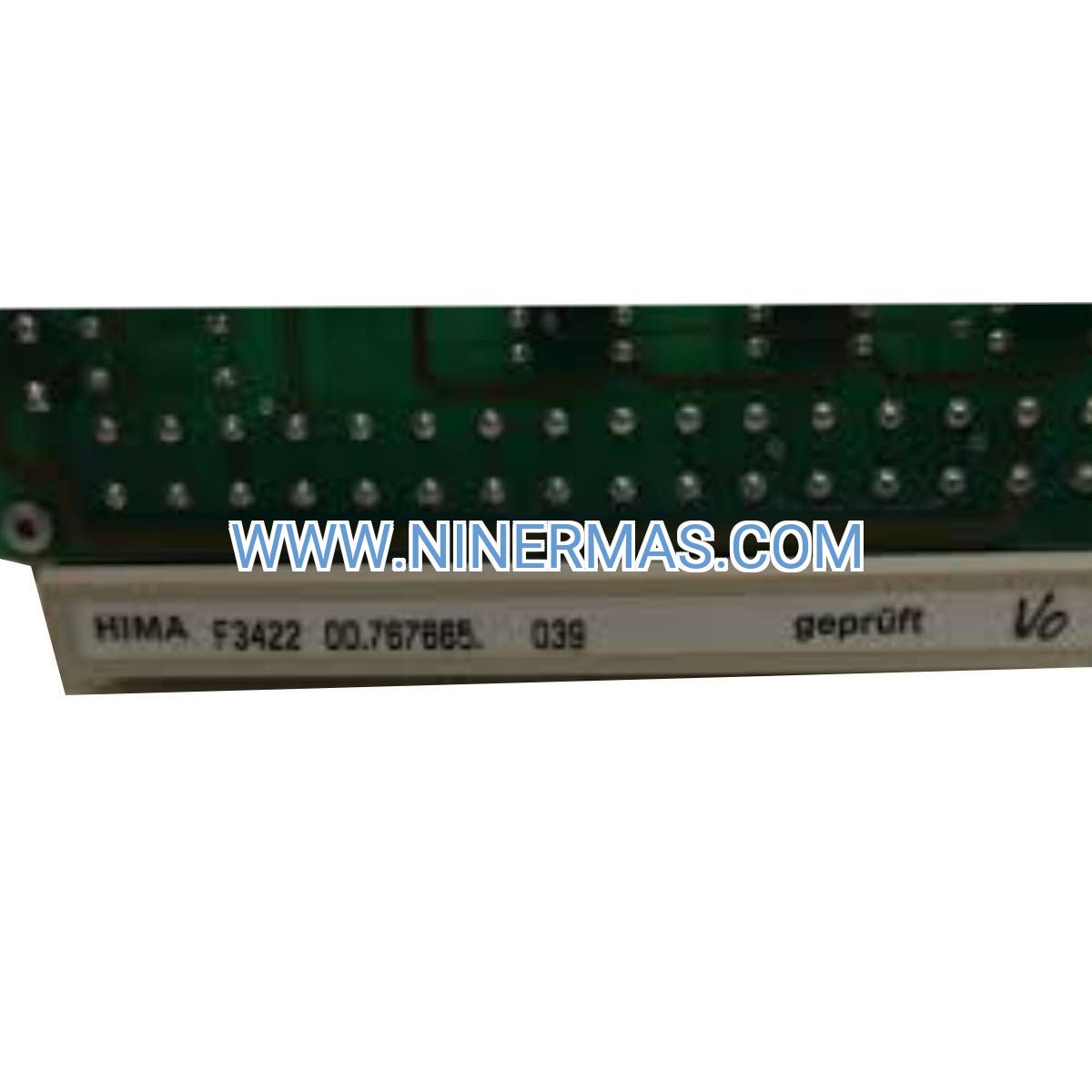

HIMA F3422 Output Module (Industrial-Grade 8-Channel Safety Control)

The HIMA F3422 represents a proven solution for safety-critical output control in process industries and manufacturing environments. This 8-channel digital output module integrates seamlessly with HIMA's HIMax and HIMatrix safety platforms, delivering certified SIL 3 performance for applications where equipment protection and personnel safety are non-negotiable.

Built for harsh industrial conditions, the F3422 addresses the challenge of reliable field device actuation in emergency shutdown sequences, fire suppression systems, and turbomachinery protection schemes. Plant engineers and system integrators choose this module when downtime prevention and regulatory compliance intersect with operational excellence.

Whether you're upgrading legacy safety systems or designing greenfield installations, the F3422 provides the diagnostic depth and fault tolerance required for IEC 61508 compliance while maintaining compatibility with existing HIMA architectures.

Core Features & Benefits

→ SIL 3 Certified Safety Integrity: Achieve >99% diagnostic coverage with TÜV-approved architecture, reducing spurious trip rates while maintaining fail-safe operation for critical process interlocks.

→ 8 Independent Output Channels: Control solenoid valves, alarm annunciators, and actuator circuits with solid-state switching rated for 2A continuous load per channel—eliminating mechanical relay wear and maintenance cycles.

→ Fast Response Performance: Sub-10ms actuation time ensures rapid emergency response in high-speed protection sequences, critical for turbine overspeed detection and burner flame-out scenarios.

→ Extended Temperature Range: Operate reliably from -40°C to +70°C without derating, supporting installations in offshore platforms, desert refineries, and arctic processing facilities.

→ Comprehensive Diagnostics: Built-in channel monitoring detects open circuits, short circuits, and load faults in real-time, with status feedback to the safety controller for predictive maintenance strategies.

→ Proven Platform Integration: Drop-in compatibility with HIMA's modular safety systems reduces engineering time and leverages existing spare parts inventory for multi-site operations.

Application Scenarios

✓ Emergency Shutdown Systems (ESD): In petrochemical facilities, the F3422 drives final control elements during process upsets—closing isolation valves, tripping pumps, and de-energizing heaters within milliseconds of hazard detection. The module's redundant output architecture ensures single-point failures don't compromise shutdown integrity.

✓ Fire & Gas Detection Networks: Coordinate deluge valve activation, HVAC damper control, and visual/audible alarms across multi-zone facilities. The F3422's certified safety rating meets API 670 requirements for machinery protection systems in compressor stations and LNG terminals.

✓ Turbomachinery Protection: Interface with vibration monitoring systems to execute coordinated shutdowns of gas turbines, steam turbines, and centrifugal compressors. The module's low latency prevents catastrophic bearing failures and rotor damage during abnormal operating conditions.

✓ Batch Process Control: Manage sequential interlocks in pharmaceutical manufacturing and specialty chemical production, where recipe deviations trigger automated material isolation and vessel purging to prevent cross-contamination.

✓ Power Generation Safety: Control boiler trip circuits, generator excitation systems, and cooling water isolation valves in combined-cycle plants and cogeneration facilities, maintaining grid stability during fault conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F3422 when your application requires 8 or fewer safety-rated outputs with individual 2A load capacity. For higher channel counts, consider the HIMA X-DO 32 51 module. Verify that your field devices operate within the 24V DC voltage range and that inductive loads include appropriate suppression circuits.

Extended Functions

Advanced Diagnostics Integration: The F3422 supports HART communication overlays for smart valve positioners and intelligent actuators, enabling condition monitoring without additional wiring infrastructure.

Redundancy Configurations: Deploy in 1oo2 or 2oo3 voting architectures for applications requiring fault tolerance beyond single-channel safety. The module's self-test routines coordinate with redundant partners to maintain availability during proof testing.

Customization Options: Factory configuration services available for pre-programmed output patterns, custom diagnostic thresholds, and application-specific firmware variants for OEM machinery builders.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical infrastructure projects.

Technical Support: Access to HIMA-certified application engineers for system design review, FAT/SAT support, and troubleshooting assistance. Remote diagnostic services available via secure VPN connections.

Documentation Package: Each module ships with installation manual, wiring diagrams, SIL certificate, and configuration software license. CAD drawings and EPLAN macros available for download.

Frequently Asked Questions

Q: Can the F3422 module interface with non-HIMA safety controllers?
A: The F3422 is designed specifically for HIMA HIMax and HIMatrix platforms. Third-party integration requires custom interface modules and may affect SIL certification. Consult factory engineering for compatibility assessments.

Q: What cable specifications are required for field wiring?
A: Use shielded twisted-pair cables with minimum 0.75mm² conductor cross-section. Shield grounding must follow HIMA installation guidelines to maintain EMC compliance and diagnostic accuracy.

Q: How does the module handle inductive load switching?
A: Internal flyback diodes protect against voltage transients from relay coils and solenoid valves. For loads exceeding 50mH inductance, external suppression networks are recommended to extend contact life.

Q: Is hot-swapping supported during system operation?
A: Hot-swap capability depends on controller configuration and redundancy architecture. Single-channel systems require controlled shutdown. Redundant configurations may support online replacement with proper procedures.

Q: What is the expected service life of the output channels?
A: Solid-state outputs have no mechanical wear components. Expected MTBF exceeds 100,000 hours under rated load conditions. Proof test intervals are typically 12-24 months per IEC 61511 requirements.

Q: Does the module support remote monitoring and diagnostics?
A: Yes, when integrated with HIMA's system software, all channel status, fault conditions, and diagnostic counters are accessible via Ethernet/IP or Modbus TCP for SCADA integration and predictive maintenance platforms.

Ready to Enhance Your Safety System?

Contact our technical sales team to discuss your specific application requirements, receive detailed quotations, and access engineering support for system integration planning. Our specialists can assist with module selection, redundancy design, and compliance documentation for your next project.
