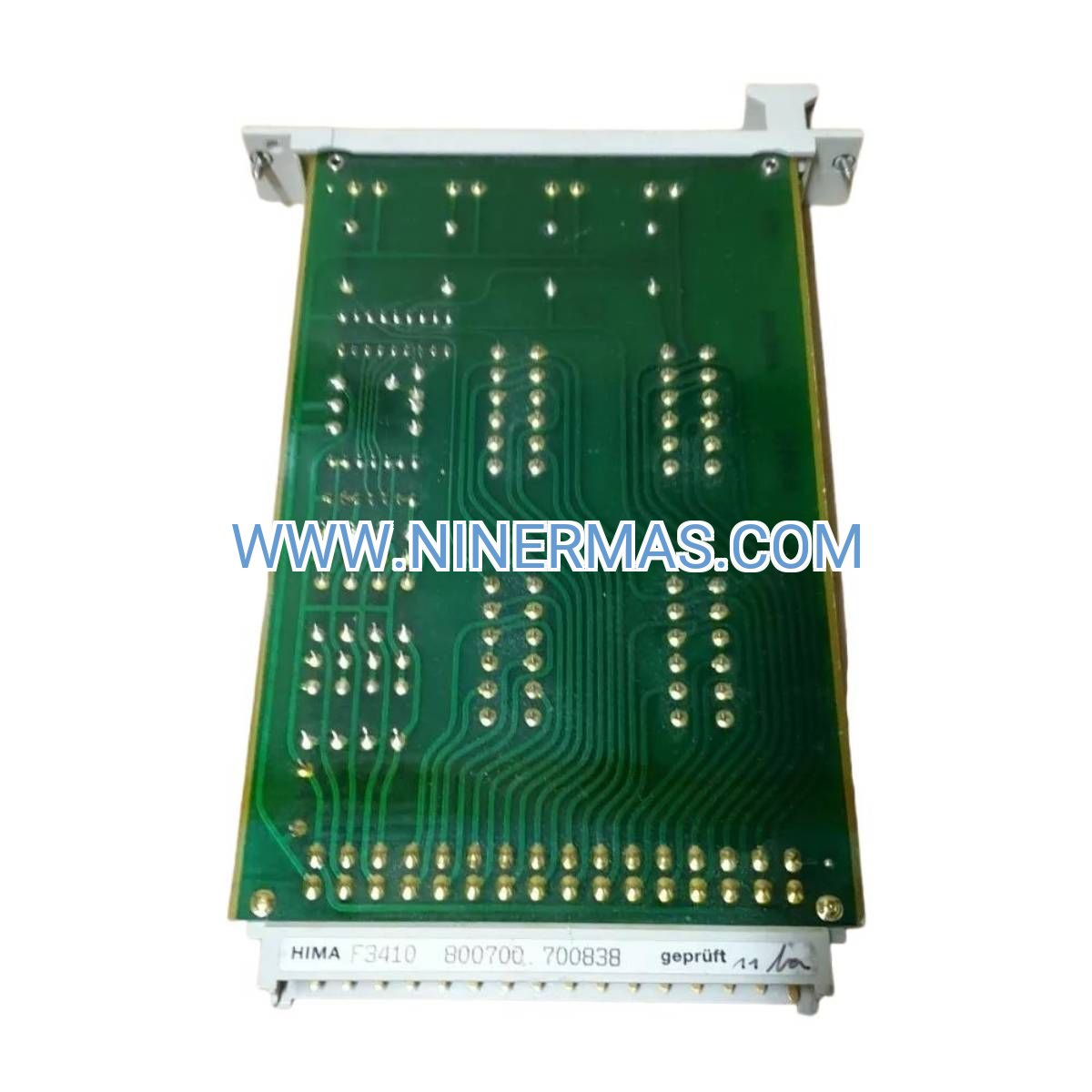

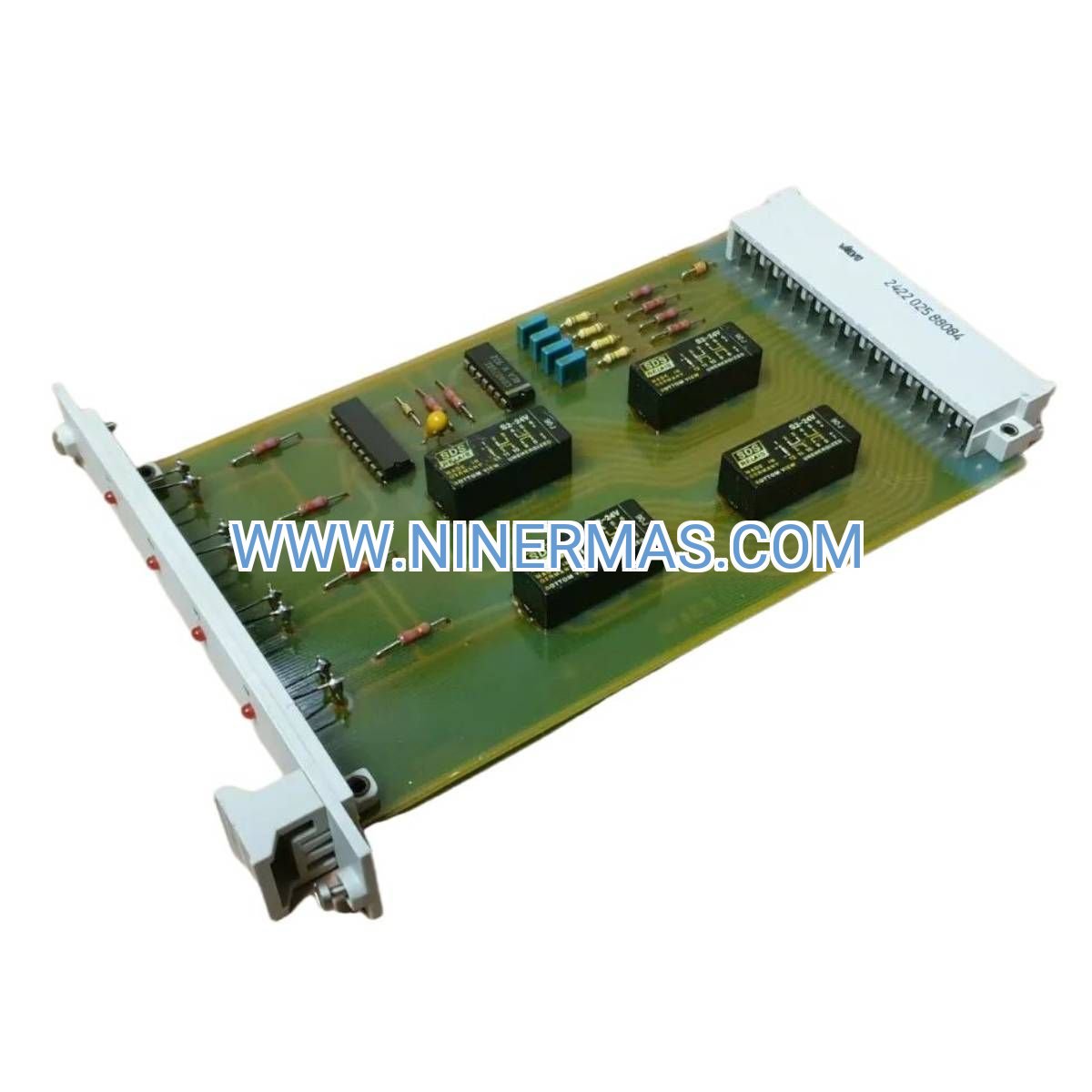

HIMA F3410 Relay Output Module (Industrial-Grade Safety Control)

The HIMA F3410 is an 8-channel safety-rated relay output module engineered for fail-safe control in process automation and emergency shutdown applications. Certified to SIL 3 per IEC 61508, this module delivers deterministic switching performance for HIQuad and HIMatrix safety platforms where operational integrity directly impacts personnel safety and asset protection.

Designed for industries demanding zero-compromise reliability—oil & gas, chemical processing, power generation, and pharmaceutical manufacturing—the F3410 combines galvanically isolated relay contacts with comprehensive self-diagnostics to ensure every output command executes with verifiable certainty.

Whether you're implementing emergency valve isolation, coordinating fire suppression sequences, or managing burner management interlocks, the F3410 provides the proven foundation for safety instrumented systems (SIS) that meet global regulatory standards and operational excellence benchmarks.

Core Features & Benefits

✓ SIL 3 Certified Safety Integrity
TÜV-certified to IEC 61508 SIL 3 standards with >99% diagnostic coverage. Meets stringent requirements for safety instrumented functions (SIF) in high-demand mode applications, reducing risk of hazardous failures to industry-accepted levels.

✓ 8 Independent Relay Output Channels
Each channel features mechanically isolated relay contacts rated for 2A at 250V AC / 30V DC. Supports both normally open (NO) and normally closed (NC) configurations for flexible safety logic implementation across diverse load types.

✓ Galvanic Isolation Architecture
Complete electrical isolation between output channels, system bus, and power supply eliminates ground loop interference and protects against voltage transients. Critical for installations in electrically noisy industrial environments.

✓ Hot-Swappable Maintenance Design
Replace modules during system operation without disrupting active safety functions. Automatic configuration recognition upon insertion minimizes commissioning time and reduces mean time to repair (MTTR) by up to 60%.

✓ Real-Time Diagnostic Monitoring
Continuous self-testing detects contact welding, coil failures, and load anomalies. Diagnostic data streams to HIMA Safety Manager software via SafeEthernet protocol, enabling predictive maintenance and compliance documentation.

✓ Extended Environmental Tolerance
Operates reliably across -20°C to +60°C temperature range with resistance to vibration, humidity, and electromagnetic interference. ATEX Zone 2 approval permits installation in classified hazardous areas.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
Control critical shutdown valves, pump trip relays, and isolation actuators in offshore platforms, refineries, and chemical plants. The F3410's fail-safe relay design ensures valves move to safe state even during power loss, preventing runaway reactions and environmental releases.

→ Fire & Gas Detection Networks
Activate alarm horns, strobe lights, ventilation dampers, and suppression system solenoids based on multi-sensor voting logic. Dual-channel output capability supports 1oo2 (one-out-of-two) architectures for enhanced availability without compromising safety.

→ Burner Management Systems (BMS)
Sequence fuel valve opening, pilot ignition, and flame monitoring interlocks per NFPA 85/86 standards. The module's ≤15ms response time meets tight timing requirements for purge cycles and flame failure detection in industrial boilers and furnaces.

→ Turbomachinery Protection
Execute emergency trip commands for gas turbines, steam turbines, and compressor trains when vibration, temperature, or overspeed conditions exceed safe thresholds. Relay contacts handle high inrush currents from trip solenoid coils without contact degradation.

→ Process Interlocking & Permissive Logic
Implement complex safety matrices for batch reactors, distillation columns, and material handling systems. The F3410 integrates with HIMA controllers to enforce operational sequences that prevent hazardous material combinations and equipment damage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F3410 when your application requires SIL 3-rated relay outputs with mechanical isolation. For solid-state switching or higher channel density, consider the F3422 (transistor outputs) or F3236 (16-channel variant). Verify load characteristics—inductive loads may require external suppression diodes to maximize contact life.

Extended Functions

Redundant Output Configuration: Pair two F3410 channels in parallel to create 1oo2D (one-out-of-two with diagnostics) voting for critical shutdown functions. The HIMA controller automatically manages discrepancy detection and partial stroke testing.

Remote I/O Integration: Deploy F3410 modules in distributed HIQuad racks connected via fiber-optic SafeEthernet links. Supports installations with I/O points located up to 10km from central control room, ideal for pipeline valve stations and offshore satellite platforms.

Proof Test Automation: Built-in test circuitry enables automated partial stroke testing of final control elements without process shutdown. Reduces proof test intervals and labor costs while maintaining SIL verification requirements per IEC 61511.

Cybersecurity Features: SafeEthernet protocol includes encrypted authentication and message integrity checks compliant with IEC 62443 industrial cybersecurity standards. Prevents unauthorized command injection and replay attacks.

Delivery & Service Assurance

Lead Time:
→ Stock items: 3-5 business days (express shipping available)
→ Custom configurations: 2-3 weeks for factory programming and testing

Warranty Coverage:
12-month comprehensive warranty covering materials, workmanship, and factory calibration. Extended service agreements available for installations requiring 24/7 uptime guarantees.

Technical Support:
Complimentary pre-sale engineering consultation to validate system architecture and I/O requirements. Post-sale support includes configuration file review, commissioning assistance, and troubleshooting via phone/email/remote desktop.

Documentation Package:
Each module ships with installation manual, wiring diagrams, safety manual per IEC 61508, TÜV certificates, and calibration test reports traceable to ISO/IEC 17025 standards.

Frequently Asked Questions

Q: What is the maximum cable length for output wiring?
A: Recommended maximum is 300 meters using shielded twisted-pair cable (0.75mm² minimum). Longer runs may require signal repeaters or consideration of solid-state output modules to avoid voltage drop issues.

Q: Can the F3410 control AC loads directly?
A: Yes, relay contacts are rated for 250V AC resistive loads up to 2A. For inductive AC loads (solenoid valves, contactors), derate to 80% of nominal current and install RC snubbers across contacts to suppress arcing.

Q: How do I configure output channels for normally energized operation?
A: Use the HIMA Safety Manager software to assign logic inversion at the controller level. Hardware jumpers on the module allow selection of NO or NC contact usage per channel without software changes.

Q: Is firmware update required when replacing a failed module?
A: No. The F3410 uses hardware-based safety logic without field-upgradable firmware. Configuration data resides in the HIQuad controller and automatically downloads to replacement modules upon insertion.

Q: What diagnostic information is available during operation?
A: Real-time diagnostics include per-channel status (energized/de-energized), contact welding detection, coil continuity monitoring, load current measurement, and cumulative switching cycle counters for predictive maintenance scheduling.

Q: Does the module support partial stroke testing of valves?
A: Yes, when integrated with HIMA's partial stroke test (PST) functionality. The controller can command brief valve movement (typically 10-20% travel) to verify mechanical freedom without full process shutdown, extending proof test intervals.

Ready to Enhance Your Safety System?

Contact our safety systems specialists for application-specific guidance, system integration support, or volume pricing. We provide complimentary SIL verification calculations and help navigate regulatory compliance requirements for your industry.

Request a quote today or speak with an engineer to discuss your emergency shutdown, fire & gas, or burner management project requirements.
