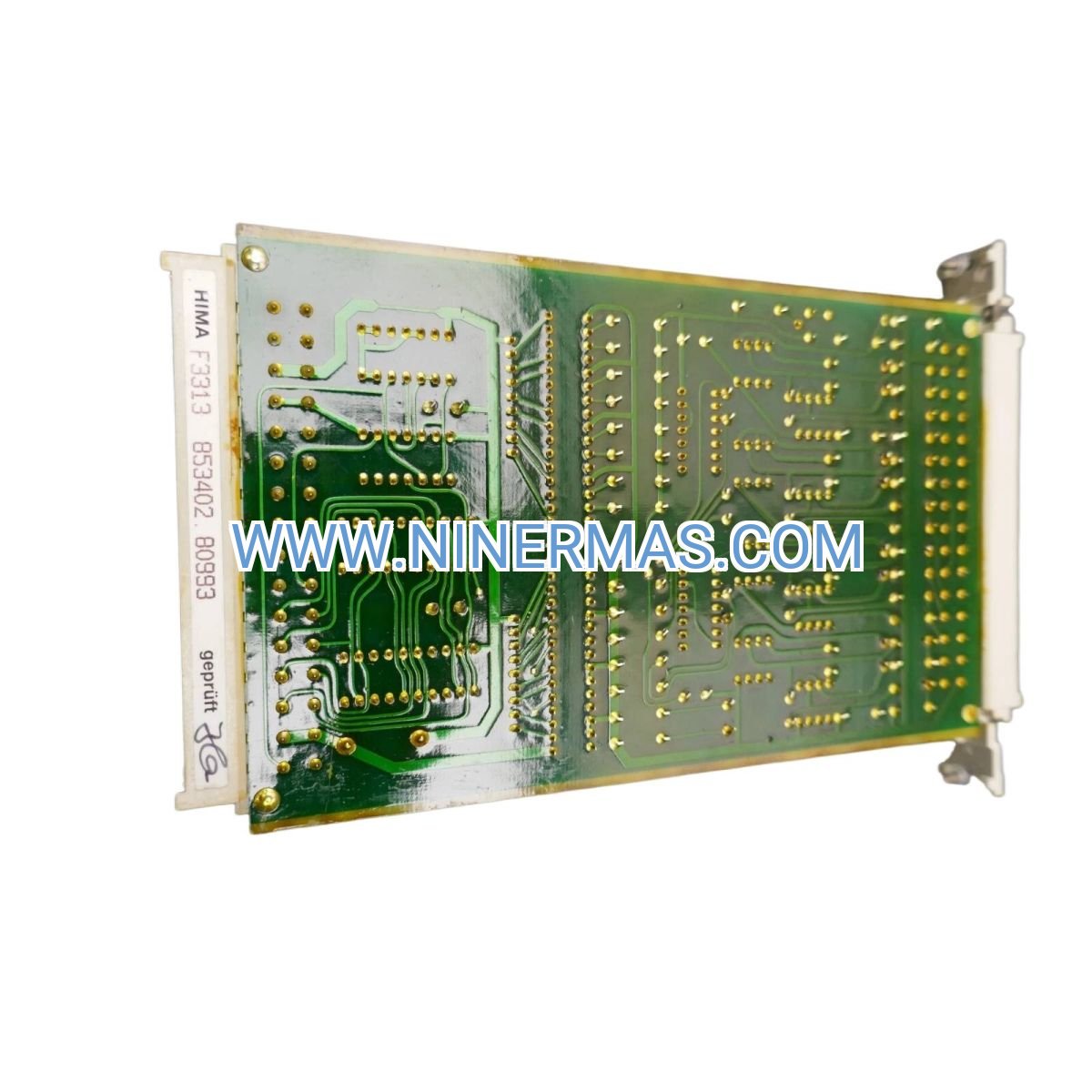

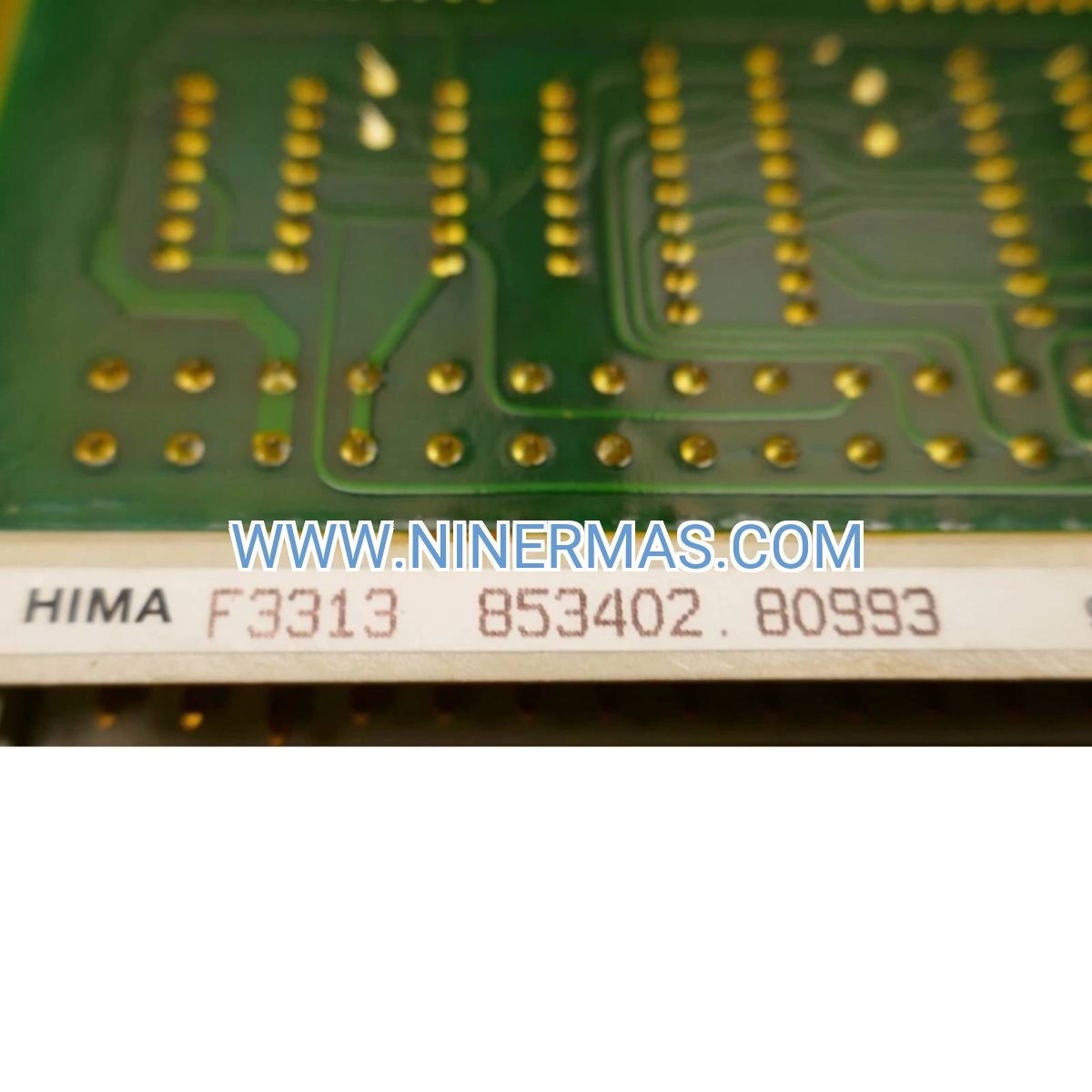

HIMA F3313 Analog Input Module (Industrial-Grade 8-Channel Safety I/O)

The HIMA F3313 represents a precision-engineered analog input solution designed for safety-instrumented systems where measurement accuracy and fault tolerance are non-negotiable. This 8-channel module integrates seamlessly into HIMax and HIMatrix architectures, providing galvanically isolated signal acquisition for temperature sensors, pressure transmitters, and flow measurement devices. Built to IEC 61508 SIL 3 standards, the F3313 serves industries where process deviations can lead to catastrophic failures—from petrochemical refineries to power generation facilities.

Industrial operators face a persistent challenge: maintaining continuous visibility into critical process parameters while ensuring sensor failures don't compromise safety logic. The F3313 addresses this through redundant diagnostic pathways that detect wire breaks, sensor drift, and out-of-range conditions before they escalate into unplanned shutdowns. For maintenance teams managing aging infrastructure, the module's hot-swap capability enables component replacement during operation, eliminating costly production interruptions.

What distinguishes the F3313 from conventional I/O modules is its adaptive input architecture—each channel independently configures for 4-20mA loops, voltage signals, RTDs, or thermocouples through software selection. This flexibility reduces spare parts inventory while simplifying system expansions. Combined with 16-bit resolution and 2.5kV isolation, the module delivers measurement fidelity that meets API 670 vibration monitoring requirements and ISO 20816 machinery protection standards.

Core Capabilities & Technical Advantages

→ Multi-Signal Compatibility: Accepts 4-20mA current loops, 0-10V voltage inputs, Pt100/Pt1000 RTDs, and Type K/J/T thermocouples on any channel without hardware modifications. Eliminates the need for separate modules per sensor type, reducing system complexity by up to 40%.

→ SIL 3 Safety Integrity: Certified to IEC 61508 for use in safety-instrumented functions with failure rates below 10⁻⁸ dangerous failures per hour. Supports 1oo2 and 2oo3 voting architectures for emergency shutdown systems and fire & gas detection networks.

✓ Continuous Self-Diagnostics: Built-in test routines monitor ADC performance, reference voltage stability, and isolation barrier integrity every 100ms. Automatically flags degraded sensors through NAMUR NE43-compliant fault signaling, enabling predictive maintenance strategies.

✓ Extended Environmental Range: Operates reliably from -40°C to +70°C with conformal coating protection against humidity, salt spray, and chemical vapors. Proven in offshore platforms, desert installations, and Arctic processing facilities with MTBF exceeding 200,000 hours.

✓ Simplified Commissioning: Pre-calibrated at factory with traceable test certificates. Configuration via HIMax/HIMatrix engineering software eliminates DIP switches and jumper settings—typical channel setup completes in under 2 minutes per point.

✓ Noise Immunity: 2.5kV channel-to-channel and channel-to-backplane isolation rejects common-mode interference from VFDs, welding equipment, and high-voltage switchgear. Maintains ±0.1% accuracy in electrically noisy environments where standard I/O fails.

Industry Applications & Problem-Solving Scenarios

Rotating Equipment Protection: In turbomachinery installations, the F3313 monitors bearing temperatures, vibration probe outputs, and lube oil pressure across gas turbines, centrifugal compressors, and steam turbines. When a bearing temperature exceeds setpoint by 15°C, the module triggers emergency shutdown sequences within 50ms—preventing catastrophic rotor failures that cost $2M+ in repairs and lost production.

Chemical Reactor Safeguarding: Batch chemical processes require precise temperature control to prevent runaway reactions. The F3313's thermocouple inputs track reactor jacket temperatures, internal probe readings, and cooling water flow with 0.5°C accuracy. Integrated diagnostics detect thermocouple degradation 6-8 weeks before failure, allowing scheduled replacements during planned maintenance windows.

Boiler Feed System Monitoring: Power plants use the F3313 to measure feedwater flow, drum level transmitter signals, and economizer outlet temperatures. The module's 4-20mA loop power supply eliminates external barriers for two-wire transmitters, reducing panel space by 30% while improving signal quality through shorter cable runs.

Pipeline Leak Detection: Oil & gas operators deploy F3313 modules to monitor pressure transmitters along pipeline segments. By comparing upstream and downstream pressures with flow measurements, the system detects leaks as small as 0.5% of nominal flow rate. The module's -40°C rating ensures operation in unheated remote stations across northern climates.

Emissions Monitoring Compliance: Environmental regulations mandate continuous measurement of stack gas temperatures and opacity levels. The F3313's SIL-rated inputs provide the data integrity required for EPA reporting while its diagnostic coverage satisfies auditor requirements for instrument reliability verification.

Technical Specifications & Performance Data

Selection Guidelines: Choose the F3313 when your application requires SIL 2/3 certification, mixed sensor types on a single module, or operation in temperature extremes beyond -20°C to +60°C. For non-safety applications with 4-20mA-only requirements, consider standard I/O alternatives. When monitoring more than 8 points per rack location, the F6214 16-channel variant offers better density.

Advanced Integration Features

The F3313 supports HART protocol pass-through on 4-20mA channels, enabling access to smart transmitter diagnostics without additional hardware. This capability allows condition monitoring systems to retrieve sensor health data—such as process variable trends, calibration dates, and alarm histories—while the safety system continues normal operation.

For distributed control system (DCS) integration, the module provides Modbus TCP and OPC UA connectivity through the HIMax controller. This dual-protocol approach satisfies both legacy SCADA requirements and modern IIoT architectures, future-proofing installations against technology transitions.

Cybersecurity features include encrypted configuration files, role-based access controls, and audit logging of all parameter changes. These protections align with IEC 62443 industrial cybersecurity standards, addressing compliance requirements in critical infrastructure sectors.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock modules to major industrial hubs. Expedited shipping available for emergency replacements with same-day dispatch on orders placed before 2:00 PM CST.

Custom Configuration: Factory-programmed modules with pre-loaded channel settings ship within 7-10 business days. Includes configuration documentation and as-built drawings for your quality records.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical sparing applications.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. Average response time: <4 hours for critical issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificate, and safety manual in PDF format. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

How does the F3313 handle sensor failures in safety-critical loops?
The module employs dual-path diagnostics that differentiate between sensor faults (open circuit, short circuit) and process alarms. When a sensor fails, the channel enters a safe state (configurable as high/low trip or hold-last-value) while alerting operators through the HMI. This prevents spurious trips while maintaining safety integrity per IEC 61511 requirements.

What cable specifications ensure optimal signal quality for RTD inputs?
Use 3-wire or 4-wire shielded cable with minimum 0.75mm² conductors for RTD connections. Maximum cable length: 100 meters for Pt100 sensors, 150 meters for Pt1000. Shield grounding at module end only prevents ground loops. For installations exceeding these distances, consider in-head transmitters to convert RTD signals to 4-20mA.

Can the F3313 replace existing analog input modules during a running process?
Yes, the hot-swap design allows module extraction and insertion without powering down the HIMax rack. The system automatically recognizes the new module and loads the configuration from the controller. Total replacement time: approximately 90 seconds with zero process interruption.

Does the module require external loop power supplies for 4-20mA transmitters?
No external supplies needed—the F3313 provides 24VDC loop power (±10%) for two-wire transmitters on all 4-20mA channels. Maximum loop resistance: 600Ω at 20mA, sufficient for 300-meter cable runs with standard transmitters.

How do I verify the module is operating within SIL 3 performance requirements?
The HIMax engineering software includes a built-in proof test wizard that executes partial stroke tests and diagnostic coverage verification. Run these tests annually per your safety instrumented function (SIF) validation documentation. The module logs all test results with timestamps for compliance audits.

What environmental protections are included for harsh industrial locations?
Conformal coating on all PCB assemblies provides protection against humidity, salt spray (per ASTM B117), and chemical vapors. The module meets IP20 ingress protection when installed in standard HIMax racks; upgrade to IP54-rated enclosures for outdoor or washdown environments.

Take the Next Step

Ready to enhance your safety system's measurement capabilities? Contact our application engineers to discuss your specific sensor requirements, system architecture, and delivery timeline. We'll provide a detailed technical proposal including wiring diagrams, configuration templates, and integration support to ensure seamless deployment.

Request a quote: Share your project specifications for volume pricing and custom configuration options.
Technical consultation: Schedule a call with our HIMA-certified engineers to review system compatibility and optimization opportunities.
Sample evaluation: Demo units available for qualified projects requiring pre-purchase validation testing.
