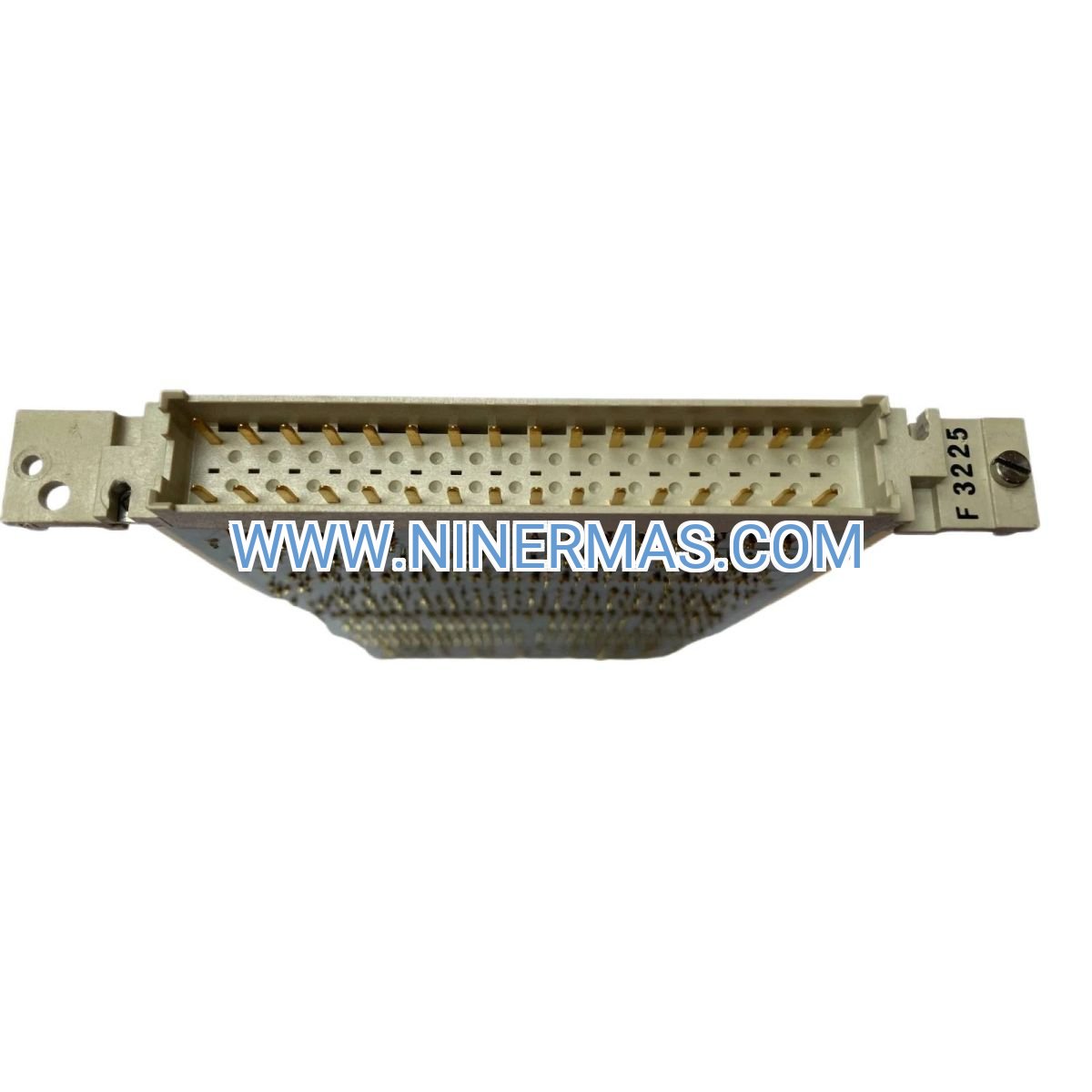

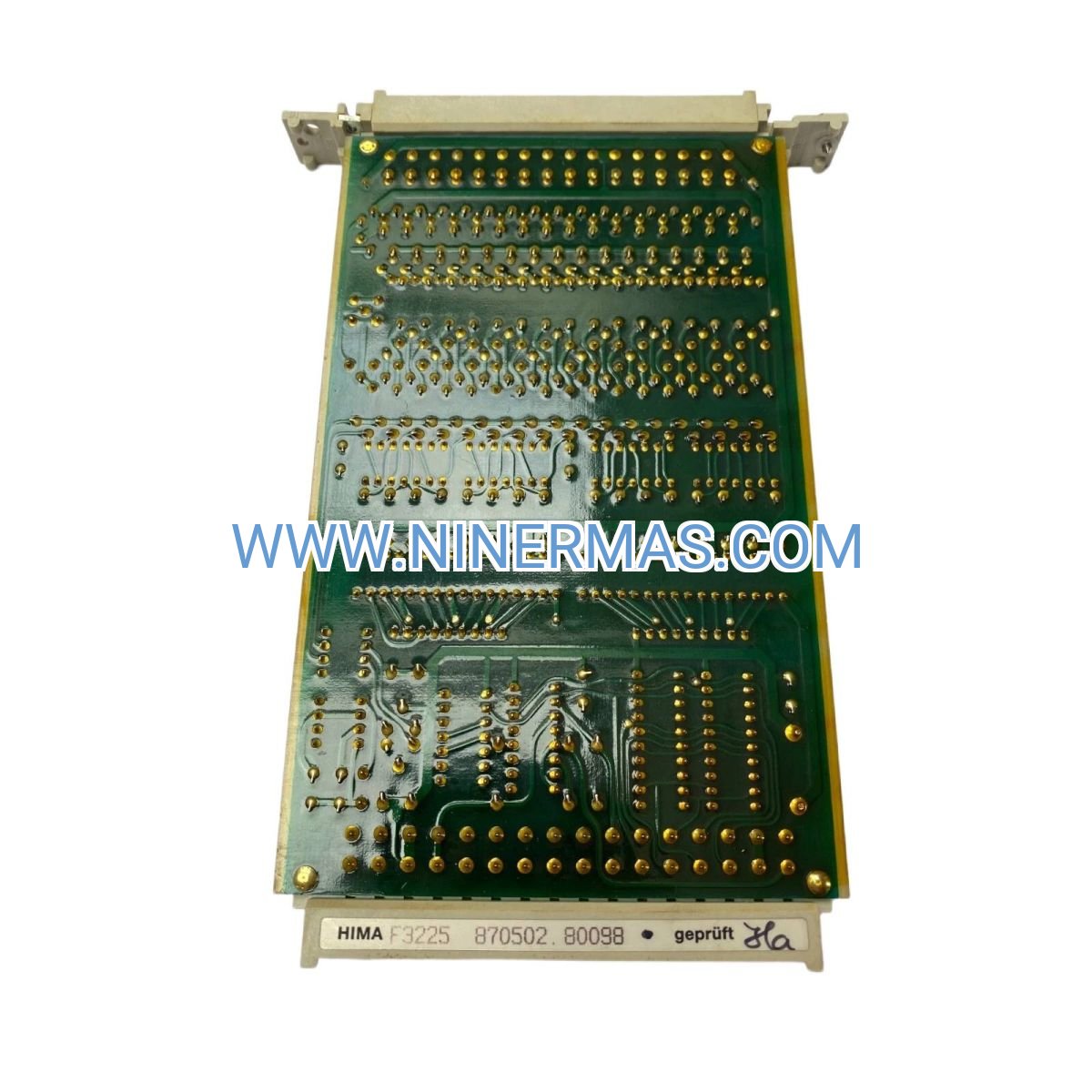

F3225 Industrial Safety Analog Input Module (8-Channel Isolated Design)

The HIMA F3225 represents a proven solution for safety-instrumented systems requiring dependable analog signal acquisition. This module processes real-time data from field transmitters—temperature sensors, pressure transducers, flow meters, and level instruments—converting analog signals into actionable intelligence for HIMax and HIMatrix safety controllers. Engineered for SIL 3 environments, the F3225 ensures your critical processes maintain operational integrity even under fault conditions.

Industrial facilities face mounting pressure to prevent catastrophic failures while maximizing uptime. The F3225 addresses this challenge through galvanically isolated input channels that eliminate ground loop interference, 16-bit resolution for precise measurement accuracy, and comprehensive diagnostics that detect sensor malfunctions before they escalate into safety incidents. Whether you're protecting turbomachinery in upstream oil production or monitoring reactor temperatures in chemical synthesis, this module delivers the reliability your operations demand.

With TÜV certification, hot-swappable architecture, and compatibility across HIMA's safety platform ecosystem, the F3225 streamlines both initial deployment and long-term maintenance. Reduce engineering complexity, accelerate commissioning timelines, and achieve compliance with international safety standards through a single, field-proven component.

Core Capabilities & Business Value

→ Galvanic Isolation Technology: Each of the 8 input channels features complete electrical isolation from adjacent channels and the system backplane, preventing cross-contamination of signals and protecting against voltage surges. This architecture eliminates costly troubleshooting of ground loop issues and ensures measurement integrity in electrically noisy industrial environments.

→ Multi-Signal Versatility: Configure individual channels for 4-20mA current loops, 0-10V voltage signals, RTD temperature sensors, or thermocouple inputs through software parameterization. This flexibility reduces spare parts inventory and simplifies standardization across multiple process units.

→ High-Resolution Data Acquisition: 16-bit analog-to-digital conversion delivers measurement granularity of 0.0015% full-scale, enabling early detection of process deviations and tighter control band performance. Improved signal fidelity translates directly to reduced false trips and enhanced process stability.

✓ SIL 3 Safety Integrity: Certified to IEC 61508 standards with systematic capability SC 3 and hardware fault tolerance, the F3225 meets the most stringent safety requirements for emergency shutdown systems, fire & gas detection, and burner management applications. Achieve compliance with API, OSHA, and international safety regulations.

✓ Continuous Diagnostic Monitoring: Built-in self-test routines verify channel functionality, detect sensor faults (open circuit, short circuit, out-of-range), and identify wiring errors with sub-second response times. Predictive maintenance capabilities reduce unplanned downtime by 30-40% compared to legacy systems.

✓ Hot-Swap Serviceability: Replace modules during live operation without interrupting safety functions or requiring system shutdown. This capability is critical for 24/7 facilities where maintenance windows are measured in minutes, not hours.

Industry Applications & Problem Resolution

Oil & Gas Production Facilities: Monitor vibration and bearing temperatures on critical rotating equipment (compressors, pumps, turbines) to prevent catastrophic mechanical failures. The F3225's fast scan rates and diagnostic capabilities enable condition-based maintenance strategies that extend asset life by 15-25%.

Petrochemical Process Units: Integrate with emergency shutdown (ESD) systems to monitor reactor pressures, separator levels, and distillation column temperatures. When process variables exceed safe operating limits, the F3225 triggers protective actions within 100 milliseconds, preventing runaway reactions and environmental releases.

Power Generation Turbines: Acquire analog signals from turbine protection systems monitoring bearing vibration, exhaust temperature, and lube oil pressure. Compliance with API 670 machinery protection standards ensures insurance and regulatory acceptance.

Pharmaceutical Manufacturing: Track critical process parameters in sterile production environments where product quality and operator safety are paramount. The module's SIL 3 rating satisfies FDA 21 CFR Part 11 requirements for electronic records in validated systems.

Fire & Gas Detection Networks: Interface with analog gas detectors (LEL, H2S, CO) and flame detectors to create multi-zone safety systems. The F3225's isolated inputs prevent single-point failures from compromising entire detection arrays.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the F3225 when your application requires 8 or fewer analog inputs with mixed signal types. For higher channel counts, consider the HIMA F3313 (16 channels) or modular expansion strategies. Verify that your HIMax/HIMatrix controller firmware supports F3225 integration—consult HIMA's compatibility matrix or contact our engineering team for system-specific guidance.

Advanced Integration Features

Redundant System Architecture: Deploy F3225 modules in dual-redundant configurations for applications demanding 99.99% availability. The HIMA safety platform automatically synchronizes data between redundant modules and performs seamless failover without process interruption.

HART Protocol Support: Access extended diagnostic data from HART-enabled field transmitters through the F3225's analog input channels. Retrieve sensor calibration dates, measurement ranges, and device health status without additional wiring or gateways.

Cybersecurity Hardening: The F3225 operates within HIMA's secure architecture framework, featuring read-only firmware, cryptographic authentication, and segregated safety networks that comply with IEC 62443 industrial cybersecurity standards.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock F3225 modules ship within 2-3 business days via express courier (DHL, FedEx, UPS). Typical transit time to major industrial hubs: North America 4-6 days, Europe 3-5 days, Asia-Pacific 5-7 days.

Custom Configuration: Factory-programmed modules with pre-loaded parameters and tested redundant pairs available with 10-14 day lead time. Ideal for large-scale projects requiring plug-and-play deployment.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to HIMA-certified application engineers for configuration assistance, troubleshooting, and system optimization. Support available via email, phone, and remote desktop sessions during your commissioning phase.

Documentation Package: Each F3225 includes installation manual, wiring diagrams, configuration software, and safety certification documents. Additional resources: CAD drawings, HART DTM files, and sample ladder logic available for download.

Frequently Asked Questions

How does the F3225 analog input module interface with existing DCS systems?
The F3225 operates within HIMA safety controllers (HIMax/HIMatrix) which communicate with DCS platforms via Modbus TCP, OPC UA, or proprietary protocols. The safety system remains independent while sharing process data with your control layer—maintaining SIL 3 integrity per IEC 61511 requirements.

What cable specifications ensure optimal signal integrity for 4-20mA transmitters?
Use shielded twisted-pair cable (18-22 AWG) with drain wire connected to ground at the F3225 terminal block only (single-point grounding). Maximum recommended cable length: 300 meters for 4-20mA loops, 100 meters for voltage signals. For RTD sensors, use 3-wire or 4-wire configurations with matched conductor resistance.

Can the F3225 handle intrinsically safe (IS) signals from hazardous area transmitters?
Yes, when paired with approved IS barriers or galvanic isolators rated for your hazardous area classification (Class I Div 1, Zone 0, etc.). The F3225 itself is designed for safe area installation. Consult your IS barrier manufacturer's documentation for loop resistance calculations.

What diagnostic capabilities help reduce maintenance costs?
The F3225 continuously monitors each channel for sensor faults (open/short circuit), out-of-range signals, A/D converter errors, and power supply deviations. Diagnostic data is transmitted to the safety controller and can trigger maintenance alerts before failures occur—enabling predictive maintenance strategies that reduce emergency callouts by 40-60%.

Is firmware updating required during the module's operational life?
HIMA modules feature field-upgradable firmware to address security patches or functional enhancements. Updates are performed via the safety engineering station during planned maintenance windows. Critical security updates are released with detailed change documentation and backward compatibility verification.

How does the F3225 perform in extreme temperature environments?
With an operating range of -40°C to +70°C, the F3225 functions reliably in Arctic installations, desert climates, and high-temperature process areas. For applications exceeding +70°C ambient, implement forced-air cooling or relocate the module to a climate-controlled equipment room using remote I/O architecture.

Start Your Safety System Upgrade

Ready to enhance your process safety infrastructure with proven HIMA technology? Our application engineers are available to discuss your specific requirements, provide system architecture recommendations, and deliver competitive quotations within 24 hours. Contact us today to request technical datasheets, compatibility verification, or project-specific pricing.
