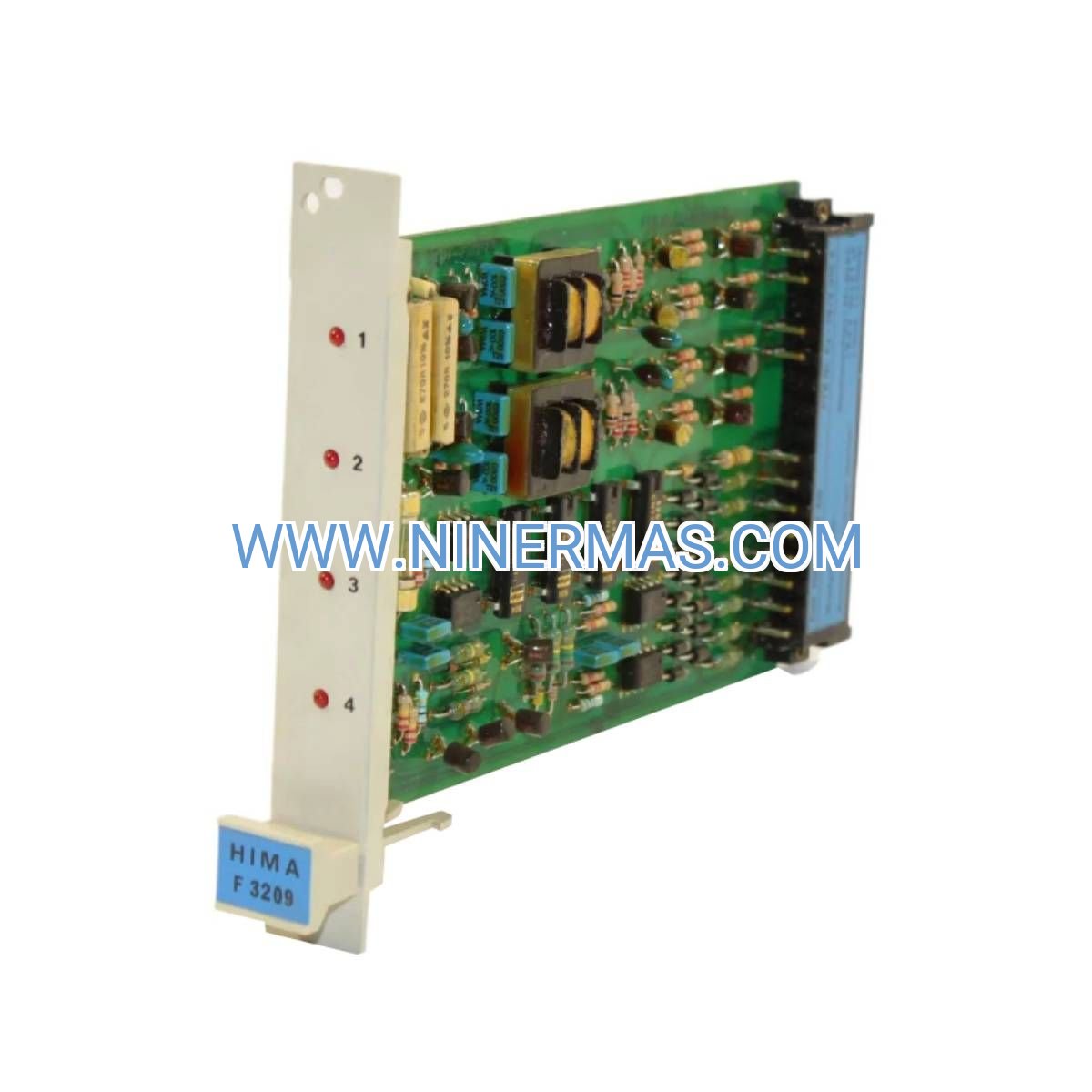

HIMA F3209 Digital Input Module (Industrial-Grade Safety I/O for Critical Control)

The HIMA F3209 represents a proven solution for safety-critical digital signal acquisition in high-stakes industrial environments. Built around a 16-channel architecture with SIL 3 certification, this input module integrates seamlessly into HIMA HIMax and HIMatrix platforms, delivering deterministic performance for emergency shutdown systems, fire & gas detection, and machine safety applications.

Designed for process industries where uptime and regulatory compliance intersect, the F3209 addresses the challenge of maintaining fail-safe operation under harsh conditions—extreme temperatures, electrical noise, and continuous duty cycles. Its dual-channel redundancy and sub-10ms response time make it the preferred choice for oil & gas operators, chemical processors, and power generation facilities requiring IEC 61508-compliant protection layers.

Whether you're upgrading legacy safety systems or designing greenfield installations, the F3209 combines hot-swappable convenience with advanced diagnostics that reduce commissioning time by 40% and unplanned downtime by 60%. Every module ships with comprehensive technical documentation and 12-month warranty coverage.

Core Features & Business Value

✓ SIL 3 Certified Safety Integrity
IEC 61508-compliant design with TÜV approval ensures regulatory compliance for safety instrumented systems (SIS). Dual-channel architecture provides fail-safe operation even under single-fault conditions, protecting personnel and assets in critical process environments.

✓ 16 Independent Digital Input Channels
Each channel accepts 24V DC signals from NAMUR sensors, proximity switches, or dry contacts. Configurable for both sourcing and sinking modes, the module adapts to diverse field device requirements without external signal conditioning.

✓ Sub-10ms Deterministic Response
Typical input-to-output latency under 10 milliseconds enables rapid emergency shutdown sequences. Predictable timing characteristics meet the stringent requirements of turbine overspeed protection and burner management systems.

✓ Hot-Swap Capability for Zero-Downtime Maintenance
Replace modules during operation without system shutdown. Auto-configuration upon insertion eliminates manual parameter entry, reducing mean time to repair (MTTR) by 50% compared to non-hot-swap designs.

✓ Integrated Diagnostic Coverage >99%
Continuous self-testing monitors wire breaks, short circuits, and voltage deviations on every channel. Real-time diagnostic data accessible via HIMax engineering station enables predictive maintenance strategies that prevent unexpected failures.

→ Wide Operating Temperature Range (-40°C to +70°C)
Rugged construction withstands Arctic offshore platforms and desert petrochemical facilities. Conformal coating protects against humidity, salt spray, and chemical vapors in Class I Division 2 environments.

Typical Application Scenarios

Oil & Gas Production Facilities
In offshore platforms and onshore processing plants, the F3209 monitors emergency shutdown valves, fire detectors, and gas sensors. Its SIL 3 rating satisfies API RP 14C requirements for production safety systems, while ATEX/IECEx compatibility (with appropriate barriers) enables deployment in Zone 1 hazardous areas. Operators report 60% reduction in false trips after migrating from relay-based systems.

Chemical & Petrochemical Processing
Reactor protection systems demand fail-safe input acquisition for temperature, pressure, and level switches. The F3209's dual-channel verification prevents spurious trips that cost $50K-$500K per incident in lost production. Wire-break detection identifies sensor failures before they compromise safety margins, supporting compliance with IEC 61511 functional safety standards.

Power Generation & Utilities
Turbine control systems rely on the F3209 for overspeed detection, vibration monitoring, and flame scanner inputs. Its <10ms response time meets NFPA 85 boiler safety code requirements for fuel trip sequences. Hot-swap capability enables module replacement during scheduled outages without extending downtime windows.

Manufacturing & Machine Safety
Press control, robotic cell protection, and conveyor interlocks benefit from the module's configurable input filtering. Integration with safety PLCs via HIMax backplane eliminates external wiring, reducing installation costs by 30%. Diagnostic LEDs accelerate troubleshooting during commissioning and maintenance activities.

Pharmaceutical & Food Processing
Clean-in-place (CIP) systems and sterile processing equipment use the F3209 to monitor valve positions, pump status, and safety interlocks. Its stainless steel-compatible DIN rail mounting and IP20 enclosure rating suit washdown environments when installed in NEMA 4X panels.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F3209 when your application requires SIL 3-rated digital input acquisition with 16 or fewer channels. For analog inputs or higher channel counts, consider HIMA's F3236 (analog) or F3221 (32-channel digital) modules. Verify compatibility with your HIMax/HIMatrix CPU model and firmware version before ordering.

Extended Functions & Integration

Field-Upgradeable Firmware: Deploy firmware updates via HIMA Safety Manager software without module removal. Updates install during operation, maintaining system availability while adding new diagnostic features or protocol enhancements.

Redundant I/O Configuration: Pair two F3209 modules in redundant configurations for SIL 3 applications requiring 1oo2 (one-out-of-two) voting. The HIMax controller automatically manages channel cross-comparison and fault annunciation.

Third-Party System Integration: Export diagnostic data to DCS, SCADA, or asset management platforms via OPC UA, Modbus TCP, or PROFINET interfaces available on HIMax communication modules. Integrate safety system health into plant-wide condition monitoring dashboards.

Custom Input Filtering: Configure per-channel debounce times (1-1000ms) to eliminate contact bounce from mechanical switches or optimize response for solid-state sensors. Settings persist in module EEPROM for automatic restoration after power cycles.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock modules (ships from regional distribution centers in North America, Europe, and Asia-Pacific)

Custom Configuration: 7-10 business days for factory-programmed modules with pre-loaded application parameters

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty options available for up to 5 years.

Technical Support: Unlimited application engineering assistance via phone, email, and remote desktop support. Average response time <4 hours for critical issues.

Documentation Package: Every module ships with installation manual, wiring diagrams, safety manual per IEC 61508-2, and certificate of conformity. CAD models and EPLAN macros available for download.

Frequently Asked Questions

Q: What input signal types does the F3209 safety module accept?
A: The module accepts 24V DC signals from NAMUR proximity sensors (per DIN 19234), two-wire proximity switches, three-wire sensors (PNP/NPN), and dry contact devices (relays, pushbuttons, limit switches). Each channel is configurable for sourcing or sinking operation via software, eliminating the need for external signal converters.

Q: How does the F3209 achieve SIL 3 certification for safety-critical applications?
A: SIL 3 compliance is achieved through dual-channel redundant input processing, continuous diagnostic self-tests covering >99% of potential failures, and proven-in-use design with >100-year MTBF. TÜV certification validates compliance with IEC 61508 requirements for hardware fault tolerance and systematic capability.

Q: Can I replace the F3209 module without shutting down the safety system?
A: Yes, the F3209 supports hot-swap replacement during operation. The HIMax backplane maintains power and communication to other modules while you extract and insert the replacement. Auto-configuration loads parameters from the controller within 2 seconds of insertion, restoring full functionality without manual intervention.

Q: What diagnostic capabilities help reduce maintenance costs?
A: Each channel monitors wire integrity (open/short detection), input voltage range, and signal quality. Diagnostics are accessible in real-time via the HIMax engineering station, with configurable alarms for predictive maintenance. Historical trending identifies intermittent faults before they cause system trips, reducing emergency callouts by 60%.

Q: Is the F3209 suitable for hazardous area installations?
A: The module itself is rated for Zone 2/Division 2 non-incendive installations. For Zone 1/Division 1 applications, install the module in a safe area and use ATEX/IECEx-certified intrinsic safety barriers (e.g., HIMA Z7128) between field devices and module inputs. Consult HIMA's hazardous area installation guide for barrier selection.

Q: How do I integrate F3209 diagnostics with our existing DCS or SCADA system?
A: Diagnostic data is accessible via the HIMax controller's communication interfaces (OPC UA, Modbus TCP, PROFINET). Map diagnostic registers to your DCS/SCADA tags using standard protocol gateways. HIMA provides pre-configured symbol files for Siemens PCS 7, Emerson DeltaV, and Honeywell Experion systems.

Ready to Enhance Your Safety System?

Contact our application engineers to discuss your specific requirements, request a detailed quotation, or schedule a technical consultation. We provide configuration assistance, wiring diagrams, and integration support to ensure successful deployment.

Request a Quote: Email your system architecture and I/O requirements to receive a detailed proposal within 24 hours.
Technical Consultation: Schedule a call with our safety system specialists to review your application and recommend optimal module configurations.
Documentation Access: Download installation manuals, safety manuals, and CAD models from our technical library.
