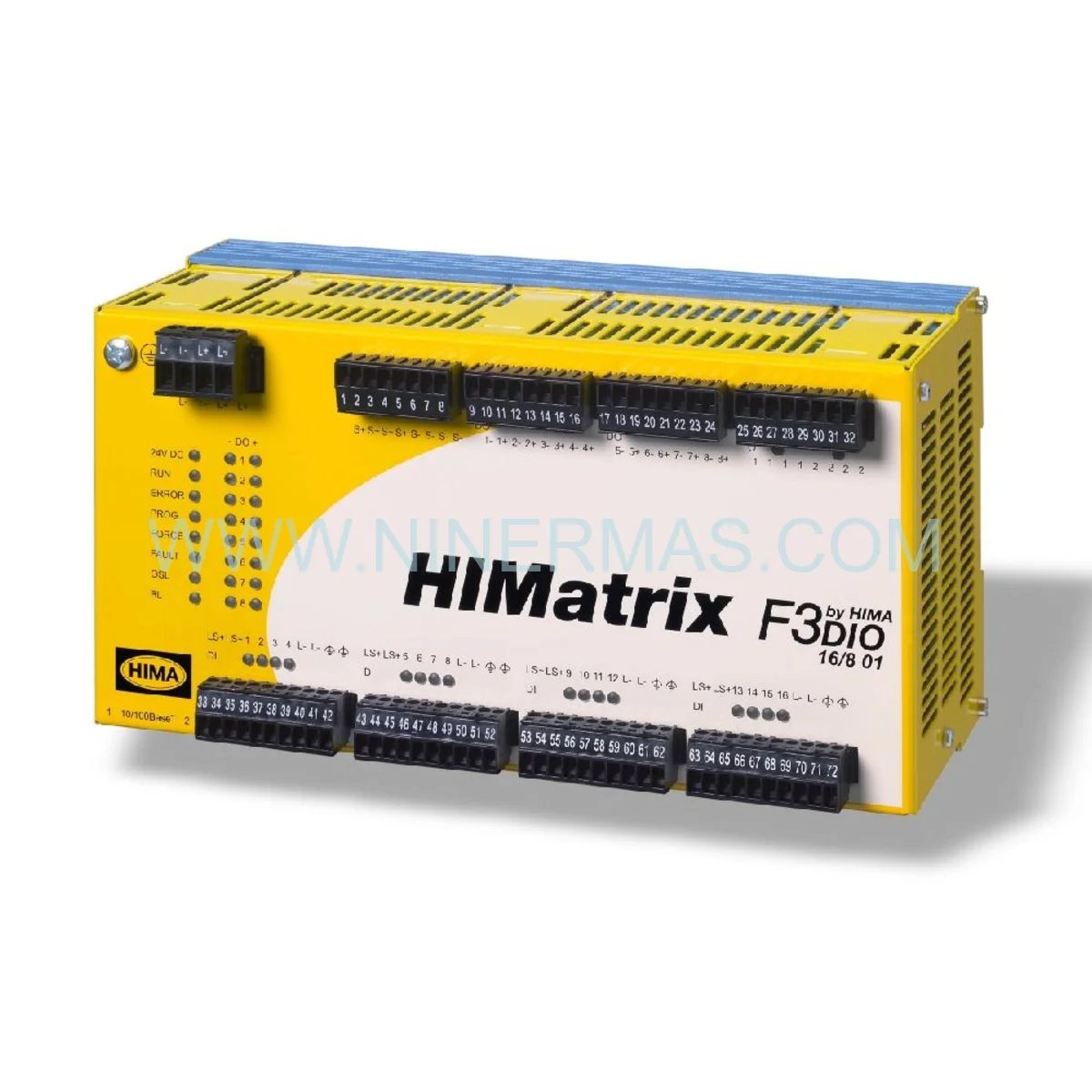

F3-DIO-16/8 01 Safety I/O Module (Industrial-Grade HIMatrix Platform)

The F3-DIO-16/8 01 represents HIMA's advanced approach to distributed safety control, combining 16 digital inputs with 8 relay outputs in a compact, DIN-rail format. Built for SIL 3 environments, this module serves as the critical interface between field devices and HIMatrix safety controllers across oil & gas, chemical processing, and power generation facilities.

Process engineers and safety system integrators rely on this module to meet stringent functional safety requirements while maintaining operational flexibility. With dual Ethernet ports enabling redundant communication paths and 24VDC operation, the F3-DIO-16/8 01 delivers deterministic I/O performance even in harsh industrial conditions ranging from -40°C to +70°C.

Whether you're upgrading legacy safety systems or designing greenfield installations, this module provides the certified reliability and diagnostic intelligence demanded by modern safety instrumented systems (SIS). Hot-swappable architecture and comprehensive self-diagnostics minimize unplanned downtime while ensuring compliance with IEC 61508 standards.

Core Features & Benefits

✓ SIL 3 Certified Safety Integrity
TÜV-approved to IEC 61508 standards, ensuring your safety functions meet the highest integrity levels required for critical process protection and emergency shutdown applications.

✓ Redundant Ethernet Architecture
Dual 100 Mbps Ethernet ports provide seamless failover capability, maintaining continuous operation during network disruptions or cable failures—critical for 24/7 process industries.

✓ 16 + 8 I/O Configuration
Balanced channel allocation (16 digital inputs, 8 relay outputs) optimizes wiring costs while supporting complex safety logic including voting configurations and cross-monitoring schemes.

✓ Advanced Diagnostic Capabilities
Real-time fault detection identifies open circuits, short circuits, and communication errors at the channel level, reducing troubleshooting time by up to 60% compared to conventional I/O systems.

✓ Hot-Swap Maintenance
Replace modules without system shutdown or safety function interruption, enabling predictive maintenance strategies that maximize plant availability.

✓ Wide Operating Range
Engineered for extreme environments: -40°C to +70°C ambient temperature tolerance and IP20 protection rating suitable for control room and field junction box installations.

Application Scenarios

→ Emergency Shutdown Systems (ESD) in Offshore Platforms
Monitor critical parameters like high-pressure trips, fire detection loops, and manual shutdown buttons while controlling isolation valves and blowdown systems. The module's redundant communication ensures fail-safe operation during platform emergencies.

→ Burner Management Systems (BMS)
Interface with flame detectors, gas pressure switches, and airflow monitors to execute safe startup/shutdown sequences for industrial boilers and furnaces, preventing explosive atmospheres.

→ Chemical Reactor Interlocks
Implement multi-level safety barriers by monitoring temperature, pressure, and level transmitters while controlling feed valves, cooling systems, and emergency venting—protecting personnel and assets from runaway reactions.

→ Turbine Overspeed Protection
Process high-speed vibration sensors and bearing temperature inputs to trigger emergency trip valves within 10ms response time, preventing catastrophic turbine failures in power generation facilities.

→ Machine Safety Circuits (Manufacturing)
Connect safety light curtains, emergency stop buttons, and guard interlocks to control servo drives and pneumatic actuators, ensuring compliance with machinery directive requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F3-DIO-16/8 01 when your application requires SIL 3 certification with balanced I/O density. For higher channel counts, consider the F3-DIO-20/8 02 variant. Applications demanding analog signal processing should evaluate the F3-AIO series modules. Always verify compatibility with your HIMatrix controller firmware version using HIMA's online configuration tool.

Extended Functions

IoT Integration & Remote Monitoring: The module supports OPC UA server functionality when paired with HIMatrix F60 controllers, enabling secure data exchange with SCADA systems, cloud platforms, and mobile HMI applications. Diagnostic data streams to predictive maintenance dashboards via standard Ethernet protocols.

Cybersecurity Features: Built-in firewall capabilities and encrypted communication channels protect against unauthorized access. Supports IEEE 802.1X network authentication and role-based access control (RBAC) for multi-user engineering environments.

Customization Options: Factory configuration services available for pre-programmed I/O mapping, custom labeling, and application-specific testing. Contact our engineering team for projects requiring 10+ modules with identical configurations.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 10-15 business days. Expedited processing available for emergency shutdown system upgrades—contact us for 24-hour rush service.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage.

Technical Support: Lifetime application engineering support included with purchase. Our certified HIMA specialists provide configuration assistance, troubleshooting guidance, and on-site commissioning services across Asia-Pacific, Europe, and Americas regions.

Documentation Package: Each module ships with installation manual, wiring diagrams, SILworX configuration files, and TÜV certificates. CAD drawings and 3D STEP models available for download from our technical library.

Frequently Asked Questions

Q: How does this module integrate with existing HIMA safety controllers?
A: The F3-DIO-16/8 01 connects via standard Ethernet to all HIMatrix F3 and F60 series controllers using the SafeEthernet protocol. Configuration is performed through SILworX engineering software, which automatically detects and maps I/O channels. The module is backward-compatible with H41/H51 systems when used with appropriate communication gateways.

Q: What is the maximum cable distance between the module and field devices?
A: Digital inputs support up to 1000 meters using shielded twisted-pair cable (0.5mm² minimum). Relay outputs can drive loads up to 300 meters away. For longer distances, use signal repeaters or consider fiber-optic Ethernet extenders for the network backbone.

Q: Can I achieve higher availability with redundant module configurations?
A: Yes. Deploy two F3-DIO-16/8 01 modules in hot-standby mode using HIMA's redundancy manager software. The system automatically switches to the backup module within 50ms if the primary unit fails, ensuring continuous safety function execution.

Q: Does this module support partial stroke testing for valve diagnostics?
A: Absolutely. The module's output channels can execute partial stroke test sequences when programmed through the HIMatrix controller. This enables predictive maintenance of emergency shutdown valves without full process interruption, reducing proof test costs by 40-60%.

Q: What training resources are available for system integrators?
A: We offer comprehensive training programs including online tutorials, hands-on workshops at our regional training centers, and customized on-site courses. SILworX software includes interactive simulation modes for risk-free configuration practice.

Q: How do I verify the module's safety certification for regulatory audits?
A: Each module ships with a unique serial number linked to its TÜV certificate. Download the complete safety manual and certificate package from our compliance portal using the serial number. Our team can provide audit support documentation including FMEDA reports and proof test procedures.

Take the Next Step

Ready to enhance your safety instrumented system with proven HIMA technology? Our application engineers are standing by to discuss your specific requirements, provide technical specifications, and deliver competitive quotations within 24 hours. Contact us today to schedule a consultation or request a detailed project proposal.
