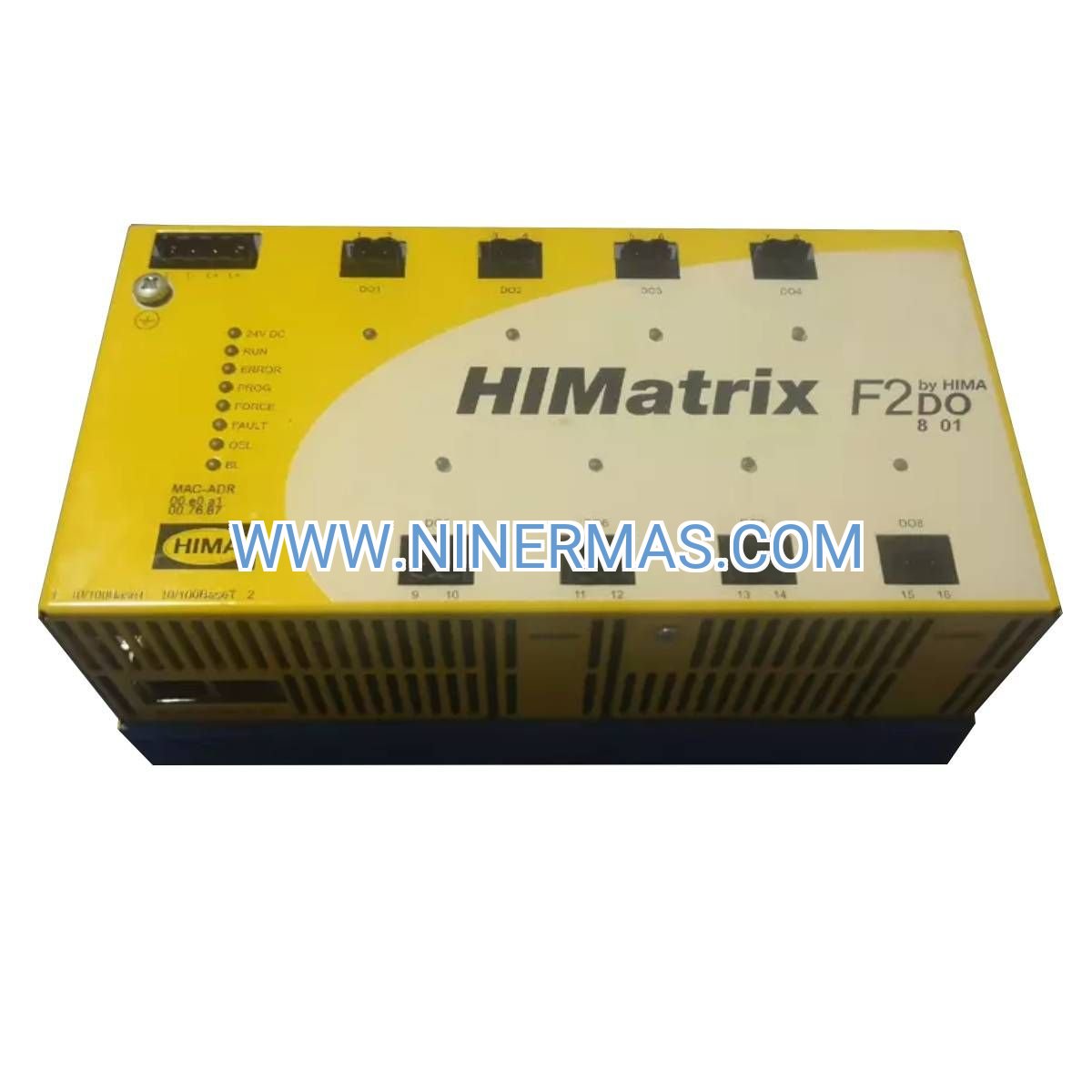

F2DO801 Digital Safety Output Module (Industrial-Grade SIL 3 Certified)

The F2DO801 represents HIMA's advanced engineering in safety-critical digital output control, delivering deterministic performance for emergency shutdown systems, burner management, and process safety instrumentation. Engineered with dual-channel architecture and TÜV-certified SIL 3 compliance, this module provides fail-safe 24VDC output switching with sub-20ms response characteristics, making it the preferred choice for oil & gas, power generation, and chemical processing facilities where safety integrity cannot be compromised.

Designed for seamless integration into HIMax and HIMatrix safety platforms, the F2DO801 addresses the critical challenge of maintaining continuous protection while enabling real-time diagnostics and predictive maintenance. Target users include safety system integrators, plant automation engineers, and facility managers responsible for IEC 61508-compliant installations requiring proven fault tolerance and regulatory traceability.

What sets this module apart: factory-validated safety functions, hot-swappable redundancy support, and comprehensive diagnostic coverage exceeding 99% per IEC 61508 requirements—delivering measurable risk reduction in safety instrumented functions while minimizing lifecycle costs through extended MTBF ratings and backward compatibility with legacy HIMA infrastructure.

Core Capabilities & Business Value

→ SIL 3 Certified Safety Integrity: TÜV-validated per IEC 61508 standards with systematic capability SC3, enabling compliance with API 670, ISO 20816, and NFPA 85 requirements while reducing insurance premiums and regulatory audit burden

→ Deterministic Response Performance: Guaranteed ≤20ms output switching time with jitter <2ms ensures precise timing for turbine trip systems, valve actuation, and emergency isolation sequences—critical for preventing cascade failures

→ Dual Ethernet Diagnostics: Redundant 10/100 Mbps communication ports provide continuous health monitoring, alarm management, and remote troubleshooting without compromising safety loop integrity or requiring system downtime

✓ Extended Environmental Range: -40°C to +70°C operating capability with conformal coating protection supports deployment in offshore platforms, desert installations, and arctic processing facilities without climate control overhead

✓ Plug-and-Play Integration: Standard DIN rail mounting with auto-configuration reduces installation time by 60% compared to legacy systems, while maintaining full backward compatibility with existing HIMA safety networks

✓ Comprehensive Diagnostic Coverage: Built-in self-test routines detect 99.7% of dangerous failures, enabling predictive maintenance strategies that reduce unplanned downtime by up to 40% and extend proof test intervals

Industry Application Scenarios

Emergency Shutdown Systems (Oil & Gas): In offshore production platforms and refinery units, the F2DO801 controls final control elements for high-integrity pressure protection systems (HIPPS), managing wellhead isolation valves and blowdown systems. Pain point addressed: Eliminates single-point failures in critical shutdown chains while providing audit trails for regulatory compliance. Value delivered: Reduces spurious trip rates by 35% through advanced diagnostics, minimizing production losses averaging $500K per incident.

Burner Management Systems (Power Generation): Coal-fired and combined-cycle plants deploy this module for flame safeguard control, fuel valve sequencing, and purge cycle management per NFPA 85 requirements. Pain point addressed: Coordinates complex interlock logic across multiple burners while maintaining deterministic timing for ignition sequences. Value delivered: Achieves 99.97% availability in safety functions, preventing catastrophic furnace explosions and ensuring grid stability.

Fire & Gas Detection Networks (Petrochemical): Chemical processing facilities integrate F2DO801 modules for voting logic in 2oo3 detector configurations, controlling deluge systems, ventilation dampers, and process isolation. Pain point addressed: Manages nuisance alarm filtering while guaranteeing fail-safe response to genuine hazards. Value delivered: Reduces false alarm rates by 70% through intelligent diagnostics, improving operator confidence and emergency response effectiveness.

Turbomachinery Protection (Rotating Equipment): Compressor stations and LNG facilities utilize this controller for vibration monitoring integration, bearing temperature trips, and surge control valve actuation. Pain point addressed: Provides microsecond-precision coordination between monitoring systems and shutdown actuators. Value delivered: Prevents equipment damage exceeding $2M per event through predictive trip algorithms and partial stroke testing capabilities.

Safety Instrumented Systems (Process Industries): Pharmaceutical, food processing, and specialty chemical plants implement F2DO801 for batch reactor interlocks, pressure relief coordination, and toxic gas containment. Pain point addressed: Balances production flexibility with non-negotiable safety requirements in multi-product facilities. Value delivered: Enables recipe-based safety parameter adjustment while maintaining SIL 3 integrity, reducing changeover time by 25%.

Technical Parameters & Selection Guide

Selection Guidance: Choose the F2DO801 when your application demands SIL 3-rated digital outputs with diagnostic feedback for safety instrumented functions. For analog control or higher channel density requirements, consult HIMA's F8DO series or modular I/O platforms. Ensure your safety requirements analysis (per IEC 61511) specifies SIL 3 integrity before procurement—over-specification increases costs without proportional risk reduction. Consider redundant module pairing (1oo2 or 2oo2 architectures) for applications requiring >99.99% availability or where proof testing creates unacceptable production interruptions.

Extended Functionality & Integration

IoT & Industry 4.0 Connectivity: The F2DO801 supports OPC UA server integration for secure cloud-based analytics and predictive maintenance platforms. Real-time performance data streams enable machine learning algorithms to identify degradation patterns 6-8 weeks before functional failure, optimizing maintenance scheduling and spare parts inventory.

Advanced Safety Features: Partial stroke testing (PST) capability allows automated valve diagnostics without process shutdown, reducing proof test costs by 80%. Built-in sequence-of-events recording with 1ms resolution provides forensic data for incident investigation and continuous improvement initiatives.

Customization Options: Factory configuration services include pre-programmed safety logic, custom diagnostic thresholds, and application-specific firmware variants for specialized industries (nuclear, pharmaceutical, aerospace). Consult engineering for projects requiring ASIL-D automotive safety or EN 50129 railway certification.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for stock items via express courier with full tracking and insurance. Expedited same-day dispatch available for emergency replacements (subject to inventory availability and destination).

Custom Configuration: 10-15 business days for factory-programmed modules with application-specific parameters, including FAT documentation and calibration certificates traceable to national standards.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications requiring 5-year coverage with advance replacement guarantees.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting, and system optimization. Support includes remote diagnostics, firmware updates, and integration guidance for third-party systems (DCS, SCADA, historians).

Documentation Package: Each module ships with installation manual, safety manual per IEC 61508-2, dimensional drawings (DXF/PDF), and certificate of conformity. Digital resources include configuration software, communication protocol specifications, and sample ladder logic for common applications.

Frequently Asked Questions

What communication protocols does the F2DO801 safety output module support for integration?
The module features dual Ethernet ports supporting Modbus TCP, PROFINET, and proprietary HIMA SafeEthernet protocols. It integrates seamlessly with Siemens PCS 7, Emerson DeltaV, Honeywell Experion, and ABB System 800xA platforms via standard OPC servers. For legacy systems, serial gateway options enable Modbus RTU and HART connectivity.

How does the F2DO801 compare to competitive SIL 3 output modules in terms of capacity and performance?
While offering fewer channels than some modular I/O systems, the F2DO801 provides superior diagnostic coverage (>99% vs. industry average 95%) and faster response times (20ms vs. typical 50-100ms). The integrated dual Ethernet eliminates external communication modules, reducing cabinet space by 30% and simplifying spare parts inventory.

Can this digital output controller achieve energy efficiency improvements in safety system operations?
The module's low-power design (typical 3.5W consumption) reduces heat generation by 40% compared to relay-based systems, minimizing cooling requirements in enclosed cabinets. Intelligent output staging prevents inrush current spikes, extending solenoid valve life by 2-3x and reducing electrical infrastructure sizing by 20%.

What are the installation requirements and mounting specifications for the F2DO801?
Standard 35mm DIN rail mounting per EN 50022 with tool-free clip retention. Minimum clearances: 25mm top/bottom for convection cooling, 10mm sides for wiring access. Terminal blocks accept 0.5-2.5mm² wire (14-24 AWG) with spring-cage or screw termination options. Grounding via dedicated PE terminal required for EMC compliance.

Does the F2DO801 support remote monitoring and predictive maintenance capabilities?
Yes—continuous self-diagnostics monitor output driver health, power supply quality, communication integrity, and internal temperature. Diagnostic data exports via Ethernet enable condition-based maintenance strategies, with configurable alarm thresholds for proactive intervention. HART-over-Ethernet option provides valve signature analysis for partial stroke testing without additional hardware.

Is the module compatible with hazardous area classifications and explosive atmosphere requirements?
When installed in certified enclosures (ATEX/IECEx Zone 2 or Division 2), the F2DO801 supports deployment in classified locations. Intrinsically safe barrier integration enables direct connection to field devices in Zone 0/1 areas. Consult regional certification databases for specific approval numbers and installation restrictions.

Take the Next Step

Ready to enhance your safety instrumented system with proven SIL 3 technology? Contact our application engineering team for a complimentary system assessment and integration roadmap. Request a detailed quotation including configuration services, spare parts recommendations, and training options. For urgent replacement needs, our emergency support line ensures same-day processing and expedited logistics coordination.
