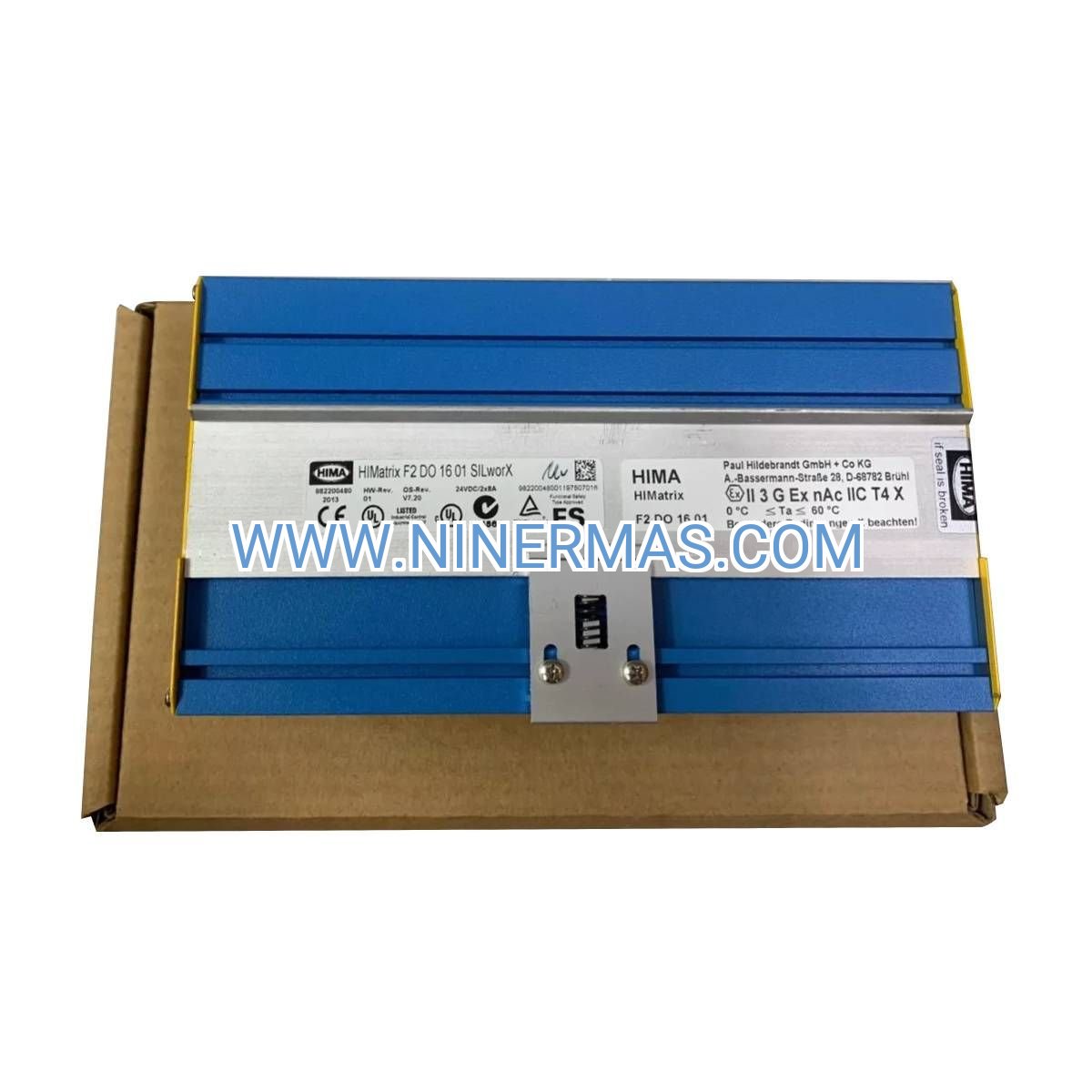

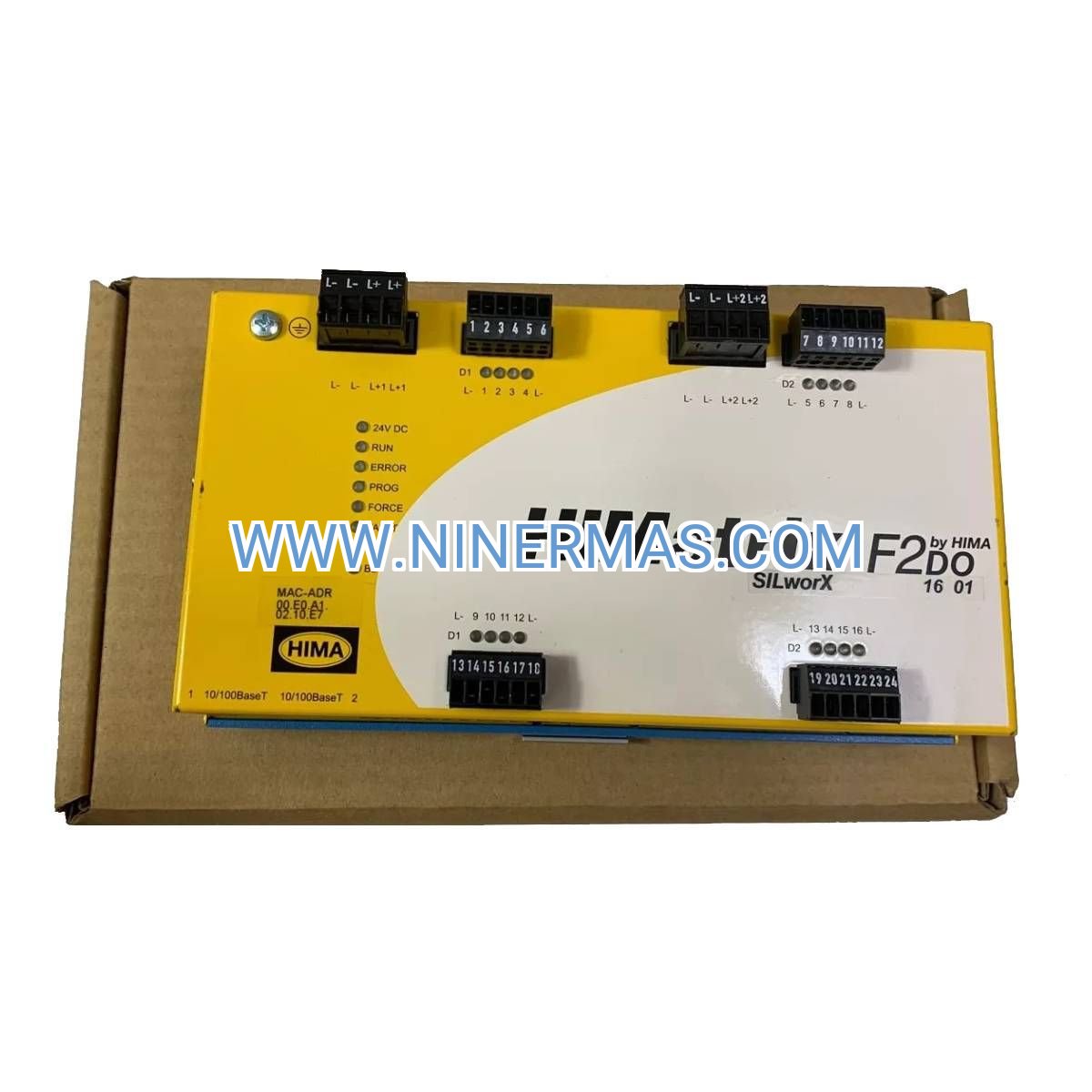

F2DO1601 Industrial Safety Output Module (SIL3-Certified)

The HIMA F2DO1601 is an industrial-grade safety output module delivering 16 digital output channels with SIL 3 certification per IEC 61508 and Category 4 compliance per EN 954-1. Engineered for emergency shutdown (ESD) systems, burner management platforms, and process safety applications, this module combines 20-millisecond response speed with dual Ethernet connectivity and robust 24 VDC operation. Designed for petrochemical facilities, power plants, and pharmaceutical manufacturing environments where safety integrity cannot be compromised.

Built on HIMA's century-long legacy in safety instrumentation, the F2DO1601 addresses critical control challenges: rapid fault detection, deterministic output switching, and seamless integration into redundant safety networks. Target users include safety engineers, automation integrators, and plant maintenance teams requiring certified safety solutions for hazardous process control. Key advantages include factory-calibrated precision, modular serviceability, and comprehensive global certification coverage including ATEX, FM, and UL approvals.

Core Features & Benefits

✓ Ultra-Fast Safety Response: 20ms cycle time ensures immediate intervention during critical events, reducing process hazard exposure and protecting personnel and assets.

✓ High-Density Output Architecture: 16 non-isolated digital outputs deliver up to 2A per channel (40°C), controlling solenoid valves, safety relays, and alarm indicators with single-module efficiency.

✓ Dual Ethernet Redundancy: Two RJ-45 ports (10/100BaseT) with integrated switch enable fault-tolerant network topologies, maintaining communication integrity during single-point failures.

✓ Wide Voltage Tolerance: 24 VDC operation with -15% to +20% range accommodates power fluctuations in industrial environments without compromising output stability.

✓ Comprehensive Safety Certification: SIL 3, Category 4, ATEX Zone 2, and FM Class I Div 2 approvals eliminate compliance barriers for global deployment across regulated industries.

✓ Intelligent Overload Protection: Automatic shutdown with cyclic restart safeguards outputs against short circuits and thermal overload, extending module lifespan and reducing maintenance interventions.

Application Scenarios

→ Petrochemical Emergency Shutdown Systems: Controls final control elements in SIS logic solvers, managing valve actuators and pump trips during process deviations. Addresses the critical need for deterministic shutdown sequences that prevent runaway reactions and equipment damage.

→ Power Generation Burner Management: Interfaces with flame detection systems and fuel valve trains, executing safe start-up and emergency shutdown sequences. Solves the challenge of coordinating multiple safety interlocks with millisecond-level precision to prevent furnace explosions.

→ Offshore Platform Fire & Gas Systems: Drives deluge valves, blowdown systems, and emergency isolation barriers in harsh marine environments. Delivers the reliability required for unmanned operations where system availability directly impacts personnel safety.

→ Pharmaceutical Clean Room Control: Manages HVAC dampers, pressure relief systems, and contamination containment barriers in GMP-regulated facilities. Provides the documented safety integrity required for FDA validation and batch release approval.

→ Chemical Reactor Protection: Executes emergency cooling, pressure relief, and reactant isolation during exothermic runaway conditions. Offers the response speed necessary to interrupt thermal excursions before reaching critical temperature thresholds.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F2DO1601 when your application requires SIL 3 certification, 16 or fewer output points, and 24 VDC control voltage. For applications demanding galvanic isolation between outputs, consider alternative HIMA modules with isolated channel architecture. Verify that connected loads remain within the 2A per-channel limit and 16A total current budget. For ambient temperatures exceeding 40°C, derate output current to 1A per channel to maintain thermal compliance.

Extended Functions

Diagnostic Monitoring: Built-in self-test routines continuously verify output driver integrity, detecting open circuits, short circuits, and thermal anomalies. Diagnostic data streams to supervisory systems via Ethernet, enabling predictive maintenance strategies that reduce unplanned downtime.

Hot-Swap Capability: Module replacement during system operation (with proper safety procedures) minimizes process interruption during maintenance activities. Plug-and-play configuration transfer accelerates commissioning and reduces engineering labor costs.

Customization Options: Factory configuration services available for pre-programmed output mapping, custom cable assemblies, and application-specific testing protocols. Contact our engineering team to discuss project-specific requirements and lead time implications.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via DHL/FedEx Express. Custom-configured modules require 4-6 weeks for factory programming and quality validation.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring multi-year coverage.

Technical Support: Access to HIMA-certified application engineers for integration assistance, troubleshooting guidance, and safety validation support. Email and phone support available during business hours (GMT+8), with emergency hotline for critical system failures.

Documentation Package: Each module ships with installation manual, safety certification documents, dimensional drawings, and wiring diagrams. CAD files and EPLAN macros available for download to accelerate panel design workflows.

Frequently Asked Questions

Q: What output load types are compatible with the F2DO1601 module?
A: The module supports resistive loads up to 2A, lamp loads to 25W, and inductive loads up to 500mH. For highly inductive loads (contactors, solenoids), install external suppression diodes to prevent voltage spikes that may damage output drivers.

Q: Can this module integrate with non-HIMA safety controllers?
A: The F2DO1601 is designed for HIMA HIMax and HIMatrix safety systems. Integration with third-party controllers requires custom interface development and may void safety certifications. Consult factory engineering for feasibility assessment.

Q: How does the dual Ethernet configuration improve system availability?
A: The integrated switch enables ring or star network topologies with automatic failover. If one Ethernet path fails, communication continues via the redundant interface without interrupting safety functions, achieving >99.9% network uptime in properly designed architectures.

Q: What installation environment limitations apply?
A: The IP20 rating requires installation in protected enclosures. Ambient temperature must remain within 0-60°C, and relative humidity below 95% non-condensing. For outdoor or corrosive environments, specify NEMA 4X or IP65-rated enclosures with climate control.

Q: Are replacement parts available for long-term serviceability?
A: HIMA maintains a 15-year minimum spare parts availability commitment for safety-critical modules. Recommended spare inventory: 1 module per 10 installed units for systems requiring <4-hour mean time to repair (MTTR).

Q: Does the module support remote monitoring and diagnostics?
A: Yes, diagnostic data including output status, fault conditions, and thermal parameters are accessible via Ethernet using standard industrial protocols. Integration with SCADA/DCS systems enables centralized monitoring and alarm management.
