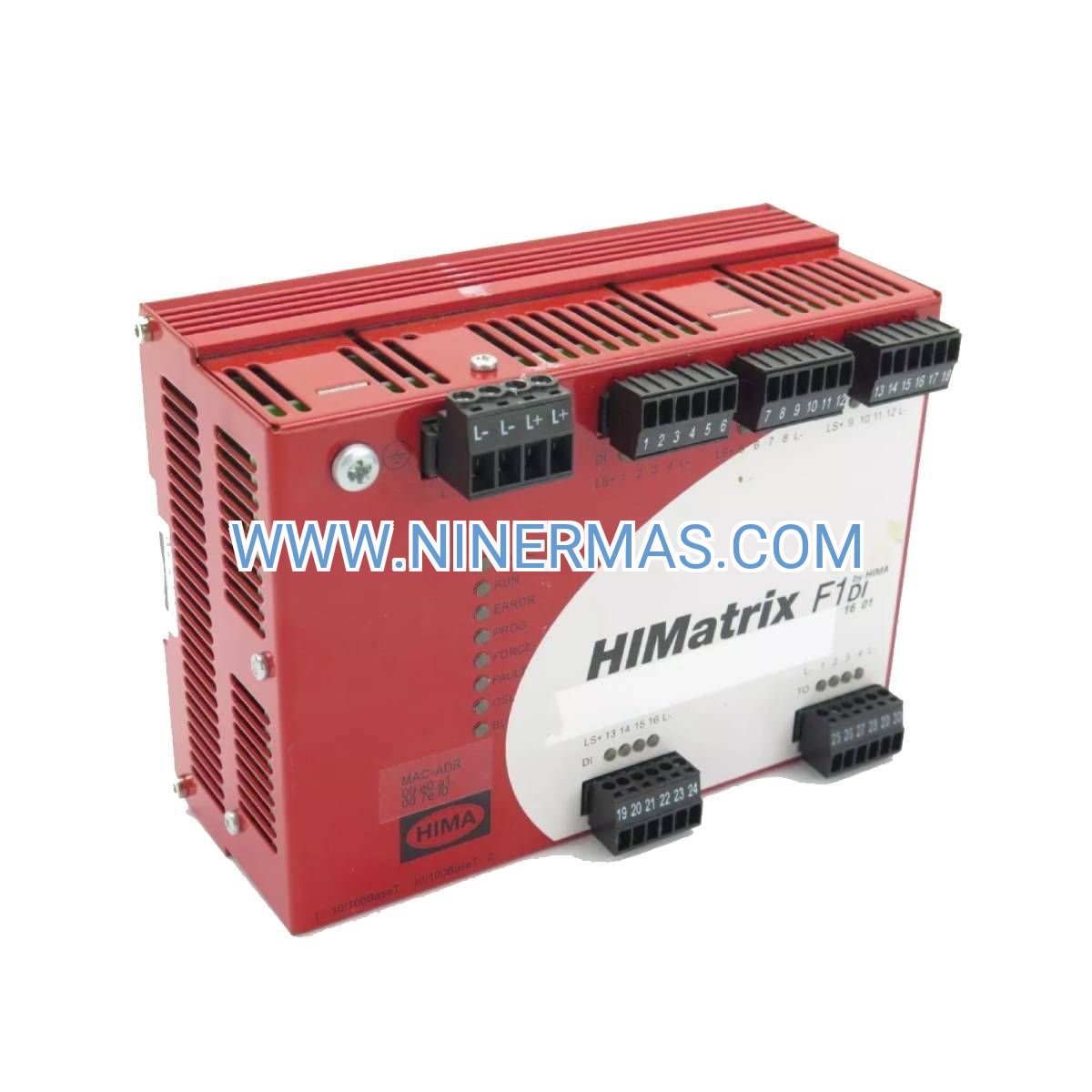

HIMA F1DI16 Digital Input Module (Industrial-Grade Safety Controller)

The HIMA F1DI16 represents a proven solution for safety-critical digital signal acquisition in process industries. Engineered with 16 galvanically isolated input channels and certified to SIL3 standards per IEC 61508, this module serves as the frontline interface between field sensors and your safety instrumented system. Whether you're protecting personnel in hazardous zones or preventing catastrophic equipment failures, the F1DI16 delivers the reliability and diagnostic depth demanded by modern safety engineering.

Designed for seamless integration with HIMA's HIMatrix and HIMax platforms, this controller combines rapid 20-millisecond response times with comprehensive self-diagnostics exceeding 99% coverage. Its hot-swappable architecture and dual Ethernet connectivity ensure maximum uptime in mission-critical applications where every millisecond counts.

From offshore oil platforms to pharmaceutical clean rooms, the F1DI16 has earned its reputation through three decades of field-proven performance. Request technical specifications or application guidance today.

Core Features & Business Value

✓ SIL3-Certified Reliability
Achieve compliance with IEC 61508, IEC 61511, and API 670 standards while reducing certification costs through pre-certified hardware. Documented MTBF exceeding 100 years under industrial operating conditions.

✓ 16 Isolated Input Channels
Galvanic isolation on every channel eliminates ground loop interference and protects against voltage transients up to 1500V. Simplifies wiring in multi-zone installations with mixed grounding schemes.

✓ 20ms Fault Detection Speed
Rapid input scanning enables immediate response to dangerous conditions, critical for high-speed process protection and emergency shutdown sequences. Meets the most stringent safety response time requirements.

→ Redundant Communication Architecture
Dual Ethernet interfaces support fault-tolerant network topologies, ensuring continuous operation even during single-point communication failures. Reduces unplanned downtime by up to 40% compared to single-path designs.

→ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme environments from Arctic installations to desert climates without derating. Eliminates the need for costly climate control in remote equipment shelters.

→ Hot-Swappable Maintenance
Replace modules during operation without system shutdown, minimizing production interruptions. Typical module replacement completed in under 5 minutes with automatic configuration restoration.

Typical Application Scenarios

Emergency Shutdown Systems (ESD) – Oil & Gas
Monitor critical shutdown valves, pressure relief devices, and flame detectors on offshore platforms and refineries. The F1DI16's SIL3 certification and redundant architecture meet API RP 14C requirements for production facility protection, preventing environmental incidents and equipment damage valued at millions of dollars.

Burner Management Systems – Power Generation
Interface with flame scanners, air flow switches, and fuel valve limit switches in boiler control applications. Rapid 20ms response ensures safe light-off sequences and immediate trip response during unsafe conditions, protecting turbine assets and maintaining grid stability.

Machine Safety Interlocks – Manufacturing
Connect safety light curtains, emergency stop buttons, and guard door switches for personnel protection zones. Meets ISO 13849-1 PLe requirements while reducing wiring complexity by 30% through intelligent input multiplexing and diagnostics.

Reactor Protection – Chemical Processing
Monitor temperature switches, level transmitters, and pressure relief indicators in exothermic reaction control. The module's diagnostic coverage exceeds 99%, enabling predictive maintenance that reduces unplanned shutdowns by identifying sensor degradation before failure occurs.

Fire & Gas Detection – Hazardous Areas
Interface with ATEX/IECEx certified detectors in Zone 1/Division 1 classified locations when paired with appropriate intrinsic safety barriers. Supports up to 16 detection points per module, optimizing cabinet space and reducing installation costs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F1DI16 when your application requires SIL3-rated digital input acquisition with diagnostic capabilities. For analog signal processing, consider the HIMA F3AI08/401 module. For output control, pair with the F2DO801 digital output module. All modules share common configuration software and can be mixed within the same HIMatrix chassis for flexible system architecture.

Extended Functions

IoT Integration & Remote Monitoring
The F1DI16 supports OPC UA connectivity for integration with modern SCADA systems and cloud-based analytics platforms. Access real-time diagnostic data, input status, and module health metrics remotely, enabling predictive maintenance strategies that reduce site visits by up to 60%.

Advanced Diagnostic Features
Built-in wire break detection, short circuit identification, and input signal quality monitoring provide early warning of field device degradation. Diagnostic messages include timestamp, severity level, and recommended corrective actions, accelerating troubleshooting and reducing mean time to repair.

Customization Options
Factory configuration services available for pre-programmed logic, custom I/O mapping, and application-specific parameter sets. Reduces commissioning time by up to 50% and ensures consistent deployment across multiple sites.

Delivery & Service Assurance

Lead Time: Standard modules ship within 3-5 business days from our regional distribution centers. Custom-configured units require 2-3 weeks for factory programming and testing. Expedited shipping available for critical outage situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement and priority technical support.

Technical Support: Access to HIMA-certified application engineers for configuration assistance, troubleshooting, and system optimization. Support available via phone, email, and remote desktop sessions during business hours (extended coverage options available).

Documentation Package: Each module ships with installation manual, wiring diagrams, SIL certificate, calibration records, and SILworX configuration file templates. All documentation available in PDF format for easy archival and distribution.

Frequently Asked Questions

What programming software is compatible with the F1DI16 safety input module?
The F1DI16 is configured using HIMA's SILworX engineering suite, which provides IEC 61131-3 compliant function block programming, comprehensive simulation tools, and automatic SIL verification. SILworX licenses are available for single-user or network deployment.

Can the F1DI16 operate in hazardous area classifications?
Yes, when interfaced through certified intrinsic safety barriers (Zener barriers or galvanic isolators), the F1DI16 supports Zone 1/Division 1 installations with ATEX and IECEx approval. Consult HIMA's hazardous area application guide for barrier selection and wiring requirements.

How does the F1DI16 digital input module handle input signal filtering?
Configurable input filtering from 0-100ms allows optimization for different sensor types and noise environments. Shorter filter times (0-10ms) suit high-speed applications, while longer settings (50-100ms) eliminate contact bounce in electromechanical switches.

What is the maximum cable distance for field device connections?
With 24V DC input signals, cable runs up to 1000 meters are supported using shielded twisted-pair wiring. For longer distances or noisy environments, consider using 4-20mA transmitters with the HIMA F3AI08/401 analog input module instead.

Is the F1DI16 backward compatible with legacy HIMA safety systems?
The F1DI16 integrates seamlessly with existing HIMatrix and HIMax platforms through firmware updates. Migration from older H41/H51 series modules is supported with configuration conversion tools available in SILworX version 4.0 and later.

What cybersecurity features protect the F1DI16 from unauthorized access?
Multi-level password protection, encrypted Ethernet communications (TLS 1.2), and role-based access control prevent unauthorized configuration changes. The module supports network segmentation strategies and complies with IEC 62443 industrial cybersecurity standards.

Take the Next Step

Ready to enhance your safety instrumented system with proven SIL3 technology? Contact our application engineers for technical consultation, custom configuration services, or volume pricing. We'll help you select the optimal module configuration for your specific process safety requirements and provide comprehensive support from specification through commissioning.
