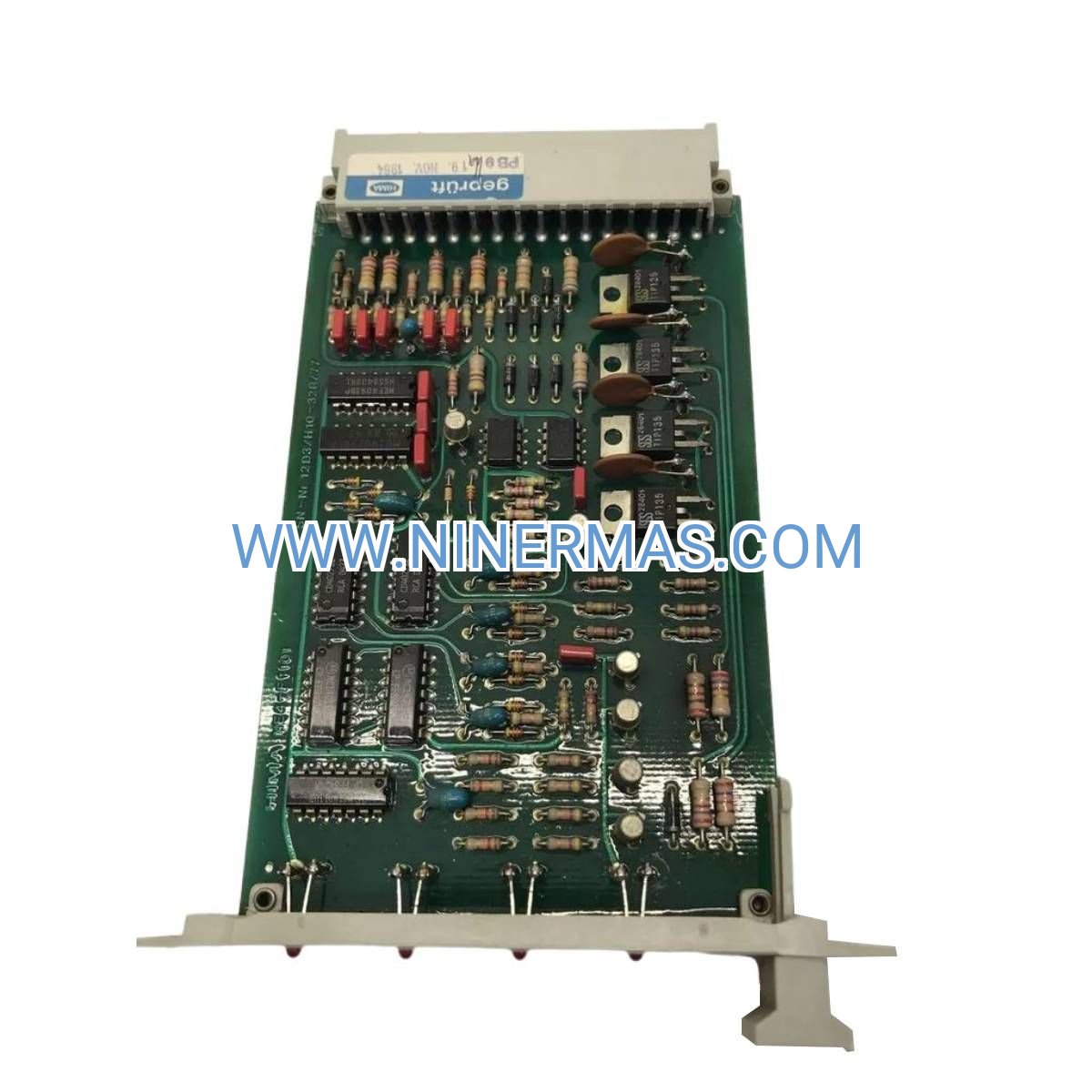

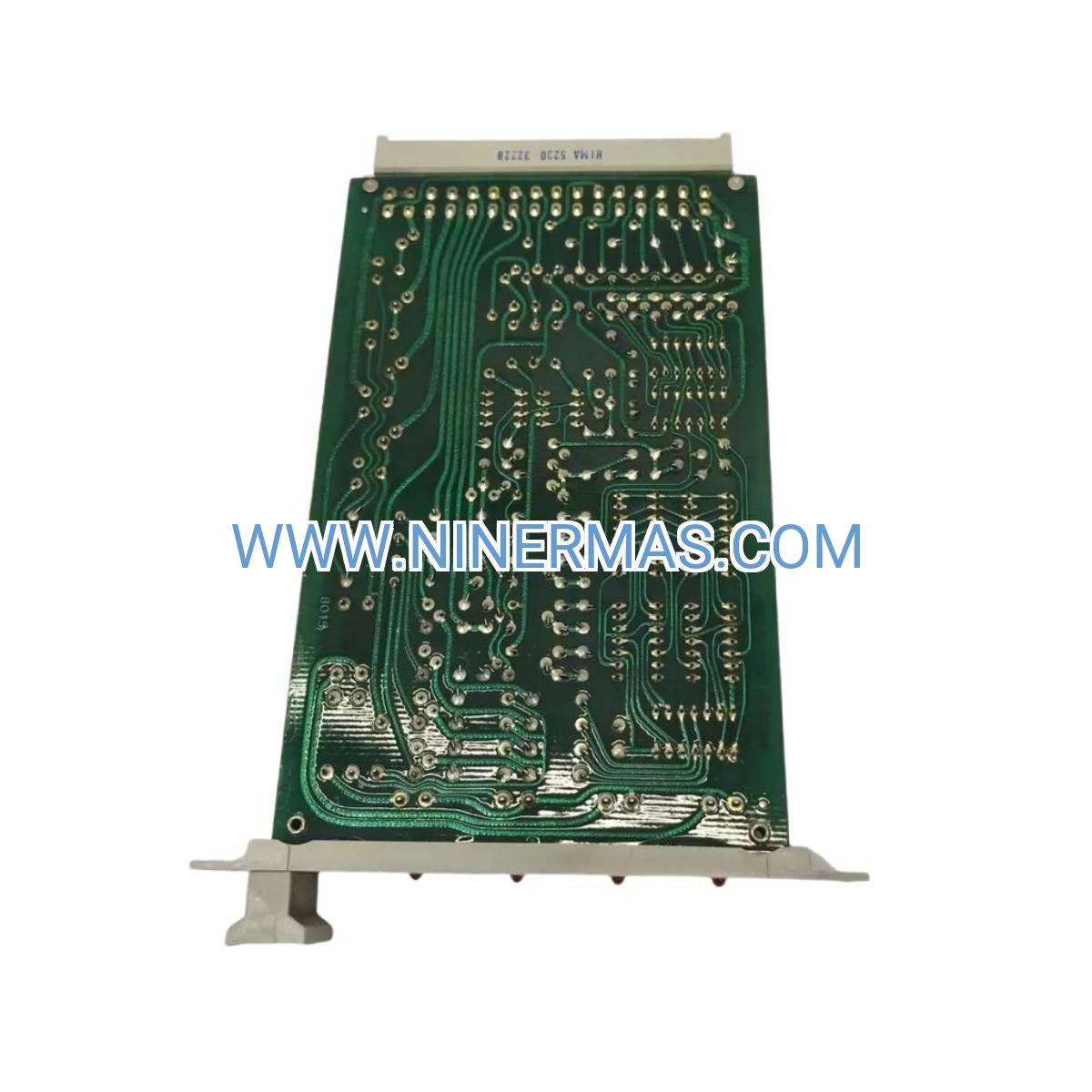

HIMA F1101 4-Channel Relay Amplifier (Industrial-Grade Safety Switching Module)

The HIMA F1101 represents a mission-critical relay amplification solution engineered for process safety applications demanding SIL 3 functional integrity. This four-channel switching module integrates seamlessly with HIMatrix F60 distributed safety architectures, delivering galvanically isolated relay outputs for emergency shutdown systems, fire & gas detection networks, and burner management platforms across oil & gas, chemical processing, and power generation sectors.

Designed for engineers and safety system integrators managing high-consequence industrial processes, the F1101 addresses the fundamental challenge of interfacing safety-rated logic controllers with field actuators while maintaining diagnostic transparency and fault tolerance. Its hot-swappable architecture enables maintenance without process interruption in redundant configurations, while built-in self-diagnostics continuously verify output circuit integrity—detecting relay coil failures, wiring faults, and load anomalies in real time.

With TÜV certification to IEC 61508 SIL 3 standards and proven reliability in over 10,000 global installations, the F1101 delivers the performance assurance required for safety instrumented functions protecting personnel, assets, and environmental compliance in hazardous industrial environments.

Core Features & Benefits

→ SIL 3 Functional Safety Certification
TÜV-approved to IEC 61508 standards with systematic capability SC 3, enabling deployment in the most critical safety instrumented functions including emergency shutdown (ESD) and fire & gas (F&G) systems with proven failure rates below 10⁻⁸ dangerous failures per hour.

→ Four Isolated Relay Output Channels
Independent electromechanical relay contacts rated 2A @ 250V AC provide galvanic isolation between control logic and field devices, eliminating ground loop interference while supporting diverse actuator types from solenoid valves to motor contactors.

→ Comprehensive Diagnostic Monitoring
Continuous self-testing detects relay welding, coil open circuits, output short circuits, and load disconnection—automatically reporting fault conditions to the HIMatrix F60 controller with sub-second latency for immediate operator notification and safety system response.

→ Hot-Swappable Modular Design
DIN rail mounting with spring-loaded terminal blocks enables field replacement in under 90 seconds without de-energizing adjacent modules, minimizing mean time to repair (MTTR) in redundant 1oo2 or 2oo3 voting architectures.

→ Extended Environmental Operating Range
Qualified for -20°C to +60°C ambient operation with conformal coating protection against humidity, salt spray, and industrial contaminants—meeting offshore platform and desert climate deployment requirements.

✓ Factory-Calibrated & Pre-Tested
Every module undergoes 100% functional verification including relay contact resistance measurement, insulation testing to 2.5kV, and timing characterization—shipped with calibration certificates traceable to national standards for immediate commissioning.

Typical Application Scenarios

Emergency Shutdown Systems (ESD) in Offshore Platforms
In subsea production facilities, the F1101 actuates pneumatic ball valves and blowdown systems during process upsets. When the HIMatrix F60 controller detects high-high pressure or low-low level conditions, the F1101's relay outputs de-energize fail-safe solenoid valves within 15ms, initiating controlled shutdown sequences that prevent hydrocarbon releases and protect personnel—achieving 99.97% availability in North Sea installations.

Fire & Gas Detection Integration for Chemical Plants
Chemical processing facilities deploy the F1101 to interface safety PLCs with alarm annunciators, deluge valve systems, and HVAC isolation dampers. Upon toxic gas detection, the module simultaneously triggers audible alarms, activates water spray systems, and closes ventilation dampers—coordinating multi-zone response within safety-critical time windows mandated by NFPA 72 standards.

Burner Management in Combined-Cycle Power Plants
Gas turbine facilities utilize F1101 modules to control fuel gas block valves and ignition transformers in accordance with NFPA 85 flame safeguard requirements. The relay outputs provide positive mechanical isolation of fuel supplies during flame-out conditions, while diagnostic feedback confirms valve position—preventing furnace explosions and ensuring grid stability.

Machine Safety Interlocks for Automated Manufacturing
Robotic assembly lines implement the F1101 in safety-rated stop circuits compliant with ISO 13849-1 Category 4. When light curtains or emergency stop buttons activate, the module's redundant relay contacts interrupt power to servo drives and pneumatic actuators—achieving stop times under 200ms to protect operators from mechanical hazards.

Turbomachinery Protection Systems
Centrifugal compressor packages integrate F1101 modules to trip lube oil pumps and anti-surge valves during vibration or temperature excursions. The relay outputs interface with API 670 vibration monitors and bearing temperature sensors, executing protective shutdowns that prevent catastrophic bearing failures and rotor damage in critical compression services.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F1101 when your application requires SIL 3-rated relay outputs with diagnostic feedback for safety instrumented functions. For higher current loads (>2A), consider the HIMA H4135A amplifier module. For solid-state outputs with faster switching (<1ms), evaluate the HIMA F3236 digital output module. Verify that your HIMatrix F60 controller firmware version supports F1101 auto-detection (v3.2 or later required).

Extended Functions

Redundancy Support: The F1101 integrates with HIMatrix F60 redundant controller pairs, enabling 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting logic for fault-tolerant architectures. Automatic synchronization ensures both modules track identical states during normal operation, with seamless failover upon controller switchover.

Remote Diagnostics via HART Protocol: When paired with HIMA's F8650X communication module, the F1101 exposes relay cycle counters, contact resistance trends, and coil voltage measurements to asset management systems—enabling predictive maintenance strategies that replace relays before end-of-life failures.

Customization Options: Factory-configured variants support alternative contact ratings (5A @ 30V DC for high-current solenoids), gold-plated contacts for low-level signal switching (<10mA), and extended temperature ranges (-40°C to +70°C) for extreme climate deployments. Consult factory for MOQ and lead times.

Delivery & Service Assurance

Lead Time: Standard F1101 modules ship within 3-5 business days from our regional distribution centers in Houston, Singapore, and Rotterdam. Custom configurations require 4-6 weeks factory lead time. Expedited shipping available for emergency outage support.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Warranty includes free firmware updates and access to HIMA's global technical support network.

Technical Support: Our certified safety system engineers provide application assistance including SIL verification calculations, FMEDA reviews, and proof test procedure development. Support available via phone, email, and remote desktop sessions during commissioning.

Documentation Package: Each module includes installation manual, wiring diagrams, SILworX configuration files, TÜV certificates, and ATEX/IECEx declarations. CAD models (STEP format) and EPLAN macros available for download from technical library.

Frequently Asked Questions

Can the F1101 module operate in redundant safety system configurations?
Yes, the F1101 fully supports redundant architectures when deployed with dual HIMatrix F60 controllers. The module automatically synchronizes with both controllers and maintains output state consistency during controller failover events, ensuring uninterrupted safety function availability.

What is the expected service life before relay replacement becomes necessary?
Under typical industrial duty cycles (≤10 operations per hour at rated load), relay contacts exceed 100,000 operations before reaching 50% of rated life. The module's diagnostic system tracks cycle counts and alerts operators when preventive replacement is recommended, typically after 5-7 years of continuous service.

Is the F1101 suitable for installation in hazardous area classifications?
The F1101 is certified for Zone 2 / Division 2 hazardous locations when installed in approved enclosures with proper ingress protection. For Zone 1 / Division 1 applications, the module must be housed in explosion-proof or purged enclosures meeting local authority requirements.

Does the module require specialized programming tools for configuration?
Configuration is performed through HIMA's SILworX engineering software (v4.5 or later). The F1101 auto-detects upon insertion into the HIMatrix F60 rack and loads default parameters. Advanced settings including relay test intervals and diagnostic thresholds are configured via graphical function blocks.

What diagnostic information does the F1101 provide to the safety controller?
The module reports relay coil status, contact position feedback, output short circuit detection, load current monitoring, and communication health status. Diagnostic data updates every 50ms and triggers immediate alarms upon fault detection, with detailed fault codes logged to the controller's event buffer.

Can I retrofit F1101 modules into existing HIMatrix systems without system shutdown?
Yes, in redundant configurations where one controller remains operational, F1101 modules can be hot-swapped during runtime. The replacement module auto-configures from the active controller and synchronizes output states within 2 seconds, maintaining safety function integrity throughout the replacement procedure.

Take the Next Step

Ensure your safety instrumented systems meet SIL 3 performance requirements with proven HIMA F1101 relay amplifier technology. Contact our safety system specialists today for application-specific sizing, SIL verification support, and volume pricing. Request a technical consultation or submit your project specifications for a detailed proposal within 24 hours.
