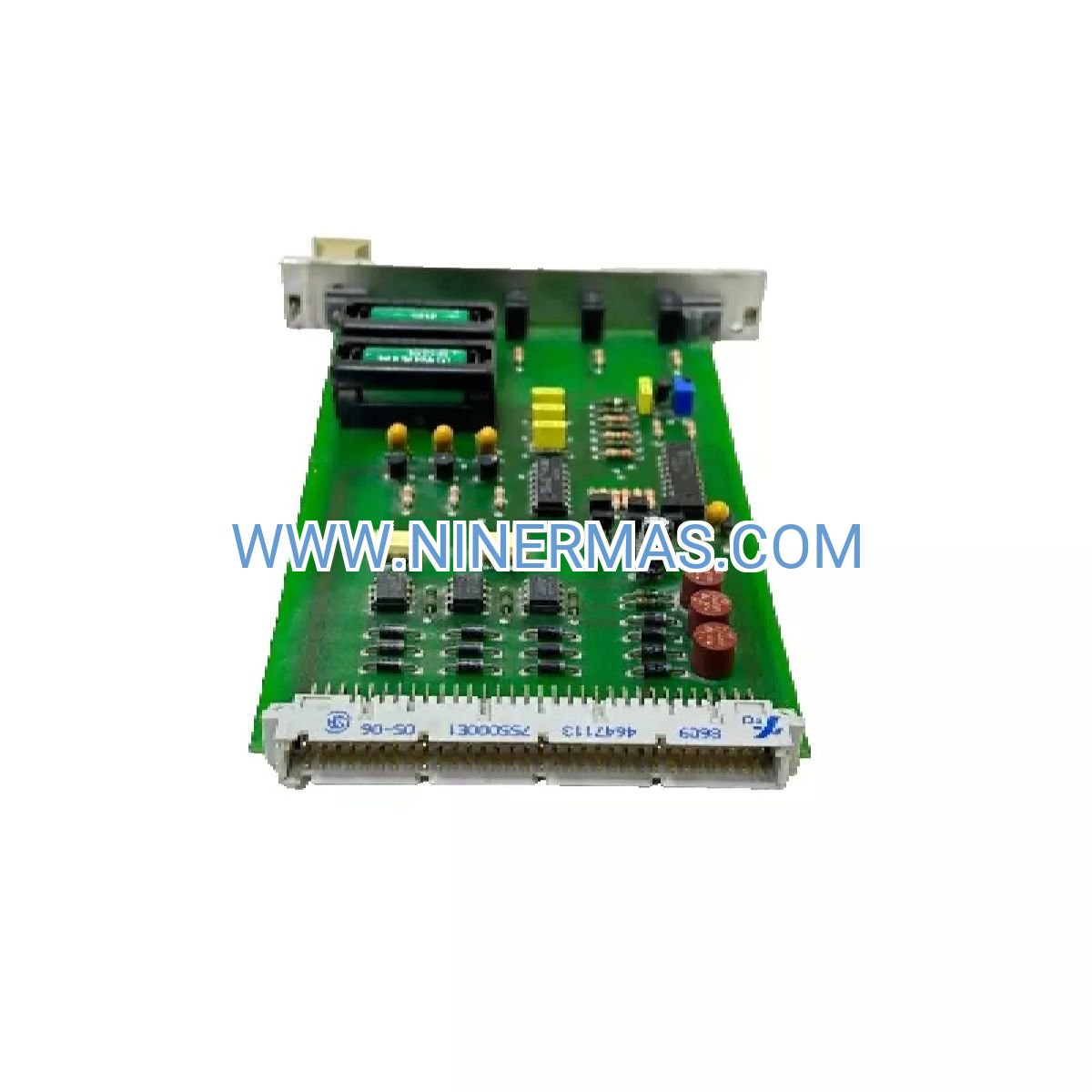

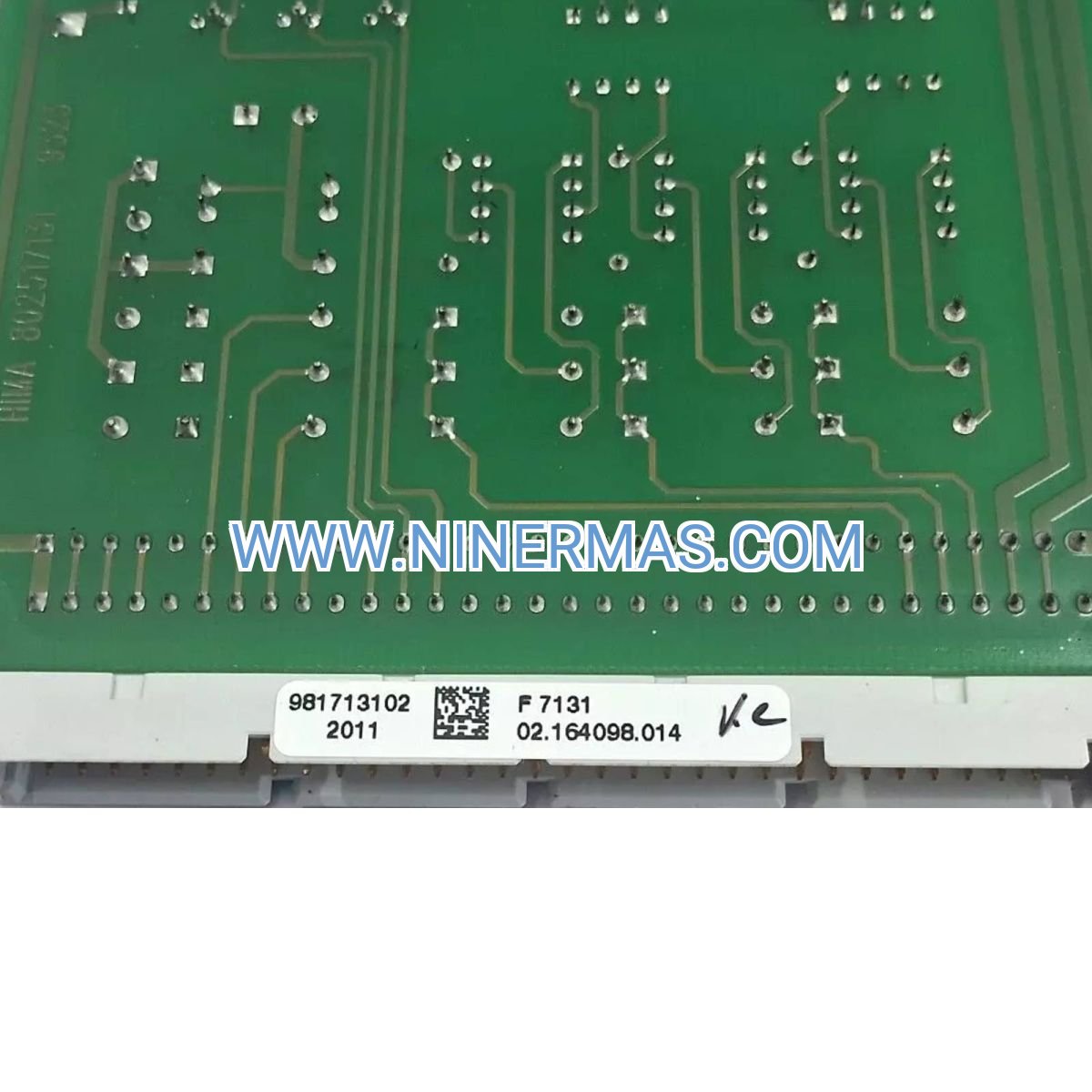

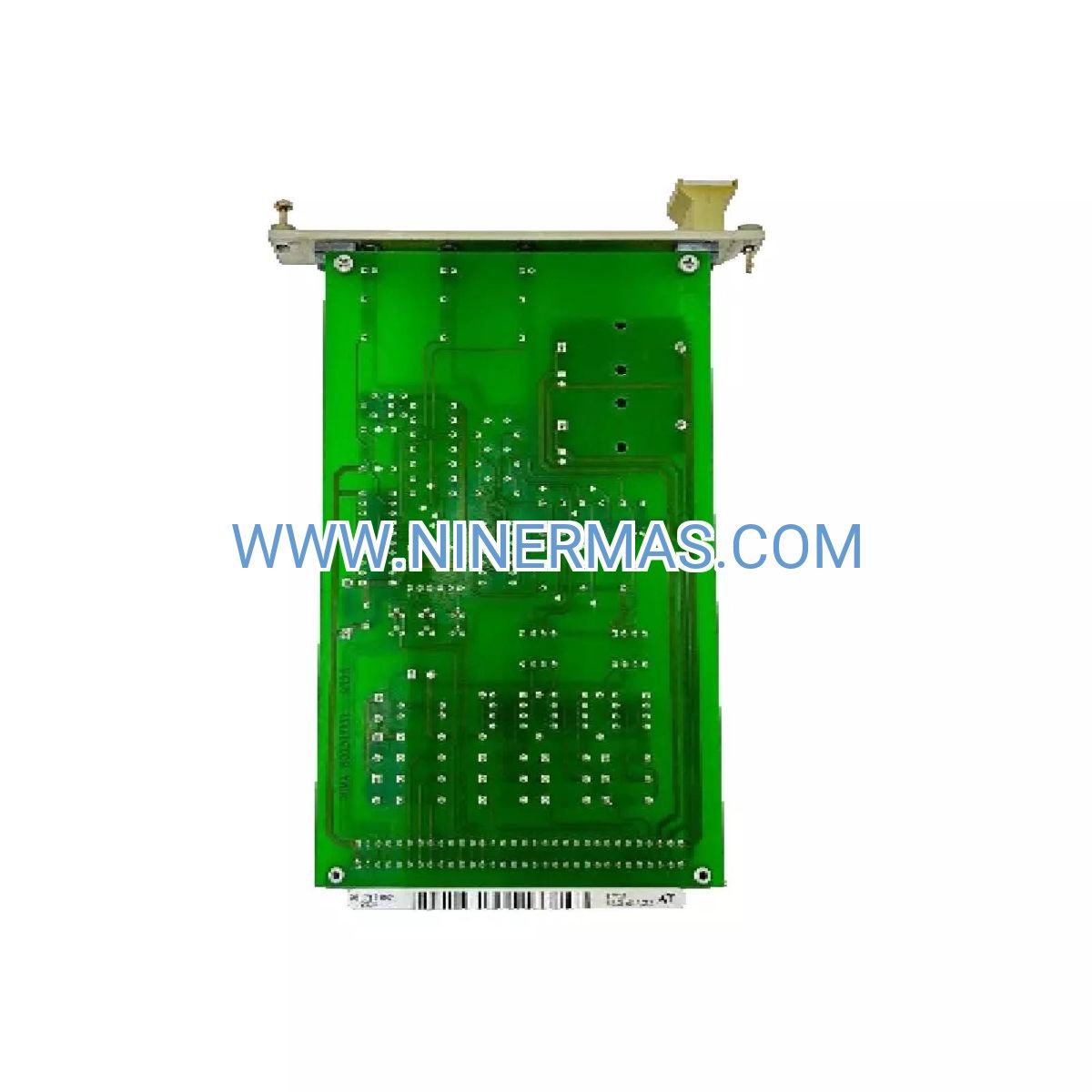

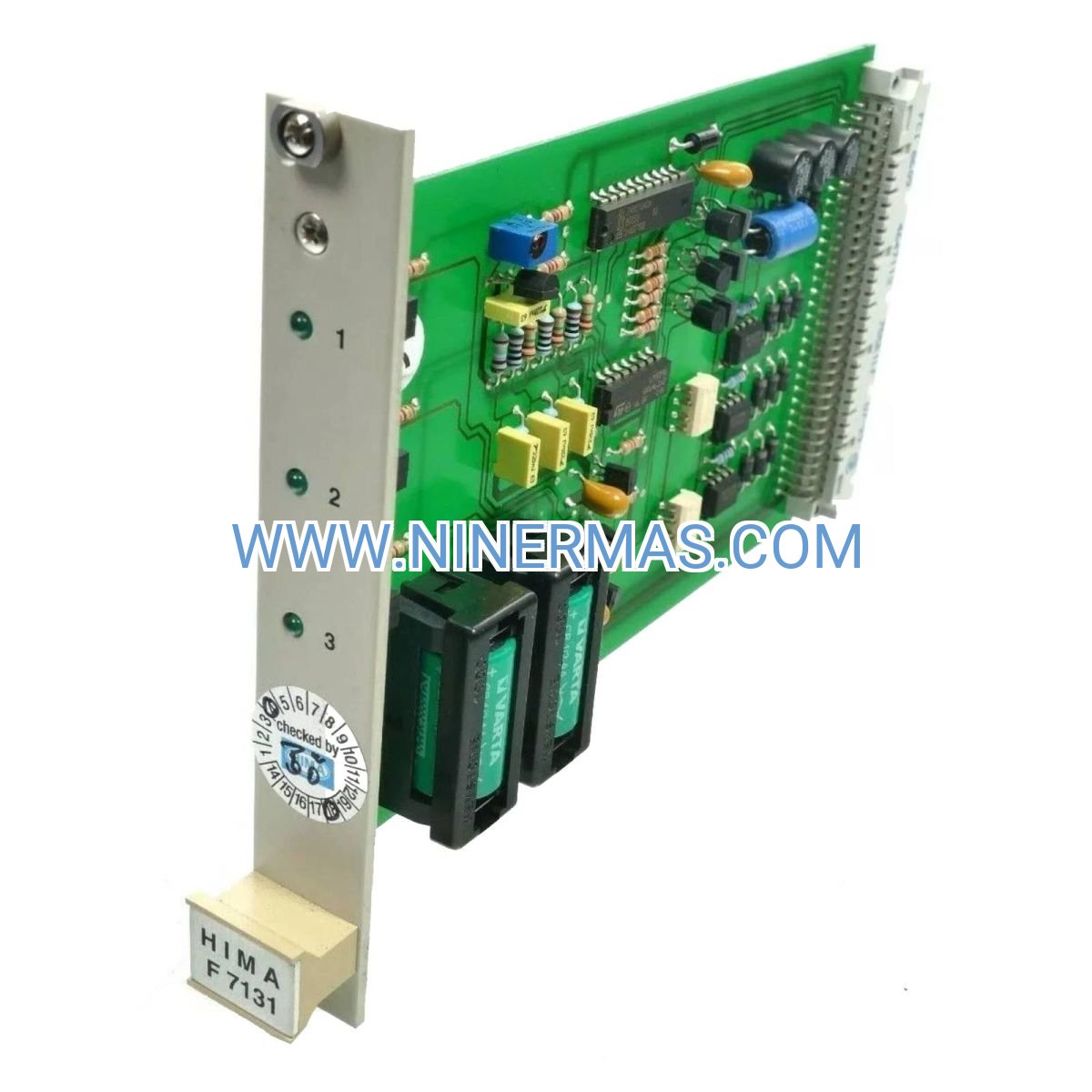

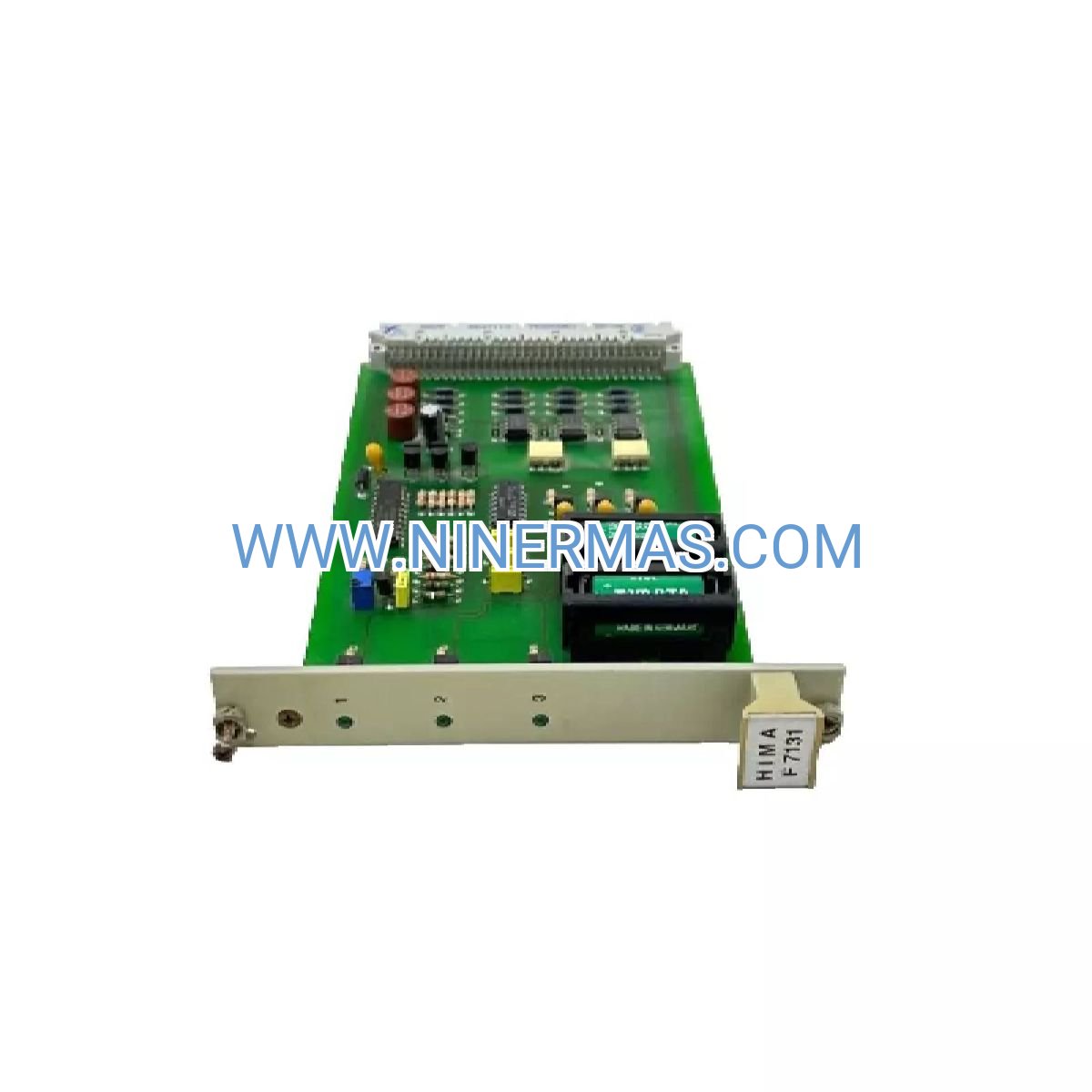

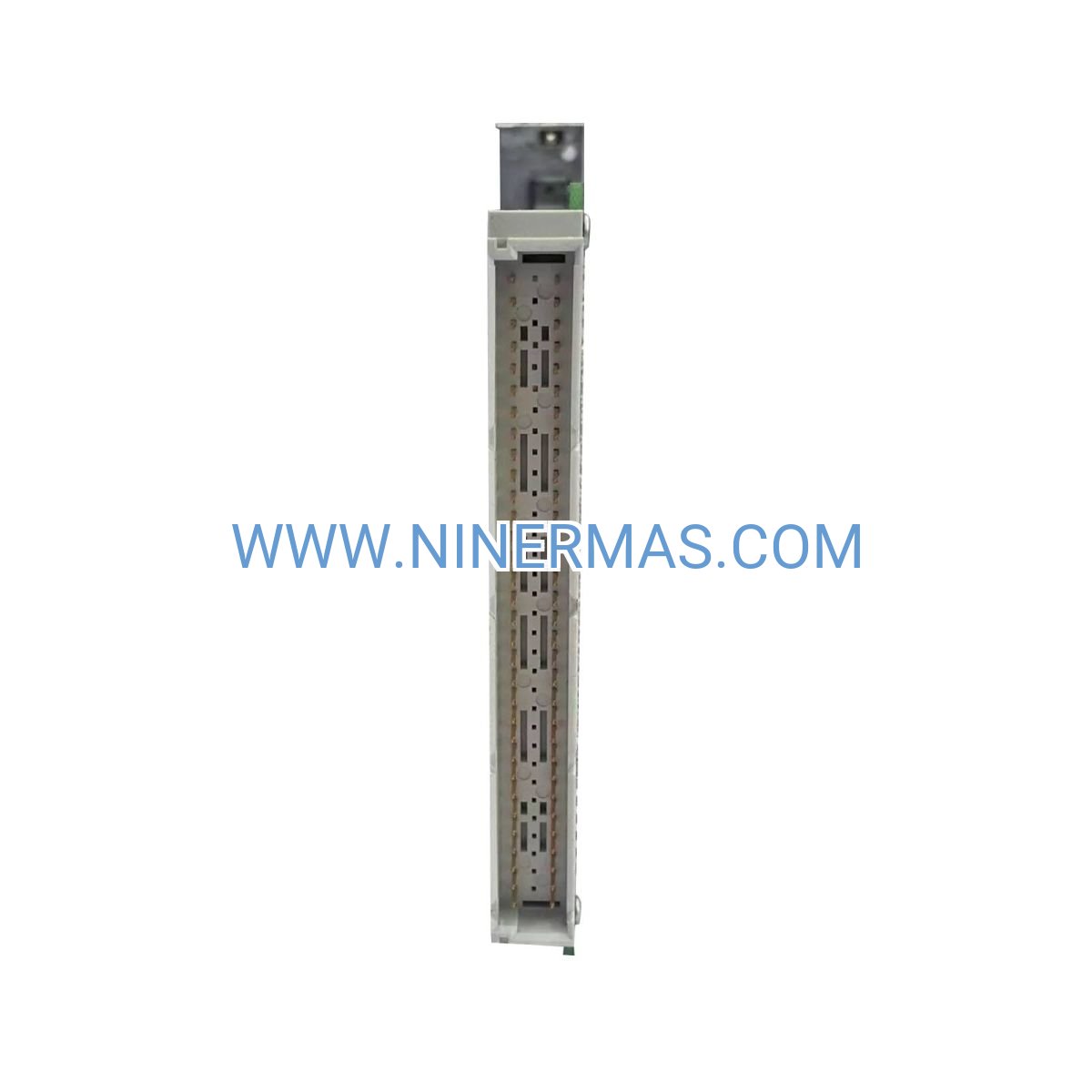

HIMA F 7131 Voltage Monitor (Industrial-Grade Power Surveillance)

The HIMA F 7131 represents a specialized voltage monitoring solution engineered to safeguard critical 5VDC power rails in safety-instrumented systems. This compact DIN-rail module continuously tracks supply voltage integrity, delivering instant visual feedback through dual-color LED indicators while simultaneously transmitting diagnostic data to your system CPU. Designed for integration within HIMA's HIMax and HIMatrix safety platforms, the F 7131 serves as your first line of defense against power-related system failures in high-stakes industrial environments.

Process industries operating under stringent safety protocols—from offshore oil platforms to pharmaceutical clean rooms—demand unwavering power stability. The F 7131 addresses this requirement by providing millisecond-level voltage deviation detection, enabling maintenance teams to intervene before minor fluctuations escalate into costly shutdowns or safety incidents. Its TÜV-certified SIL 3 rating ensures compliance with IEC 61508 functional safety standards, making it an essential component in emergency shutdown (ESD) and process safety management (PSM) architectures.

Whether you're commissioning a new distributed control system or retrofitting legacy safety infrastructure, the F 7131 delivers plug-and-play reliability. Installation requires no specialized calibration—simply mount to standard 35mm DIN rail, connect to your 5V bus, and monitor status via the intuitive LED interface. For centralized alarm management, the module's diagnostic bit output integrates seamlessly with HIMA CPUs, enabling SCADA-level visibility into power supply health across your entire facility.

Core Capabilities & Industrial Value

→ Continuous 5VDC Rail Monitoring
Tracks system voltage in real-time with precision threshold detection. Eliminates blind spots in power distribution networks, ensuring your safety logic solvers receive clean, stable power under all operating conditions—critical for maintaining SIL integrity in safety-critical loops.

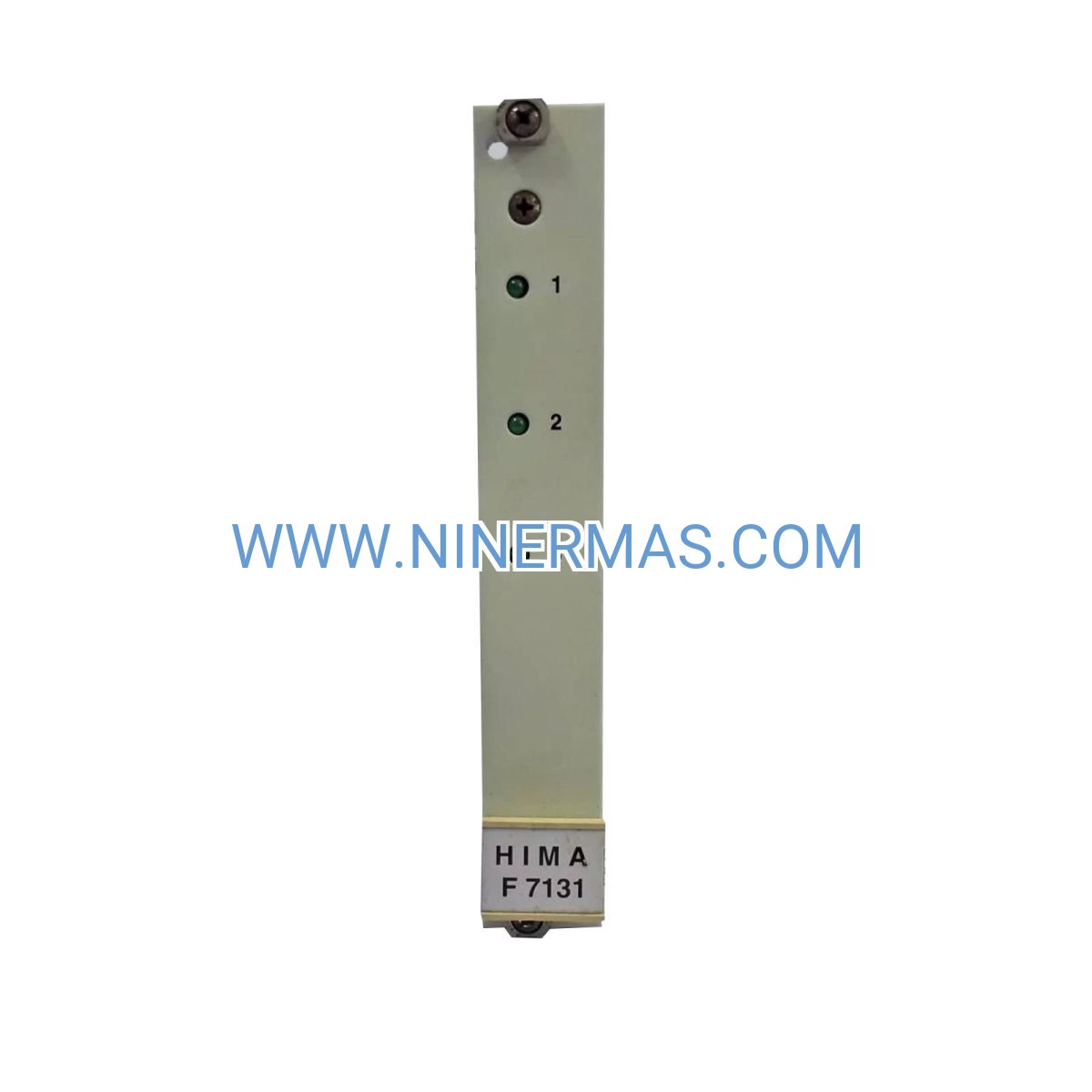

✓ Dual-LED Diagnostic Interface
Green/red visual indicators provide instant status confirmation without requiring multimeter access. Operators can verify module health during routine rounds, while red fault alerts trigger immediate investigation—reducing mean time to detection (MTTD) by up to 70% compared to non-monitored supplies.

✓ CPU-Integrated Fault Reporting
Diagnostic bit output feeds directly into HIMA system processors, enabling automated alarm generation and event logging. Integrate with your plant historian or CMMS for predictive maintenance scheduling based on voltage trend analysis—transforming reactive troubleshooting into proactive asset management.

→ TÜV SIL 3 Certification
Independently verified to IEC 61508 standards for use in safety functions up to SIL 3. Simplifies safety case documentation and regulatory compliance for industries governed by API, OSHA PSM, or Seveso III directives—reducing engineering overhead during safety lifecycle assessments.

✓ Industrial-Hardened Construction
Operates reliably across 0°C to +60°C ambient temperatures with IP20 ingress protection. Withstands vibration, electromagnetic interference, and harsh industrial atmospheres typical of refineries, chemical plants, and heavy manufacturing—backed by rigorous environmental testing per IEC 60068 standards.

Application Scenarios & Problem Resolution

Petrochemical Emergency Shutdown Systems
In refinery ESD applications, voltage sags during motor starting or grid disturbances can cause nuisance trips or—worse—prevent safety systems from executing critical shutdowns. The F 7131 monitors power supply stability feeding safety PLCs, alerting operators to marginal conditions before they compromise shutdown reliability. Result: Reduced false trip rates and guaranteed availability during actual process emergencies.

Offshore Platform Safety Instrumented Systems
Marine environments subject electrical systems to salt fog, temperature cycling, and vibration from drilling operations. The F 7131's continuous monitoring detects early signs of power supply degradation—corroded connections, failing capacitors, or regulator drift—enabling scheduled maintenance during planned shutdowns rather than emergency mobilizations. Benefit: Lower maintenance costs and improved platform uptime in remote locations.

Pharmaceutical Cleanroom Environmental Controls
GMP-regulated facilities require documented proof of control system integrity. The F 7131's diagnostic output creates an auditable trail of power supply performance, supporting 21 CFR Part 11 compliance for electronic records. When integrated with batch management systems, voltage anomalies can trigger automatic batch holds, preventing product contamination from control system malfunctions.

Power Generation Turbine Protection
Gas and steam turbine control systems rely on microsecond-level response times to prevent overspeed or vibration damage. The F 7131 ensures the 5V logic power feeding turbine protection relays remains within specification, with LED alerts visible from control room windows for rapid fault localization during commissioning or troubleshooting.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F 7131 when your application requires dedicated 5VDC monitoring within HIMA safety systems. For multi-voltage monitoring (5V + 24V), consider the F 7130A dual-supply module. If you need power distribution with integrated monitoring across multiple channels, the F 7133 4-fold distribution module offers expanded capability. Always verify compatibility with your specific HIMA CPU model and firmware revision before ordering.

Extended Functions & Integration Options

SCADA/HMI Integration: The F 7131's diagnostic bit can be mapped to SCADA tags for remote monitoring via Modbus, OPC UA, or proprietary HIMA protocols. Configure alarm thresholds in your HMI to differentiate between warning-level voltage deviations and critical fault conditions requiring immediate shutdown.

Redundant Power Architectures: Deploy multiple F 7131 modules to monitor redundant 5V supplies in fault-tolerant configurations. Cross-reference diagnostic outputs in your safety logic to implement voting schemes that maintain system availability during single power supply failures.

Predictive Maintenance Analytics: Export diagnostic event logs to cloud-based analytics platforms for machine learning-driven failure prediction. Voltage trend analysis can identify aging power supplies weeks before catastrophic failure, enabling condition-based replacement strategies.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 2-3 business days via express courier (DHL/FedEx). Typical delivery to major industrial hubs: North America 5-7 days, Europe 4-6 days, Asia-Pacific 6-8 days.

Custom Configuration: Factory-programmed modules with specific diagnostic thresholds or firmware versions available with 3-4 week lead time. Contact our engineering team for application-specific requirements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Lifetime access to our applications engineering team for installation guidance, troubleshooting, and system integration support. Phone, email, and remote desktop assistance available during business hours (GMT+8).

Documentation Package: Each module ships with installation manual, wiring diagrams, TÜV certificates, and dimensional drawings. CAD models and EPLAN macros available for download from our technical library.

Frequently Asked Questions

Can the F 7131 monitor 24VDC power supplies in addition to 5V rails?
No, the F 7131 is designed exclusively for 5VDC system voltage monitoring. For 24VDC monitoring or dual-voltage applications, we recommend the HIMA F 7130A module, which handles both 5V and 24V supplies with independent diagnostic channels.

What happens if the monitored voltage drops below the acceptable threshold?
The module's red LED illuminates immediately, and the diagnostic bit transmitted to the CPU changes state. Your safety program can be configured to trigger alarms, initiate controlled shutdowns, or switch to redundant power sources based on your facility's safety logic requirements.

Is hot-swapping supported for maintenance without system shutdown?
No, the F 7131 is not designed for hot-swap operation. Power must be removed from the monitored circuit before module installation or replacement to prevent damage to the monitoring circuitry and ensure personnel safety during maintenance activities.

How does the F 7131 integrate with non-HIMA control systems?
While optimized for HIMA HIMax/HIMatrix platforms, the LED indicators provide universal visual diagnostics for any 5V system. However, the diagnostic bit output requires a HIMA CPU for digital integration. For third-party PLC integration, consider using the LED status with external monitoring relays.

What calibration or commissioning is required after installation?
None. The F 7131 is factory-calibrated and ready for operation upon installation. Simply mount to DIN rail, connect to your 5V supply, and verify LED status. No software configuration, parameter setting, or field calibration is necessary.

Can multiple F 7131 modules monitor different sections of a distributed power network?
Yes, deploy multiple modules throughout your system to monitor voltage at critical distribution points. Each module operates independently, allowing you to pinpoint voltage drop locations in complex power architectures—particularly valuable in large cabinet installations or geographically distributed control systems.

Take the Next Step

Protect your safety-critical infrastructure with proven voltage monitoring technology. Contact our industrial automation specialists today for application-specific recommendations, volume pricing, or technical consultation on integrating the F 7131 into your HIMA safety system. Request a quote now or schedule a virtual system review with our engineering team.
