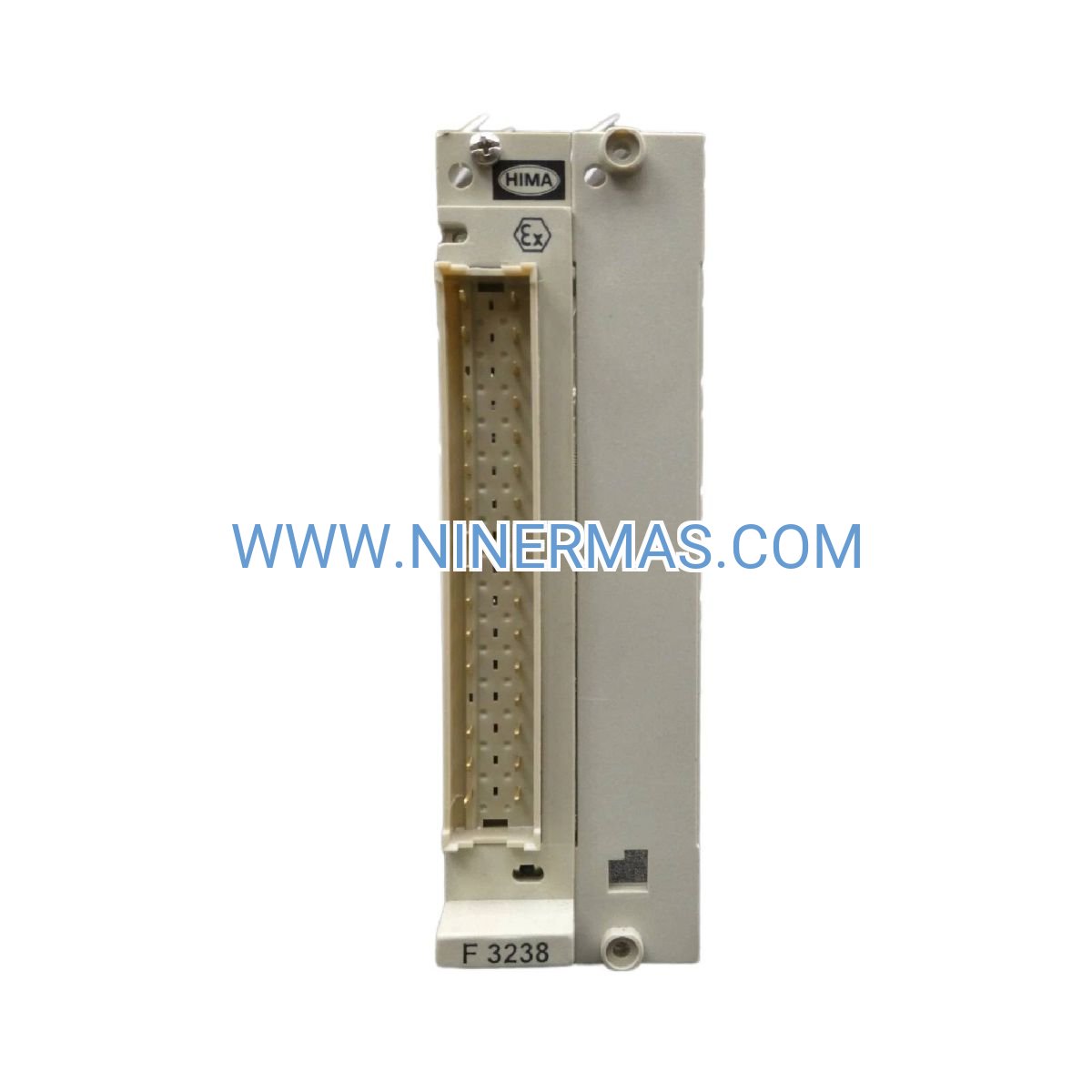

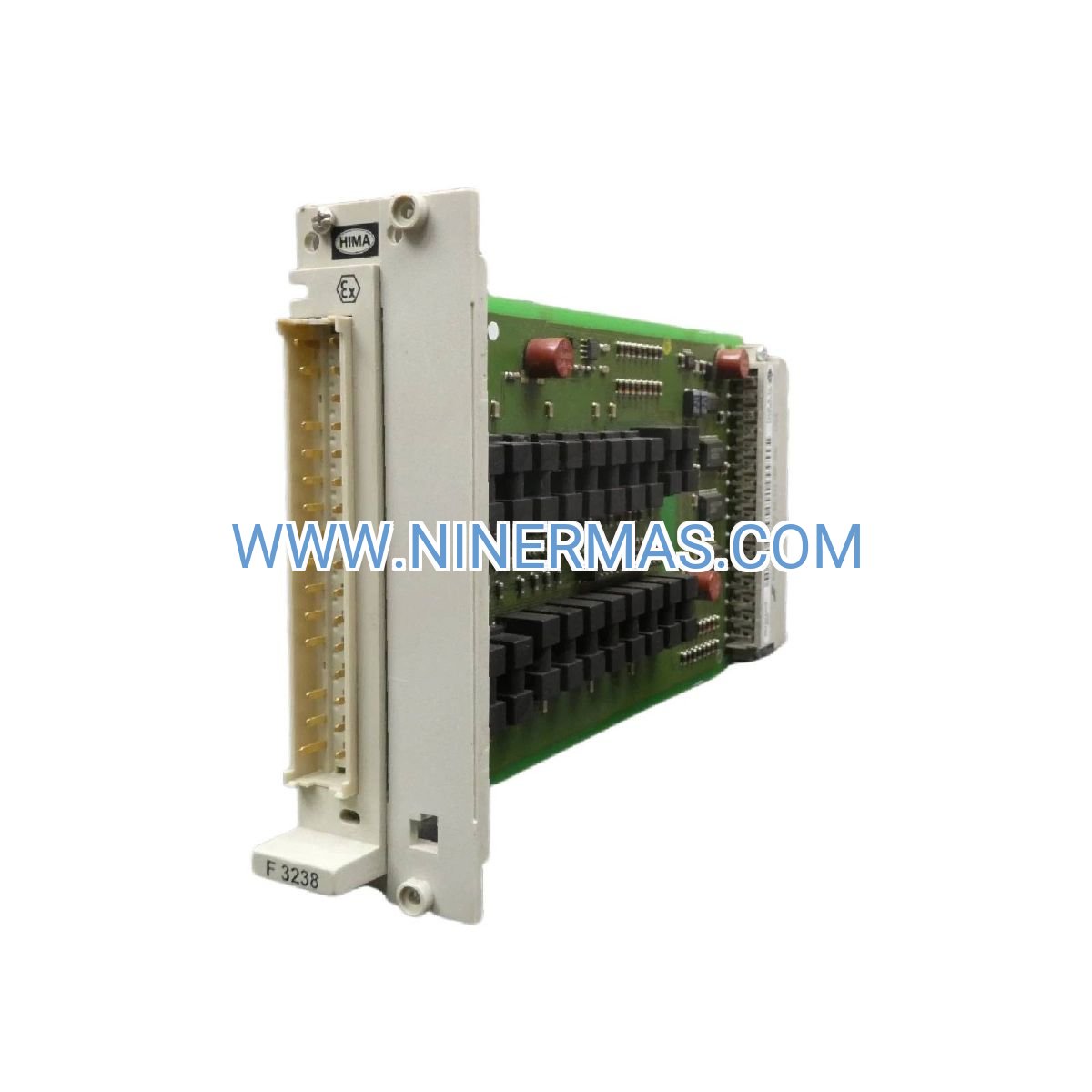

HIMA F 3238 High-Precision Analog Input Module (Industrial-Grade Safety I/O)

The HIMA F 3238 represents a critical component in modern safety-instrumented systems, delivering galvanically isolated analog signal processing for HIMax and HIMatrix platforms. This module transforms raw sensor data into actionable intelligence for process industries where equipment protection and regulatory compliance intersect. Designed for engineers managing turbomachinery, burner management, and continuous process monitoring, the F 3238 combines 16-bit measurement precision with SIL 2/3 certification to safeguard high-value assets. Whether you're retrofitting legacy systems or designing greenfield installations, this module provides the reliability foundation that keeps critical operations running without compromise.

Core Capabilities & Technical Advantages

✓ Multi-Channel Galvanic Isolation: Each input channel operates independently with electrical isolation from the system bus, eliminating ground loop interference and protecting downstream controllers from field-side electrical faults—essential for maintaining signal integrity in electrically noisy industrial environments.

✓ Dual Signal Range Flexibility: Configurable 4-20mA current loop and 0-10V voltage inputs accommodate diverse sensor types without external signal conditioning, reducing installation complexity and bill-of-materials costs across mixed-sensor architectures.

✓ Factory-Calibrated Accuracy: Ships with ±0.1% full-scale accuracy and traceable calibration certificates, meeting stringent measurement requirements for custody transfer, emissions monitoring, and quality control applications where data defensibility matters.

✓ Hot-Swap Serviceability: Field-replaceable design enables module exchange during operation without system shutdown, maximizing uptime in 24/7 process facilities where scheduled maintenance windows are measured in minutes, not hours.

✓ Deterministic Response Time: Sub-50ms signal processing ensures real-time fault detection in fast-moving processes, providing the temporal resolution needed for emergency shutdown sequences and protective relay coordination.

✓ Extended Temperature Range: Operates reliably from -20°C to +60°C ambient, supporting installations in unheated enclosures, outdoor substations, and tropical climates without derating or auxiliary cooling systems.

Industry-Specific Application Scenarios

→ Rotating Equipment Protection Systems: In compressor trains and steam turbines, the F 3238 interfaces with proximity probes and seismic accelerometers to monitor shaft displacement and bearing vibration. When vibration amplitudes exceed API 670 alarm thresholds, the module triggers protective shutdowns within milliseconds, preventing bearing failures that could cascade into million-dollar repair events and extended production losses.

→ Petrochemical Reactor Monitoring: Chemical processing units rely on the F 3238 to acquire temperature, pressure, and level transmitter signals across exothermic reaction vessels. The module's SIL 3 certification ensures compliance with IEC 61511 safety lifecycle requirements, while its isolated architecture prevents common-cause failures in redundant measurement chains that protect against runaway reactions.

→ Power Generation Burner Management: Boiler safety systems use the F 3238 to process analog signals from flame scanners, fuel valve positioners, and draft pressure transmitters. The module's fail-safe design maintains defined states during power interruptions, satisfying NFPA 85 code requirements for combustion safety in utility and industrial power plants.

→ Offshore Platform Emergency Systems: Oil and gas production facilities deploy the F 3238 in fire and gas detection networks where salt fog, vibration, and temperature cycling challenge conventional I/O hardware. The module's conformal coating and robust terminal blocks deliver proven reliability in marine environments where equipment accessibility is limited by weather windows and helicopter logistics.

→ Pipeline Leak Detection Networks: Long-distance hydrocarbon transmission systems integrate the F 3238 with flow computers and pressure transmitters to implement computational pipeline monitoring algorithms. The module's measurement stability enables detection of 1% flow rate deviations that indicate third-party damage or internal corrosion before catastrophic ruptures occur.

Technical Parameters & Selection Criteria

Selection Guidelines: When specifying the F 3238, verify compatibility with your HIMax/HIMatrix controller firmware revision and confirm that your sensor output ranges match the module's configurable inputs. For applications requiring HART communication or NAMUR sensor diagnostics, consult HIMA's extended I/O portfolio. Calculate total system I/O density to optimize rack utilization and minimize spare parts inventory across multiple installations.

Advanced Integration Features

Redundant Architecture Support: The F 3238 integrates seamlessly into HIMA's fault-tolerant controller configurations, supporting 1oo2 and 2oo3 voting schemes without external marshalling hardware. Automatic channel diagnostics detect open circuits, short circuits, and out-of-range conditions, annunciating faults to operators while maintaining safe states in remaining channels.

Cybersecurity Hardening: Module firmware incorporates secure boot processes and cryptographic authentication, addressing IEC 62443 industrial cybersecurity requirements for safety systems exposed to networked environments. Configuration changes require authorized access credentials, creating audit trails for regulatory compliance documentation.

Predictive Maintenance Enablement: Built-in diagnostics track signal drift, calibration aging, and environmental stress indicators, feeding data to asset management platforms for condition-based maintenance scheduling. This intelligence reduces unplanned downtime by identifying degradation trends before they impact process measurements.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock modules ship within 3-5 business days via expedited carriers, with tracking provided at dispatch. Custom configurations requiring factory programming typically require 2-3 weeks from order confirmation.

Warranty Coverage: Each F 3238 module includes a 12-month manufacturer warranty covering material defects and workmanship under normal operating conditions. Warranty claims are processed with advance replacement options to minimize production impact.

Technical Support: Our applications engineering team provides pre-sales consultation on system architecture, I/O mapping, and integration planning. Post-delivery support includes configuration file review, troubleshooting assistance, and firmware update coordination throughout the product lifecycle.

Documentation Package: Shipments include installation manuals, wiring diagrams, calibration certificates, and configuration software compatible with HIMA's engineering tools. Digital documentation libraries provide access to application notes, safety manual addenda, and obsolescence roadmaps.

Frequently Asked Questions

Q: How does the F 3238 analog input module interface with non-HIMA DCS platforms?
A: While optimized for HIMax/HIMatrix systems, the F 3238 can export processed signals via standard protocols when paired with appropriate gateway modules. Consult our integration specialists for multi-vendor architecture designs.

Q: What calibration interval does HIMA recommend for maintaining SIL certification?
A: Factory calibration remains valid for 24 months under normal conditions. However, your safety integrity level verification may impose shorter intervals based on proof test requirements and process hazard analysis—typically 12-18 months in critical applications.

Q: Can I retrofit F 3238 modules into existing HIMatrix racks without controller upgrades?
A: Yes, backward compatibility is maintained across HIMax/HIMatrix generations through standardized backplane protocols. Verify firmware compatibility using HIMA's configuration tool version matrix before deployment.

Q: Does the module support HART-enabled smart transmitters for advanced diagnostics?
A: The standard F 3238 processes analog signals only. For HART communication passthrough, consider HIMA's F 32xx series variants with integrated HART multiplexing—contact us for model selection guidance.

Q: What environmental testing validates the -20°C to +60°C operating range?
A: Modules undergo IEC 60068-2 thermal cycling, vibration per IEC 60068-2-6, and EMC testing to IEC 61000-6-2/4 standards. Test reports are available under NDA for qualification documentation in regulated industries.

Q: How do I calculate the required number of F 3238 modules for a new safety system design?
A: Start with your sensor count and signal types, then factor in spare capacity (typically 20% for future expansion) and redundancy requirements. Our engineering team offers complimentary I/O sizing reviews during the quotation phase.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists today for technical consultation, pricing, and delivery options tailored to your project timeline. Whether you're sourcing a single replacement module or planning a complete safety system upgrade, we provide the expertise and inventory depth to keep your critical operations protected.
