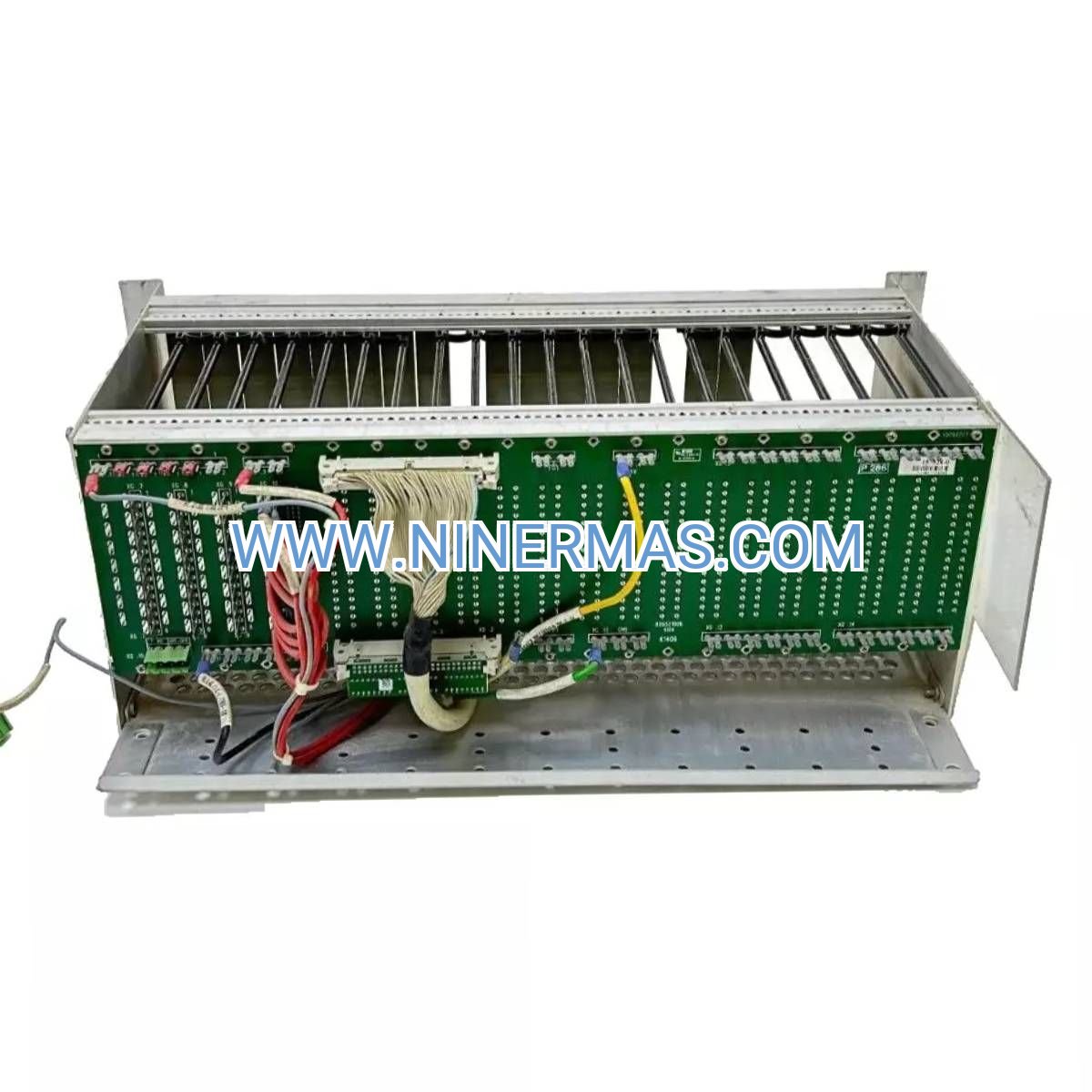

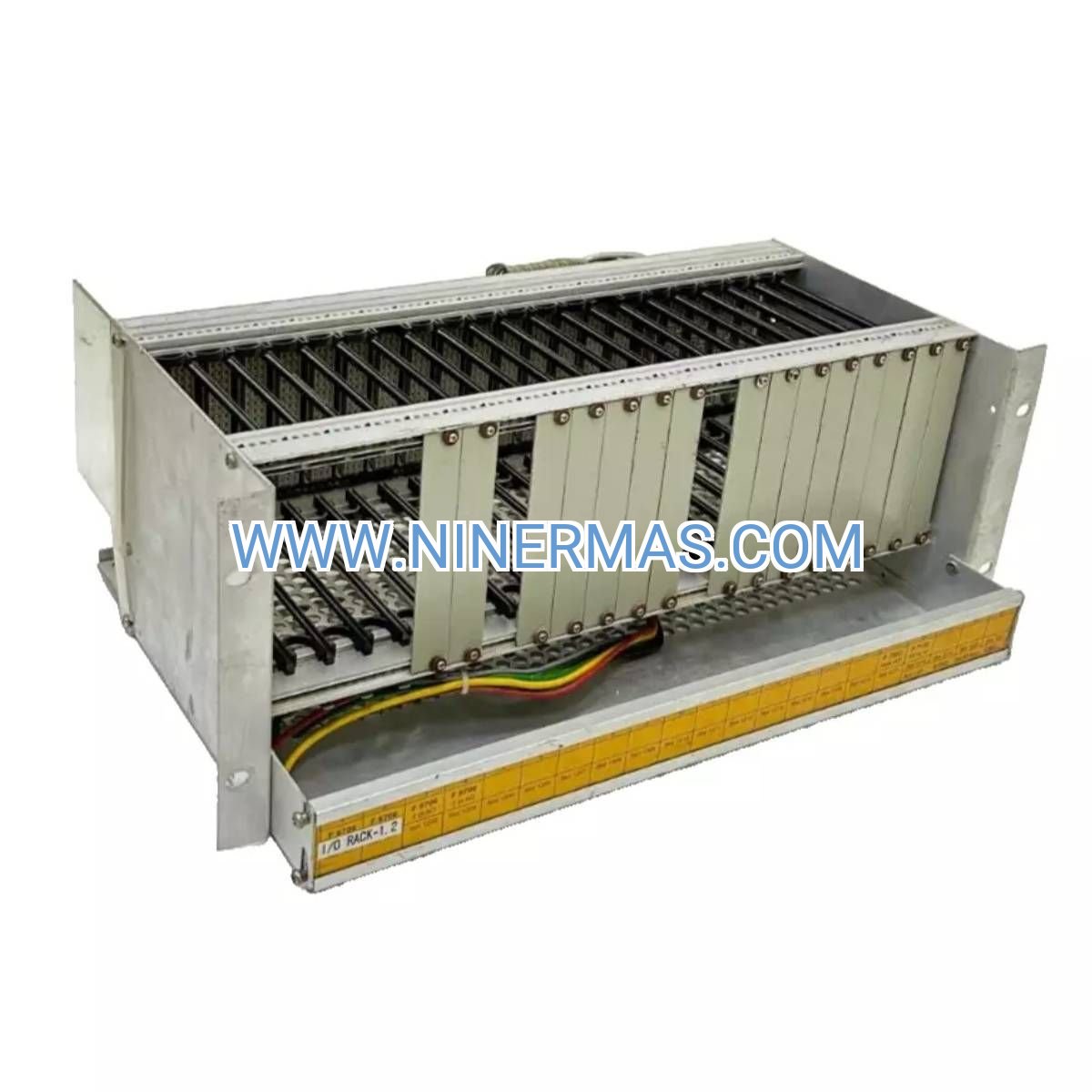

HIMA B9302 Modular I/O Rack (Industrial-Grade Safety Infrastructure)

The HIMA B9302 represents a cornerstone component in safety-instrumented system design, offering a 16-slot modular chassis engineered for HIQuad platform integration. This industrial-grade I/O rack delivers certified SIL 3 performance across process industries where equipment protection and emergency shutdown capabilities are non-negotiable. Built with redundant communication architecture and hot-swap functionality, the B9302 enables continuous operation in oil refineries, chemical plants, power stations, and critical manufacturing environments.

Designed for system integrators and plant engineers managing complex safety logic, this rack accommodates heterogeneous I/O module configurations—from digital input/output cards to analog signal processors and specialized communication interfaces. The dual-redundant 24V DC power architecture ensures uninterrupted operation during maintenance cycles, while the 19-inch rack-mount form factor simplifies integration into existing control room infrastructure.

Whether you're upgrading legacy safety systems or deploying greenfield installations, the B9302 provides the scalability and reliability demanded by IEC 61508 and API 670 compliance requirements. Its proven track record in turbomachinery protection, burner management, and emergency isolation applications makes it the preferred choice for engineers prioritizing uptime and safety integrity.

Core Features & Benefits

→ 16-Slot Modular Architecture
Accommodates up to 16 I/O modules in a single chassis, supporting mixed configurations of digital I/O, analog signal conditioning, and communication gateways. This flexibility reduces hardware footprint while enabling tailored system designs that match specific process requirements.

→ SIL 3 Safety Certification
Certified to IEC 61508 SIL 3 standards, ensuring compliance with international functional safety regulations. Suitable for safety-instrumented functions requiring probability of failure on demand (PFD) below 10⁻³, meeting the most stringent industrial safety mandates.

→ Redundant Communication Backplane
Dual-bus architecture with automatic failover capability maintains system integrity during single-point failures. Cross-monitoring between redundant channels detects discrepancies in real-time, triggering safe-state transitions per IEC 61511 protocols.

→ Hot-Swappable Module Design
Replace or upgrade I/O modules without de-energizing the entire rack, minimizing planned downtime. Built-in diagnostic LEDs provide instant visual feedback on module status, power rail health, and communication integrity.

→ Wide Operating Temperature Range
Operates reliably from -20°C to +60°C, accommodating harsh industrial environments including outdoor installations, non-climate-controlled enclosures, and high-ambient-temperature process areas.

→ Dual Redundant Power Inputs
18-32V DC operating range with automatic switchover between primary and backup power sources. Protects against supply interruptions while supporting standard industrial 24V DC infrastructure.

Application Scenarios

Emergency Shutdown Systems (ESD)
Deploy the B9302 as the central I/O hub for safety-instrumented systems managing process isolation valves, fire & gas detection interfaces, and emergency depressurization logic. The rack's redundant architecture ensures continuous monitoring of critical shutdown loops, even during module replacement or diagnostic activities. Typical applications include offshore platforms, LNG terminals, and chemical reactor protection systems where failure to execute shutdown commands could result in catastrophic consequences.

Turbomachinery Vibration Monitoring
Integrate the B9302 with proximity probes, accelerometers, and bearing temperature sensors to create API 670-compliant machinery protection systems. The rack's analog input modules process vibration signals with high fidelity, while digital output cards trigger trip relays when vibration thresholds are exceeded. Commonly used in compressor trains, steam turbines, and gas turbine generator sets where undetected mechanical faults lead to equipment destruction.

Burner Management Systems (BMS)
Utilize the modular platform for flame scanner interfaces, fuel valve control, and combustion air damper positioning in boiler and furnace applications. The B9302's safety-rated I/O modules meet NFPA 85/86 requirements for burner control systems, preventing unsafe fuel accumulation and ensuring proper ignition sequencing. Ideal for power plant boilers, process heaters, and industrial furnaces.

Pipeline Leak Detection & Isolation
Configure the rack within distributed control architectures monitoring pipeline pressure, flow rates, and leak detection sensors across extended geographical areas. Digital input modules interface with field transmitters, while output cards control remotely operated isolation valves. The redundant backplane ensures continuous surveillance even during communication network disruptions.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the B9302 rack, calculate total I/O point requirements and module power consumption to ensure the 16-slot capacity and 30W power budget are not exceeded. For applications requiring more than 16 modules, deploy multiple racks in distributed configurations. Consider redundant rack pairs (1oo2 or 2oo3 voting) for applications demanding fault-tolerant operation with zero downtime during failures.

Extended Functions

IoT Integration & Remote Diagnostics
The B9302 supports integration with HIMA's HIScout diagnostic software, enabling remote monitoring of module health, communication statistics, and power supply status via Ethernet gateways. Predictive maintenance algorithms analyze historical fault data to forecast module replacement intervals, reducing unplanned outages.

Cybersecurity Features
When paired with HIMA's secure communication modules, the rack supports encrypted data transmission and role-based access control, meeting IEC 62443 industrial cybersecurity standards. Audit logging tracks all configuration changes and diagnostic access for compliance documentation.

Customization Options
HIMA offers factory-configured racks pre-populated with customer-specified I/O modules, tested and documented per project requirements. Custom labeling, cable harnesses, and terminal block configurations available for turnkey installations.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 4-6 weeks from order confirmation. Custom-configured racks require 8-10 weeks for factory assembly and testing. Expedited delivery available for critical outage situations (contact sales for fast-track options).

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical infrastructure deployments, including on-site spare parts stocking and priority technical support.

Technical Support: Access to HIMA-certified application engineers for system design consultation, commissioning assistance, and troubleshooting. Phone and email support available during business hours (CET timezone), with emergency hotline for safety-critical issues.

Documentation Package: Each rack includes installation manual, module compatibility matrix, wiring diagrams, and safety certification documents. CAD drawings (DWG/DXF formats) and 3D STEP models available for panel design integration.

Frequently Asked Questions

Can the B9302 rack accommodate third-party I/O modules from other manufacturers?
No, the B9302 is designed exclusively for HIMA-branded I/O modules within the HIQuad product family. Mixing third-party modules voids safety certifications and may cause backplane communication failures. For interfacing with non-HIMA equipment, use HIMA's communication gateway modules that support standard industrial protocols.

What is the maximum cable run distance between the rack and field instruments?
Digital I/O modules typically support cable runs up to 1000 meters using shielded twisted-pair wiring with proper grounding. Analog 4-20mA loops operate reliably up to 500 meters, though signal integrity depends on cable quality, electromagnetic interference levels, and grounding practices. For longer distances, consider using remote I/O racks with fiber-optic communication links.

How do I migrate from legacy HIMA HIMax systems to the B9302 HIQuad platform?
The B9302 is not backward-compatible with HIMax modules. Migration requires replacing both the rack and I/O modules, though existing field wiring can often be reused. HIMA provides migration planning tools and conversion services to map legacy I/O configurations to equivalent HIQuad modules. Consult HIMA's technical support for project-specific migration strategies.

Does the rack support online firmware updates without system shutdown?
Yes, individual I/O modules can be updated via the HIQuad programming software while the rack remains energized, thanks to hot-swap capability. However, safety-critical applications should follow change management protocols per IEC 61511, including risk assessment and validation testing before deploying firmware updates in production environments.

What redundancy configurations are supported for fault-tolerant operation?
The B9302 supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) redundant architectures when paired with duplicate racks and appropriate voting logic in the HIQuad controller. Cross-monitoring between redundant channels detects discrepancies and triggers safe-state transitions. Consult HIMA's system design guides for detailed redundancy configuration procedures.

Are there any energy efficiency features to reduce operational costs?
The B9302 features low-power backplane design and supports sleep modes for unused module slots, reducing overall power consumption. When combined with energy-efficient I/O modules, typical rack power draw remains below 20W, minimizing cooling requirements and electrical operating expenses over the system's 15-20 year service life.

Ready to Enhance Your Safety System Infrastructure?

Contact our industrial automation specialists to discuss your HIQuad system requirements, receive technical datasheets, or request a formal quotation. Our team provides application engineering support to ensure optimal rack configuration for your specific process safety needs.
