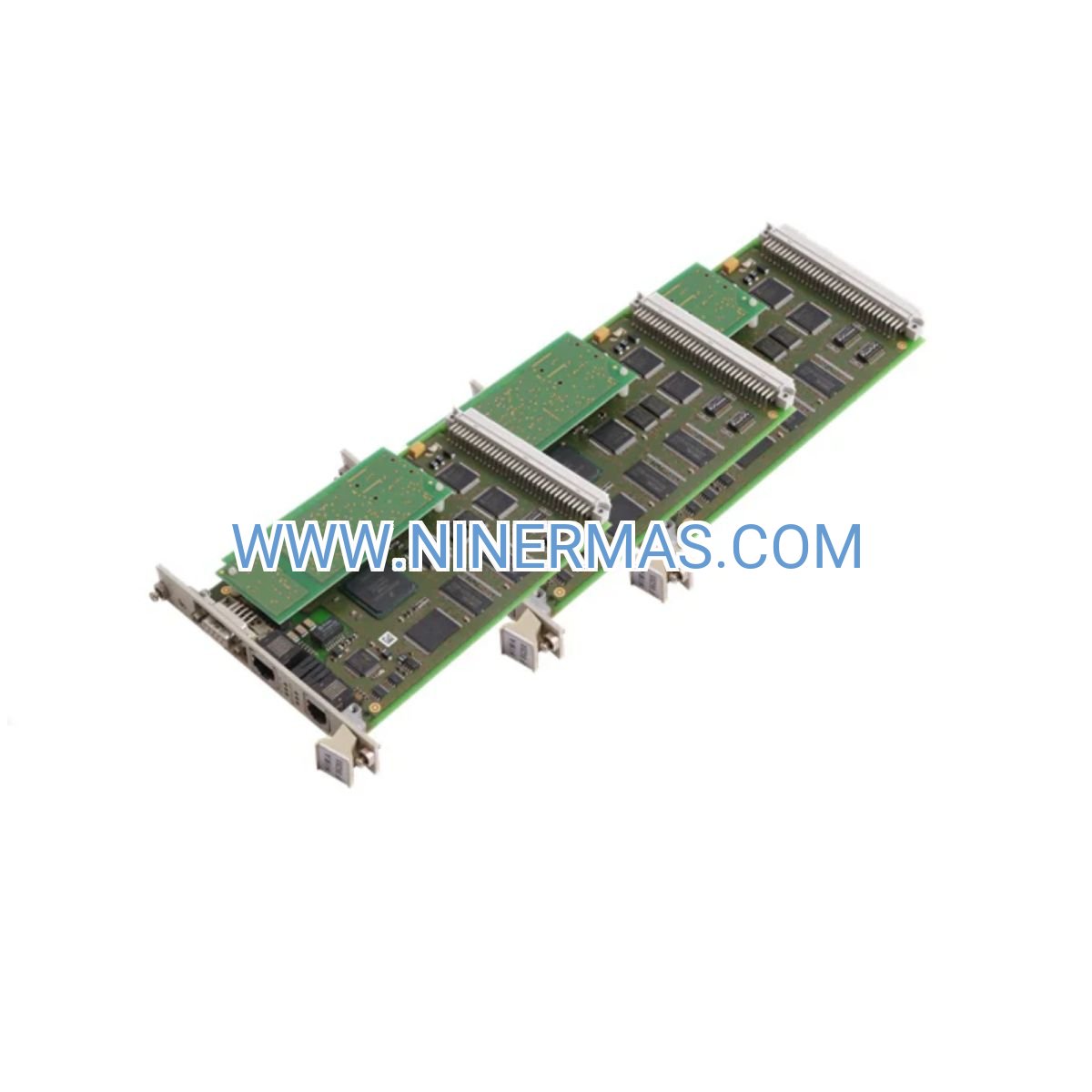

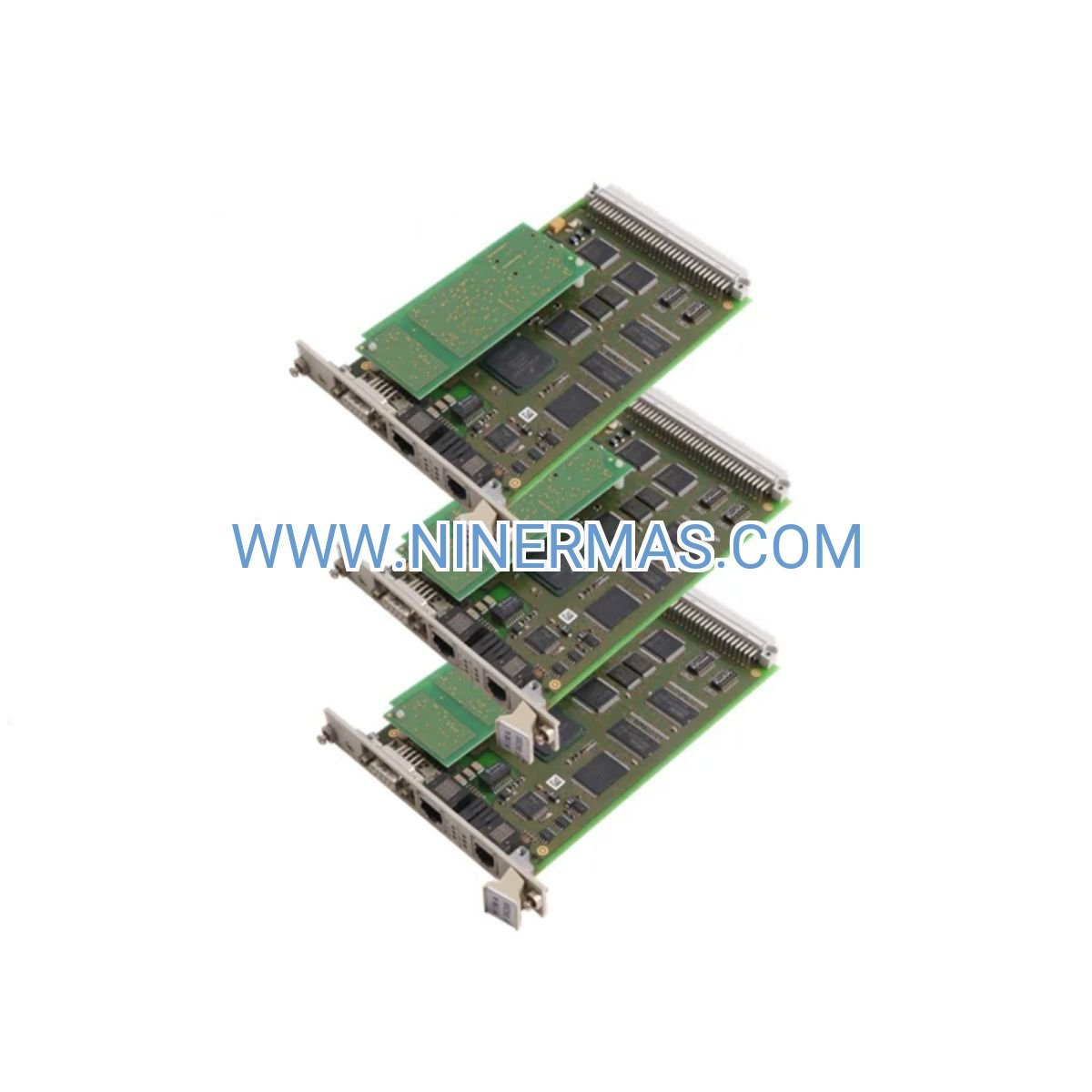

B4237-2 Redundant Central Module (Industrial-Grade Safety Control Core)

The B4237-2 represents HIMA's engineering excellence in fault-tolerant safety automation—a dual-channel central processing module designed for H41q and H51q safety-related control platforms. This module serves as the intelligent backbone for emergency shutdown systems, fire and gas detection networks, and burner management applications where process continuity and personnel safety are non-negotiable. Built to IEC 61508 SIL 3 standards, it delivers deterministic control logic execution with automatic failover capabilities that keep critical operations running even during component-level failures.

Industries operating in hazardous environments—petrochemical refineries, offshore production platforms, pharmaceutical clean rooms, and power generation facilities—rely on the B4237-2's proven architecture to meet regulatory compliance while minimizing unplanned downtime. The module's hot-swap capability allows maintenance teams to replace units during live operation, eliminating costly production interruptions and extending mean time between forced shutdowns.

With over 100,000 hours MTBF and TÜV certification, the B4237-2 combines German precision manufacturing with field-proven reliability. Whether you're upgrading legacy H41q installations or designing greenfield safety instrumented systems, this module provides the processing foundation for high-integrity protection layers that safeguard assets, environment, and human life.

Core Features & Business Value

→ Dual-Channel Redundancy Architecture
Eliminate single points of failure through synchronized parallel processing. Each channel independently executes safety logic and cross-validates outputs, automatically switching to the healthy module if one channel detects a fault. This design achieves 99.99% availability in 1oo2 configurations—critical for applications where even milliseconds of downtime can trigger emergency shutdowns or safety incidents.

✓ Hot-Swappable Maintenance Design
Replace failed or aging modules without halting production. The B4237-2's live-insertion capability allows technicians to extract and install units while the redundant partner maintains full system control. This feature reduces maintenance windows from hours to minutes and enables predictive replacement strategies based on diagnostic health indicators rather than reactive failure response.

✓ SIL 3 Certified Safety Integrity
Meet the highest safety integrity levels for process industry applications. TÜV certification to IEC 61508 SIL 3 ensures the module's failure rates, diagnostic coverage, and architectural constraints satisfy regulatory requirements for safety instrumented functions. This certification streamlines compliance audits and provides documented evidence for functional safety assessments.

→ Intelligent Self-Diagnostics
Continuous internal monitoring detects degraded performance before it impacts operations. Built-in diagnostics track power supply stability, communication integrity, memory checksums, and processing cycle times. Early warning alerts enable condition-based maintenance, reducing unexpected failures by up to 40% compared to time-based replacement schedules.

✓ Backward-Compatible Integration
Protect existing infrastructure investments through seamless compatibility with H41q and H51q legacy systems. The B4237-2 auto-configures to match installed firmware versions and I/O configurations, allowing phased modernization without complete system replacement. This approach reduces capital expenditure by 30-50% compared to forklift upgrades while improving safety performance.

→ Industrial-Hardened Environmental Tolerance
Operate reliably in harsh conditions from 0°C to 60°C with 95% humidity resistance. Conformal coating protects circuitry from corrosive atmospheres, vibration-resistant connectors maintain signal integrity in high-shock environments, and extended temperature storage (-40°C to 85°C) ensures long-term spare parts viability in remote locations.

Typical Application Scenarios

Emergency Shutdown Systems (ESD) in Refineries
In hydrocarbon processing facilities, the B4237-2 executes critical shutdown logic that isolates process units during overpressure, high-temperature, or toxic release events. The module's sub-50ms response time and redundant architecture ensure that safety valves actuate reliably even if one processing channel fails. Operators gain peace of mind knowing that SIL 3-rated logic stands between normal operations and catastrophic incidents, while hot-swap capability allows maintenance during planned turnarounds without extending outage duration.

Fire & Gas Detection Networks in Offshore Platforms
Offshore oil and gas installations deploy the B4237-2 as the central processor for multi-zone fire and gas detection systems. The module aggregates inputs from hundreds of flame detectors, combustible gas sensors, and toxic gas monitors, executing voting logic that discriminates between genuine hazards and nuisance alarms. Redundant processing ensures that detection capability remains intact during North Sea storms or equipment failures, protecting personnel and preventing environmental disasters in remote locations where emergency response is measured in hours, not minutes.

Burner Management Systems (BMS) in Power Plants
Combined-cycle power plants rely on the B4237-2 to manage safe startup, operation, and shutdown sequences for gas turbine combustors and heat recovery steam generators. The module enforces interlocks that prevent unsafe fuel-air mixtures, monitors flame stability, and coordinates purge cycles—all while maintaining compliance with NFPA 85 and IEC 61511 standards. Dual-channel verification prevents spurious trips that cost utilities $500,000+ per event in lost generation capacity.

High-Integrity Pressure Protection (HIPPS) in Pipelines
Long-distance pipeline operators use the B4237-2 in HIPPS applications that protect downstream equipment from overpressure transients. The module processes pressure transmitter signals and commands fast-acting isolation valves within 2 seconds—preventing pipeline ruptures that could cause environmental contamination and regulatory penalties exceeding $10 million. Redundant processing ensures protection remains active even during single-channel failures or maintenance activities.

Pharmaceutical Clean Room Environmental Control
Biopharmaceutical manufacturers deploy the B4237-2 to maintain critical environmental parameters in aseptic processing areas. The module monitors differential pressure, temperature, humidity, and particle counts, executing safety logic that prevents contamination events during sterile drug manufacturing. SIL 3 integrity ensures that batch losses (valued at $2-5 million for biologics) are prevented through reliable environmental control, while diagnostic capabilities support FDA 21 CFR Part 11 compliance for electronic records.

Technical Parameters & Selection Guide

Selection Criteria: Choose the B4237-2 when your application requires SIL 3-rated central processing with redundancy. For non-safety applications or SIL 1/2 requirements, consider standard (non-redundant) HIMA CPU modules. Verify that your H41q or H51q system firmware version supports the B4237-2 by consulting HIMA's compatibility matrix. For new installations, pair with redundant power supplies (Z7128) and communication modules (F8650X/F8652X) to achieve full system-level fault tolerance. Ensure adequate cooling (Z6012 fan modules) when operating above 50°C ambient temperature.

Extended Functions

IoT Integration & Remote Monitoring: The B4237-2 supports integration with HIMA's Remote Service Platform, enabling secure cloud-based diagnostics and performance analytics. Plant engineers can monitor module health indicators, track diagnostic event logs, and receive predictive maintenance alerts via web dashboards or mobile apps—reducing site visits by 60% and enabling centralized fleet management across multiple facilities.

Advanced Voting Logic: Beyond standard 1oo2 redundancy, the module supports 2oo3 and 2oo4 voting configurations when deployed in triple or quadruple modular redundant architectures. This capability is essential for applications requiring both high availability and low spurious trip rates, such as subsea production control systems where intervention costs exceed $500,000 per event.

Cybersecurity Hardening: Firmware includes IEC 62443-compliant security features such as role-based access control, encrypted configuration files, and audit logging. These protections defend against unauthorized modifications and support compliance with NERC CIP (power sector) and API 1164 (pipeline) cybersecurity standards.

Custom Configuration Services: NINERMAS offers factory pre-configuration services where modules are programmed, tested, and documented to your specific application requirements before shipment. This turnkey approach reduces commissioning time by 40% and ensures that modules arrive ready for plug-and-play installation with minimal on-site engineering.

Delivery & Service Assurance

Lead Time: In-stock B4237-2 modules ship within 1-3 business days via DHL/FedEx Express with full tracking. Custom-configured units require 10-15 business days for factory programming and FAT documentation. Expedited processing available for emergency replacements (contact sales team for 24-hour turnaround options).

Warranty Coverage: All modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes free replacement shipping and no-hassle RMA processing. Extended warranty plans (24/36 months) available for critical spares inventory applications.

Technical Support: Lifetime technical support provided by HIMA-certified engineers with expertise in H41q/H51q system architecture, SIL verification, and troubleshooting. Support includes configuration assistance, firmware upgrade guidance, and integration consulting. Response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Package: Each module ships with calibration certificate, test report, IEC 61508 certificate, user manual (English/German), and SILworX configuration templates. Digital documentation library includes CAD drawings, spare parts lists, and application notes for common integration scenarios.

Frequently Asked Questions

Can the B4237-2 module operate in Zone 2 hazardous area classifications?
Yes, when installed in ATEX/IECEx certified HIMA chassis with appropriate barriers and enclosures. The module itself is suitable for Zone 2 (Group IIC) applications. For Zone 1 or Zone 0 installations, consult HIMA's hazardous area installation guidelines and use intrinsically safe barriers for field wiring.

What is the maximum I/O capacity supported by a single B4237-2 module?
The B4237-2 can manage up to 2,048 digital I/O points and 512 analog I/O points when configured with appropriate I/O modules and communication processors. Actual capacity depends on scan time requirements and safety function complexity—consult SILworX engineering tools for specific application sizing.

How does the module handle firmware updates without compromising safety integrity?
Firmware updates are performed using HIMA's controlled update procedure via SILworX software. In redundant configurations, updates are applied sequentially—one module is updated and verified while the partner maintains control, then roles are reversed. This bumpless transfer ensures continuous safety function execution throughout the update process.

Is the B4237-2 compatible with third-party safety I/O systems via PROFIBUS or Modbus?
The module natively supports HIMA's proprietary SafeEthernet protocol for I/O communication. Integration with third-party systems requires HIMA communication gateways (F8650X/F8652X) that provide certified interfaces to PROFIBUS DP, Modbus TCP, and OPC UA. These gateways maintain SIL 3 integrity through black-channel communication principles.

What diagnostic information is available for predictive maintenance planning?
The B4237-2 provides real-time diagnostics including CPU load percentage, memory utilization, communication error counters, power supply voltage levels, and internal temperature. Historical trending data enables condition-based maintenance strategies—for example, replacing modules when CPU load consistently exceeds 70% or when communication error rates increase beyond baseline thresholds.

Can I use the B4237-2 in marine offshore applications with DNV-GL certification requirements?
Yes, the B4237-2 is approved for marine and offshore installations under DNV-GL type approval programs. The module meets vibration (IEC 60068-2-6), shock (IEC 60068-2-27), and EMC (IEC 61000-6-2/4) requirements for harsh marine environments. Ensure that system-level integration follows DNV-GL rules for safety and automation systems (DNVGL-RU-SHIP Pt.4 Ch.9).
