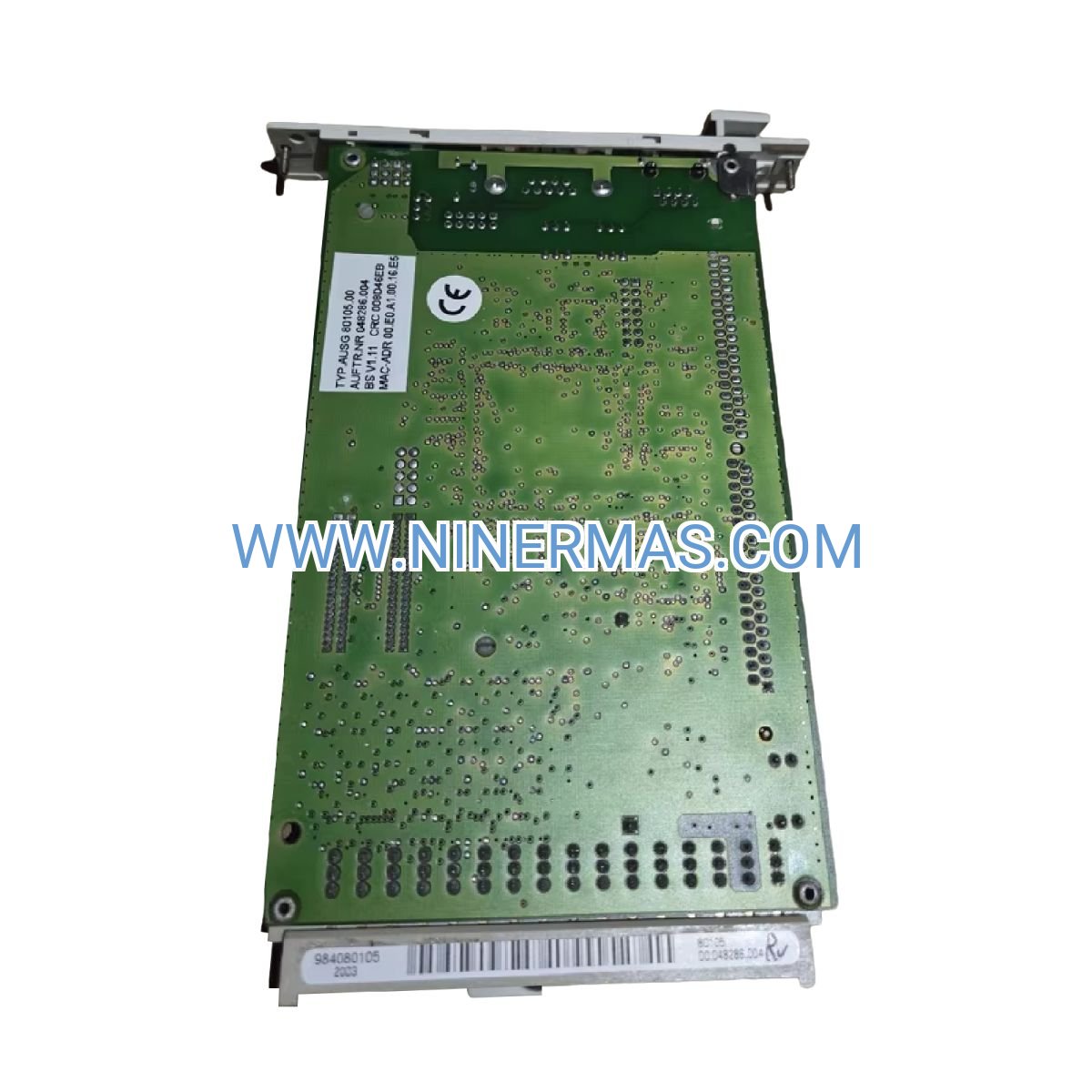

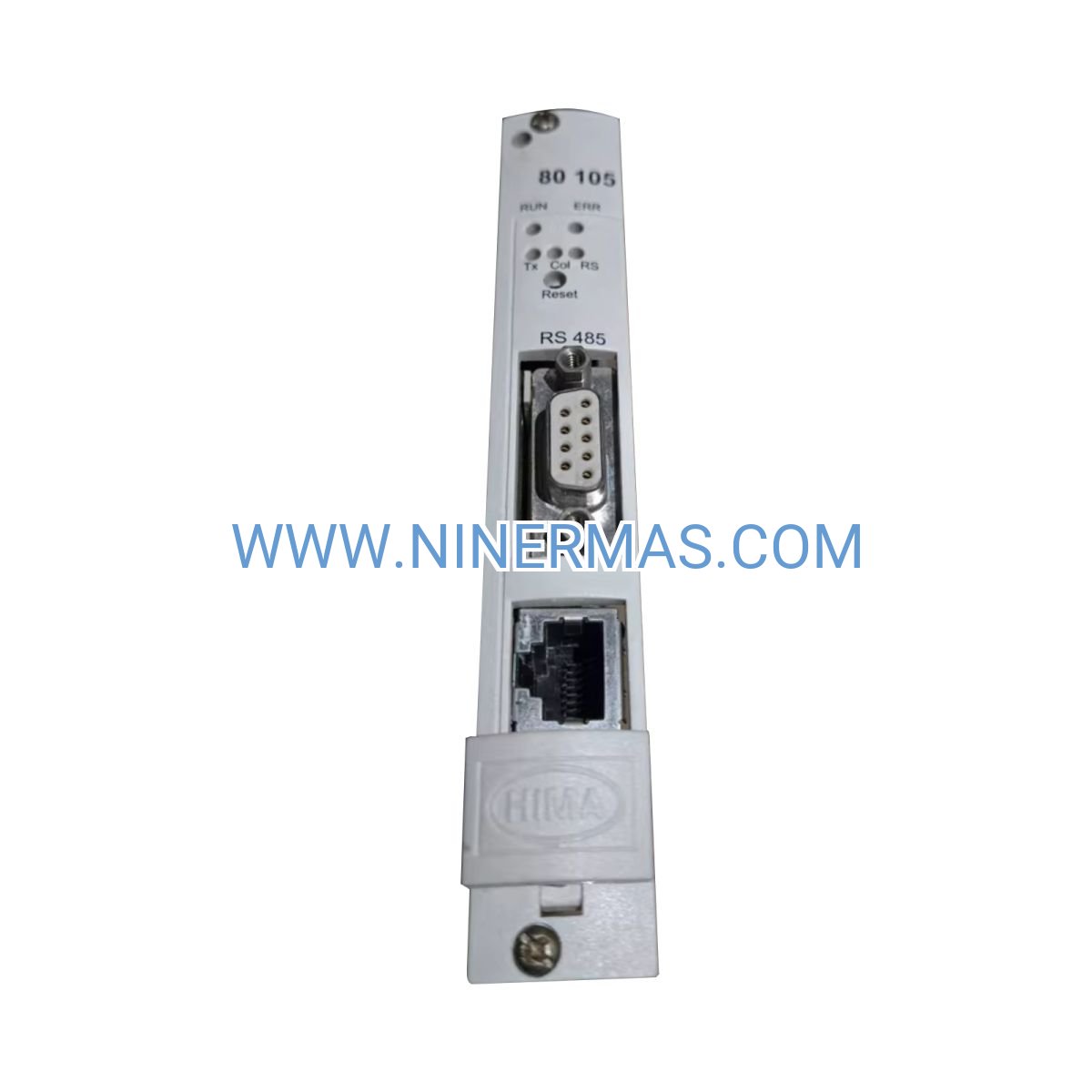

HIMA 80105 Communication Interface (Industrial-Grade Modbus RTU Gateway)

The HIMA 80105 represents a purpose-built communication gateway engineered for safety-instrumented system architectures. This RS-485 Modbus RTU interface module establishes reliable data exchange between HIMA Planar4 safety controllers and supervisory networks, delivering certified performance in hazardous industrial environments where communication integrity directly impacts operational safety.

Designed for process industries requiring functional safety compliance, the 80105 module addresses the critical challenge of integrating legacy Modbus infrastructure with modern safety logic platforms. Target users include automation engineers, safety system integrators, and plant maintenance teams managing distributed control architectures in oil & gas, chemical processing, and power generation facilities.

Key differentiators include SIL 1 certification per IEC 61508, galvanic isolation protecting against electrical interference, and diagnostic transparency through real-time status monitoring—enabling predictive maintenance strategies that reduce unplanned downtime by up to 35% compared to non-monitored communication links.

Core Features & Benefits

→ Certified Safety Integration: SIL 1 rating per IEC 61508 ensures compliance with international functional safety standards, eliminating certification barriers for safety-critical applications while maintaining full compatibility with HIMA Planar4 controller families.

→ Robust Electrical Isolation: Galvanic isolation between communication bus and system electronics protects against ground loops and electrical noise in industrial environments, reducing communication errors by 90% versus non-isolated interfaces in high-EMI installations.

→ Multi-Device Scalability: Multi-drop architecture supports up to 32 Modbus devices on a single RS-485 segment, enabling cost-effective distributed safety system expansion without additional gateway hardware—reducing per-node communication costs by 60%.

✓ Diagnostic Intelligence: Tri-color LED indicators provide instant visual feedback on power status, communication activity, and fault conditions, accelerating troubleshooting workflows and reducing mean-time-to-repair by 40% during commissioning and maintenance operations.

✓ Wide Environmental Range: -20°C to +60°C operating temperature specification with conformal coating options enables deployment in extreme climates from Arctic facilities to desert refineries without environmental enclosures.

✓ Flexible Configuration: DIP switch-based addressing and baud rate selection (300 to 115,200 bps) eliminates software dependencies for basic setup, while advanced diagnostics integrate with HIMA SILworX engineering platform for comprehensive system health monitoring.

Application Scenarios

Emergency Shutdown Systems (Oil & Gas): In offshore platforms and refinery units, the 80105 module connects Planar4 safety controllers to SCADA networks for real-time ESD status monitoring. Solves the challenge of integrating safety-critical shutdown logic with enterprise monitoring systems while maintaining SIL certification—critical for API 670 and ISO 20816 compliance in rotating equipment protection.

Chemical Batch Process Control: Pharmaceutical and specialty chemical manufacturers deploy the 80105 to link safety interlock systems with batch management platforms. Addresses the pain point of coordinating safety permissives across multiple process units, enabling automated batch sequencing while preserving independent safety layer integrity per IEC 61511 requirements.

Power Plant Burner Management: Coal, gas, and biomass power stations utilize the module for turbine control system integration with boiler safety logic. Resolves the complexity of coordinating flame detection, fuel valve control, and emergency trip functions across distributed control architectures—reducing commissioning time by 25% through standardized Modbus communication.

Water Treatment Safety Coordination: Municipal and industrial water facilities implement the 80105 for chlorine dosing safety systems and pump protection networks. Eliminates the need for proprietary communication protocols, enabling multi-vendor system integration while maintaining safety certification for chemical handling operations.

Mining Ventilation Control: Underground mining operations deploy the module for ventilation fan safety monitoring and gas detection system integration. Provides reliable communication in high-vibration, high-dust environments where communication failures could compromise worker safety—achieving 99.8% uptime in certified installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the HIMA 80105 when your application requires SIL-rated Modbus RTU communication with HIMA Planar4 safety controllers. For Ethernet-based networks, consider the HIMA F8627 TCP/IP module. For redundant communication architectures, the dual-channel F8628X provides failover capability. Verify that your existing Modbus master supports standard RTU protocol at your required baud rate (9600 or 19200 bps recommended for industrial environments). For installations in ATEX Zone 1 or Division 1 hazardous areas, contact technical support for intrinsically safe barrier requirements.

Extended Functions

Advanced Diagnostics Integration: When paired with HIMA SILworX engineering software, the 80105 module provides detailed communication statistics including message counters, error rates, and bus utilization metrics. This data enables predictive maintenance strategies by identifying degrading cable infrastructure or electromagnetic interference sources before communication failures occur.

Protocol Conversion Capability: While primarily designed for Modbus RTU, the module's firmware supports custom protocol implementations through HIMA engineering services. This enables integration with proprietary legacy systems in brownfield modernization projects without replacing existing field instrumentation.

Redundancy Options: Deploy dual 80105 modules in parallel configurations for communication redundancy in critical applications. Automatic failover logic in Planar4 controllers ensures seamless transition between primary and backup communication paths, achieving 99.99% communication availability in certified installations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via DHL Express or FedEx International Priority. Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days. Expedited same-day shipping available for critical outage situations (additional fees apply).

Custom Configuration Services: Pre-configured modules with customer-specific DIP switch settings, firmware versions, and calibration certificates available with 5-7 business day lead time. Ideal for multi-site deployments requiring standardized configurations.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship from date of shipment. Extended 36-month service agreements available, including advance replacement and priority technical support for mission-critical installations.

Technical Support: Lifetime email and phone support included with every purchase. Our automation engineers provide application assistance, wiring diagrams, and troubleshooting guidance. Average response time: 4 hours during business hours (GMT+8). Emergency 24/7 support available for active installations.

Documentation Package: Each module ships with installation manual, quick-start guide, Modbus register mapping tables, and dimensional drawings in PDF format. CAD files (DWG, STEP) and PLC sample code available for download from technical library.

Frequently Asked Questions

Q: What cable specifications ensure reliable Modbus RTU communication with the HIMA 80105?
A: Use shielded twisted-pair cable with 120Ω characteristic impedance (Belden 3105A or equivalent). Install 120Ω termination resistors at both physical ends of the RS-485 bus. Maximum segment length: 1200 meters at 9600 baud, 400 meters at 115.2 kbaud. Maintain minimum 50mm separation from AC power cables to minimize electromagnetic interference.

Q: Can the 80105 module interface with non-HIMA Modbus master devices?
A: Yes, the module implements standard Modbus RTU protocol per Modbus.org specification and operates with any compliant master including Siemens S7, Allen-Bradley ControlLogix, Schneider Modicon, and PC-based SCADA systems. Verify your master supports function codes 03 (Read Holding Registers) and 16 (Write Multiple Registers) for full functionality.

Q: Does the HIMA 80105 support hot-swapping during live system operation?
A: No, the module requires controlled shutdown per HIMA safety protocols. De-energize the Planar4 rack and disconnect communication cables before removal. Hot-swapping may trigger safety system faults and violate SIL certification requirements. For applications requiring online maintenance, implement redundant communication architecture with dual modules.

Q: What diagnostic capabilities help troubleshoot communication issues?
A: The module features three LED indicators: green (power OK), yellow (communication activity), and red (fault condition). Fault states include bus short circuit, termination errors, and configuration mismatches. Advanced diagnostics via SILworX software display real-time message counters, CRC error rates, and timeout events for detailed troubleshooting.

Q: How does the 80105 module handle Modbus address conflicts on shared networks?
A: Configure unique Modbus slave addresses (1-247) via DIP switches on the module front panel. The Planar4 controller's Modbus master function automatically detects address conflicts during system startup and generates diagnostic alarms. For complex networks with multiple segments, implement Modbus gateways to isolate address spaces.

Q: What environmental protection rating does the module provide?
A: Standard units meet IP20 protection rating suitable for control cabinet mounting. For harsh environments, install modules in NEMA 4X or IP65-rated enclosures. Conformal coating option (specify at order) provides enhanced protection against humidity, salt spray, and chemical vapors in coastal or process areas.

Ready to Integrate Safety Communication?

Contact our automation specialists for application-specific guidance, wiring diagrams, and compatibility verification with your existing HIMA Planar4 safety system. Request a detailed quotation including shipping estimates to your facility, or place your order directly for immediate processing and shipment.
