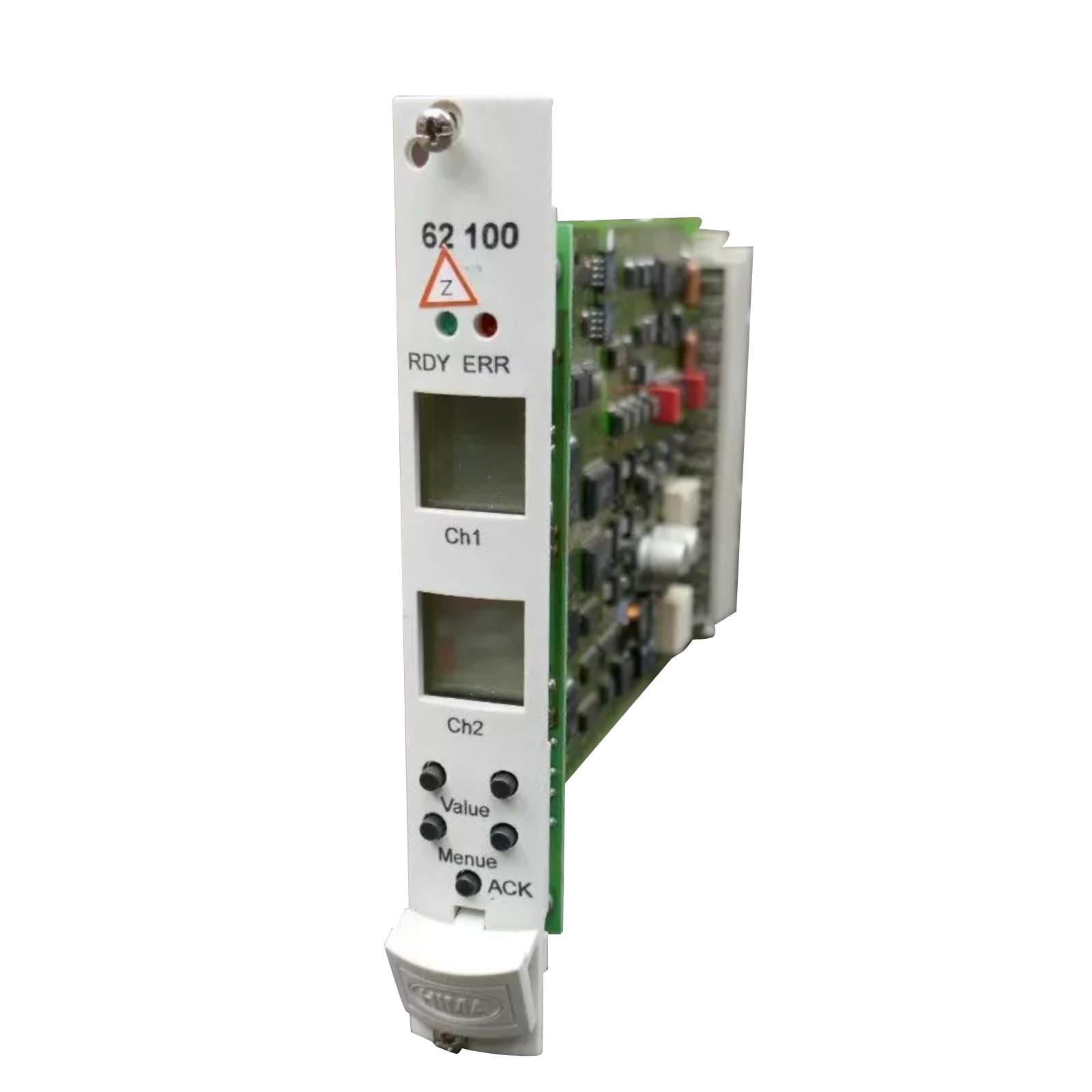

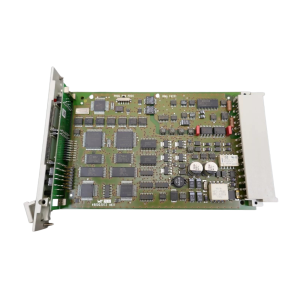

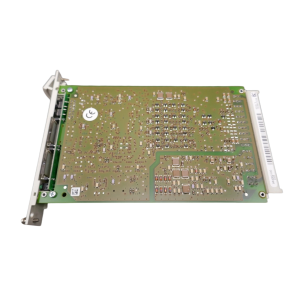

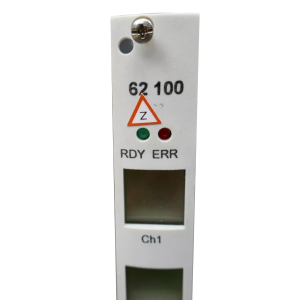

HIMA 62100 Dual-Channel Analog Limit Monitor (Industrial-Grade Safety Control)

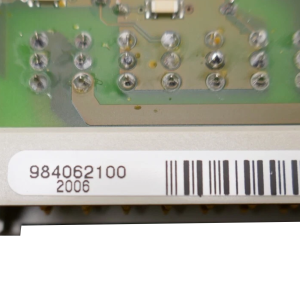

The HIMA 62100 (P/N: 984162100) delivers fail-safe analog signal monitoring for safety-instrumented systems in process industries, power generation, and heavy manufacturing. Engineered with dual independent channels, this compact DIN rail module continuously tracks voltage and current signals against configurable thresholds, triggering protective actions when process parameters exceed safe operating limits. Certified to IEC 61508 SIL 3 standards, it serves as a critical component in emergency shutdown systems, machinery protection circuits, and condition monitoring applications where reliability is non-negotiable.

Designed for integration with HIMA HIMax/HIMatrix safety platforms and third-party control systems, the 62100 accepts industry-standard 0-5.5V DC and 0-22mA signals from transmitters, proximity probes, and process sensors. Its fail-safe relay outputs enable direct interface with shutdown valves, alarm panels, and PLC safety logic, providing a complete monitoring solution from sensor to actuator.

Whether you're protecting rotating equipment from catastrophic vibration, preventing reactor overpressure, or ensuring tank level compliance, the HIMA 62100 combines precision measurement, safety certification, and field-proven reliability in a space-efficient package. Factory-calibrated and ready for immediate deployment, it reduces commissioning time while meeting the stringent requirements of API 670, ISO 20816, and IEC 61511 safety standards.

Core Features & Benefits

→ Dual Independent Monitoring Channels
Simultaneously track two separate analog signals with individually adjustable high/low alarm setpoints. Each channel operates autonomously, allowing mixed-signal monitoring (e.g., temperature + pressure) from a single module. Reduces panel space requirements by 50% compared to single-channel alternatives.

→ SIL 3 Safety Certification
IEC 61508 SIL 3 certified for use in safety instrumented functions (SIF) with proven failure rates documented in TÜV certification reports. Meets requirements for safety integrity level applications in chemical processing, oil & gas, and power generation where functional safety is mandated by regulation.

→ Universal Signal Compatibility
Accepts both voltage (0-5.5V DC) and current (0-22mA) inputs on each channel. Compatible with 4-20mA transmitters, proximity probe buffers, thermocouples with signal conditioners, and ratiometric sensors. Eliminates need for external signal conversion in most applications.

✓ Field-Adjustable Alarm Thresholds
Front-accessible potentiometers enable on-site calibration of high and low trip points without module removal or special programming tools. Allows rapid commissioning and setpoint optimization during startup without system downtime.

✓ Fail-Safe Relay Architecture
Form-C relay contacts (SPDT) de-energize on alarm condition, power loss, or input signal failure. Ensures safe-state operation even during catastrophic failures. Relay contacts rated for 250VAC/5A resistive loads, suitable for direct solenoid valve control or PLC input interfacing.

✓ Compact DIN Rail Design
Standard 35mm DIN rail mounting with 22.5mm width occupies minimal cabinet space. Removable terminal blocks facilitate pre-wiring and rapid module replacement during maintenance. Operating temperature range of -20°C to +60°C supports installation in non-climate-controlled environments.

Typical Application Scenarios

Rotating Machinery Protection
Interface with Bently Nevada, SKF, or Metrix proximity probe systems to monitor shaft vibration on steam turbines, gas compressors, and centrifugal pumps. The 62100 processes buffered proximitor outputs (typically scaled to 0-5V representing 0-500 microns displacement), triggering emergency shutdown when vibration exceeds API 670 alarm thresholds. Prevents catastrophic bearing failures and rotor damage in critical rotating equipment.

Reactor Temperature Safeguarding
Monitor exothermic reaction temperatures in batch chemical reactors using 4-20mA RTD transmitters. Configure dual setpoints for pre-alarm (warning) and high-high alarm (emergency cooling initiation). The module's <100ms response time enables rapid intervention before runaway reactions occur, protecting personnel and equipment while maintaining product quality.

Hydraulic System Pressure Monitoring
Track hydraulic accumulator pressure and pump discharge pressure simultaneously using dual 4-20mA pressure transmitters. Low-pressure alarms detect pump failures or system leaks, while high-pressure trips prevent hose ruptures and cylinder damage. Ideal for mobile equipment, injection molding machines, and press applications requiring redundant pressure monitoring.

Storage Tank Overfill Prevention
Implement independent high-level alarms on chemical storage tanks using radar or ultrasonic level transmitters with 4-20mA outputs. The 62100's dual channels provide primary and secondary overfill protection as required by API 2350 and EPA SPCC regulations. Relay outputs interlock with transfer pumps and activate audible/visual alarms.

Cooling Water Flow Assurance
Monitor cooling water flow rates to critical heat exchangers, laser systems, or induction furnaces using magnetic flowmeters. Low-flow alarms trigger process shutdowns before equipment overheating occurs. Dual-channel capability allows monitoring of supply and return flows for comprehensive thermal management.

Technical Parameters & Selection Guide

Selection Criteria: Choose the HIMA 62100 when your application requires SIL-rated analog monitoring with dual-channel capability in a compact form factor. For applications needing more than two channels, consider the HIMA F6217 (8-channel analog input module). If your system requires digital communication (Modbus, HART), evaluate the HIMA F3AIO8/401 analog I/O module with fieldbus integration. For non-safety applications where SIL certification is not required, standard industrial limit switches or PLC analog input cards may offer cost advantages.

Extended Functions

System Integration Capabilities: The HIMA 62100 integrates seamlessly into distributed control systems (DCS) and programmable logic controllers (PLC) via its relay outputs. When used within HIMA HIMax or HIMatrix safety systems, it functions as a field device providing analog limit detection for safety logic solvers. The module's relay contacts can drive alarm annunciators, initiate emergency shutdown sequences, or provide permissive signals for process interlocks.

Customization Options: While the standard 62100 configuration covers most applications, HIMA offers factory customization for special input ranges, relay contact ratings, and environmental specifications. Contact our technical team for applications requiring ATEX/IECEx hazardous area certification, extended temperature ranges (-40°C to +70°C), or conformal coating for corrosive atmospheres.

Redundancy & Voting: For SIL 3 applications requiring 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architectures, multiple 62100 modules can be configured with parallel inputs and series/parallel relay logic. This provides fault-tolerant monitoring with diagnostic coverage exceeding 99%, meeting IEC 61511 requirements for high-demand mode safety functions.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from our regional distribution centers in North America, Europe, and Asia-Pacific. Custom configurations require 4-6 weeks for factory programming and testing. Expedited shipping via DHL Express or FedEx International Priority available for urgent requirements.

Warranty Coverage: Every HIMA 62100 module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement or repair, with advance replacement available to minimize downtime. Extended warranty programs (24/36 months) available for critical applications.

Technical Support: Our application engineering team provides pre-sales consultation for system design, wiring diagrams, and integration planning. Post-sales support includes commissioning assistance, troubleshooting guidance, and firmware updates. Support available via email, phone, and remote diagnostics Monday-Friday 8AM-6PM EST.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificate, TÜV SIL 3 certification documents, and dimensional drawings in PDF format. CAD files (DWG/STEP) and PLC integration examples available for download from our technical library.

Frequently Asked Questions

Can the HIMA 62100 monitor both 4-20mA and 0-10V signals simultaneously on different channels?
Yes, each of the two channels can be independently configured for either current (0-22mA) or voltage (0-5.5V) input. This allows you to monitor a 4-20mA pressure transmitter on Channel 1 and a 0-5V vibration proximitor on Channel 2 from the same module. Input type selection is performed via internal jumpers during installation.

What is the maximum loop resistance for 4-20mA current input applications?
The current input circuit presents approximately 250 ohms impedance, resulting in a maximum voltage drop of 5.5V at 22mA. Ensure your transmitter power supply can provide sufficient compliance voltage to overcome this drop plus wiring resistance. For long cable runs (>500m), consider using 24V loop-powered transmitters with >12V compliance capability.

How does the fail-safe operation work if the input signal is lost?
The module employs de-energize-to-trip relay logic. If an input signal falls below the minimum detectable level (typically <0.1V or <0.5mA), the corresponding relay de-energizes within 100ms, triggering the alarm state. This ensures that sensor failures, wiring breaks, or transmitter power loss result in safe-state activation rather than undetected hazards.

Can I adjust alarm setpoints without removing the module from the DIN rail?
Absolutely. The 62100 features front-accessible multi-turn potentiometers for high and low limit adjustment on each channel. Using a small flathead screwdriver, you can calibrate setpoints while the module remains installed and powered. LED indicators provide real-time feedback during adjustment, eliminating the need for external test equipment in most cases.

Is the HIMA 62100 compatible with NAMUR proximity sensors?
The 62100 is designed for buffered analog signals (0-5.5V or 0-22mA). NAMUR sensors output a current signal (typically 1-4mA) that requires a proximity probe interface (proximitor) to convert to voltage. Connect the proximitor's buffered output (usually -2V to -18V scaled to 0-5V) to the 62100's voltage input. For direct NAMUR sensor interfacing, consider the HIMA F3DIO16/01 digital input module.

What certifications are required for installation in hazardous area Zone 2 locations?
The standard HIMA 62100 is suitable for installation in safe areas and Zone 2/Division 2 locations when mounted in appropriate enclosures (NEMA 4X/IP66). For Zone 1/Division 1 intrinsically safe applications, the analog signals must be routed through approved IS barriers (e.g., MTL, Pepperl+Fuchs) before connection to the 62100 located in the safe area. Contact us for pre-engineered IS barrier kits and wiring diagrams.
