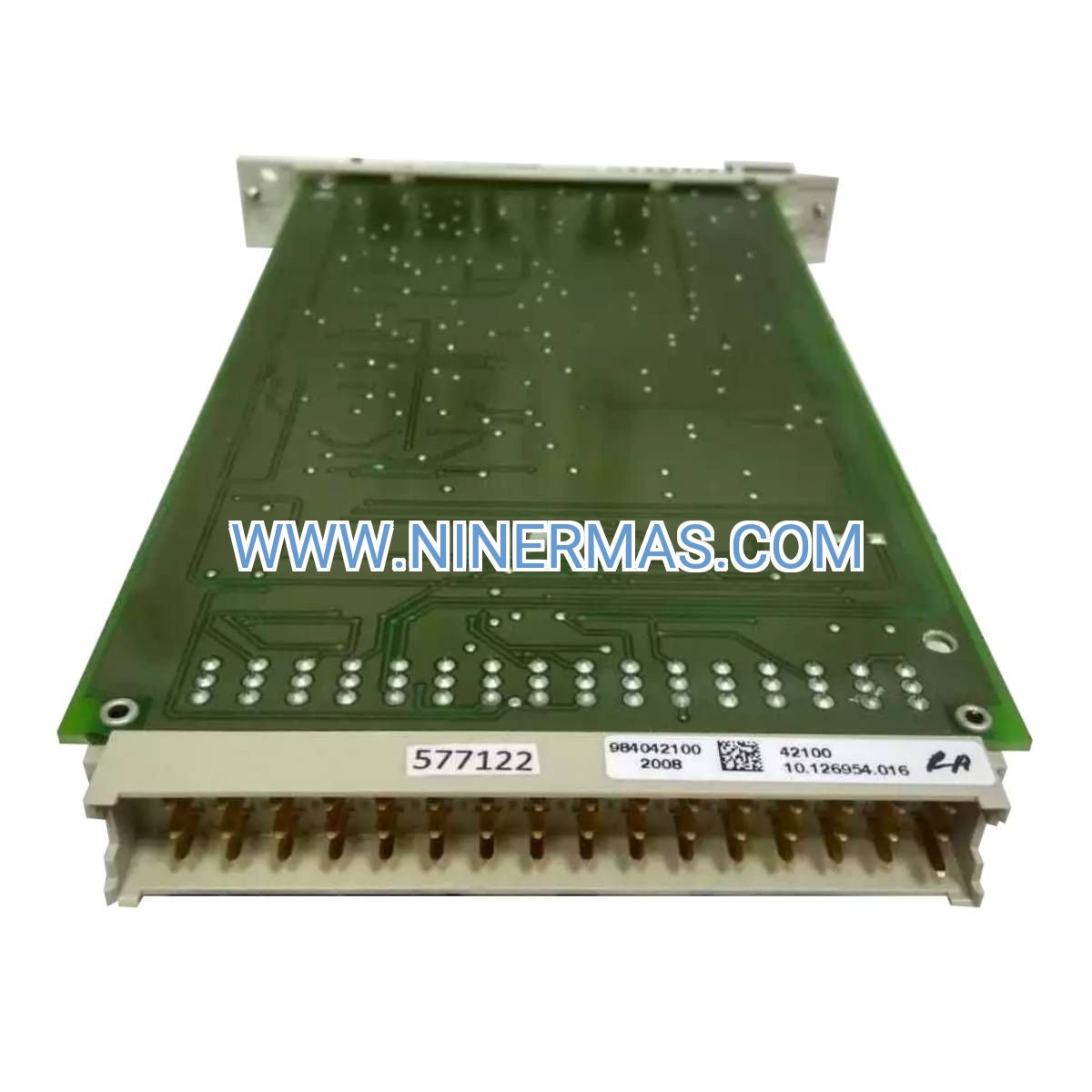

HIMA 42100 Safety Logic Module (Industrial-Grade Planar4 Controller)

Designed for mission-critical environments where failure is not an option, the HIMA 42100 represents the pinnacle of safety-rated logic processing. This German-engineered module integrates seamlessly into Planar4 architectures, delivering certified SIL 3 protection for processes that demand absolute reliability. From emergency shutdown sequences to complex interlock logic, the 42100 executes safety functions with microsecond precision and fail-safe redundancy.

Industries operating under stringent safety regulations—oil refineries, chemical plants, power stations, and pharmaceutical facilities—rely on this module to prevent catastrophic incidents. Its hot-swappable design ensures maintenance can occur without system downtime, while built-in diagnostics provide real-time health monitoring. Whether you're upgrading legacy safety systems or designing new installations, the 42100 offers proven performance backed by decades of HIMA's safety expertise.

Every unit ships factory-tested with full traceability documentation, ensuring compliance with IEC 61508 and industry-specific standards. Our technical team provides configuration support, helping you implement voting logic, timer functions, and multi-channel safety architectures tailored to your application requirements.

Core Features & Benefits

→ SIL 3 Certification for Maximum Safety Integrity
Achieves the highest safety integrity level for single-channel architectures, validated through rigorous third-party assessment. Suitable for applications requiring failure rates below 10⁻⁸ dangerous failures per hour.

→ Hot-Swap Capability Eliminates Planned Downtime
Replace modules during operation without interrupting safety functions or halting production. Reduces maintenance windows by 75% compared to systems requiring full shutdown for component replacement.

→ Diagnostic Intelligence for Predictive Maintenance
Integrated self-test routines continuously monitor module health, detecting potential failures before they impact safety performance. LED indicators and system logs provide instant visibility into operational status.

→ Redundancy-Ready Architecture
Supports 1oo2, 2oo3, and custom voting configurations for applications demanding 99.99%+ availability. Automatic failover ensures continuous protection even during component failures.

→ Wide Environmental Operating Range
Functions reliably from -20°C to +60°C with resistance to vibration, electromagnetic interference, and industrial contaminants. Conformal coating protects circuitry in corrosive atmospheres.

→ Energy-Efficient Low-Power Design
Consumes 40% less power than equivalent legacy modules, reducing heat generation and extending component lifespan while lowering operational costs.

Application Scenarios

✓ Petrochemical Emergency Shutdown Systems
Manages critical shutdown sequences for offshore platforms and refinery units, processing inputs from fire/gas detectors, pressure transmitters, and temperature sensors. Executes multi-stage isolation protocols to contain hazardous releases within 500 milliseconds of detection.

✓ Power Plant Turbine Protection
Monitors vibration, temperature, and speed parameters to prevent catastrophic turbine failures. Implements overspeed trip logic and bearing protection algorithms that have prevented millions in equipment damage across global installations.

✓ Chemical Reactor Interlock Systems
Enforces safe operating envelopes for exothermic reactions, preventing runaway conditions through real-time monitoring of temperature, pressure, and reagent flow rates. Integrates with burner management and toxic gas detection systems.

✓ Pharmaceutical Clean Room Safety
Maintains environmental parameters critical to product quality and operator safety, managing HVAC interlocks, differential pressure monitoring, and containment breach detection in GMP-regulated facilities.

✓ Manufacturing Machine Safeguarding
Processes inputs from light curtains, safety mats, and E-stop circuits to protect operators from mechanical hazards. Supports safety-rated motion control and safe torque-off functions for robotic work cells.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 42100 when your application requires SIL 3 logic processing within a Planar4 system architecture. For distributed safety applications with lower I/O density, consider the F4102 compact module. For applications requiring SIL 2 certification only, consult our technical team for cost-optimized alternatives. Ensure your system design includes appropriate input/output modules, power supplies, and communication interfaces from the Planar4 product family.

Extended Functions

Advanced Logic Programming: Supports ladder logic, function block diagrams, and structured text programming via SILworX engineering software. Implements complex safety functions including timers, counters, mathematical operations, and data comparison with full SIL 3 certification.

Communication Integration: Interfaces with SCADA systems, DCS platforms, and asset management software through Modbus, PROFIBUS, and Ethernet protocols. Provides diagnostic data for condition monitoring and safety lifecycle management.

Customization Options: Available with extended temperature ratings, conformal coating for harsh environments, and custom firmware for specialized applications. Contact engineering services for application-specific modifications.

Delivery & Service Guarantee

Standard Lead Time: 1-3 business days for in-stock units. Express shipping available for urgent requirements.
Custom Orders: 2-4 weeks for factory-configured modules with specialized firmware or testing requirements.
Warranty Coverage: 12 months from delivery date, covering manufacturing defects and material failures. Extended warranty programs available.
Technical Support: Lifetime access to our engineering team for configuration assistance, troubleshooting, and application guidance. Phone, email, and remote support options.
Documentation Package: Includes installation manual, safety manual, certificate of conformity, and test reports. SIL certification documentation provided upon request.

Frequently Asked Questions

How does the 42100 integrate with existing Planar4 installations?
The module mounts on standard DIN rail and connects via the Planar4 backplane. Configuration is performed through SILworX software, which automatically recognizes the module and provides access to all programming functions. No special tools required beyond standard installation practices.

What programming expertise is needed to configure safety logic?
Basic PLC programming knowledge is sufficient for simple applications. Complex safety functions benefit from familiarity with IEC 61131-3 languages and safety system design principles. We offer configuration services and training programs for teams new to HIMA platforms.

Can this module replace older HIMA logic processors?
The 42100 is backward-compatible with Planar4 systems but not with earlier HIMA platforms (Planar, H41, H51 series). Migration from legacy systems requires system-level upgrades. Our technical team provides migration planning and implementation support.

What redundancy configurations are supported for high-availability applications?
Supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting architectures. Redundant modules operate in parallel with automatic synchronization and failover. Diagnostic coverage exceeds 99% for detection of dangerous failures.

How do I verify the module is functioning correctly after installation?
Built-in diagnostics run continuously, with status LEDs indicating normal operation (green), warnings (yellow), and faults (red). SILworX software provides detailed diagnostic information including self-test results, communication status, and historical fault logs.

What environmental protections are included for harsh industrial settings?
Conformal coating protects against moisture, dust, and chemical exposure. The module meets IP20 enclosure rating when properly installed. For extreme environments (offshore, mining), additional enclosure protection is recommended.

Get Started with HIMA 42100

Ready to enhance your safety system reliability? Our team is standing by to answer technical questions, provide compatibility verification, and process your order. For volume pricing, system design consultation, or expedited delivery, contact us directly. Every inquiry receives a response within 4 business hours.
