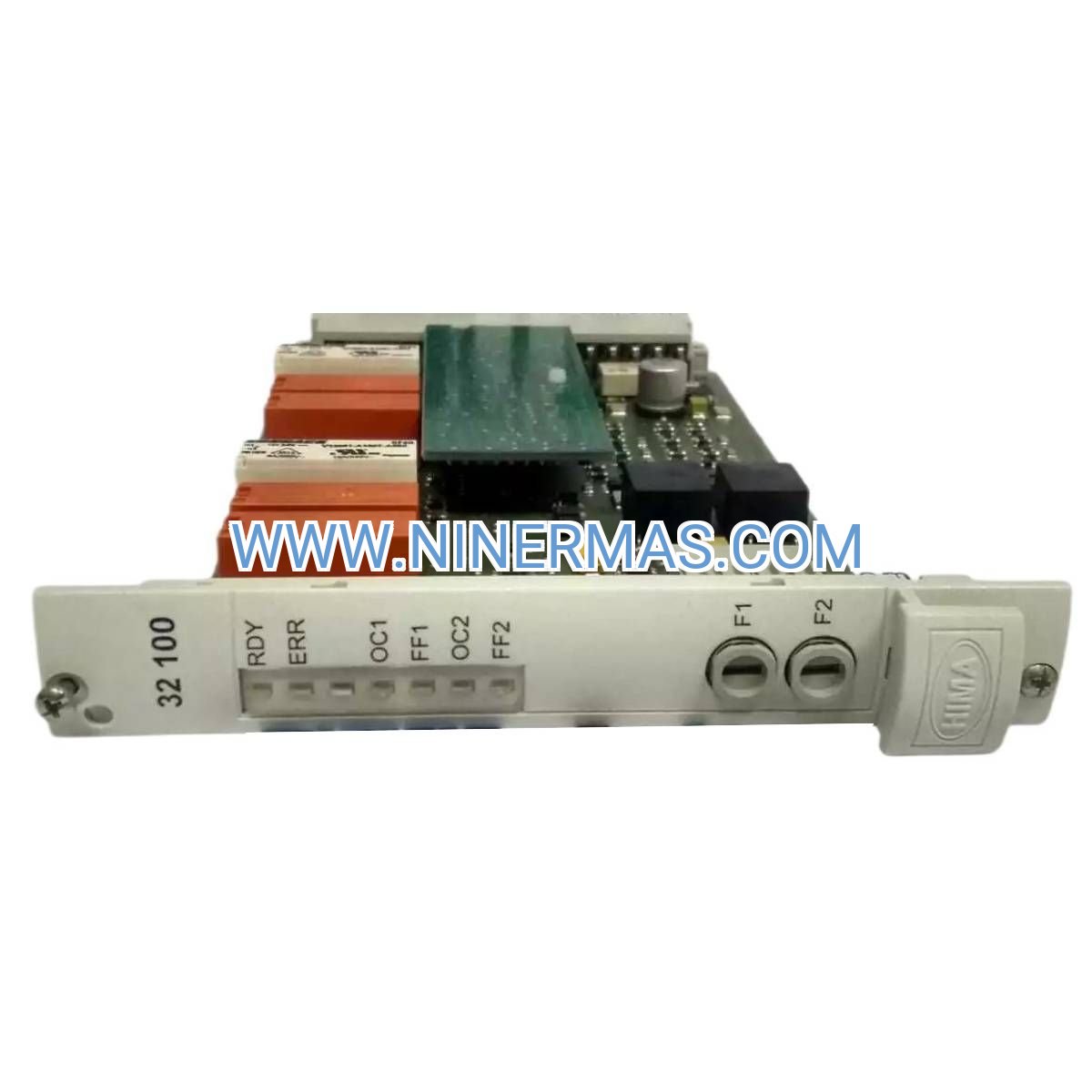

HIMA 32100 Industrial Relay Module (SIL 3-Certified Safety Switching)

The HIMA 32100 represents a proven solution for safety-critical relay switching in process industries where functional safety compliance is non-negotiable. This industrial relay module combines SIL 3 certification with robust signal conditioning capabilities, delivering reliable load switching for emergency shutdown systems, burner management, and safety interlock applications across oil & gas, chemical processing, and power generation facilities.

Engineered for integration with HIMA HIMax and HIMatrix safety controllers, the 32100 module addresses the challenge of interfacing low-power safety logic with high-current field devices while maintaining galvanic isolation and diagnostic transparency. Plant engineers and safety system integrators choose this module when project specifications demand IEC 61508 compliance, proven reliability in harsh industrial environments, and seamless compatibility with existing HIMA safety platforms.

With changeover contact configuration and 6A switching capacity at 250 VAC, the 32100 eliminates the need for external relay panels in many applications, reducing installation complexity and improving system maintainability. Built-in status indication and DIN rail mounting further streamline commissioning and ongoing operations.

Core Features & Technical Advantages

✓ SIL 3 Functional Safety Certification
Certified to IEC 61508 standards for use in safety instrumented functions up to SIL 3, ensuring compliance with international process safety regulations and reducing liability exposure in safety-critical applications.

✓ Galvanic Isolation Architecture
Electrical isolation between control inputs and switched outputs prevents ground loops, eliminates noise coupling, and protects sensitive safety controller circuits from field-side electrical disturbances.

✓ SPDT Contact Configuration
Changeover (Form C) contacts provide both normally-open and normally-closed switching paths, enabling fail-safe circuit design and supporting diverse shutdown logic requirements without additional hardware.

✓ 6A Switching Capacity
Direct switching of solenoid valves, motor contactors, and alarm annunciators up to 6 amperes at 250 VAC eliminates intermediate relay stages, reducing panel space and wiring complexity.

✓ Integrated Status Diagnostics
Visual LED indicators for power and relay state enable rapid troubleshooting during commissioning and maintenance, while controller-based diagnostics support predictive maintenance strategies.

✓ Industrial Temperature Range
Operational from -20°C to +60°C accommodates installation in non-climate-controlled equipment rooms, offshore platforms, and industrial enclosures without supplemental cooling.

Industrial Application Scenarios

→ Emergency Shutdown Systems (Oil & Gas)
In offshore production platforms and refinery process units, the HIMA 32100 switches final control elements during emergency shutdown sequences. When safety logic detects high pressure, low level, or gas detection, the module actuates pneumatic valve solenoids and motor contactors to achieve safe plant state within required response times.

→ Burner Management Systems (Power Generation)
Boiler safety systems utilize the 32100 to control fuel valve solenoids and ignition circuits. The module's SIL 3 rating satisfies NFPA 85 and IEC 61511 requirements for burner management, while changeover contacts support both energize-to-trip and de-energize-to-trip safety philosophies.

→ Reactor Safety Interlocks (Chemical Processing)
Chemical plants implement the 32100 in batch reactor safety chains to interrupt agitator motors, close feed valves, and activate cooling systems when temperature, pressure, or level parameters exceed safe operating limits, preventing runaway reactions and vessel overpressure.

→ Machine Safety Circuits (Manufacturing)
Automated production lines integrate the module to switch safety contactors in press brakes, robotic cells, and conveyor systems. The relay's diagnostic capability supports ISO 13849 compliance for machinery safety functions.

→ Pump Protection Systems (Water Treatment)
Municipal water and wastewater facilities use the 32100 to control pump motor starters based on wet well level, discharge pressure, and seal failure detection, preventing dry running and mechanical damage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the HIMA 32100 when your application requires SIL 3-rated relay switching with 24 VDC control inputs and load currents up to 6A. For higher current loads, consider external contactors driven by the 32100. For applications requiring multiple relay outputs per module, evaluate HIMA's multi-channel relay modules. Verify that your safety controller provides compatible 24 VDC output signals and that the module's switching capacity exceeds your load requirements by at least 20% margin.

Extended Functionality & Integration

HIMA Safety Controller Integration: The 32100 connects directly to digital output modules of HIMA HIMax and HIMatrix safety systems, receiving control signals from safety application logic programmed in SILworX. Controller-based diagnostics monitor relay coil continuity and contact position feedback when configured with appropriate input modules.

Third-Party PLC Compatibility: While optimized for HIMA ecosystems, the module accepts standard 24 VDC control signals from Siemens, Allen-Bradley, Schneider Electric, and other safety PLC platforms, provided output modules meet current sourcing requirements.

Redundant Architecture Support: In 1oo2 or 2oo3 voting configurations, multiple 32100 modules can be paralleled to switch common loads, with safety logic resolving voting in the controller layer. Consult HIMA application notes for proper redundant relay wiring practices.

Customization Options: Standard 32100 modules ship with fixed specifications. For applications requiring conformal coating, extended temperature ranges, or special contact materials, contact NINERMAS technical sales to discuss custom procurement from HIMA.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock HIMA 32100 modules ship within 2-3 business days via express courier (DHL, FedEx, UPS). Typical transit time to major industrial centers: 5-7 days Asia-Pacific, 7-10 days Europe/Americas.

Custom Orders: Special configurations or large quantity orders may require 4-6 weeks lead time depending on HIMA factory availability. Contact our sales team for expedited delivery options.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty excludes damage from improper installation, overvoltage, or operation outside published specifications.

Technical Support: Pre-sales application engineering assistance, installation guidance, and post-sales troubleshooting support provided by NINERMAS technical team. Access to HIMA product manuals, wiring diagrams, and SIL certification documentation included with purchase.

Documentation Package: Each module ships with installation instructions, terminal wiring diagrams, and safety certification summary. Complete technical manuals and SILworX integration guides available for download.

Frequently Asked Questions

Q: What is the difference between the HIMA 32100 and standard industrial relays?
A: The 32100 carries SIL 3 certification per IEC 61508, meaning it has undergone rigorous failure mode analysis and reliability testing for use in safety instrumented functions. Standard industrial relays lack this certification and cannot be used in SIL-rated safety applications without extensive additional validation.

Q: Can I use the HIMA 32100 to switch AC motor loads directly?
A: The 32100 is rated for 6A switching capacity, suitable for small motor contactors and solenoid valves. For motors above 1 HP or inductive loads with high inrush current, use the 32100 to control a larger motor contactor rather than switching the motor directly.

Q: How do I wire the module for fail-safe operation?
A: Fail-safe design depends on your safety philosophy. For energize-to-trip applications, use the normally-open contact; for de-energize-to-trip (preferred in most process safety applications), use the normally-closed contact so that loss of control power results in safe state. Consult IEC 61511 and your safety requirements specification.

Q: Is the HIMA 32100 suitable for hazardous area installation?
A: The 32100 is designed for safe area (non-hazardous) installation with IP20 rating. For Zone 1/2 or Division 1/2 hazardous locations, install the module in a certified purged enclosure or intrinsically safe barrier panel located in the safe area, with only field wiring entering the hazardous zone.

Q: What diagnostic information does the module provide?
A: The 32100 features LED indicators for power status and relay energization state, enabling visual verification during commissioning. When integrated with HIMA safety controllers equipped with appropriate input modules, contact position feedback and coil continuity monitoring can be implemented for advanced diagnostics.

Q: How often should relay contacts be replaced?
A: Under rated load conditions, contacts are specified for minimum 100,000 electrical operations. Actual service life depends on load characteristics (resistive vs. inductive), switching frequency, and environmental conditions. Implement condition-based replacement using controller diagnostic data rather than fixed time intervals.

Take the Next Step

Ready to integrate SIL 3-certified relay switching into your safety instrumented system? Contact our technical sales team for application-specific guidance, quantity pricing, and delivery scheduling. Our engineers can assist with module selection, wiring design review, and integration planning for your HIMA safety platform.

Request a Quote: Email your project requirements, including load specifications, quantity needed, and delivery location to receive a detailed quotation within 24 hours.

Technical Consultation: Schedule a call with our application engineers to discuss safety architecture, redundancy requirements, and compliance documentation for your project.
