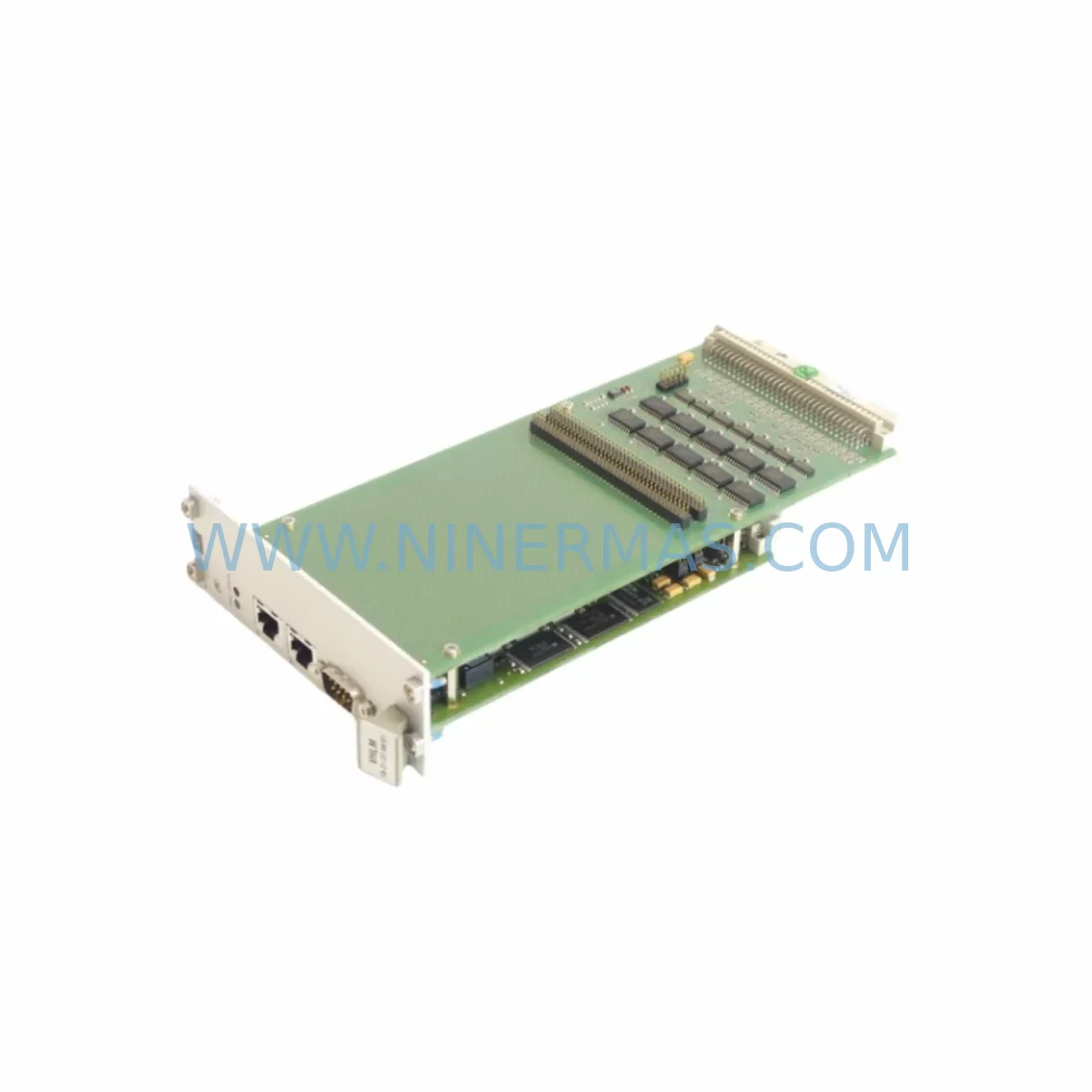

The Haas 18-21-37-00 is a retrofit-compatible control module designed for the VHLM Series CNC platform. As legacy Haas machining centers approach end-of-support cycles, sourcing verified replacement modules becomes a critical bottleneck for production continuity. This unit addresses that challenge directly — offering a pre-tested, drop-in compatible solution for facilities managing aging CNC infrastructure, mid-life machine upgrades, and unplanned downtime recovery scenarios.

Whether you are replacing a failed board in a VHLM-series vertical machining center, upgrading a control cabinet to extend machine life by 5–10 years, or building a strategic spare parts inventory for multi-machine facilities, the 18-21-37-00 module provides the electrical compatibility, form factor match, and firmware baseline required for a smooth transition with minimal reprogramming overhead.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Haas VHLM-series machining center requires a structured approach that accounts for both the electrical and software layers of the control architecture. Before removing the failed 18-21-37-00 module, technicians should perform a full parameter backup using the Haas control panel or a connected RS-232 serial cable to a laptop running terminal software. This preserves axis tuning data, tool offsets, work coordinate systems, and macro variable assignments that would otherwise require hours of re-entry and re-calibration.

On the hardware side, the retrofit process typically involves verifying the Haas power supply board (commonly referenced as the PSUP assembly in VHLM documentation) to confirm that the ±15 VDC and +5 VDC rails are within tolerance before installing the replacement module. A degraded power supply is frequently the root cause of control board failures, and installing a new 18-21-37-00 into an under-voltage environment risks premature failure of the replacement unit.

The VHLM backplane and its associated slot assignments must be reviewed during the retrofit. Each module slot on the Haas backplane carries a defined address range, and the replacement board must be seated in the correct position to match the address map expected by the control software. Incorrect slot placement will result in axis communication faults or I/O mapping errors that prevent the machine from completing its startup sequence.

For facilities also managing Haas servo amplifier modules or Haas spindle drive boards in the same control cabinet, this is an appropriate time to inspect those components for capacitor aging, thermal stress marks, or connector corrosion. Replacing the 18-21-37-00 while the cabinet is open reduces future downtime by addressing adjacent wear items in a single maintenance window.

If the retrofit is part of a broader control system upgrade — for example, migrating from an older Haas Classic control to a more recent Haas Next Generation Control (NGC) platform — additional considerations apply. The NGC uses a different I/O architecture, and some legacy Haas I/O PCB assemblies are not directly compatible. In these cases, an intermediate adapter harness or a full I/O board replacement may be required alongside the 18-21-37-00 module swap.

Facilities running multiple VHLM machines on a shared Haas DNC (Direct Numerical Control) network should verify that the replacement module does not alter the machine’s network node address or RS-232 communication parameters. DNC communication settings are stored in the control parameters and should be documented before the swap and verified after commissioning.

For shops also operating Haas HMI (operator panel) assemblies or pendant-style control interfaces, confirm that the display communication link is re-established after the module replacement. Some VHLM configurations route HMI data through the control module being replaced, requiring a soft reset of the display controller after the new board is seated and powered.

Where the retrofit involves Haas encoder feedback cables or linear scale interface boards, inspect the cable shielding and connector pins at both ends before reassembly. Encoder signal integrity is critical for axis positioning accuracy, and a marginal connection that was tolerated by the old board may generate following errors on a freshly installed replacement module with tighter fault thresholds.

Finally, for facilities maintaining a strategic spare parts program, it is advisable to stock at least one additional 18-21-37-00 module alongside complementary components such as the Haas fuse board, Haas relay PCB, and Haas keyboard interface board — all of which are subject to the same aging and obsolescence pressures as the primary control module. A documented spare parts inventory with defined reorder triggers reduces mean time to repair (MTTR) and supports production continuity commitments to customers.

Downtime Control During System Migration

Minimizing unplanned downtime during a Haas VHLM control module replacement requires preparation before the machine is taken offline. The recommended approach is to treat the replacement as a planned maintenance event rather than an emergency repair, even when the failure is sudden. This means having the replacement 18-21-37-00 module on-site and bench-verified before the machine is shut down, and having a printed copy of the machine’s parameter list and ladder logic backup available for reference during commissioning.

The typical replacement sequence for the 18-21-37-00 in a VHLM control cabinet proceeds as follows: power down the machine at the main disconnect, discharge any residual capacitor voltage in the servo drive section, remove the failed module using ESD-safe handling procedures, seat the replacement module in the correct backplane slot, restore power, and observe the control startup sequence for fault codes. Most straightforward replacements — where the power supply and backplane are healthy — complete the hardware phase in under two hours.

The software phase — restoring parameters, verifying axis motion, confirming spindle orientation, and running a dry-cycle test program — typically requires an additional two to four hours depending on the complexity of the machine’s configuration and the number of work offsets and tool data entries that must be verified. Facilities with a documented commissioning checklist specific to their VHLM configuration can compress this phase significantly.

To protect original program logic during the migration, all active CNC part programs stored in the control memory should be transferred to an external storage medium — either via RS-232 data transfer or USB, depending on the control vintage — before the module is removed. This ensures that production programs are not lost in the event that the control memory is reset during the replacement process.

For facilities where continuous production is a hard requirement, a parallel commissioning strategy — where the replacement module is pre-configured on a bench setup before being installed in the production machine — can reduce in-machine commissioning time to under one hour. This approach requires access to a compatible Haas backplane and power supply for bench testing, but delivers the fastest possible return to production.

Retrofit Support FAQ

Q1: Is the Haas 18-21-37-00 a direct replacement for the original VHLM Series control module?
Yes. The 18-21-37-00 is a form-fit-function compatible replacement for the original VHLM Series module. It matches the OEM connector layout, backplane slot dimensions, and electrical interface specifications. A parameter backup and axis re-verification are required after installation, but no mechanical modifications to the control cabinet are necessary.

Q2: What pre-shipment testing is performed on the 18-21-37-00 before dispatch?
Each unit undergoes a functional bench test prior to shipment. The test verifies power rail response, communication interface continuity, and basic I/O signal integrity. Test results are documented and available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What is the warranty coverage for the 18-21-37-00?
The 18-21-37-00 carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, power supply faults, or physical mishandling. Warranty claims are processed promptly with replacement or repair options available.

Q4: Can you confirm stock availability and lead time before I place an order?
Stock availability for the 18-21-37-00 is maintained on a rolling basis to support urgent replacement requirements. Lead times vary depending on current inventory levels. Contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and arrange expedited dispatch if required.
