GEFRAN GFX4-IR-80-0-2-0-0 Service-Ready Spare Part

GEFRAN GFX4-IR-80-0-2-0-0 Service-Ready Spare Part for Industrial Maintenance

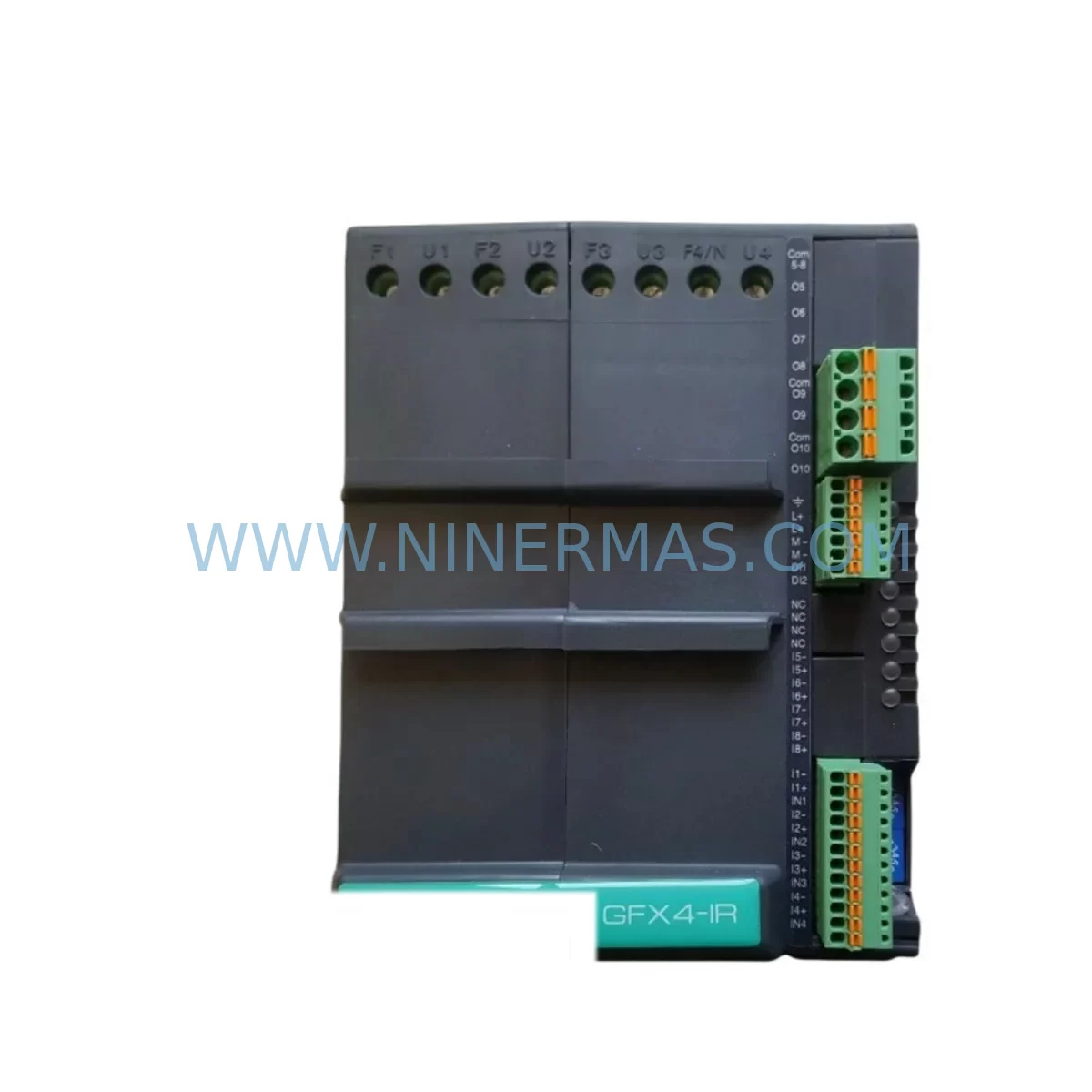

The GEFRAN GFX4-IR-80-0-2-0-0 is a ruggedized, single-phase SCR (thyristor) power controller from GEFRAN’s GFX4 series, engineered for precise phase-angle and zero-crossing control of resistive and inductive loads in demanding industrial environments. Rated at 80A with integrated current transformer feedback, this unit is widely deployed in furnace control, plastic extrusion heating zones, semiconductor processing, and industrial drying systems. When this component fails or reaches end-of-life, unplanned downtime can cascade across an entire production line. Sourcing a verified, service-ready replacement unit is the fastest path to restoring normal operation.

At NINERMAS, every GFX4-IR-80-0-2-0-0 unit is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock this part as a critical spare without accepting the risk of counterfeit or untested components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing furnace control panels, extrusion lines, or process heating systems, the GFX4-IR-80-0-2-0-0 rarely fails in isolation. A thyristor power controller operating under sustained load stress will often trigger related failures in adjacent components. A structured inspection and spare-stocking strategy should address the full electrical circuit around this unit.

Begin with the power supply feeding the GFX4-IR: verify that the 24 V DC auxiliary supply — often sourced from a GEFRAN or third-party DIN rail PSU — is within tolerance, as voltage sag can cause erratic firing behavior that mimics a faulty controller. Inspect the control signal wiring from the upstream PLC analog output module; a degraded 4–20 mA loop or a corroded terminal block on the I/O rack can produce the same symptom as a failed power controller. If your system uses a GEFRAN 1000 or 1200 series PID temperature controller as the setpoint source, confirm its analog output calibration before condemning the GFX4-IR.

The semiconductor fuses (gR-type, rated to match the 80 A thyristor) mounted upstream of the GFX4-IR are sacrificial protection devices — always replace them as a set when replacing the power controller, even if they appear intact. Similarly, inspect the contactor or circuit breaker in the main power circuit for contact wear or arc erosion. On systems with multiple heating zones, the GEFRAN GFX4-IR-40 or GFX4-IR-60 units controlling adjacent zones should be logged for remaining service life, as thermal aging tends to be uniform across a panel installed at the same time.

For systems using GEFRAN SIEI or GFX4 communication modules (RS-485 / Modbus RTU), verify that the fieldbus termination resistor is intact and that the communication cable shielding is grounded at one end only — a floating shield on a noisy production floor can corrupt parameter reads and trigger nuisance alarms. If the control cabinet includes a GEFRAN GFB or GFC series signal isolator between the PLC and the power controller, test its output under load before assuming the GFX4-IR is the root cause of a control deviation.

Annual maintenance schedules should also include torque-checking all power terminal connections on the GFX4-IR bus bars, cleaning the heatsink fins, and verifying that the thermal interface between the SCR module and heatsink has not dried out. For cabinets in high-vibration environments, inspect the DIN rail mounting clips and adjacent terminal blocks for micro-movement that can cause intermittent contact resistance. Stocking one GFX4-IR-80-0-2-0-0 unit per production line, alongside a matched set of semiconductor fuses and a spare PID controller output card, is a proven strategy for reducing mean time to repair (MTTR) to under two hours.

Site Replacement Workflow

Replacing the GFX4-IR-80-0-2-0-0 on-site is a straightforward procedure when the correct spare is on hand, but several steps are critical to avoiding repeat failures and ensuring system compatibility.

Step 1 — Isolation and lockout: De-energize the main power circuit and the 24 V DC auxiliary supply. Apply LOTO (Lockout/Tagout) per site safety procedures. Allow the heatsink to cool for at least 10 minutes before handling.

Step 2 — Parameter documentation: Before removing the failed unit, photograph or record all DIP switch settings, potentiometer positions, and any parameter values stored in the unit’s onboard memory (if accessible via the front panel or Modbus). The GFX4-IR-80-0-2-0-0 stores firing mode, current limit, and soft-start ramp settings that must be replicated on the replacement unit.

Step 3 — Wiring verification: Label all power and control wires before disconnection. Verify that the replacement unit’s terminal layout matches the installed wiring — the GFX4-IR series uses a standardized terminal arrangement, but confirm against the original wiring diagram to avoid phase reversal or control signal polarity errors.

Step 4 — Installation and parameter restore: Mount the new GFX4-IR-80-0-2-0-0, reconnect all terminals to the documented torque values (typically 2.5–4 Nm for power terminals), and restore all parameters. Replace semiconductor fuses at this stage regardless of their apparent condition.

Step 5 — Commissioning check: Energize the auxiliary supply first and verify that the unit powers up without fault codes. Apply a low setpoint (10–20% of rated load) and confirm that the output current feedback matches the expected value. Gradually ramp to full load and monitor for thermal stability over 15–30 minutes before returning the line to production.

This workflow minimizes the risk of a repeat failure caused by an underlying wiring or parameter issue, and ensures that the replacement unit is operating correctly before the line is handed back to production.

Spare Parts Support FAQ

Q1: Is the GFX4-IR-80-0-2-0-0 a direct drop-in replacement for older GFX4-IR-80 variants?
Yes. The GFX4-IR-80-0-2-0-0 is mechanically and electrically compatible with earlier GFX4-IR-80 series units. The suffix digits define option codes (control input type, communication, and accessory configuration). Confirm your existing wiring and DIP switch configuration against the GEFRAN GFX4 installation manual to ensure parameter parity before commissioning.

Q2: What testing is performed before shipment?
Every unit supplied by NINERMAS undergoes functional verification including auxiliary power-up, control signal response, and output firing confirmation before packaging. Units are shipped with anti-static protection and impact-resistant packaging. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports scheduled delivery agreements and blanket PO arrangements for critical spare parts including the GFX4-IR-80-0-2-0-0. This is particularly valuable for facilities managing multiple production lines with identical power controller configurations, where a single procurement event can cover 12–24 months of planned maintenance needs.

Q4: What is the recommended inventory strategy for this component?
For production facilities where the GFX4-IR-80-0-2-0-0 is installed in a critical heating or process control application, NINERMAS recommends maintaining a minimum of one unit on-site as a hot spare. For multi-zone systems with three or more GFX4-IR units in the same cabinet, a two-unit buffer stock is advisable. Given typical lead times for original GEFRAN components through standard distribution channels, holding local stock eliminates the 4–8 week procurement risk during an unplanned outage.
