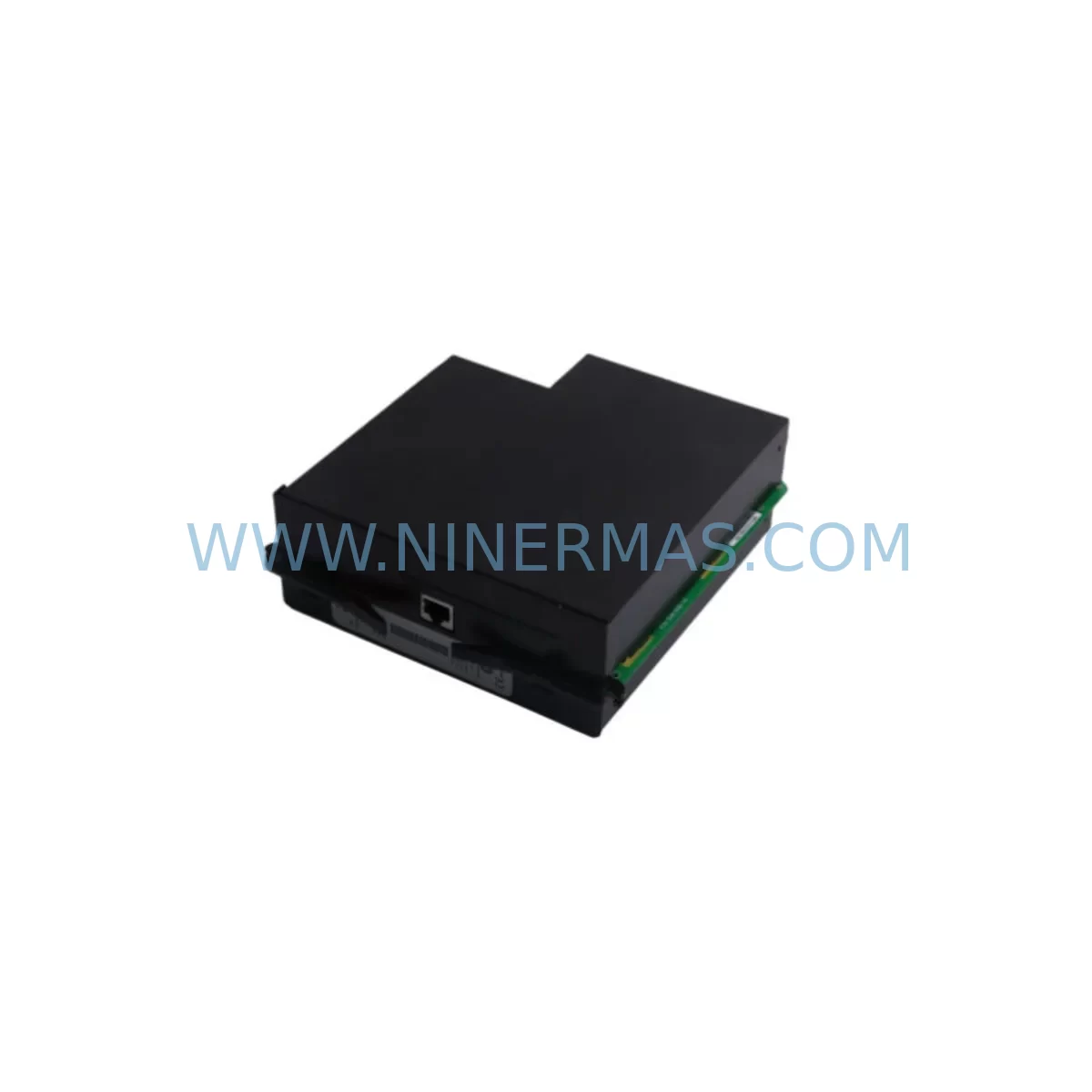

The GE Multilin UR9HH is a rear-panel communication and I/O module designed for the GE Multilin UR Series protection and control relay platform — one of the most widely deployed relay families in transmission substations, generation facilities, and industrial power distribution systems worldwide. As legacy UR Series installations age, the UR9HH becomes a critical spare part for maintenance engineers managing end-of-life hardware, emergency replacements, and annual inspection cycles.

Sourced as an original GE Multilin component, this UR9HH unit is inspection-tested, function-verified, and shipped with a 12-month warranty. Whether you are responding to an unplanned relay trip, executing a scheduled panel overhaul, or building a strategic spare parts inventory for a critical substation, the UR9HH is available for immediate dispatch to minimize system downtime and restore protection coverage as quickly as possible.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a UR9HH module fails or is flagged during a routine inspection, experienced maintenance engineers know that a single component replacement rarely tells the whole story. The UR Series chassis is an integrated protection platform, and the health of the UR9HH is directly tied to the condition of surrounding modules and system infrastructure.

During a UR9HH replacement, it is standard practice to simultaneously inspect the UR power supply module (typically a 9xx-series PSU card) for capacitor aging, output voltage drift, or thermal stress indicators. A degraded power supply is one of the leading causes of premature I/O module failure in long-running UR installations. Alongside the PSU, the UR CPU/DSP module should be checked for firmware currency and memory integrity — an outdated firmware version can cause communication handshake failures with a newly installed UR9HH.

The UR Series rear terminal blocks and wiring harnesses deserve close attention during any module swap. Loose CT and VT wiring connections, corroded terminal screws, or fatigued cable insulation can introduce measurement errors that compromise protection accuracy. Similarly, the IRIG-B time synchronization input — often wired through a dedicated terminal on the UR9HH — should be verified for signal integrity to ensure accurate event timestamping across the protection system.

For installations using IEC 61850 or DNP3 communications, the Ethernet communication module (such as the GE Multilin UR-series 9E or 9F Ethernet card) should be tested for network connectivity and GOOSE message performance after the UR9HH is replaced. Communication module faults are frequently masked by I/O module alarms and may only surface after the primary fault is cleared.

Procurement engineers building annual maintenance kits for UR Series panels should also consider stocking UR Series analog input modules, digital output (DO) relay cards, and binary input (BI) modules alongside the UR9HH. These modules share the same chassis slot architecture and are subject to similar wear patterns in high-cycle switching environments. Fuse holders and DIN-rail mounted miniature circuit breakers protecting the relay panel DC supply bus should also be inspected and replaced on a scheduled basis.

For sites running legacy GE Multilin 489, 369, or 750/760 series motor and generator protection relays in the same switchgear lineup, a coordinated spare parts review is recommended. Cross-referencing the UR9HH replacement with the broader protection relay inventory helps procurement teams avoid single-point-of-failure gaps across the entire protection scheme.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing UR9HH, record all active settings, protection group configurations, and communication parameters using GE’s EnerVista UR Setup software. Export a full settings file and store it on a secure engineering workstation. Confirm that the replacement UR9HH carries the same hardware revision and firmware compatibility level as the unit being replaced.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the relay panel DC supply, isolate CT secondary circuits using approved shorting blocks, and disconnect VT inputs. Label all wiring before disconnection to prevent miswiring during reinstallation.

Step 3 — Module Swap: Remove the faulty UR9HH by releasing the rear chassis retention mechanism. Insert the replacement module firmly into the correct chassis slot, ensuring full connector engagement. Reconnect all wiring per the original termination schedule.

Step 4 — Recommissioning: Restore DC power and allow the UR platform to complete its self-test sequence. Reload the saved settings file via EnerVista UR Setup. Verify all I/O assignments, protection element status, and communication link integrity. Perform a secondary injection test if site procedures require functional verification before returning the relay to service.

Step 5 — Return to Service: Remove CT shorting blocks, restore VT connections, and re-energize the protection circuit. Confirm that all relay LEDs, HMI displays, and SCADA/DCS communication points indicate normal operation. Document the replacement in the site maintenance log with the new module serial number and warranty start date.

This structured workflow minimizes exposure time, reduces the risk of wiring errors, and ensures the replacement UR9HH is fully commissioned before the protection system is returned to service — keeping downtime to the absolute minimum.

Spare Parts Support FAQ

Q1: Is the UR9HH compatible with all UR Series relay models?
The UR9HH is designed for the GE Multilin UR Series chassis platform. Compatibility depends on the specific UR relay model (e.g., C60, D60, F60, T60) and the chassis slot assignment. Please provide your relay model and existing module slot configuration when ordering to allow our technical team to confirm direct compatibility before shipment.

Q2: What pre-shipment testing is performed on the UR9HH?
Each UR9HH unit undergoes visual inspection, connector integrity verification, and functional bench testing prior to dispatch. Units are packaged in anti-static ESD-safe materials with protective foam inserts. A test report is available upon request for quality-critical procurement requirements.

Q3: Can you support long-term supply for UR9HH across a multi-site maintenance program?
Yes. NINERMAS maintains sourcing relationships across a global network of industrial automation suppliers and OEM channel partners. We can support blanket purchase orders, scheduled delivery programs, and multi-site spare parts kitting for utilities, EPCs, and industrial operators managing large UR Series relay fleets. Contact our team to discuss volume pricing and supply continuity agreements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units. Warranty claims are supported by our technical team with options for advance replacement to minimize site downtime. The warranty period begins from the date of confirmed shipment.
