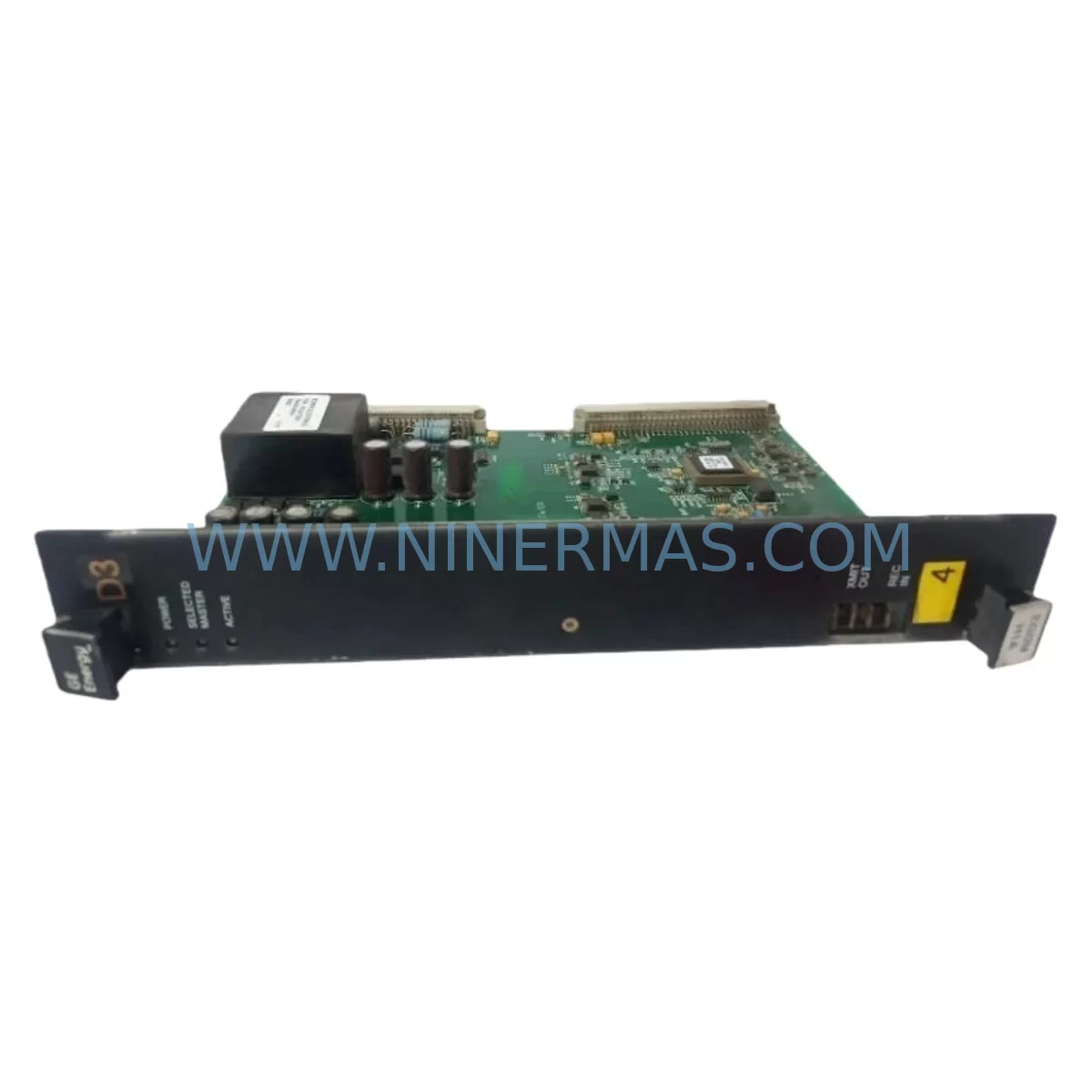

The GE IS200EGDMH1AFG is an original exciter ground detector module engineered for deployment within GE’s Mark VI turbine control and EX2100 exciter control systems. In power generation facilities, petrochemical plants, and heavy industrial environments, the IS200EGDMH1AFG plays a critical role in continuously monitoring the exciter field circuit for ground faults — a function that directly protects rotating machinery from catastrophic insulation failure and unplanned outages. When this module degrades or fails, the consequences extend far beyond a single component: the entire exciter control loop becomes unreliable, and turbine availability is immediately at risk.

For maintenance engineers managing aging Mark VI or EX2100 control cabinets, sourcing a verified, service-ready IS200EGDMH1AFG is not simply a procurement task — it is a risk mitigation decision. At NINERMAS, every IS200EGDMH1AFG unit is individually inspected, functionally tested, and shipped with full traceability documentation to support your site acceptance procedures and maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IS200EGDMH1AFG in the field is rarely an isolated task. Experienced maintenance engineers understand that a ground fault event — or the suspicion of one — typically triggers a broader inspection of the exciter control cabinet and associated electrical circuits. When scheduling a replacement of this module, the following components and subsystems should be evaluated concurrently to avoid repeat outages and ensure full system integrity.

Begin with the IS200EACFG1A exciter AC feedback module, which works in close coordination with the ground detector to provide a complete picture of exciter field health. A degraded AC feedback signal can mask or mimic ground fault conditions, leading to misdiagnosis. Similarly, inspect the IS200EPSMG1A exciter power supply module — power quality issues at the exciter supply rail are a common upstream cause of ground detector anomalies and should be ruled out before commissioning a replacement IS200EGDMH1AFG.

Within the Mark VI control cabinet, the IS200VCRCH1B VME communication and control card manages the data exchange between exciter modules and the main turbine control processor. If communication faults are logged alongside ground fault alarms, this card warrants inspection. The IS200TRLYH1BCC relay output terminal board should also be checked — relay contact wear or contamination can introduce spurious signals into the exciter protection circuit.

For sites running integrated I/O architectures, verify the condition of the IS200IOCAH1A I/O controller module and associated IS200TBCIH1C terminal board. Loose or corroded terminal connections at these boards are a frequent source of intermittent ground fault indications that are incorrectly attributed to the detector module itself. Inspect all field wiring connections at the terminal strip, paying particular attention to shielding continuity on exciter field cables.

If the site uses signal isolation between the exciter circuit and the control system, confirm that the installed signal isolators (typically DIN-rail mounted, 4–20 mA or voltage output type) are within calibration and free from thermal damage. Fuse holders and miniature circuit breakers protecting the exciter supply and detector circuit should be tested for proper trip characteristics — a slow-blow fuse that has partially degraded will not protect the IS200EGDMH1AFG under fault conditions.

For facilities with HMI-based alarm management, cross-reference the GE Cimplicity or ToolboxST operator interface alarm history to identify whether the ground fault indication has been recurring over weeks or months. Chronic low-level ground resistance readings often indicate gradual insulation breakdown in the exciter rotor winding — a condition that requires rotor inspection in addition to module replacement. Finally, if the control cabinet includes a IS200VSVOH1B VME servo output board or similar analog output module sharing the same backplane, verify backplane connector integrity and seating torque on all adjacent modules before returning the system to service.

Site Replacement Workflow

The IS200EGDMH1AFG is designed as a direct replacement for earlier-revision EGDM modules within the IS200 series. Before beginning the replacement procedure, confirm the firmware revision of the existing module against the site’s Mark VI configuration baseline — in some installations, a firmware mismatch between the ground detector and the exciter control processor can generate nuisance alarms during commissioning. NINERMAS can provide revision-specific units upon request when the site baseline is known.

Step 1 — Isolation and Lockout: Follow site LOTO procedures for the exciter control cabinet. De-energize the exciter field circuit and verify zero voltage at the detector module terminals using a calibrated meter before proceeding.

Step 2 — Module Removal: Document the existing wiring configuration with photographs before disconnecting any field cables. Label all terminal connections. Remove the IS200EGDMH1AFG by releasing the module locking mechanism and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or corrosion before installing the replacement.

Step 3 — Replacement Installation: Insert the new IS200EGDMH1AFG firmly into the backplane slot, ensuring full connector engagement. Reconnect all field wiring per the documented configuration. Verify terminal torque values against the GE Mark VI installation manual.

Step 4 — Commissioning and Verification: Re-energize the exciter control cabinet under controlled conditions. Monitor the ground resistance reading on the HMI or ToolboxST diagnostic screen. A healthy exciter field circuit should display a ground resistance value well above the alarm threshold (typically >10 kΩ). Confirm that no fault alarms are active before returning the turbine to service.

Step 5 — Documentation: Record the replacement in the site maintenance management system (CMMS), including the new module serial number, installation date, and pre-commissioning test results. Retain the NINERMAS test certificate with the maintenance record for warranty and audit purposes.

This workflow is applicable to both emergency breakdown replacements and planned annual maintenance outages. For sites managing multiple turbine units, NINERMAS recommends maintaining at least one IS200EGDMH1AFG as a critical on-site spare to eliminate lead-time risk during unplanned outages.
