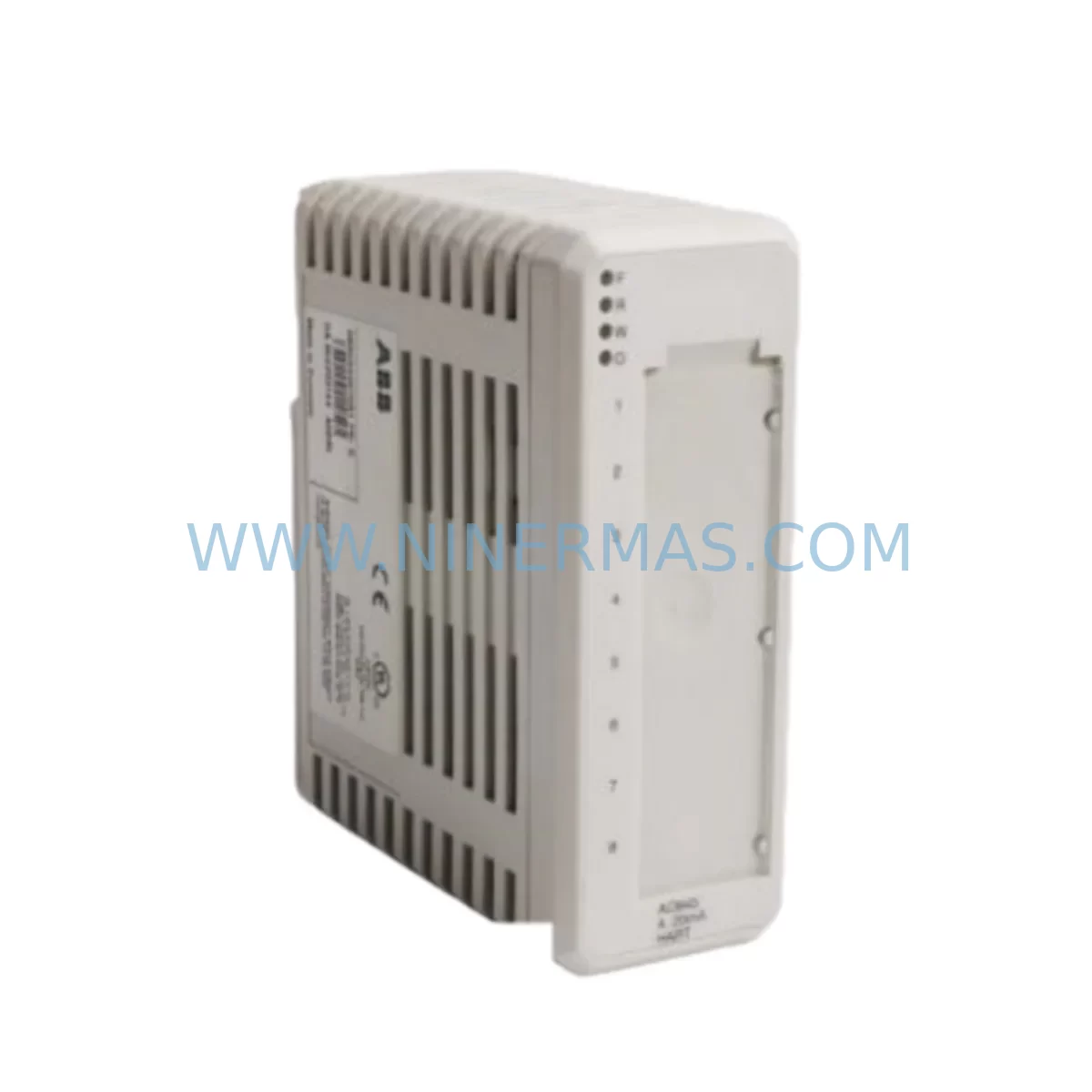

The ABB 3BSE023676R1 — commercially designated as the AO845 — is a ruggedized analog output module engineered for deployment within the ABB AC800M distributed control system platform. Designed to operate reliably in harsh industrial environments, this module delivers eight channels of 4–20 mA analog output, making it a critical component in process automation, power generation, oil & gas, pulp & paper, and heavy manufacturing applications.

As legacy automation infrastructure ages and original equipment manufacturers discontinue support for older I/O families, the 3BSE023676R1 has become one of the most sought-after retrofit and replacement modules in the S800 I/O ecosystem. Whether you are migrating from an obsolete ABB Advant OCS platform, replacing a failed module in an existing AC800M rack, or expanding I/O capacity during a control cabinet upgrade, the AO845 provides a direct, backward-compatible solution that minimizes engineering rework and reduces total downtime.

This listing is fulfilled from verified stock. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty. Inventory is available for immediate dispatch to support urgent production recovery and planned maintenance windows alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3BSE023676R1 AO845 into an existing control system requires a structured pre-installation assessment. Engineers undertaking a retrofit or spare-part replacement should begin by auditing the current rack configuration. The S800 I/O system uses modular carriers — most commonly the TB820V2 or TB840A — and the AO845 must be seated on a compatible carrier before the backplane can recognize the module address.

Power budget verification is the next critical step. The SD821 or SD822 power supply modules feeding the S800 rack must have sufficient headroom to support the additional current draw of the AO845. In aging installations where multiple I/O modules have been added incrementally, power margin can be tighter than the original design assumed. A full load calculation across all installed modules — including AI810 analog input modules, DI810 digital input modules, and DO810 digital output modules sharing the same rack — should be completed before the replacement module is powered.

Terminal wiring adaptation is frequently the most time-consuming element of a retrofit. The AO845 uses a standard S800 I/O terminal block arrangement, but field wiring from legacy systems may have been routed to older carrier pinouts. Technicians should cross-reference the existing wiring schedule against the AO845 terminal assignment diagram and prepare a wiring adapter or re-termination plan in advance. Where signal isolation is required between the module output and field devices, inline signal isolators or loop-powered barriers may need to be inserted into the wiring path.

Module address configuration on the AO845 is performed via onboard DIP switches. The address must match the slot assignment defined in the ABB Control Builder M project. Before powering the replacement module, engineers should open the existing project file, confirm the hardware configuration tree, and verify that the AO845 is mapped to the correct node and slot. If the original module was an AO810 or AO820, the hardware type definition in the project may need to be updated to reflect the AO845 designation, followed by a download to the AC800M controller.

HMI screen validation is often overlooked during module replacement. If the plant uses an ABB 800xA or third-party SCADA system with faceplate graphics tied to specific I/O channel tags, engineers must confirm that all analog output tags remain correctly bound after the module swap. A channel-by-channel signal trace — from the controller output tag through the ModuleBus backplane, across the AO845 output channel, and into the field device — should be completed as part of the commissioning checklist.

For installations where the CI854A or CI858 communication interface module connects the S800 I/O cluster to the AC800M controller over a PROFIBUS or ModuleBus link, the communication link health should be verified after module insertion. A new module appearing on the bus may trigger a configuration mismatch alarm if the controller project has not been updated. Clearing this alarm requires a synchronized hardware download and a controlled restart of the affected I/O cluster — a procedure that should be planned and coordinated with the operations team to avoid unintended process upsets.

Downtime Control During System Migration

Minimizing production downtime during a module replacement or system migration is a primary concern for plant engineers and maintenance managers. When replacing the ABB 3BSE023676R1 AO845 in a live production environment, the recommended approach is to pre-stage the replacement module, pre-configure the controller project offline, and execute the physical swap during a planned maintenance window — ideally during a scheduled process shutdown or shift changeover.

Before removing the failed or obsolete module, the existing program logic should be exported and archived. The AC800M controller retains its application program in non-volatile memory, but a verified backup stored on an engineering workstation provides an additional recovery path if the controller requires a cold restart during the swap. Engineers should also capture a snapshot of all current analog output values and setpoints so that field devices can be returned to their pre-maintenance states immediately after commissioning.

Hot-swap capability within the S800 I/O system allows certain modules to be replaced without powering down the entire rack, provided the carrier remains energized and the controller is placed in a controlled state. However, for the AO845 in process-critical loops — such as control valve positioners, variable speed drive references, or burner management system outputs — it is strongly recommended to place the affected control loops in manual mode at the DCS or SCADA level before physically removing the module. This protects field devices from unexpected output transients during the swap.

Post-installation commissioning should follow a structured sequence: power-up the module, confirm LED status indicators show normal operation, verify module recognition in Control Builder M, perform a channel-by-channel output test using a calibrated loop calibrator, and then return each control loop to automatic mode in a controlled, sequential manner. Documenting the commissioning results — including measured output values at 0%, 25%, 50%, 75%, and 100% of span — provides a baseline for future maintenance reference and supports quality assurance requirements in regulated industries.

For sites managing multiple simultaneous replacements across a control cabinet upgrade project, pre-testing each AO845 module on a bench rack with a known-good AC800M controller and TB820V2 carrier before deployment to the field significantly reduces the risk of commissioning delays caused by transit damage or latent module faults. All units supplied under this listing are pre-shipment tested and documented.

Retrofit Support FAQ

Q: Is the ABB 3BSE023676R1 a direct replacement for the AO810 or AO820?
A: The AO845 (3BSE023676R1) is functionally compatible with the AO810 and AO820 in most AC800M and S800 I/O applications, but it is not a pin-for-pin hardware substitute. The carrier type must be verified — the AO845 requires a compatible S800 carrier such as the TB820V2 or TB840A. The hardware configuration in Control Builder M must also be updated to reflect the AO845 module type before downloading to the controller.

Q: What pre-shipment testing is performed on each unit?
A: Every 3BSE023676R1 unit supplied from our inventory undergoes functional output testing across all eight analog channels prior to shipment. Test results confirm channel accuracy, loop integrity, and module communication response on the ModuleBus interface. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: How do I confirm wiring compatibility before installation?
A: Cross-reference the AO845 terminal assignment diagram (available in the ABB S800 I/O Hardware Manual) against your existing field wiring schedule. Pay particular attention to channel polarity, shield grounding points, and any shared common terminals. If your legacy installation used an older carrier with a different terminal layout, a wiring adapter plate or re-termination to a new TB820V2 carrier may be required. Our technical team can assist with wiring compatibility questions prior to purchase.

Q: Is stock available for immediate shipment?
A: Yes. The ABB 3BSE023676R1 AO845 is held in verified inventory and is available for same-day or next-business-day dispatch depending on order confirmation time. We maintain buffer stock of this module specifically to support urgent production recovery scenarios. For large-quantity requirements or long-term supply agreements, please contact our sales team to discuss availability and lead times.
