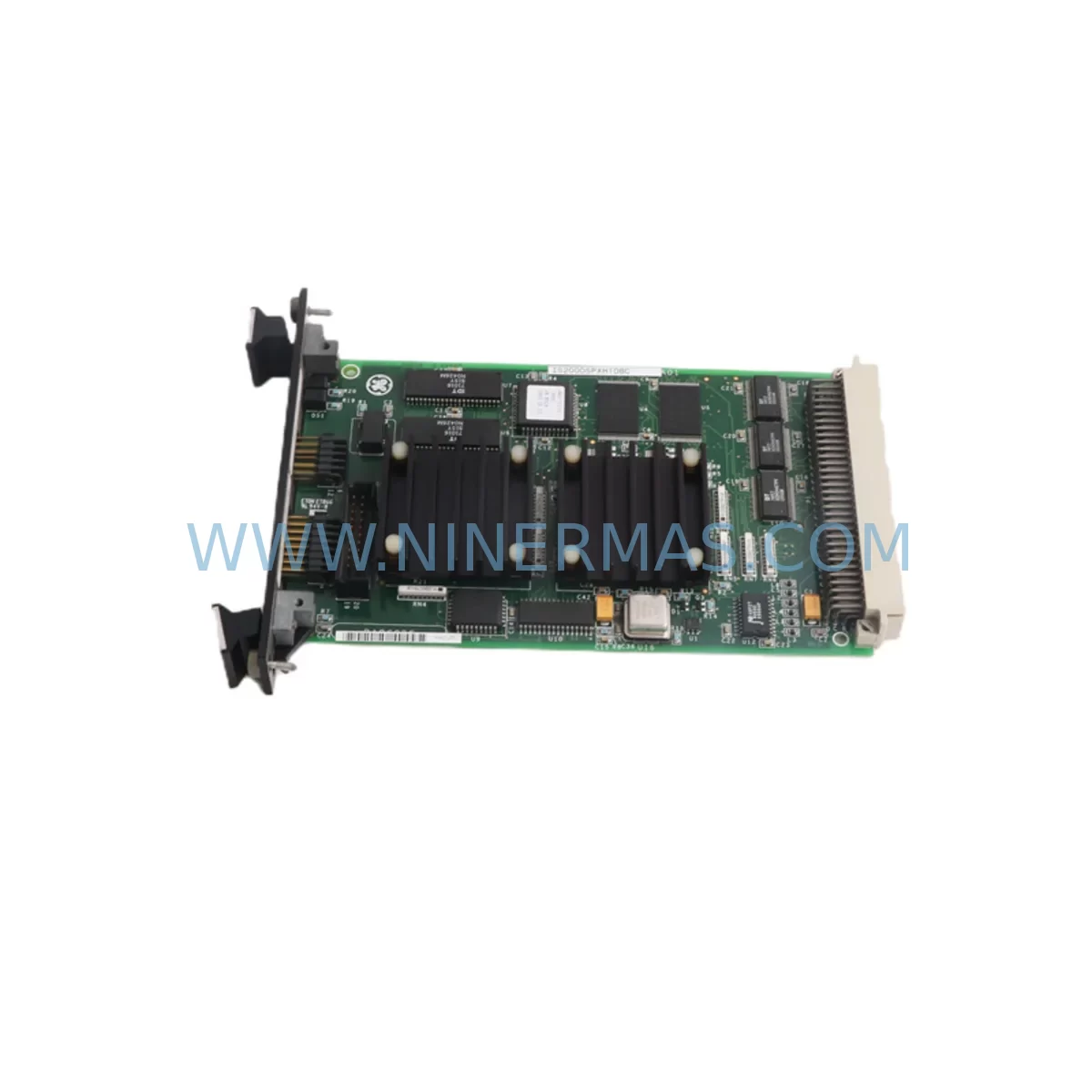

The GE IS200DSPXH1D is a Digital Signal Processor (DSP) control board designed for the GE Mark VI Speedtronic turbine control system — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. When this board fails or degrades, the consequences are immediate: unplanned turbine shutdown, lost generation capacity, and costly emergency maintenance windows. Stocking a verified, service-ready IS200DSPXH1D is the most effective way to compress mean time to repair (MTTR) and restore production with confidence.

At NINERMAS, every IS200DSPXH1D unit is sourced from original GE supply chains, inspected upon receipt, and functionally tested prior to shipment. Each board ships with a 12-month warranty, full traceability documentation, and ESD-safe packaging to protect sensitive DSP circuitry during transit. Whether you are managing a planned annual overhaul, responding to an unscheduled fault, or building a strategic spare parts inventory for a fleet of Mark VI-controlled turbines, the IS200DSPXH1D from NINERMAS delivers the reliability and lead-time certainty your operation demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The IS200DSPXH1D does not operate in isolation. It is the computational core of the Mark VI control rack, and its health is directly dependent on the integrity of every board and module sharing the same backplane and power bus. When a maintenance engineer replaces the IS200DSPXH1D, best practice demands a concurrent inspection of the surrounding control architecture to prevent a secondary failure from immediately compromising the newly installed board.

Begin with the IS200VCMIH2C VCMI communication board, which manages IONet traffic between the DSP board and the HMI workstation. A degraded VCMI can corrupt configuration downloads and mask DSP faults. Next, inspect the IS200VTURH1BDB turbine control board — in many Mark VI configurations, the DSPX and VTUR boards share real-time I/O data over the backplane; a failing VTUR will generate spurious DSP alarms even after a successful board swap.

The IS200VPWRH1BEC power supply board deserves particular attention. Ripple or voltage sag on the +5 VDC rail is a leading cause of premature DSP board failure. Use a calibrated oscilloscope to verify rail stability before energizing the replacement IS200DSPXH1D. Similarly, the IS200EMIOH1A EMI/O board and any installed IS200TREGH1B terminal board should be checked for loose field wiring, corroded terminal blocks, and insulation breakdown — conditions that introduce ground loops capable of damaging DSP input circuits.

For sites running servo-controlled valves, the IS200VSVO servo control board should be tested in parallel. Servo feedback errors are frequently misdiagnosed as DSP faults, and replacing the IS200DSPXH1D without verifying servo loop integrity will result in repeat alarms. On the communications side, confirm that the IS200VCNIH1C IONet interface card and any IS200VCRCH1B redundancy controller boards are operating within specification — IONet packet loss will prevent the new DSP board from synchronizing with the redundant control path.

Finally, review the Mark VI HMI workstation (typically running GE ToolboxST) for any pending software alarms or I/O configuration mismatches that predate the DSP failure. Unresolved HMI configuration errors will re-trigger faults on the replacement board within hours of restart. A structured pre-replacement checklist covering these components — power supply, VCMI, VTUR, VSVO, IONet cards, terminal boards, and HMI configuration — is the single most effective way to ensure a one-cycle repair and avoid repeat callouts.

Site Replacement Workflow

Step 1 — Fault Isolation: Use ToolboxST diagnostics to confirm the IS200DSPXH1D as the root-cause board. Document all active alarms and I/O states before de-energizing the rack. This baseline is essential for post-replacement verification.

Step 2 — Safe De-energization: Follow GE Mark VI lockout/tagout procedures. The Mark VI backplane carries live voltages even when the turbine is tripped. Discharge backplane capacitors per the site-specific maintenance manual before extracting the board.

Step 3 — Board Extraction and Inspection: Remove the IS200DSPXH1D using the board ejector levers. Inspect the vacated slot for bent backplane pins, debris, or signs of thermal damage. A damaged backplane connector will destroy a replacement board on first power-up.

Step 4 — Replacement Installation: Insert the NINERMAS-supplied IS200DSPXH1D into the correct slot, ensuring full backplane engagement. Secure the front-panel retaining screws to the specified torque. Do not force the board — misalignment will bend VME connector pins.

Step 5 — Configuration Download: Re-energize the rack and use ToolboxST to download the site-specific application configuration to the new board. Verify that the board firmware revision is compatible with the installed ToolboxST version. In most H1D hardware revisions, the firmware is stored on the board’s flash memory and does not require re-flashing.

Step 6 — Functional Verification: Clear all alarms, perform a controlled I/O check against the pre-replacement baseline, and verify redundancy synchronization if the site runs a TMR (Triple Modular Redundant) configuration. Log the replacement in the site CMMS with the NINERMAS serial number and warranty start date.

This workflow is applicable to both like-for-like IS200DSPXH1D replacements and cross-revision upgrades (e.g., H1A to H1D). For cross-revision upgrades, always verify backplane compatibility and ToolboxST version support before ordering.

Spare Parts Support FAQ

Q1: Is the IS200DSPXH1D compatible with all Mark VI controller configurations?
The IS200DSPXH1D is designed for the GE Mark VI Speedtronic platform and is compatible with VCMI, VTUR, VPRO, and VSVO controller racks. Compatibility depends on the specific hardware revision (H1A, H1B, H1C, H1D) and the installed ToolboxST firmware version. NINERMAS technical staff can verify compatibility against your rack serial number and software version before shipment. We recommend providing your existing board’s full part number including revision suffix to confirm a direct match.

Q2: What testing is performed before shipment, and what does the 12-month warranty cover?
Every IS200DSPXH1D unit undergoes a functional bench test simulating Mark VI backplane power and IONet communication signals. Units that fail any test parameter are quarantined and not offered for sale. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage caused by incorrect installation, backplane power faults, or ESD mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q3: How should procurement engineers manage IS200DSPXH1D inventory for multi-turbine sites?
For sites operating three or more Mark VI-controlled turbines, NINERMAS recommends maintaining a minimum of one IS200DSPXH1D per three turbines in on-site strategic stock. Given that GE has transitioned the Mark VI platform toward end-of-life support, OEM lead times for new boards can exceed 20–40 weeks. Sourcing through NINERMAS provides access to tested surplus inventory with 2–5 business day shipping, significantly reducing the risk of extended unplanned outages. Annual inventory reviews aligned with scheduled turbine overhauls are the most cost-effective procurement cadence.

Q4: Can the IS200DSPXH1D be used as a long-term replacement for discontinued GE part numbers?
Yes. As GE phases out direct support for the Mark VI platform, the IS200DSPXH1D and related boards such as the IS200VCMIH2C, IS200VTURH1BDB, and IS200VPWRH1BEC are increasingly sourced through specialist distributors like NINERMAS. NINERMAS maintains a continuously replenished inventory of Mark VI spare boards and can provide long-term supply agreements for fleet operators requiring guaranteed availability over a 3–5 year maintenance horizon. Contact our technical sales team to discuss volume pricing and consignment stock arrangements.
