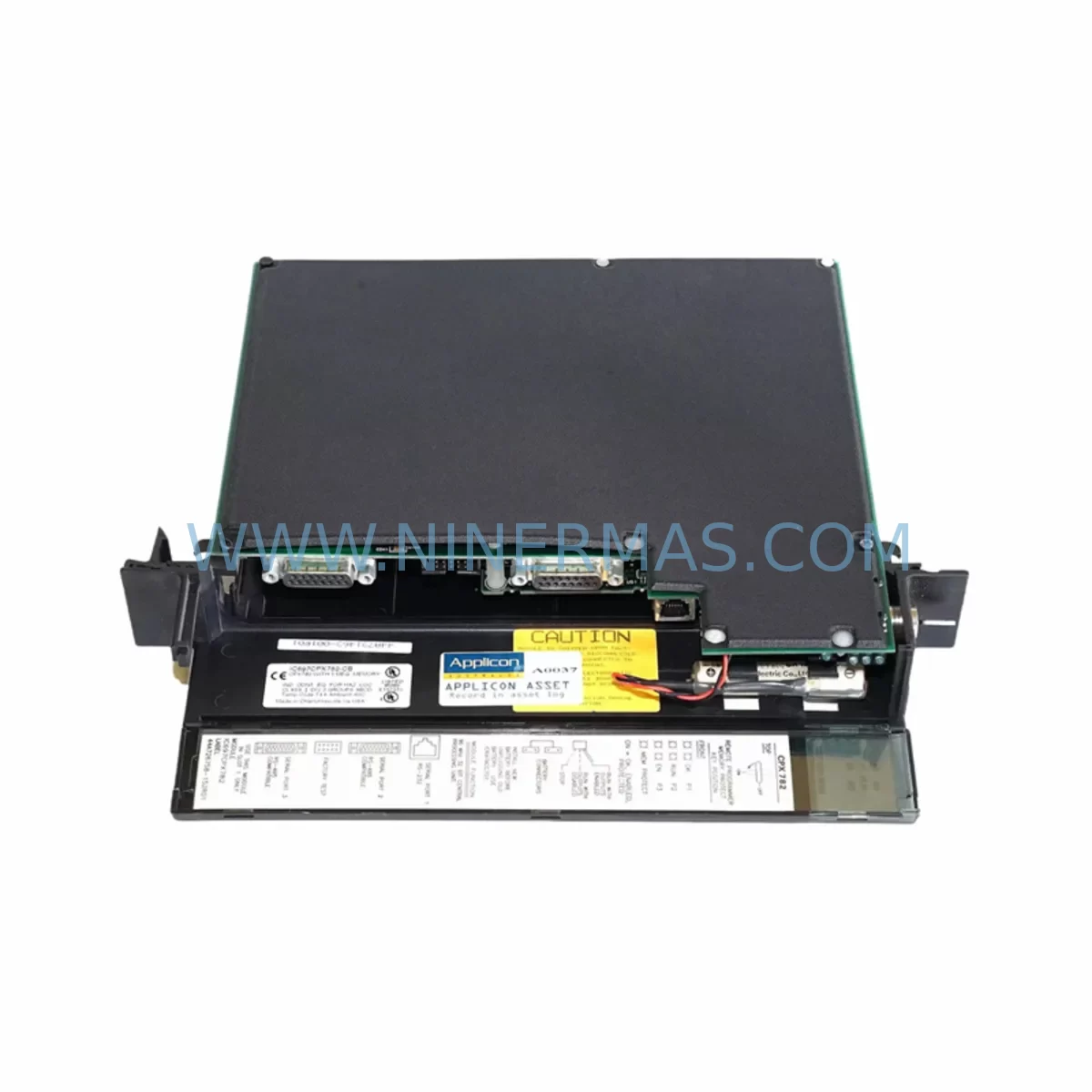

GE IC697CPX782-ED Retrofit CPU for Series 90-70 Systems

GE IC697CPX782-ED Retrofit CPU for Series 90-70 Systems: Legacy-Compatible Upgrade for Continuous Operations

The GE IC697CPX782-ED is a high-performance CPU module designed for the GE Series 90-70 programmable logic controller platform — one of the most widely deployed industrial control architectures in process automation, discrete manufacturing, and utility infrastructure. As original GE Fanuc production of this module has been discontinued, facilities running Series 90-70 racks face increasing pressure to source verified replacement units that maintain full backward compatibility with existing ladder logic programs, I/O configurations, and HMI communication links.

This IC697CPX782-ED unit is sourced, inspected, and pre-shipment tested to confirm operational integrity before dispatch. It is suitable for direct installation into existing IC697CHS750, IC697CHS782, or IC697CHS790 rack assemblies without requiring backplane modifications or firmware re-flashing in most standard configurations. Engineers planning a retrofit or emergency replacement will find this module a reliable path to restoring system availability with minimal downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC697CPX782-ED retrofit begins well before the module arrives on site. Maintenance engineers should first perform a full program backup using Proficy Machine Edition or Logicmaster 90-70, saving the ladder logic, configuration data, and reference table assignments to a secure offline location. This backup is the single most important safeguard against data loss during a CPU swap.

Next, verify the rack power budget. The IC697PWR711 or IC697PWR724 power supply must have sufficient headroom to support the IC697CPX782-ED alongside all installed I/O modules — including analog input modules such as the IC697ALG230 or IC697ALG320, discrete output modules like the IC697MDL340 or IC697MDL753, and any specialty modules occupying the remaining rack slots. Overloaded power supplies are a common and preventable cause of post-retrofit instability.

Communication architecture deserves equal attention. If the existing system uses an IC697CMM742 Ethernet Interface Module or an IC697CMM741 for TCP/IP connectivity to SCADA or DCS layers, confirm that the IP address assignments, port configurations, and SRTP or Modbus TCP parameters are documented before the swap. HMI panels — whether GE QuickPanel, iFIX-based workstations, or third-party SCADA terminals — rely on these communication parameters to maintain tag polling continuity. A mismatch in station address or baud rate on the serial port can silently break HMI data refresh without triggering a fault alarm.

For facilities that also operate IC697BEM731 Bus Expansion Modules or remote I/O drops connected via IC697BEM711 or IC697BEM713, the CPU module address map must be verified to ensure that remote rack I/O references remain consistent after the replacement. Any change in CPU firmware revision may affect how the module initializes remote I/O on power-up, so a controlled test in a non-production window is strongly recommended before full commissioning.

Signal isolation is another consideration in aging control cabinets. If the existing wiring includes legacy thermocouple or RTD inputs routed through signal conditioners or isolators, verify that the analog input modules retain their calibration offsets after the CPU swap. In some installations, the CPU stores scaling parameters that must be re-entered if the module is replaced with a different firmware variant.

Finally, confirm physical installation clearances. The IC697CPX782-ED occupies a single slot in the Series 90-70 rack. Ensure that adjacent modules — particularly high-heat analog modules or communication cards — have adequate airflow and that the rack fan assembly (if present) is operational. Thermal stress on a newly installed CPU module during the first power-up cycle is a leading cause of early field failures in retrofit scenarios.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU module replacement requires a structured pre-outage checklist. Before initiating the swap, place the process under manual control or coordinate with operations to schedule a planned maintenance window. Document the current CPU status, I/O fault table, and any active alarms so that post-swap commissioning can confirm a clean return to normal operation.

During the physical swap, handle the IC697CPX782-ED with ESD precautions — the Series 90-70 VME backplane is sensitive to electrostatic discharge, and improper handling can damage both the replacement module and adjacent cards. Power down the rack completely before removing the existing CPU, and reseat the new module firmly to ensure full backplane connector engagement.

After power-up, use Proficy Machine Edition to go online with the CPU and verify that the program loaded correctly from battery-backed RAM or from the re-downloaded backup. Confirm that all I/O modules report healthy status in the hardware configuration tree, that communication modules have re-established their network links, and that HMI screens are refreshing live data. A structured commissioning checklist — covering I/O point verification, alarm acknowledgment, and a short-duration production trial run — reduces the risk of returning the system to full production with an undetected configuration error.

For facilities with redundant CPU configurations or hot-standby architectures, the switchover sequence must be tested explicitly after the replacement to confirm that the redundancy link between the primary and secondary CPU modules is functioning correctly. Do not assume redundancy is operational without a verified switchover test.

Retrofit Support FAQ

Q: Is the IC697CPX782-ED a direct drop-in replacement for the IC697CPX782 or IC697CPU782?
A: In most Series 90-70 installations, yes. The -ED suffix denotes an enhanced or revised hardware revision. Program logic, I/O configuration, and communication parameters are generally preserved across the swap. However, we recommend verifying firmware compatibility with your specific rack configuration and Proficy ME version before installation. Our technical team can assist with pre-installation compatibility checks.

Q: What pre-shipment testing is performed on this unit?
A: Each IC697CPX782-ED unit undergoes functional power-on testing, backplane communication verification, and memory integrity checks before dispatch. Units that do not pass all test criteria are not shipped. A test report summary is available upon request.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and operational failure under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimize your system downtime.

Q: How quickly can this module be shipped, and is stock confirmed?
A: Stock availability is confirmed at the time of order. Standard lead time for verified in-stock units is 1–3 business days for international express shipment. Contact our sales team for urgent same-day dispatch requests or volume order scheduling.
