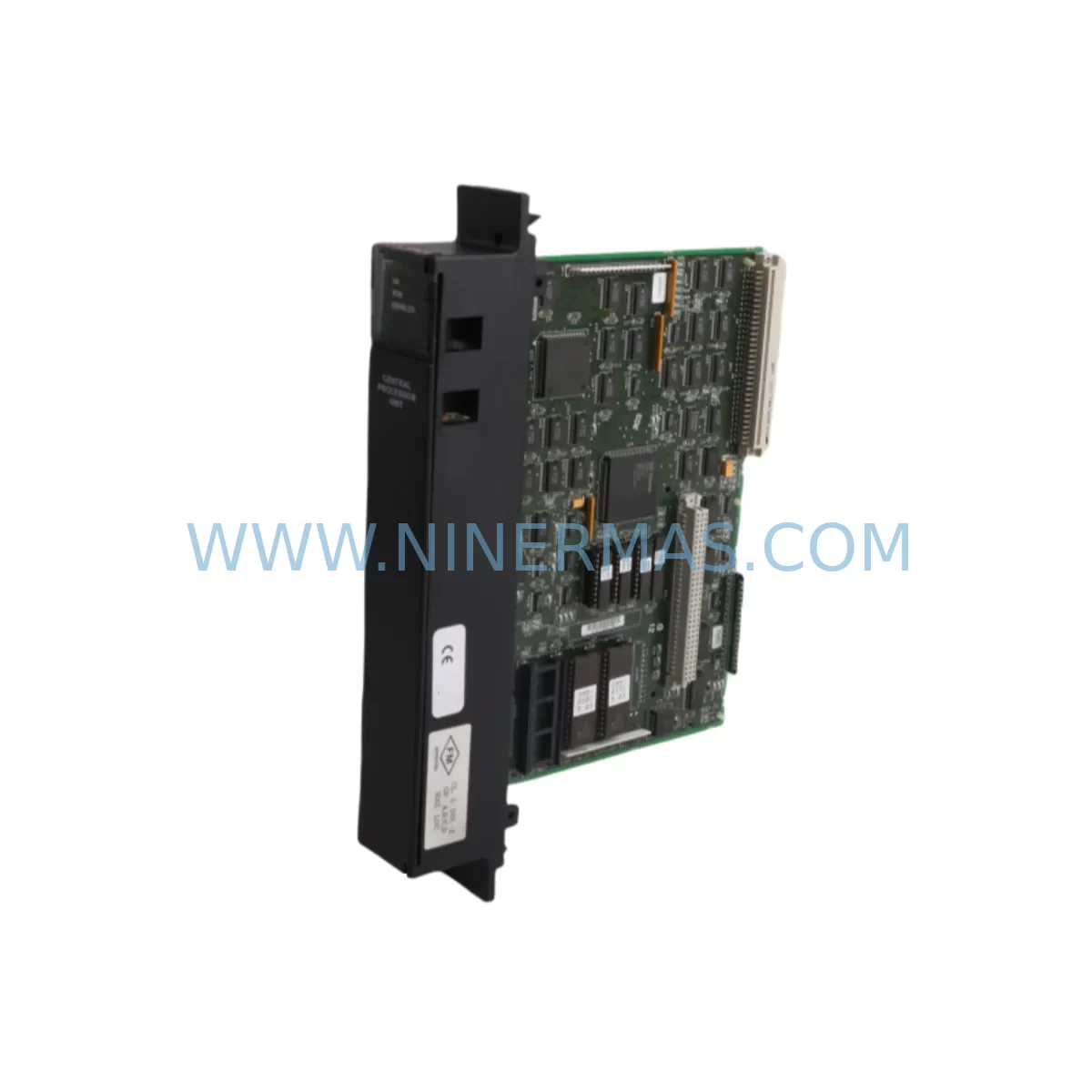

The GE IC697CPU771 is a high-performance CPU module designed for the GE Fanuc Series 90-70 Programmable Logic Controller platform — one of the most widely deployed rack-based PLC architectures in heavy industry, power generation, oil & gas processing, and large-scale manufacturing. As production lines age and OEM support windows close, maintaining a verified, service-ready IC697CPU771 spare in your critical inventory is no longer optional — it is a core element of any responsible maintenance strategy. Unplanned CPU failure in a Series 90-70 rack can halt an entire production line within seconds. With lead times for legacy automation components often stretching weeks or months through standard channels, having a pre-tested, warehouse-ready IC697CPU771 on hand is the single most effective way to compress mean time to recovery (MTTR) and protect operational continuity.

At NINERMAS, every IC697CPU771 unit is sourced, inspected, and dispatched under a 12-month warranty. Pre-shipment functional testing is performed to verify firmware integrity, memory addressing, and communication handshake with standard Series 90-70 backplane configurations. This ensures that when your maintenance team installs the replacement module, it performs to original GE Fanuc specifications from the first power cycle.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IC697CPU771 in a live production environment requires more than a direct module swap. Experienced maintenance engineers understand that a CPU failure in a Series 90-70 rack is rarely an isolated event — it is often accompanied by stress on adjacent modules that share the same backplane power bus and communication pathways. A thorough site inspection during the replacement window is essential to prevent secondary failures within days or weeks of the initial repair.

Begin with the power supply. The IC697PWR711 rack power supply module should be load-tested during any CPU replacement event. A degraded power supply operating near its thermal limit is a common root cause of intermittent CPU resets and memory corruption errors. If the IC697PWR711 has been in service for more than five years without replacement, treat it as a concurrent spare requirement alongside the IC697CPU771.

Next, inspect the backplane bus expansion infrastructure. If your Series 90-70 system uses a multi-rack configuration, the IC697BEM731 bus expansion module governs inter-rack communication. A failing BEM731 can cause the replacement CPU to report I/O scan errors or fail to establish communication with remote racks — symptoms that are easily misdiagnosed as a CPU fault. Verify BEM731 status LEDs and cable integrity before closing the maintenance window.

Discrete I/O modules should be audited in parallel. The IC697MDL750 32-point discrete input module and IC697MDL340 32-point discrete output module are high-cycle components in most process environments. Inspect terminal block connections, verify input signal levels, and confirm output relay contact resistance is within specification. Worn contacts or loose field wiring can generate spurious I/O faults that mask the true source of a system alarm.

For systems with analog process loops, the IC697ALG320 analog input module requires calibration verification after any CPU replacement. Program memory reload can reset scaling parameters if the application program was not properly backed up prior to the failure event. Confirm that all analog channel engineering unit conversions are intact before returning the system to automatic control.

Communication infrastructure deserves equal attention. The IC697CMM741 Ethernet communication module — used in many Series 90-70 installations for SCADA integration and HMI connectivity — should be power-cycled and its IP configuration verified after the CPU is replaced. In some firmware combinations, the CMM741 requires a manual re-initialization to re-establish its network session with the host SCADA system.

If your installation includes a IC697PCM711 programmable coprocessor module for high-speed motion or custom ladder logic offloading, verify that the coprocessor firmware and application code are intact after the CPU swap. The PCM711 maintains its own program memory, but its communication handshake with the primary CPU must be re-validated post-replacement.

Memory expansion should also be reviewed. The IC697MEM731 CMOS memory module, used to extend user program storage beyond the base CPU capacity, relies on a lithium battery for data retention. Battery voltage should be checked at every planned maintenance interval — a failed MEM731 battery will cause complete program loss on the next power cycle, compounding the impact of any CPU replacement event.

Finally, for installations with high-speed pulse counting or encoder feedback, the IC697HSC700 high-speed counter module should be functionally tested after the CPU replacement to confirm that counter accumulator values and preset registers have been correctly restored from the application program backup.

Maintaining a structured spare parts kit — covering the IC697CPU771, IC697PWR711, IC697BEM731, IC697MDL750, IC697CMM741, and IC697MEM731 as a minimum — provides the foundation for a sub-4-hour recovery window on most Series 90-70 installations. NINERMAS can support long-term supply agreements for all of these components, ensuring your maintenance team has verified, warranty-backed spares available on demand.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Before removing the failed IC697CPU771, use the GE Fanuc Logicmaster 90-70 or Proficy Machine Edition programming software to upload and save the current application program, I/O configuration, and hardware configuration to a secure engineering workstation. Confirm the backup file is complete and readable before proceeding.

Step 2 — Power Down and Module Removal: Follow your site lockout/tagout (LOTO) procedure. Remove the failed IC697CPU771 from its backplane slot. Inspect the slot connector for bent pins, corrosion, or debris. Clean the connector with approved contact cleaner if necessary.

Step 3 — Install Replacement Module: Insert the NINERMAS-supplied IC697CPU771 into the vacated slot. Ensure the module is fully seated and the front panel latch is engaged. Restore rack power and observe the CPU status LEDs — the module should cycle through its self-test sequence and indicate a RUN-ENABLED or STOP state within 30 seconds.

Step 4 — Program Download and I/O Verification: Download the saved application program and hardware configuration to the replacement CPU. Perform a full I/O force test on critical outputs before enabling automatic control. Verify that all analog scaling, timer presets, and communication parameters are correctly restored.

Step 5 — System Handback: Document the replacement event — module serial number, firmware version, date of installation, and technician name — in your maintenance management system. Update your spare parts inventory to trigger a replenishment order for the next IC697CPU771 unit, maintaining your minimum stock level.

Spare Parts Support FAQ

Q1: Is the IC697CPU771 still available as a new or refurbished spare?
A: The IC697CPU771 has been discontinued by GE Fanuc as part of the Series 90-70 end-of-life program. However, NINERMAS maintains service-ready stock sourced from verified industrial channels. Each unit undergoes pre-shipment functional testing and is dispatched with a 12-month warranty, providing a reliable replacement path for sites that cannot migrate to a newer PLC platform in the short term.

Q2: How do I verify compatibility between the IC697CPU771 and my existing Series 90-70 rack?
A: The IC697CPU771 is compatible with all standard Series 90-70 7-slot and 9-slot racks, including the IC697CHS750 and IC697CHS782 chassis. Compatibility is determined by the backplane bus standard, not the rack slot count. Provide your existing hardware configuration file or rack layout to the NINERMAS technical team for a pre-purchase compatibility confirmation.

Q3: What is included in the 12-month warranty and pre-shipment testing?
A: Every IC697CPU771 dispatched by NINERMAS is tested for power-on self-test completion, memory read/write integrity, serial communication port functionality, and backplane bus communication. The 12-month warranty covers module failure under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost, subject to standard return authorization procedures.

Q4: Can NINERMAS support long-term supply agreements for the IC697CPU771 and related Series 90-70 components?
A: Yes. NINERMAS offers reserved inventory agreements for critical spare parts, including the IC697CPU771 and associated modules such as the IC697PWR711, IC697BEM731, and IC697CMM741. Long-term supply agreements include priority allocation, fixed pricing for the agreement term, and guaranteed dispatch within agreed lead times — providing procurement teams with cost certainty and supply security for aging automation assets.
