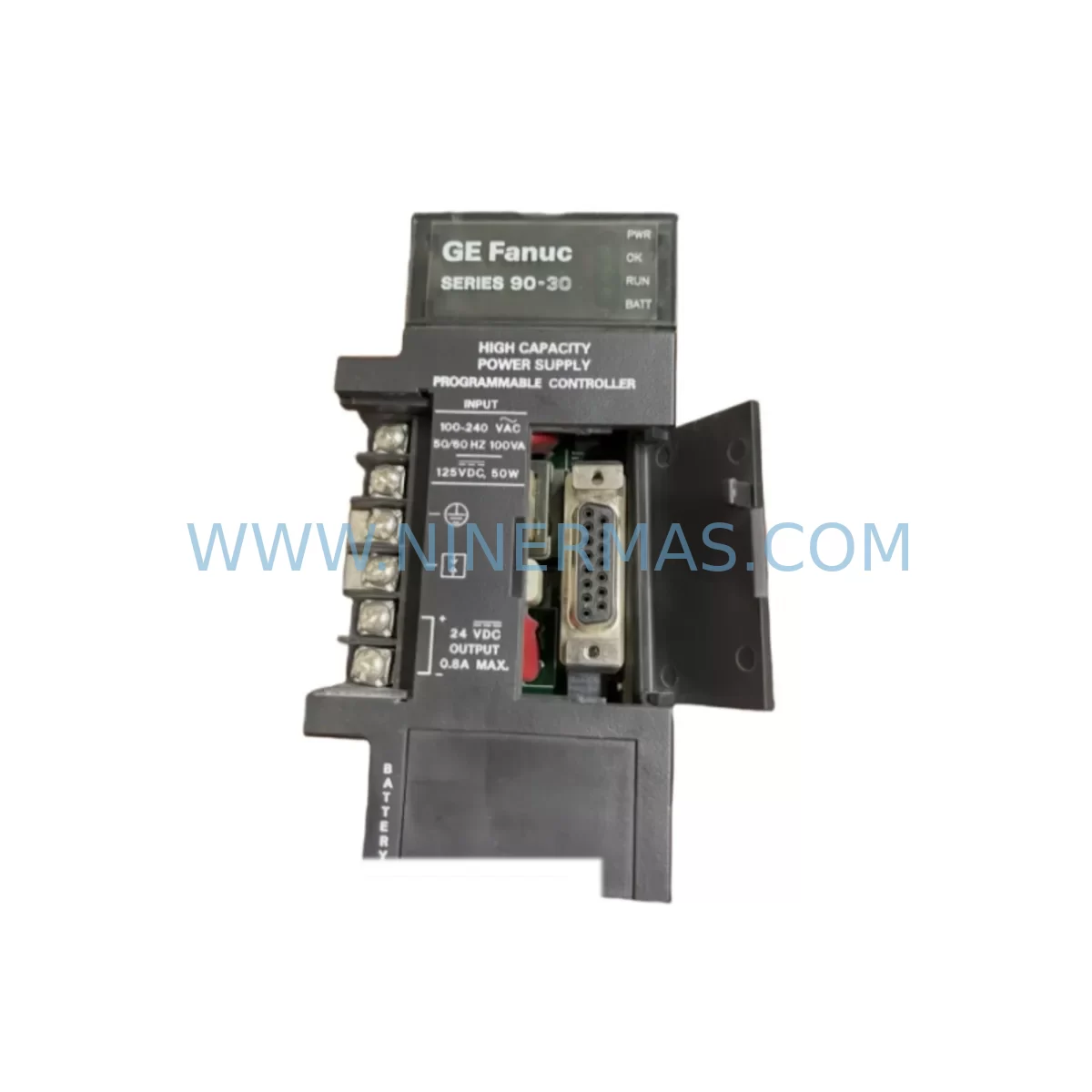

The GE IC694PWR331C is a high-reliability AC input power supply module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in continuous process industries. Rated at 120/240 VAC input with a regulated 5 VDC / 3.3 A and 24 VDC / 0.8 A output, this module delivers stable, conditioned power to the Series 90-30 backplane under the demanding electrical conditions found in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, port logistics systems, and continuous manufacturing lines.

In critical industrial environments, power supply integrity is the first line of defense against control system failure. Voltage sags, harmonic distortion, inrush surges, and ground noise are constant threats in high-load switchgear rooms and motor control centers. The IC694PWR331C is designed with internal transient suppression and regulated output filtering to absorb these disturbances before they propagate to the CPU rack — protecting the GE IC694CPU364 processor, IC694MDL754 discrete output modules, and IC694ALG220 analog input cards from signal drift and spurious faults that can trigger unplanned shutdowns.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A robust control cabinet architecture for Series 90-30 systems begins with a stable, well-filtered power foundation. The IC694PWR331C anchors this foundation by delivering clean, regulated DC rails to every module on the backplane. However, power supply integrity alone is insufficient for true safety-grade performance in hazardous or high-availability sites. A complete risk reduction strategy integrates the power supply with complementary protection and communication layers.

On the input side, a properly rated isolation transformer or line reactor upstream of the IC694PWR331C significantly attenuates common-mode noise and voltage spikes originating from variable frequency drives (VFDs) and large motor starters sharing the same distribution panel. For 24 VDC field loop protection, pairing the module’s auxiliary output with a Phoenix Contact QUINT-PS or equivalent DIN-rail power supply provides redundant field power for sensors and solenoid valves, ensuring that a field wiring fault does not collapse the entire 24 V bus.

Communication reliability in Series 90-30 systems depends equally on clean power. The GE IC694CMM321 Communications Control Module and IC694BEM331 Genius Bus Controller are both sensitive to backplane voltage ripple — a degraded power supply can manifest as intermittent Modbus RTU timeouts or Genius bus token-passing failures that are extremely difficult to diagnose without power quality instrumentation. Replacing an aging IC694PWR331C before these symptoms appear is a proven preventive maintenance strategy.

For safety interlock circuits, the GE IC694MDL660 24 VDC discrete input module and IC694MDL940 relay output module form the core of emergency stop (E-stop) and safety relay logic within the Series 90-30 rack. These modules depend on stable 5 VDC backplane power for accurate input scanning and deterministic output switching. A power supply with degraded output regulation can introduce scan-cycle jitter that compromises the response time of safety-critical interlocks — a risk that is entirely eliminated by maintaining a healthy IC694PWR331C in service.

In high-vibration environments such as mining conveyors or offshore platform control rooms, supplementing the power supply with DIN-rail terminal block surge arresters (e.g., Phoenix Contact PT series or DEHN DEHNguard) on all field cable entries provides a final layer of surge protection, preventing transient energy from reaching the IC694PWR331C’s AC input terminals and extending module service life.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and catalytic cracking units, the IC694PWR331C sustains uninterrupted PLC operation across 24/7 production cycles. It powers the Series 90-30 rack controlling feed pump interlocks, pressure relief valve sequencing, and emergency shutdown (ESD) logic — where any control interruption risks process excursion and personnel safety incidents.

Power Generation & Substation Automation: Turbine governor control panels and substation bay controllers built on the Series 90-30 platform rely on the IC694PWR331C to maintain logic power during grid disturbances. Its AC input range accommodates the voltage fluctuations common in generator auxiliary bus systems, ensuring the PLC remains operational during load-shedding events.

Mining & Mineral Processing: Conveyor belt management systems, crusher control panels, and flotation cell automation in underground and open-pit mines operate in environments with extreme dust ingress, humidity, and mechanical vibration. The IC694PWR331C’s robust construction and wide operating temperature range make it a preferred replacement module for aging Series 90-30 installations in these harsh conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment SCADA systems use Series 90-30 PLCs to control pump stations, chlorination dosing, and filtration backwash cycles. The IC694PWR331C provides the stable backplane power required for continuous, unattended operation — critical in facilities where control system failure can result in regulatory non-compliance or public health risk.

Metallurgy & Steel Production: Electric arc furnace (EAF) auxiliary control systems and rolling mill automation panels generate severe electrical noise from high-current switching. The IC694PWR331C’s internal filtering and isolation protect the Series 90-30 CPU from this noise, maintaining reliable control of cooling water interlocks, fume extraction systems, and casting line sequencing.

Port Logistics & Ship-to-Shore Cranes: Container terminal crane control systems and ship-loading conveyor automation built on legacy Series 90-30 platforms require long-term spare parts availability. NINERMAS maintains dedicated stock of the IC694PWR331C to support planned maintenance shutdowns and emergency replacements, minimizing crane downtime and cargo handling disruption.
